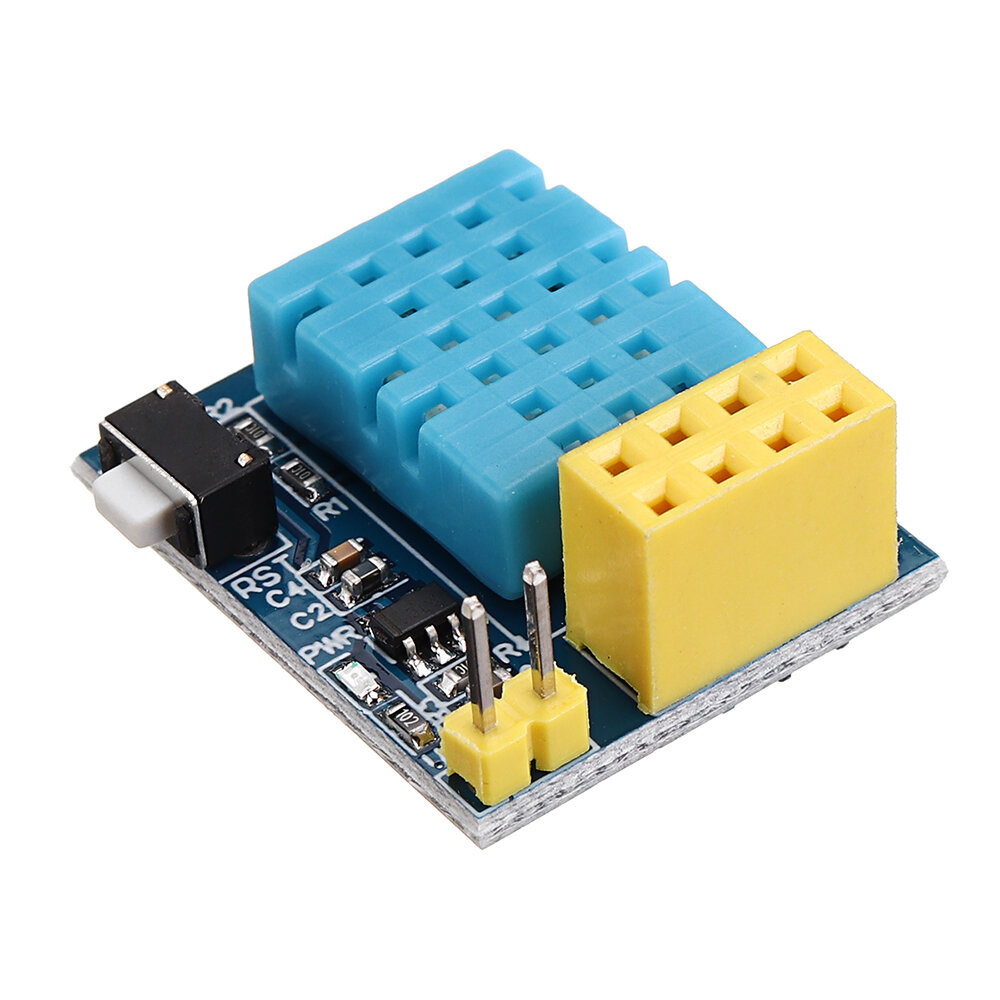

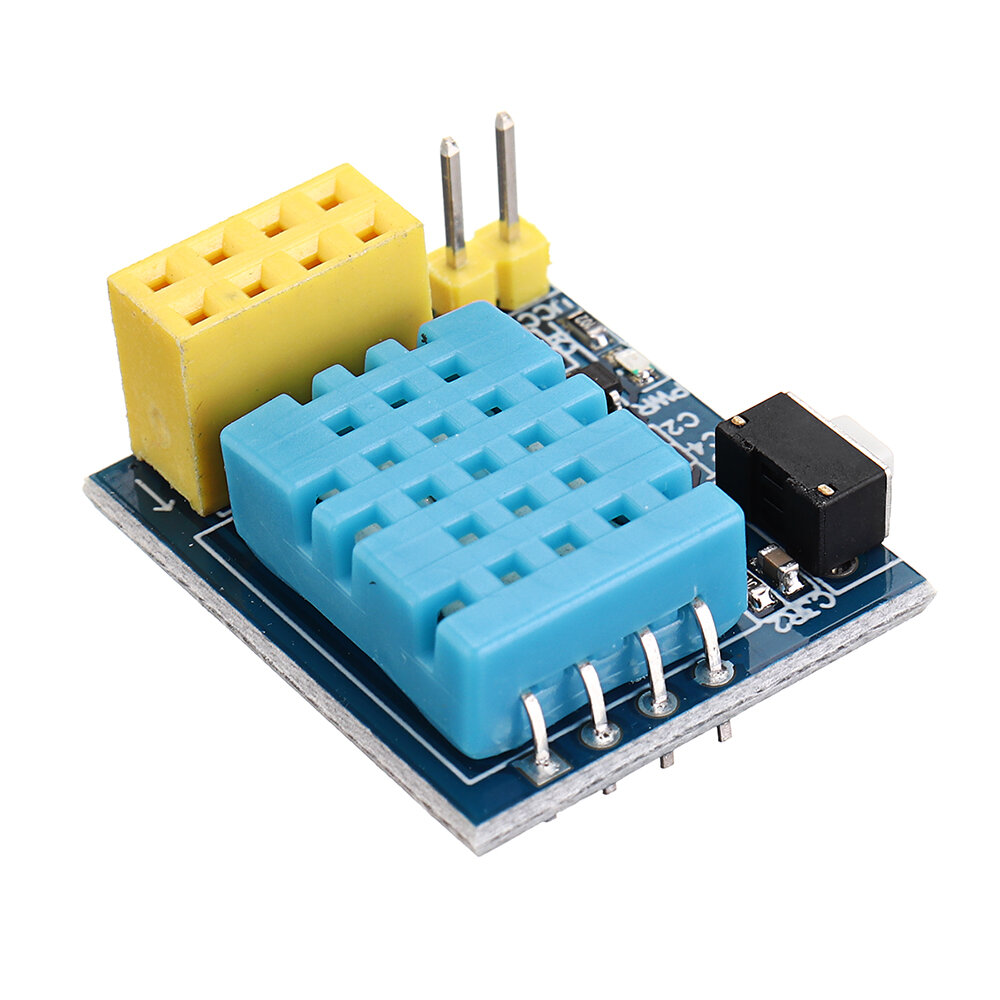

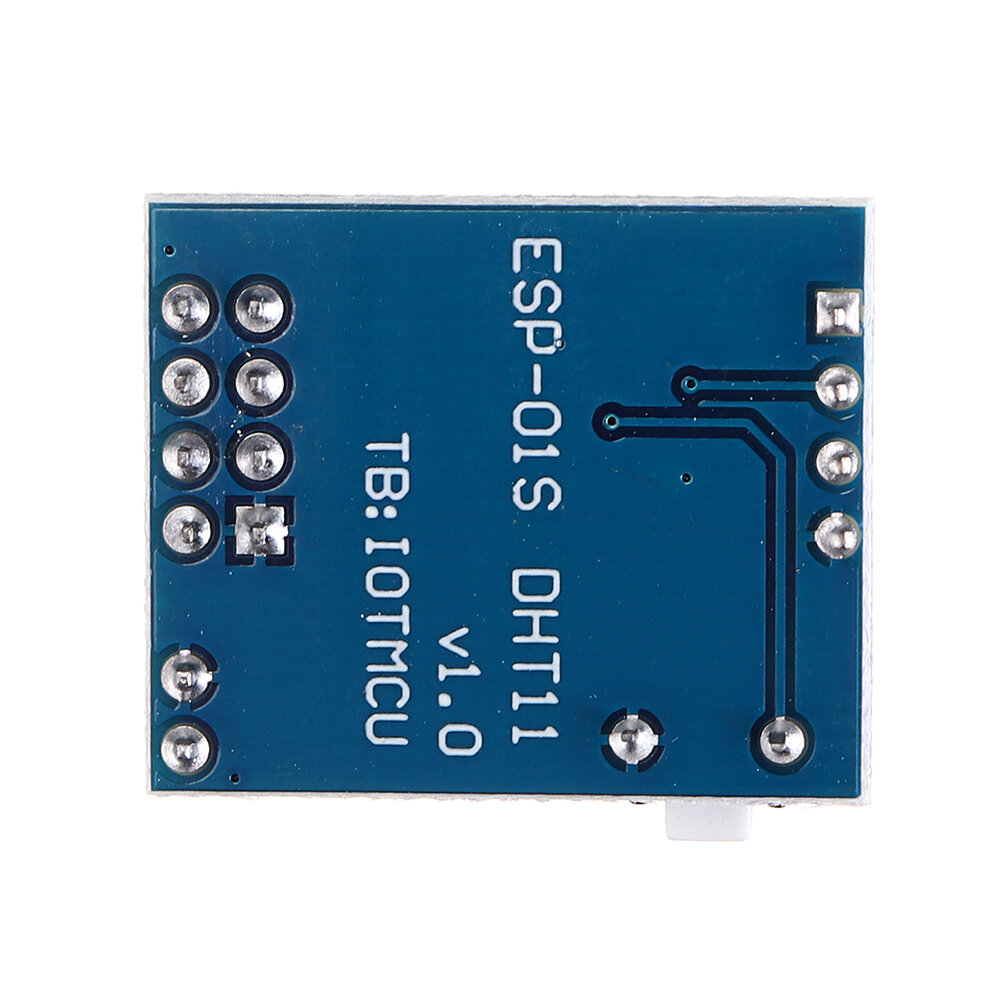

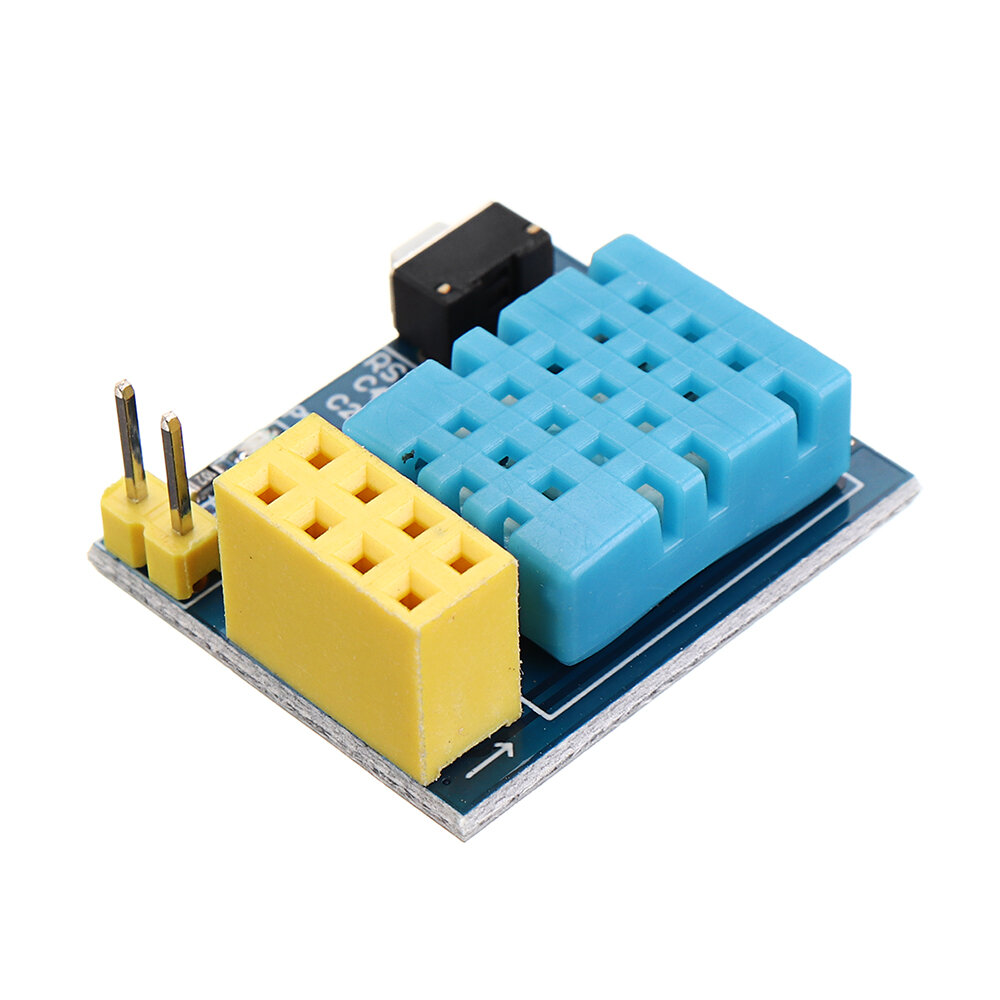

ESP8266 ESP-01 ESP-01S DHT11 Sensor Temperature and Humidity WiFi Node Module COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Master: ESP-01/ESP-01S (This module does not include ESP-01/ESP-01S) Temperature and humidity sensor: DHT11 Working voltage: DC 3.7V-12V (supports 3.7v lithium battery power supply) Measuring range: 20-90% RH 0-50 °C Measurement accuracy: Temperature: ± 2 ° C Humidity ± 5% RH 1. Power supply: 3.7V-12V DC power supply is connected to VCC GND (2.54mm pin header) 2. Download the program to ESP-01S (package does not includes this wireless module) 3. Plug the ESP-01/ESP-01S (package does not includes this wireless module) into the 2*4 Pin female (in the direction of the arrow)

Package includes:

1/3/5/10 x WiFi Node Module (optional)
