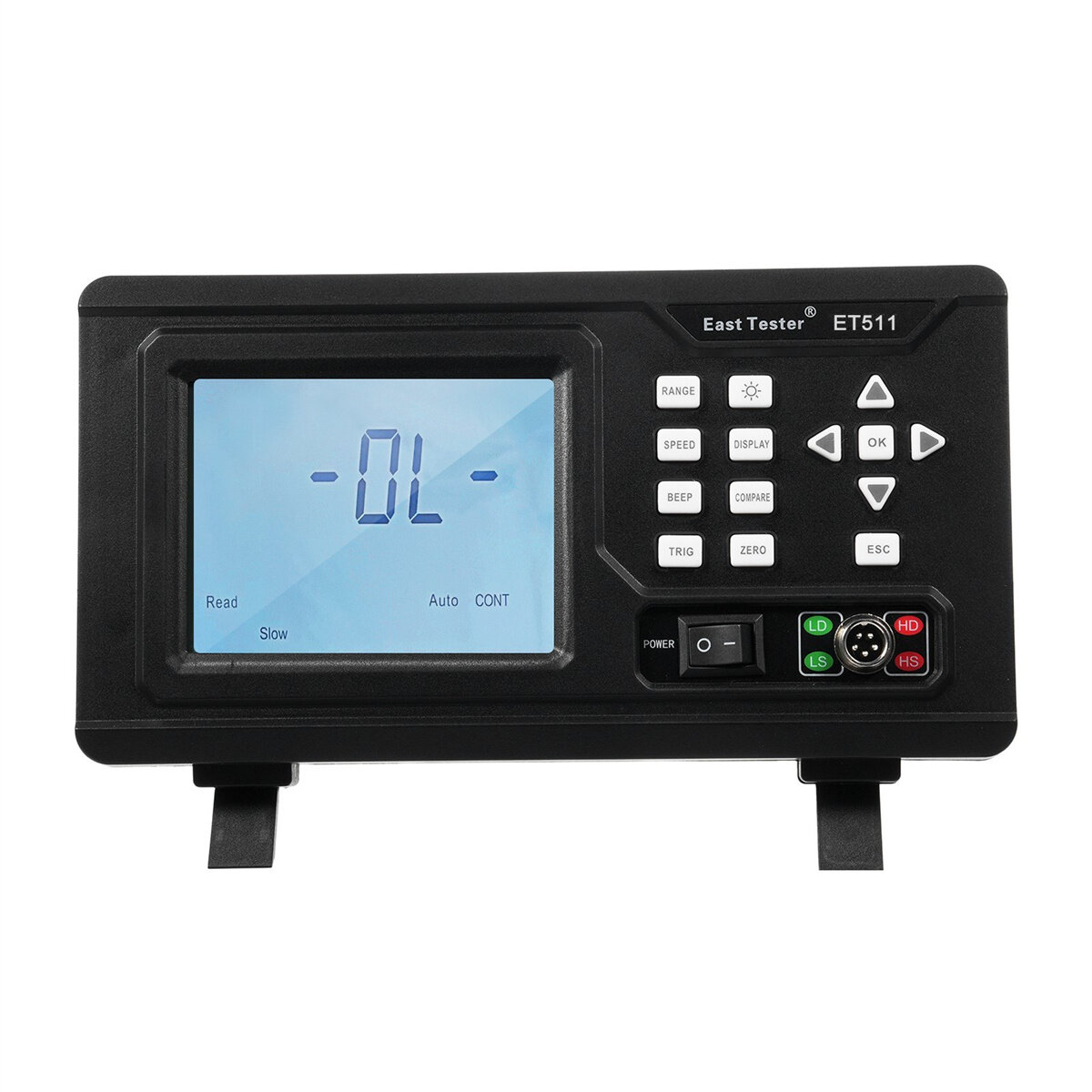

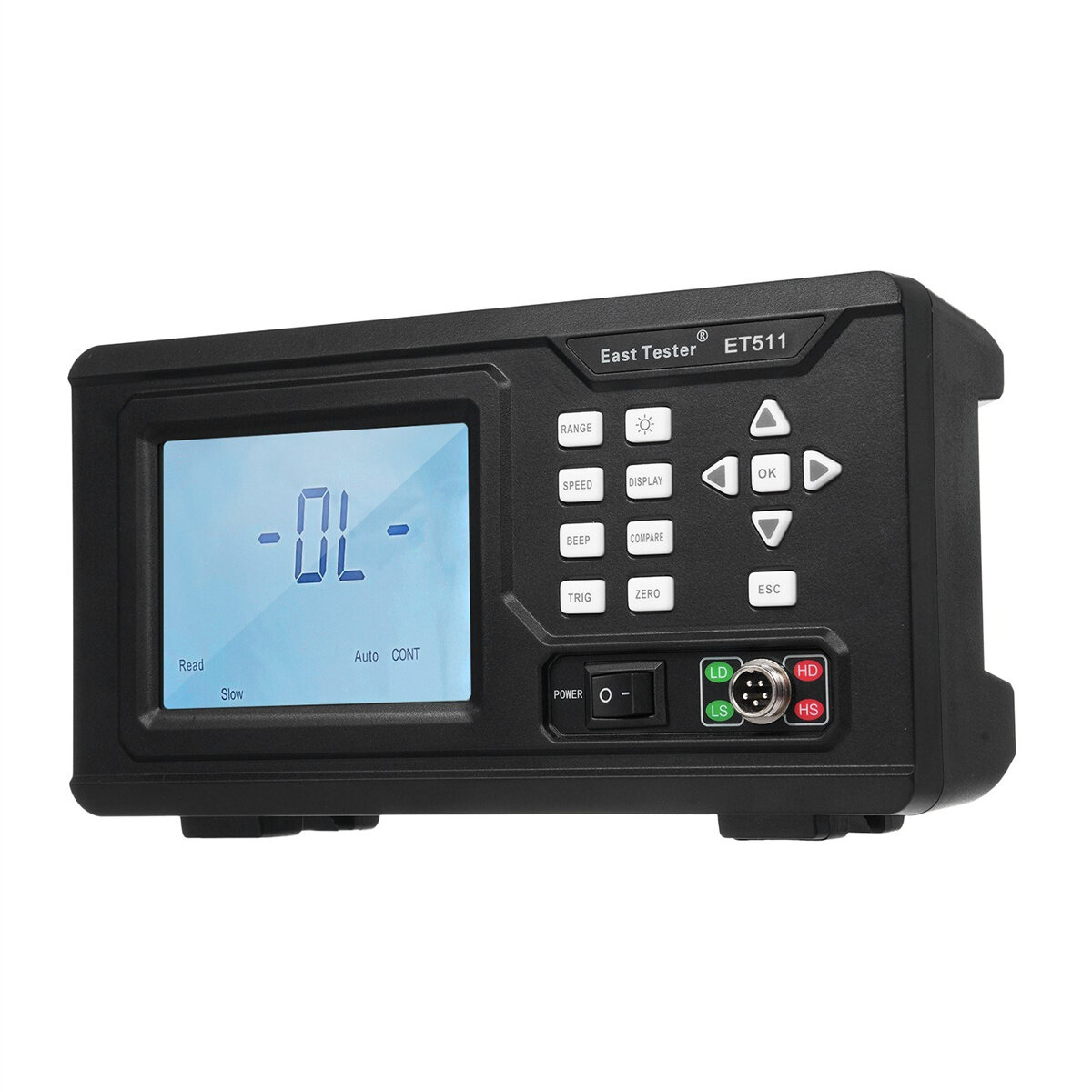

1. Convenience with a High-definition LCD Screen: At its core is a large backlit LCD screen providing visibility in any environment. The backlight is adjustable, making it customizable based on lighting circumstances.

2. Wide Measurement Range & High Accuracy: Ranging from 10μΩ to 20kΩ, the DC low resistance tester provides accurate readings with a resolution as low as 10μΩ. It guarantees high precision and meets the needs of electricity and household maintenance.

3. Adjustable Speed & Adjustment: The tester offers two adjustable speeds - slow (8 times/s) and fast (15 times/s) - to cater to varying requirements. It also includes a sorting and comparison function displaying results in direct readings or as a percentage.

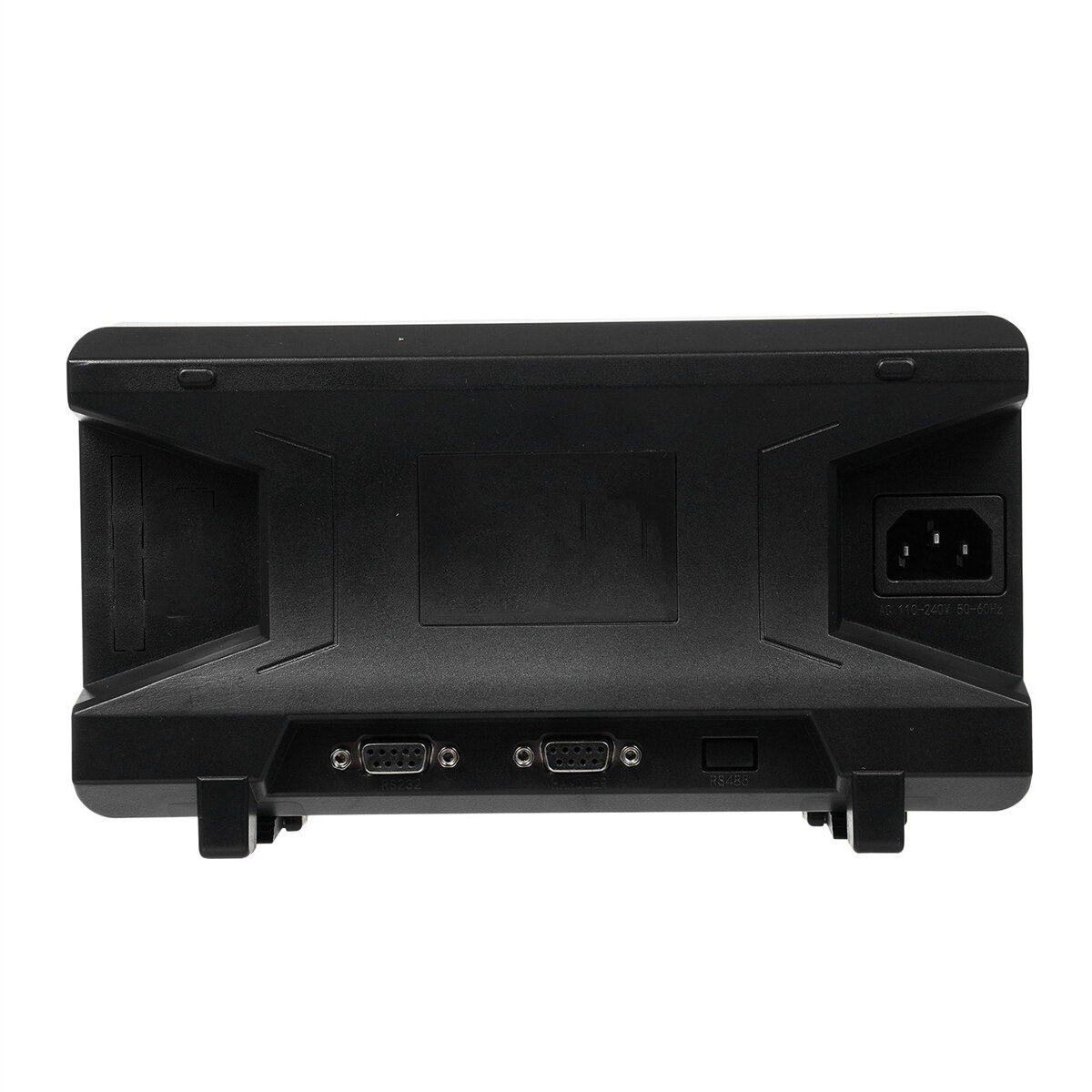

4. Multiple Trigger Modes & External Ports: The ET511 DC resistance tester provides multiple trigger modes for better control. In addition to manual and external triggers, its equipped with a HANDLER and RS232 communication port for seamless communication with PC and PLC.

5. Versatility: Designed to test various DC medium and low-value resistance including transformer windings, relay contacts, cables, and other conductor resistance, making it suitable for wide-ranging testing requirements.

Plug: US / EU(Optional)

Model: ET511

Measuring Range: 10μΩ~20kΩ

Testing Current: Max 100mA

Testing Speed: Slow: 8times/S; Fast: 15 times /S

External Port Standard: RS232, HANDLER; Option: RS485

Working Environment: Temperature: 5°C ~ 40°C

Material: ABS

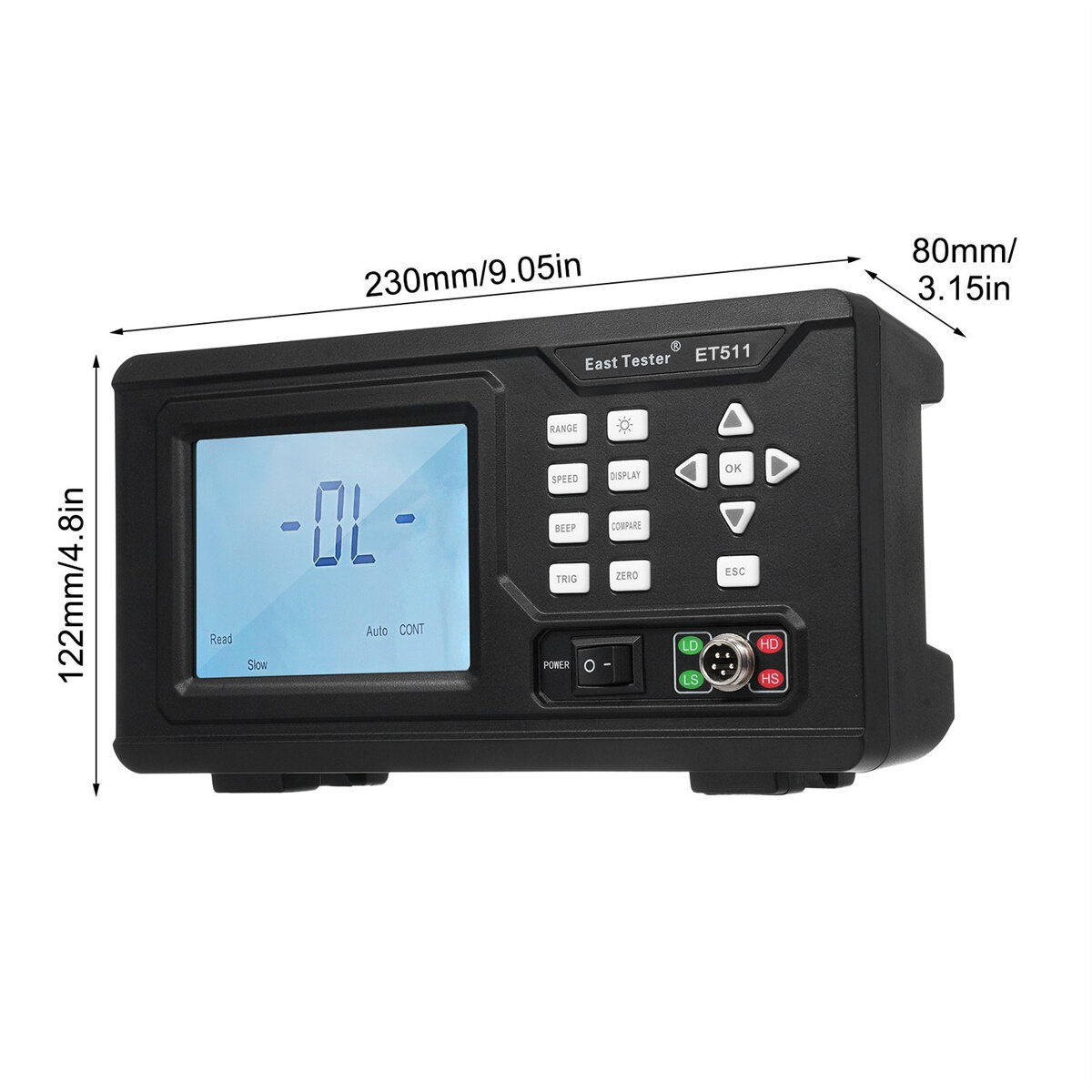

Item Dimensions: 23 * 12.2 * 8 cm / 9.05 * 4.8 * 3.15 inch

Item Weight: 500g / 17.64oz

1 x DC Low Resistance Tester

1 x Power Cable (Plug Type as your choice)

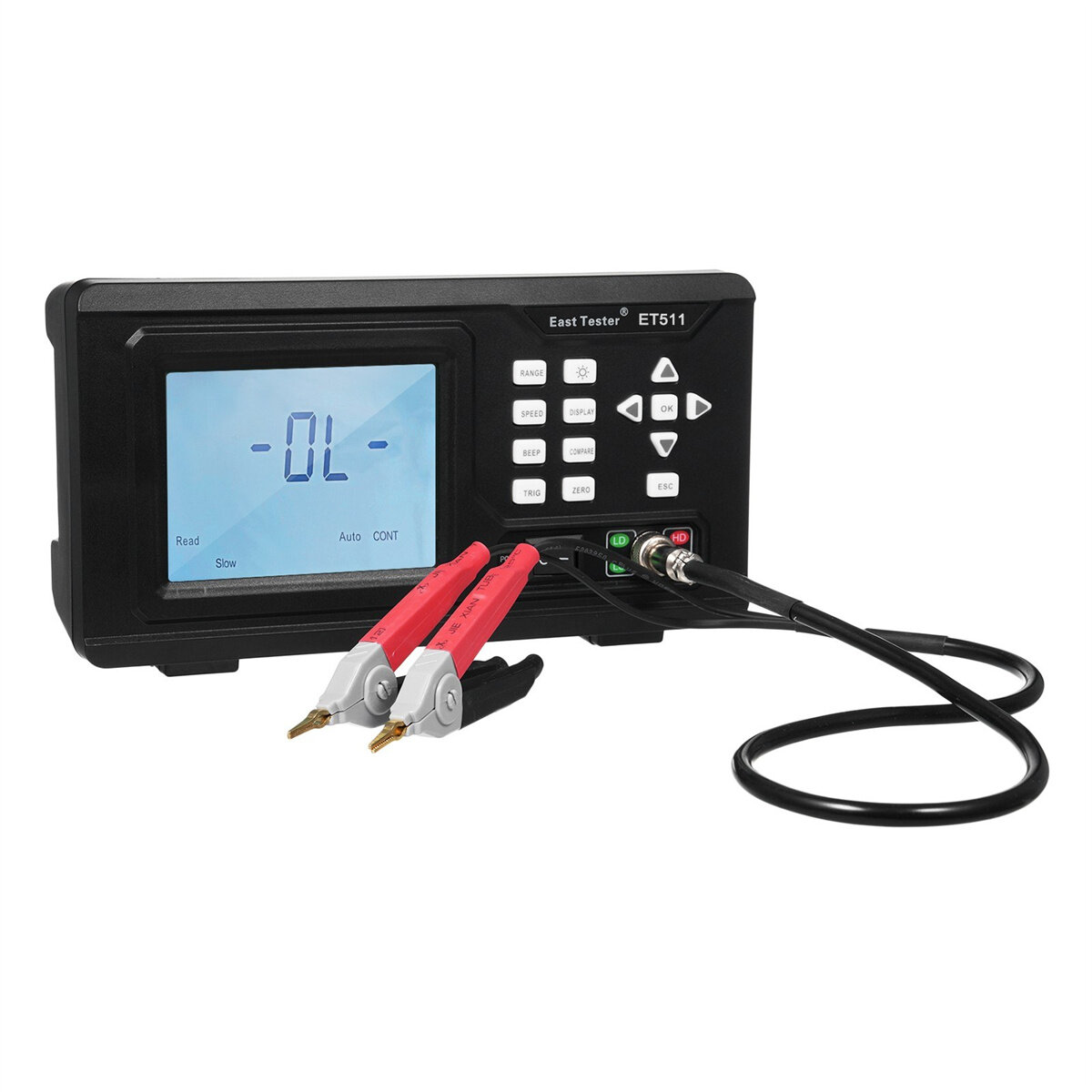

1 x Test Cable

1 x English User Manual
