>>Please click here to download the Chinese and English manual<<

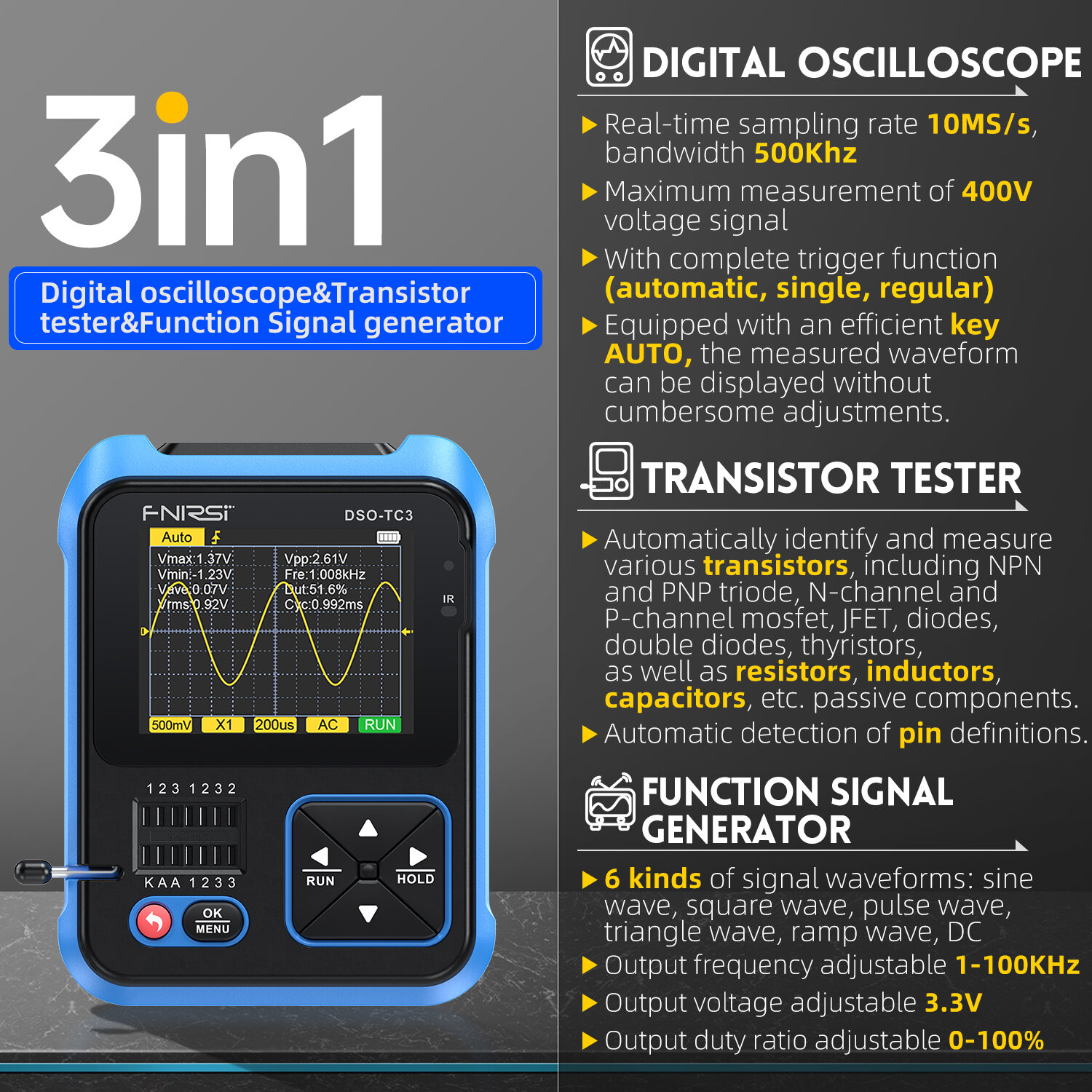

Main Features:

3 In 1 Function:

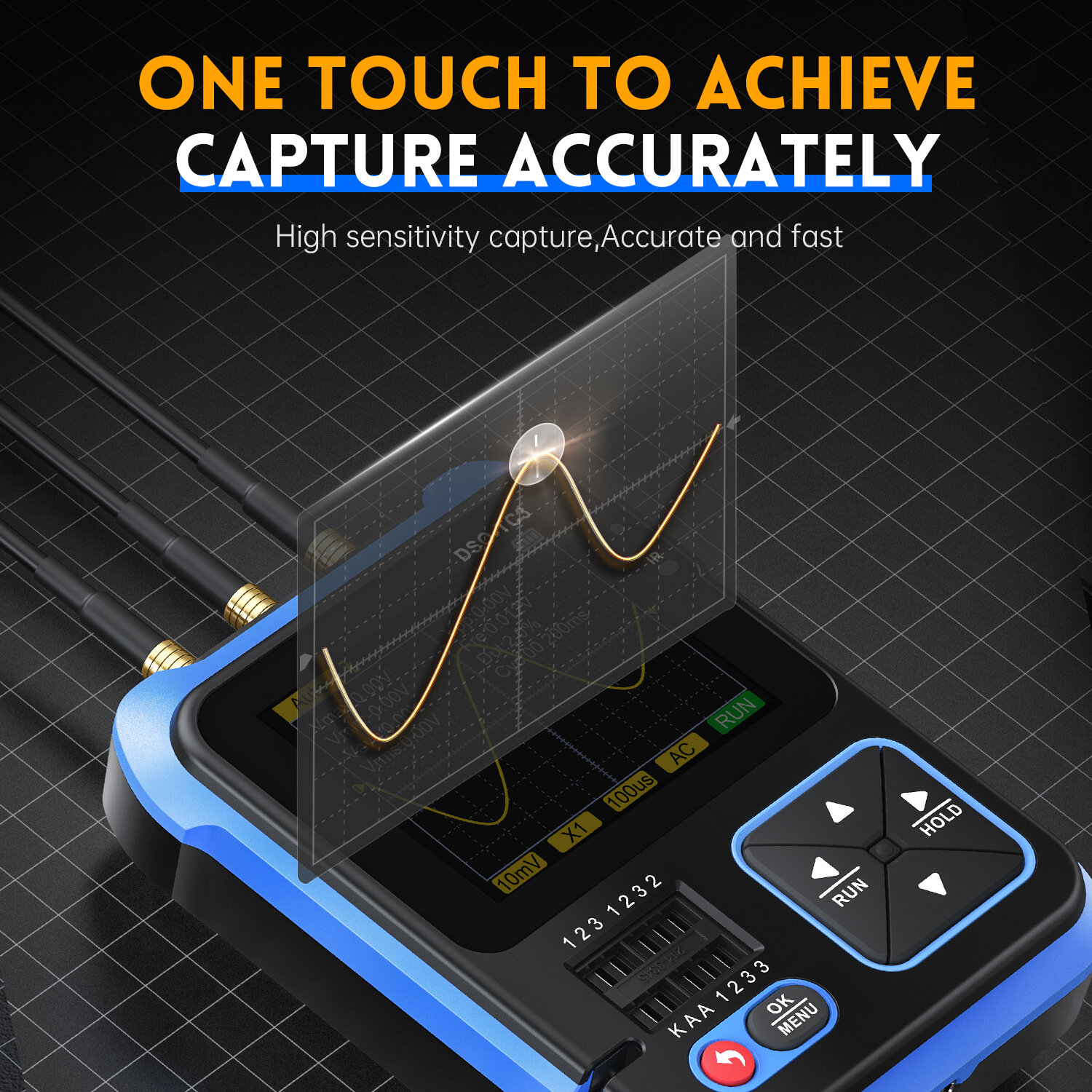

Digital Oscilloscope Function: 10MS/s 500Khz.

Transistor Tester Function:

Signal Generator Function:

Tool Box Function:

2.4inch Digital TFT Display:

High Accuracy:

Rich and Powerful Features:

Long Endurance:

Folding Bracket:

Wide Applications:

Name: 3in1 Digital Oscilloscope

Material: ABS

Display: 2.4 inches TFT color screen

Battery: Built-in 1500mah rechargeable lithium battery (included)

Charging interface: USB Type-C, +5V

Digital Oscilloscope: 10MSa/s

Real-time sample rate: 500Khz

Analog Bandwidth: 1ΜΩ

Input resistance: Alternating Current/Direct Current

Coupling method: 400V

Test voltage ranges: 10mV-10V

Vertical Sensitivity (x1): 1us-10s

Horizontal time base ranges:

Trigger mode: Auto / Normal / Single

Trigger type: Rising edges / Falling edges

Waveform Freeze: Yes

Automatic measurement: Yes

Transistor Tester:

Capacitor: 25pF~100mF

Resistor: 0.01Ω ~ 50ΜΩ

Inductor: 10uH~1000uH

Battery: 0.1~4.5V

Input voltage: 0~40V

DS18B20: 0-85℃

DHT1: 0-60°C/5-95%

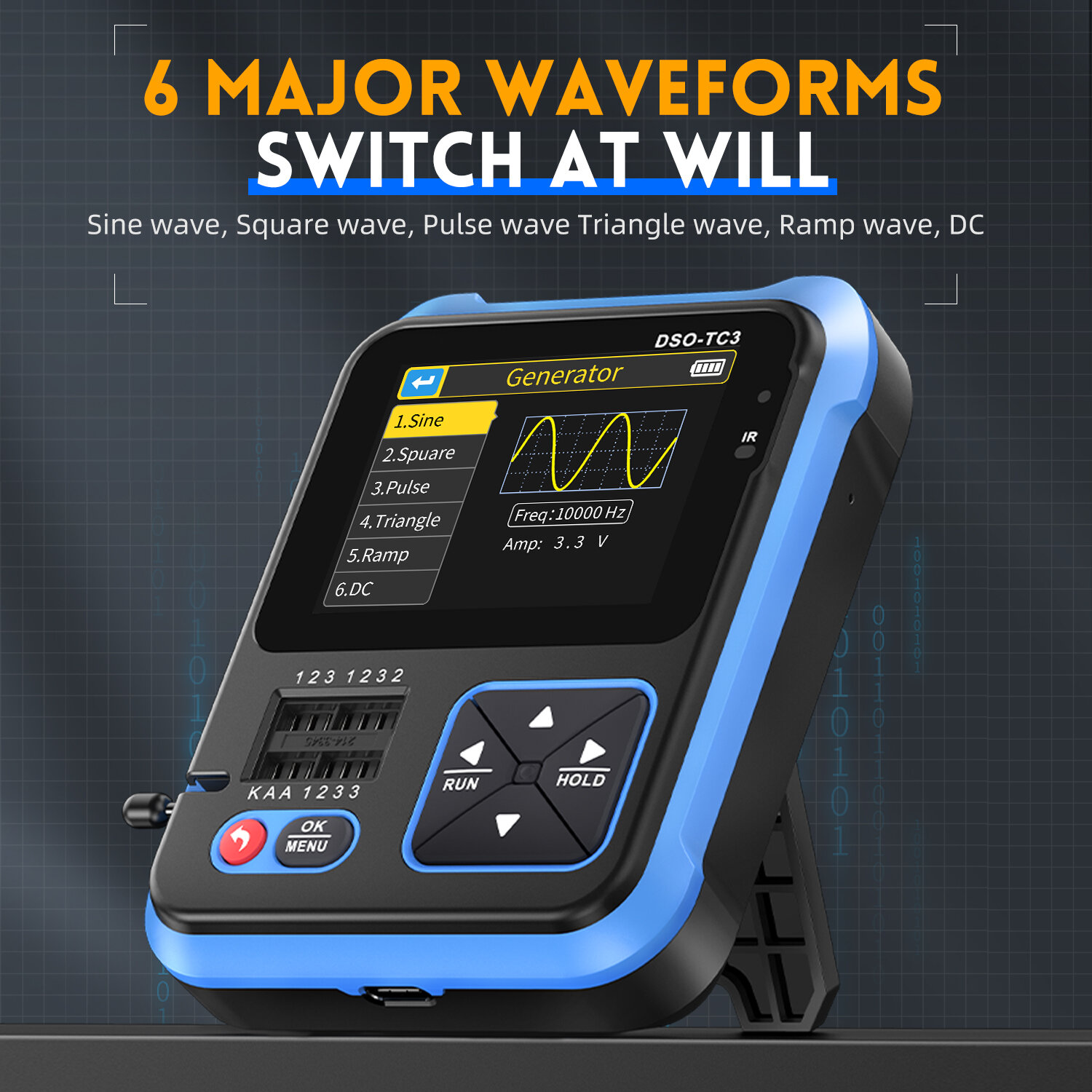

Signal Generator:

Sinewave: 1-10KHz/0-3.3V/50%

SQW: 1-100KHz/3.3V/50%

Pulsewave: 1-100KHz/3.3V/0-100%

Trianglewave: 1-10KHz/0-3.3V/50%

Ramp: 1-10KHz/0-3.3V/0-100%

Direct current: 0-3.3V

Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in

Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in

Package weight:

Standard configuration: 300g / 10.58ounce

High configuration: 345g / 12.17ounce
