FNIRSI Signal Generator DIY Kit with ICL8038 High-Speed Op Amp Adjustable Frequency 5Hz-400KHz Duty Cycle 2-95% High Low Distortion Sine Wave COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine





Uses ICL8038 and high-speed op amp, higher accuracy.

Can output sine/triangle/square/forward and reverse sawtooth waveforms.

Frequency Range: 5Hz~400kHz; Duty Cycle Range: 2~95%(Adjustable)

Supports dual power amplifier without blocking the capacitor to ensure high and low frequency signal distortion.

Adjustable frequency and amplitude.

Frequency adjustment features coarse tuning and fine tuning.

All are through hole components, easy to install.





Material: FR4 + Acrylic

Supply Voltage: 12V~15V

Frequency Range: 5Hz~400KHz(Adjustable)

Duty Cycle Range: 2~95%(Adjustable)

Low Distortion Sine Wave: 1%

Low Temperature Drift: 50ppm / °C

Output Triangular Wave Linearity: 0.1%

DC Bias Range: -7.5V~7.5V

Output Amplitude Range: 0.1V~11VPP(operating voltage 12V)

Board Size: Approx. 7.8 * 5cm / 3.07 * 1.97in

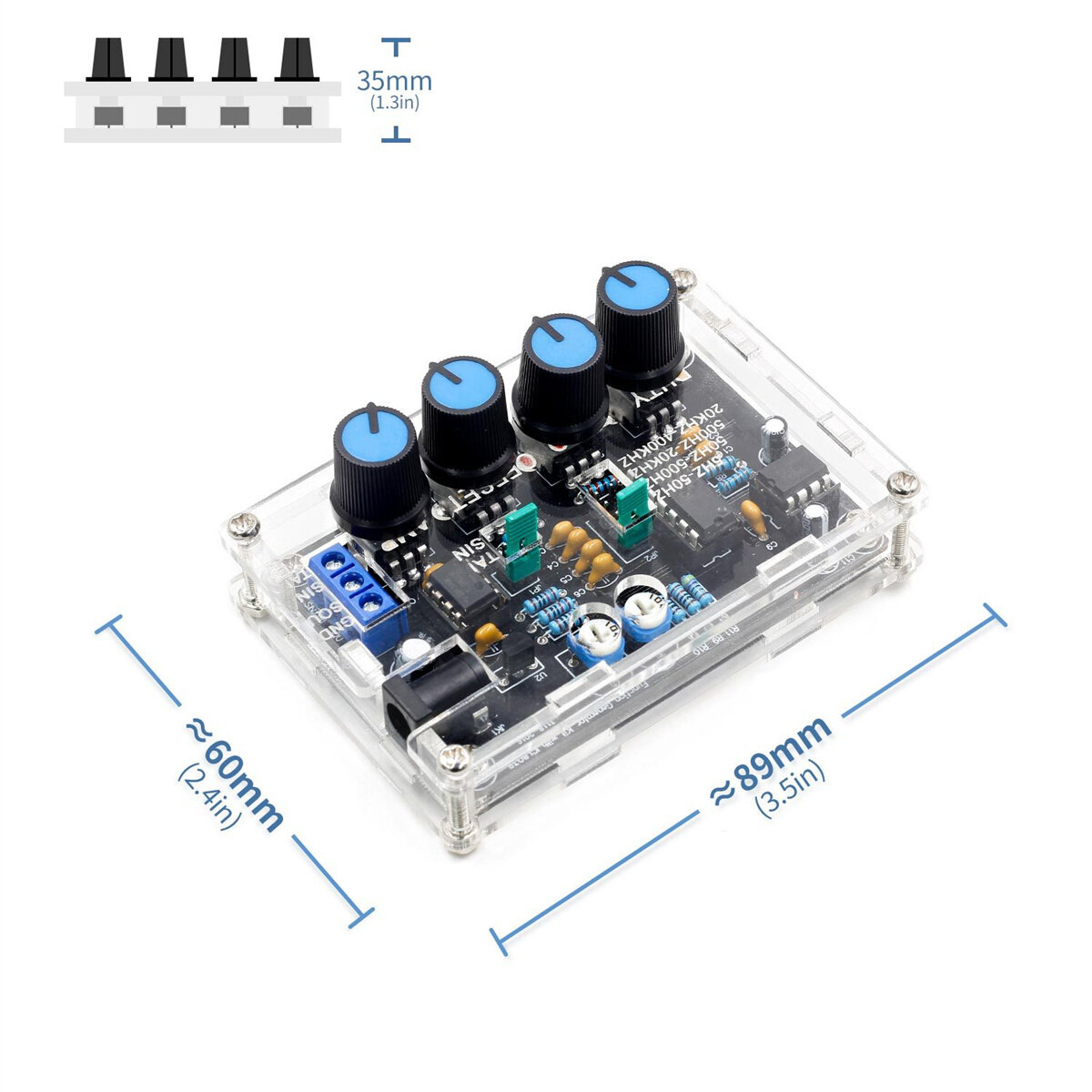

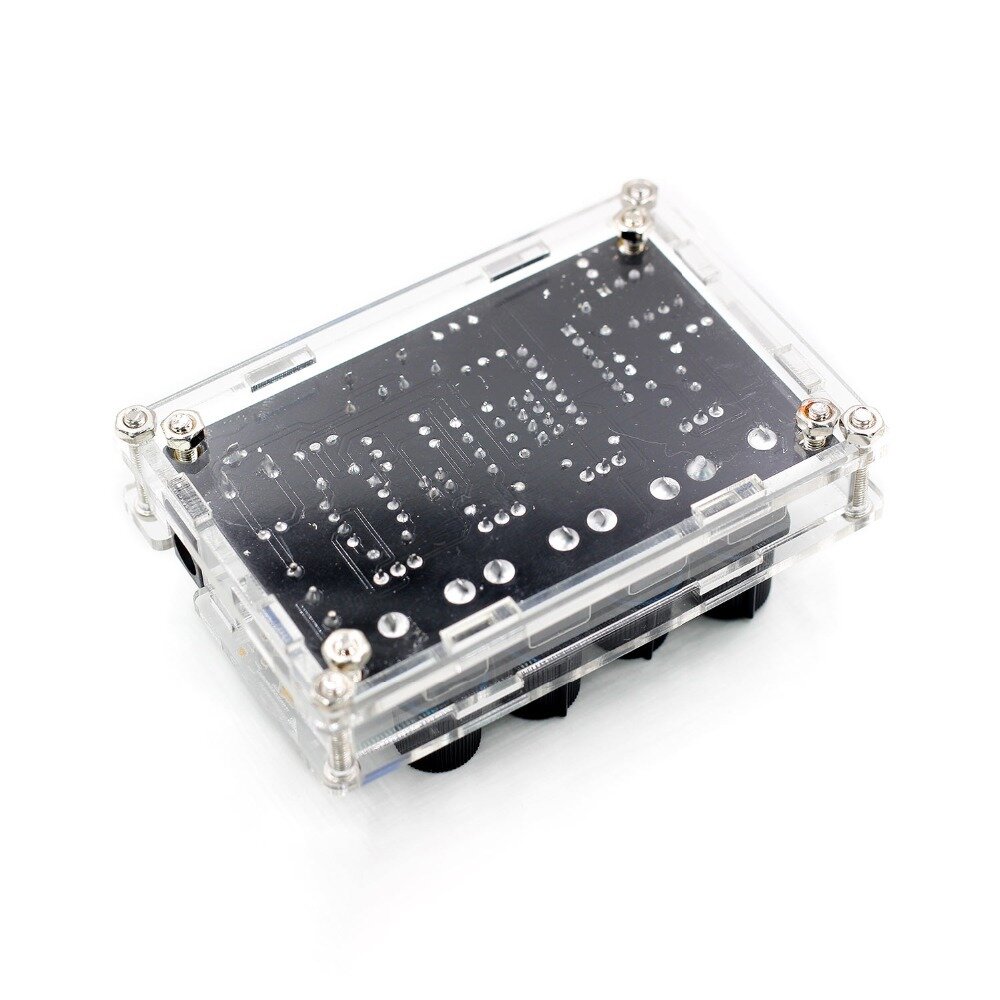

Finished Product Size: Approx. 8.7 * 6 * 1.7cm / 3.43 * 2.36 * 0.67in

Product Weight: 81g / 2.86oz

Package Size: Approx. 11 * 7 * 3cm / 4.33 * 2.76 * 1.18in

Package Weight: 95g / 3.35oz



Note:

The testing picture is just for reference, please in kind prevail!

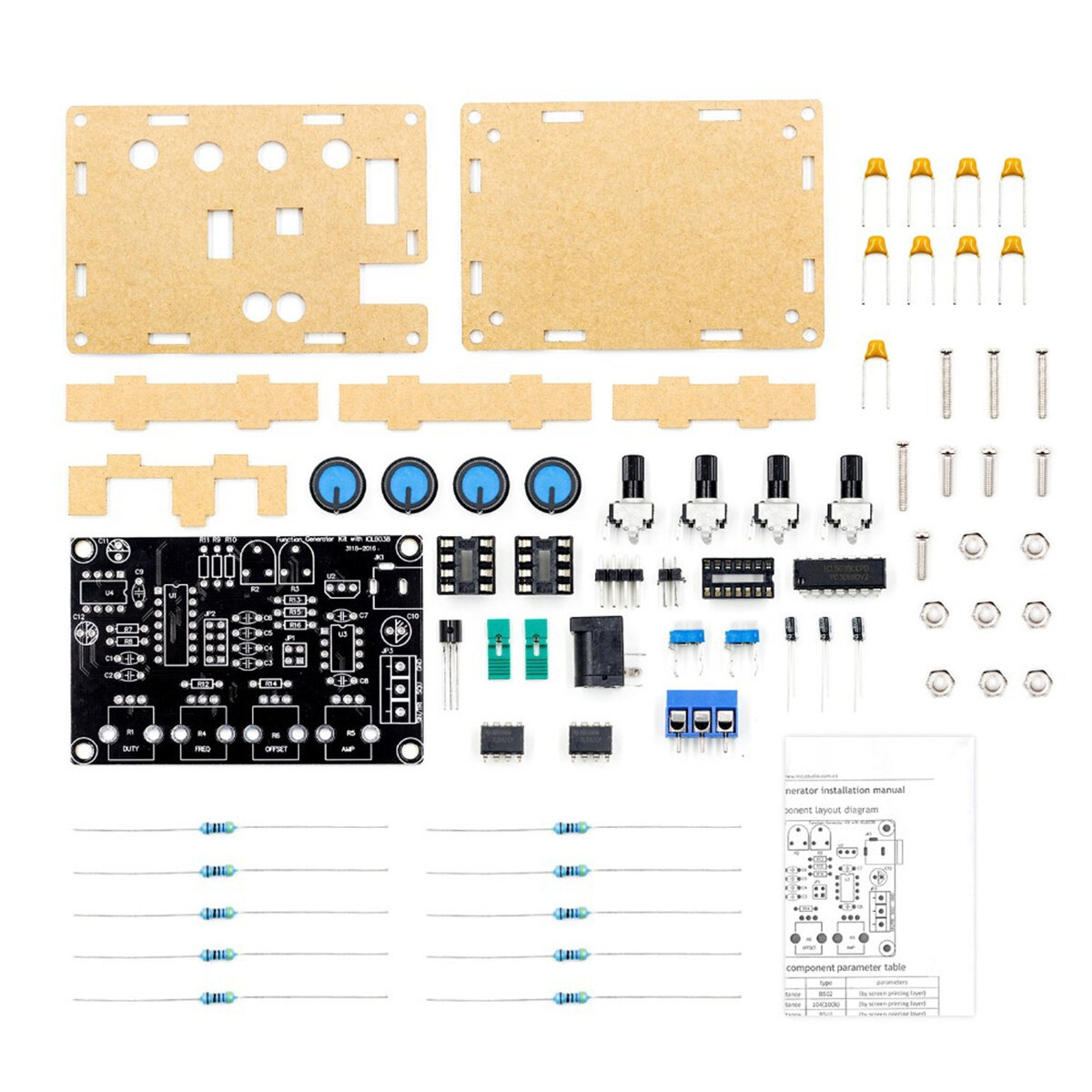

1 x Signal Generator DIY Kit

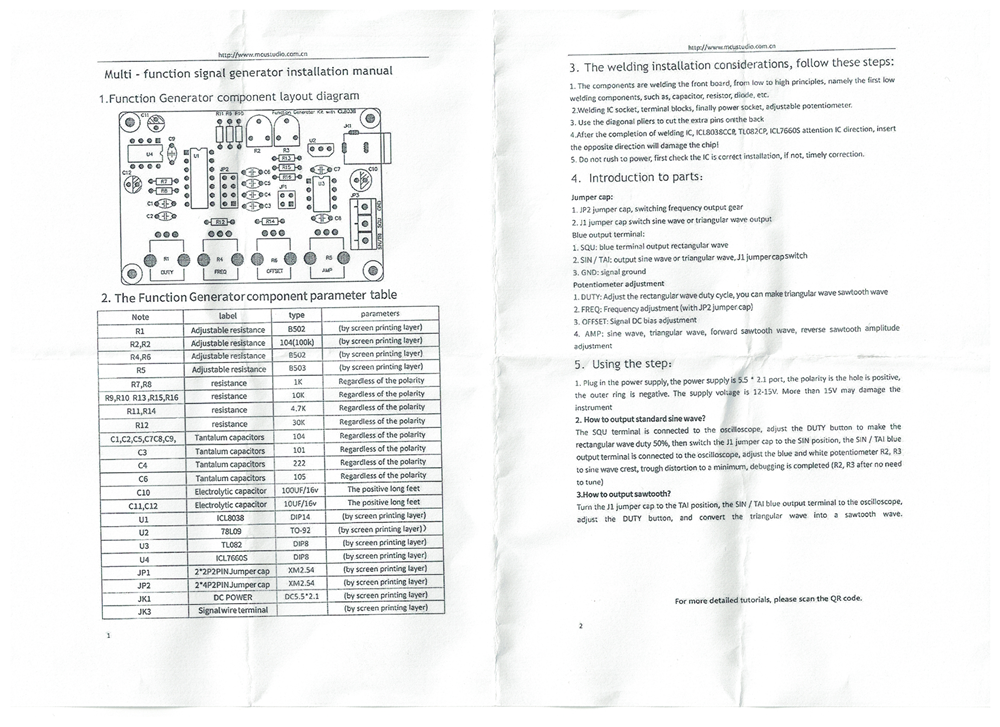

1 x User Manual(English)
