Features and specifications:

Key features:

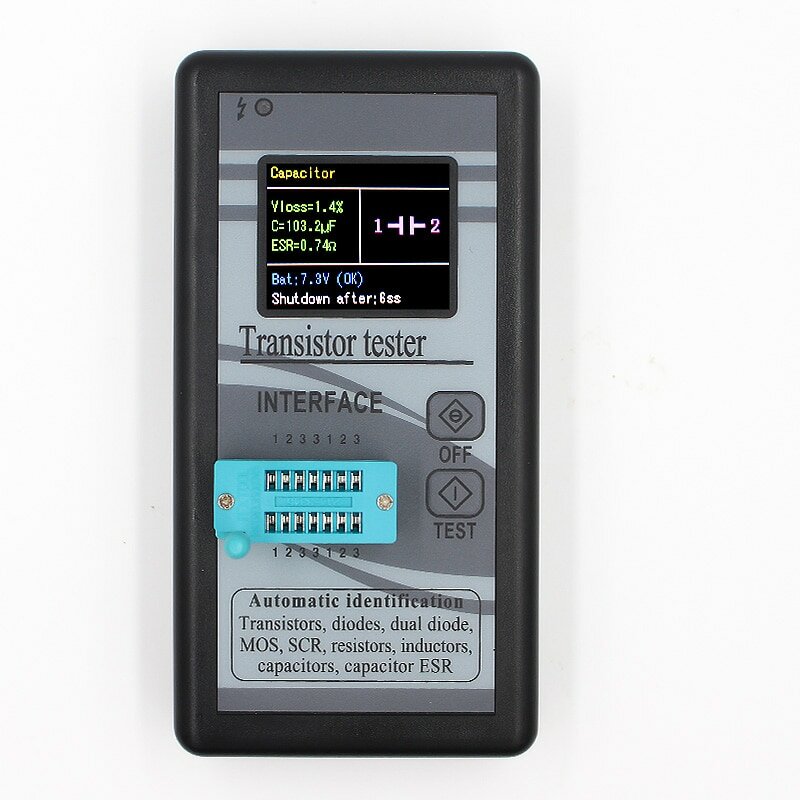

• 128 x 160 TFT color display for easy readings, can display measured data and graphics

• Powered by 9V battery(not included)

• All components are protected by a plastic case, convenient to carry

• Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors and other devices

• Automatically test the pins of a component and display on the LCD

• Measure the gate threshold voltage and gate capacitance of the MOSFET

• Measure bipolar transistor current amplification factor and base-emitter threshold voltage

• Two-button operation, automatic shutdown to avoid unnecessary waste

• Short detection time: Only 2 seconds (it is normal to cost 1 minute for bulk capacitor detection)

Notice: Please make sure that capacitors are discharged before testing.

Specifications:

• Case color: Gray/Colorful

• Display: 1.8" TFT color display

• Material: PCB + Plastic

• Shutdown current: 20nA

• Resistor test range: 0.5Ω – 50MΩ

• Inductor test range: 0.01mH – 20H

• Capacitor test range: 25pF – 100000uF

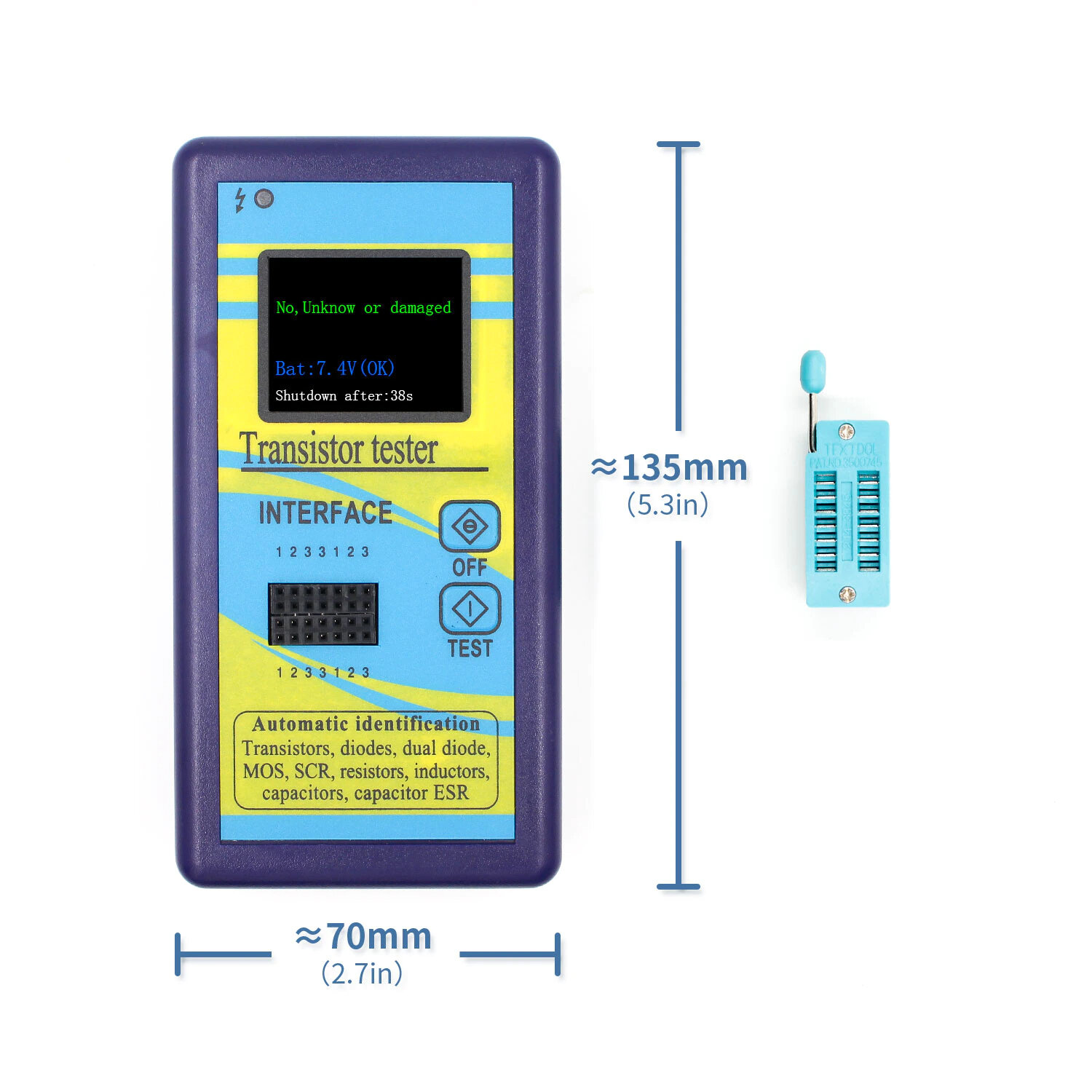

• Item size: 13.5 x 7 x 2.2 cm (5.3 x 2.76 x 0.86 in)

• Item weight: 99 grams (3.5 oz)

• Package size: Approx. 16 x 8 x 2.5 cm (6.3 x 3.15 x 0.98 in)

• Package weight: 102 grams (3.61 oz)
