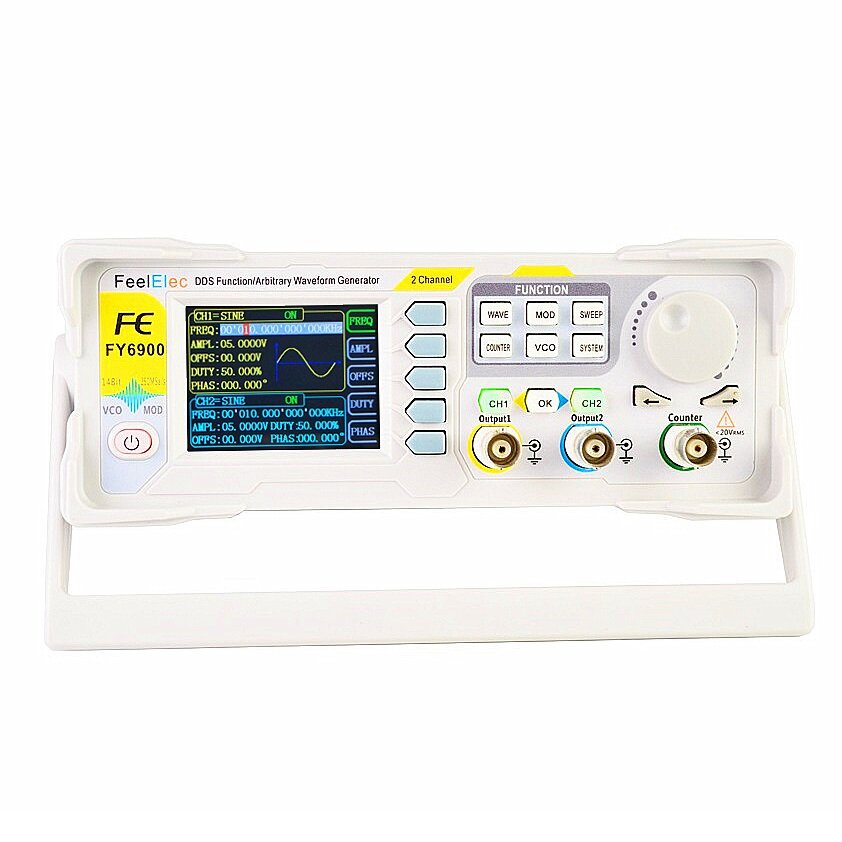

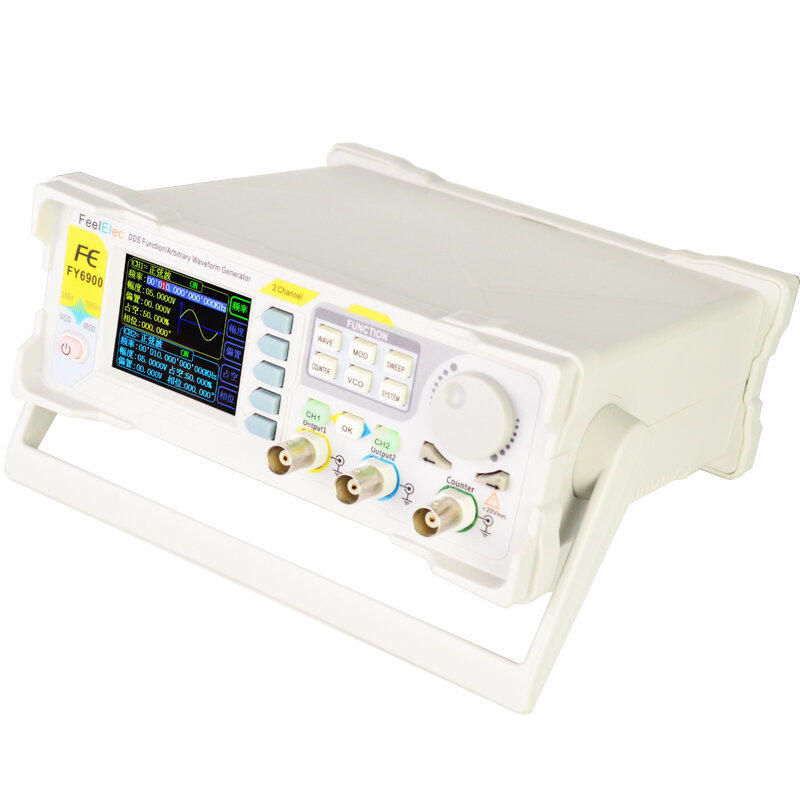

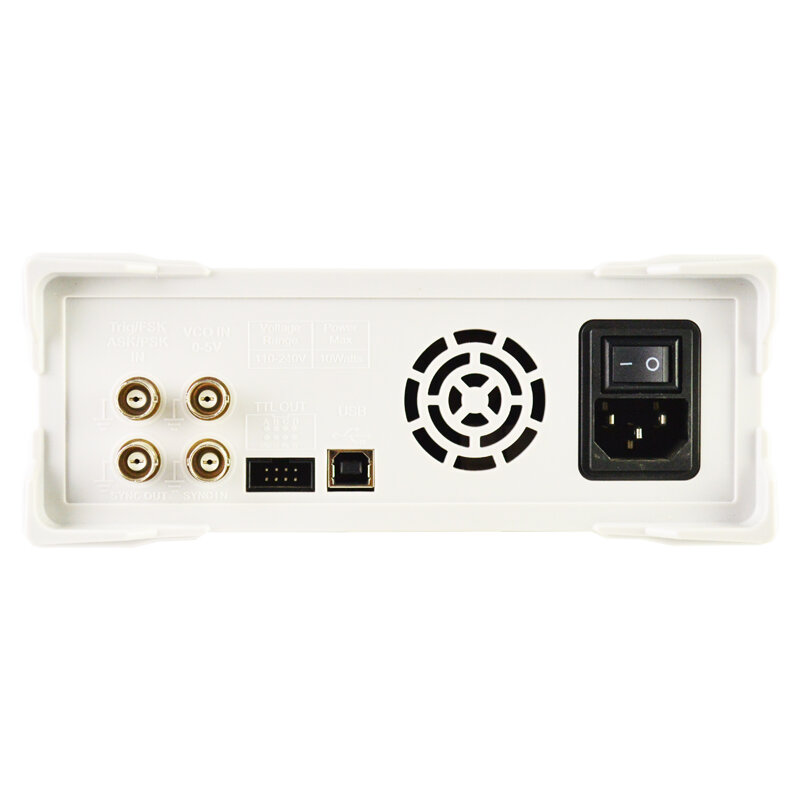

FY6900 Dual Channel DDS Function Arbitrary Waveform Signal Generator Pulse Signal Source Frequency Counter Fully Numerical Control 20MHZ/60MHZ COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Main Features:


>Sine

>Rectangle

>Rise Sawtooth

>Lorenz Pulse

>Noise

>Trapezoidal Pulse

>Narrow Pulse

>Step Triangle

>Inverse Step



>Positive Falling Exponent

>Positive Logarithm

>Positive Falling Logarithm

>Linear FM

>FM

>Negative Half Wave

>Negative Half Wave Rectification


Technical Specification:

Frequency
Model
Sine		0~20MHz				0~30MHz		0~50MHz	0~60MHz
Square		0~15MHz				0~25MHz		0~25MHz	0~25MHz
Ramp, Triangle		0~10MHz				0~10MHz		0~10MHz	0~10MHz
Pulse		0~10MHz				0~10MHz		0~10MHz	0~10MHz
TTL/CMOS		0~10MHz				0~10MHz		0~10MHz	0~10MHz
Arbitrary Waveform		0~10MHz				0~10MHz		0~10MHz	0~10MHz
Min pulse width		20ns(All models of pulse wave min width can be 20ns)
Min. Resolution on all frequency range		1μHz (Min. resolution can low to 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).
Accuracy		±20ppm
Stability		±1ppm/ 3hours
Waveforms		Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
Non-Volatile Storage		Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Waveform Length		8192 points * 14bits
Sampling Rate		250MSa/s
Vertical Resolution		14 bits
Sine		Harmonic Suppression				≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz);
		Total Harmonic Distortion				<0.5% (20Hz~20kHz,0dBm)
Rectangle		Rise/Fall Time				≤7ns (VPP<5V)
		Overshoot				≤5%
		Duty Cycle				0.01%~99.99% (Resolution 0.01%)
Sawtooth wave		Linearity				>99% (0.01Hz~10kHz)
AmplitudeVPP		Frequency≤5MHz: 1mVpp~24Vpp; 10MHz
Waveform Output
		()
DC Offsets
Phase Feature
TTL Output
CMOS Output
External Measurement
Sweep
VCO
Modulation
AM
FM
PM
ASK
FSK
PSK
Burst Function
G'eneral Specifications

Note: FY6900 supports English & Chinese  menu switch. The defaul language is English.

1 x FY6900 DDS Signal Generator 1 x Power Cable 1 x USB Data Cable  2 x BNC-Clip Cables 1 x BNC-BNC Cable
