GEPRC Cinebot25 S HD DJI O3 2.5 Inch Whoop FPV Racing Drone PNP BNF TAKER G4 45A AIO Digital System COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Summary:

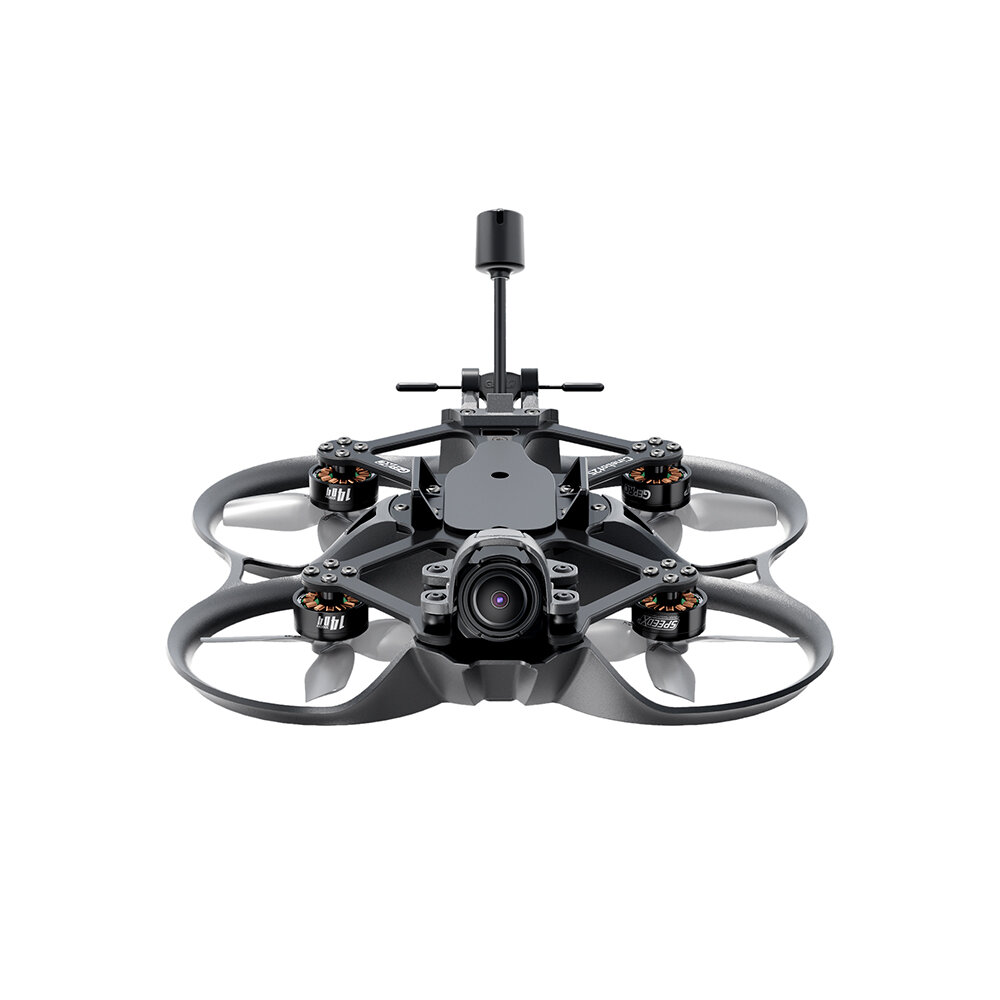

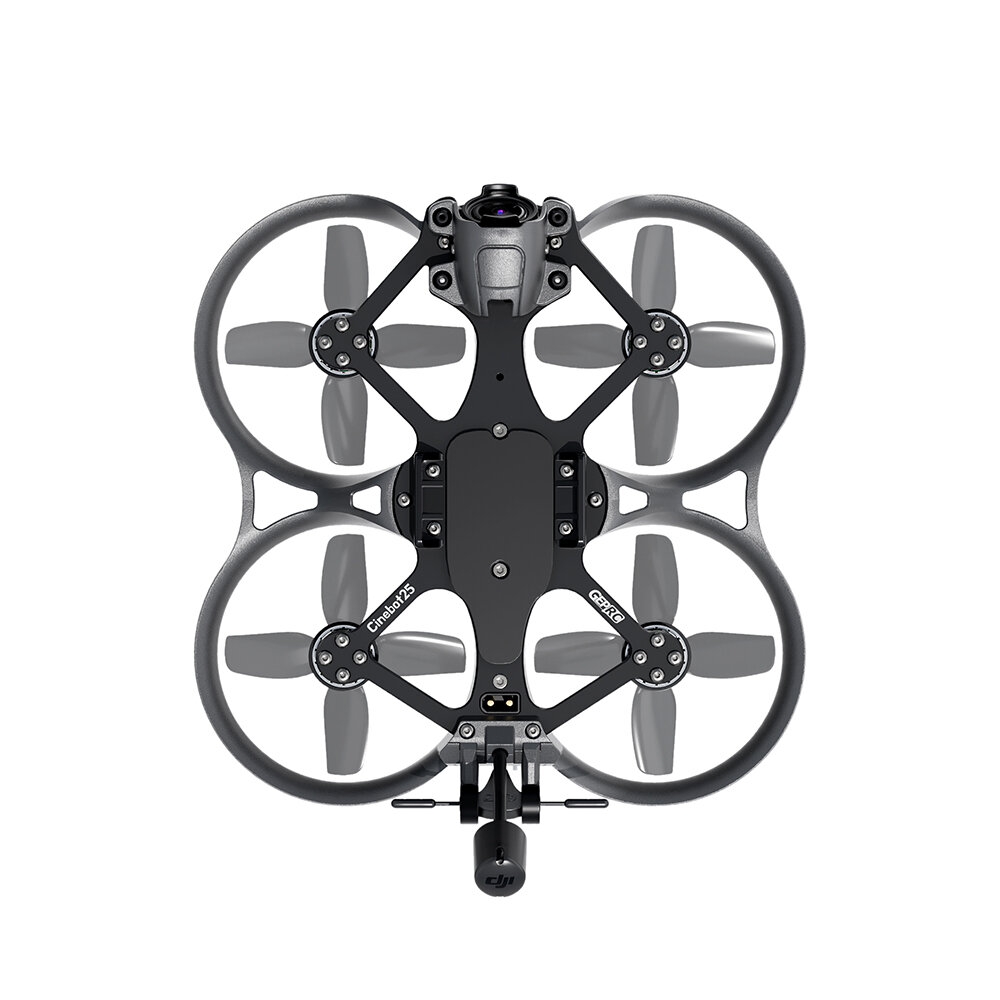

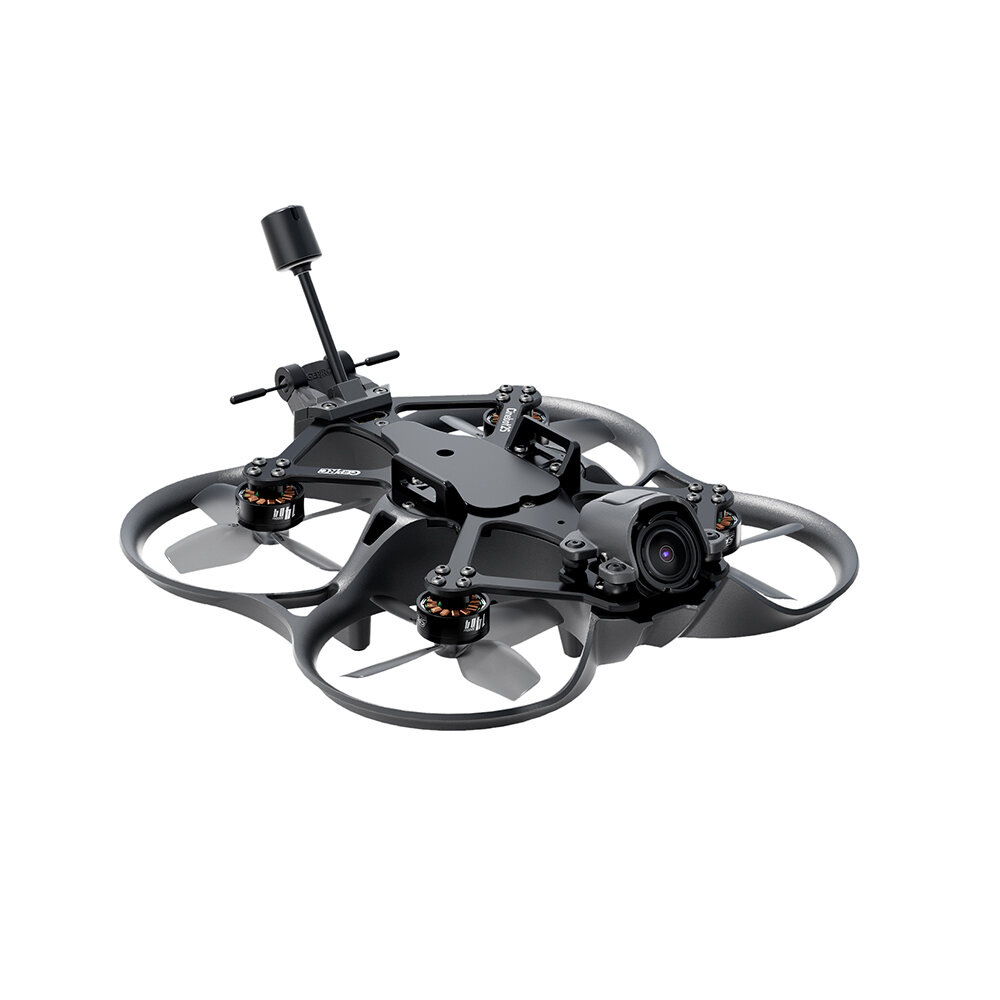

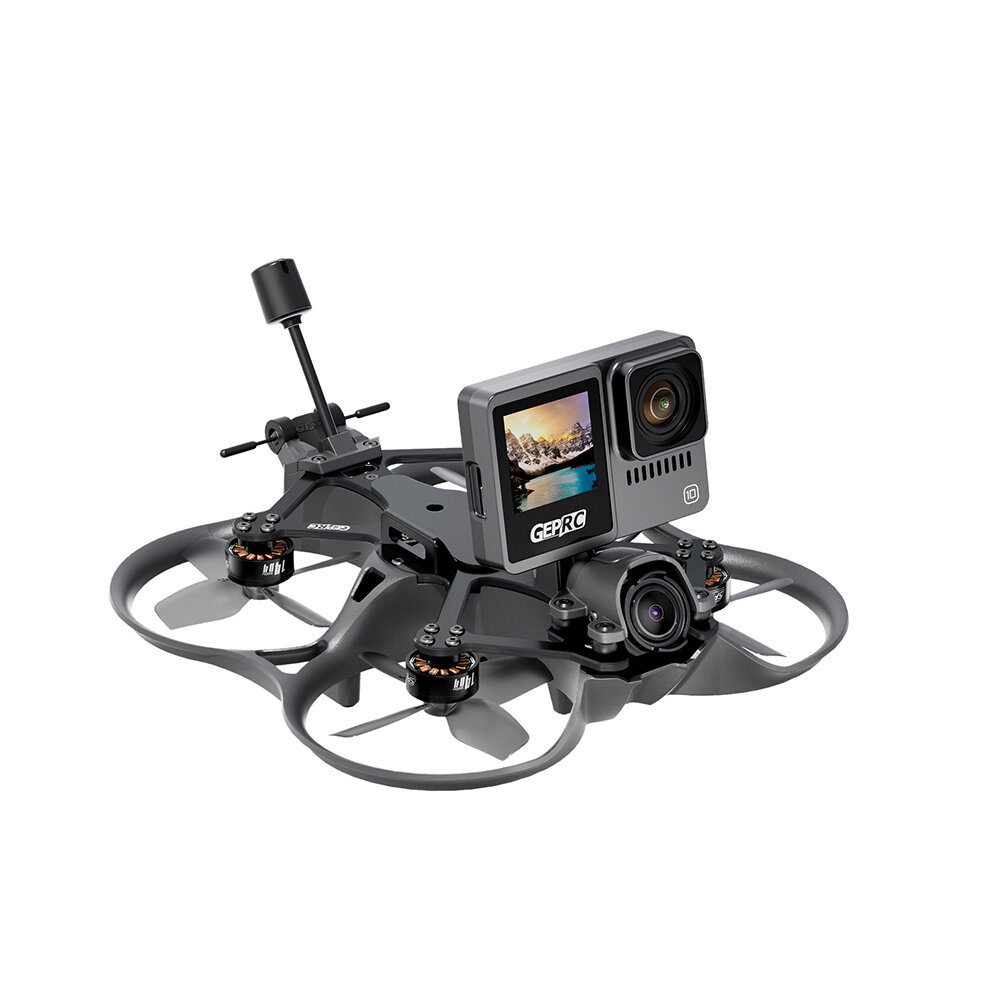

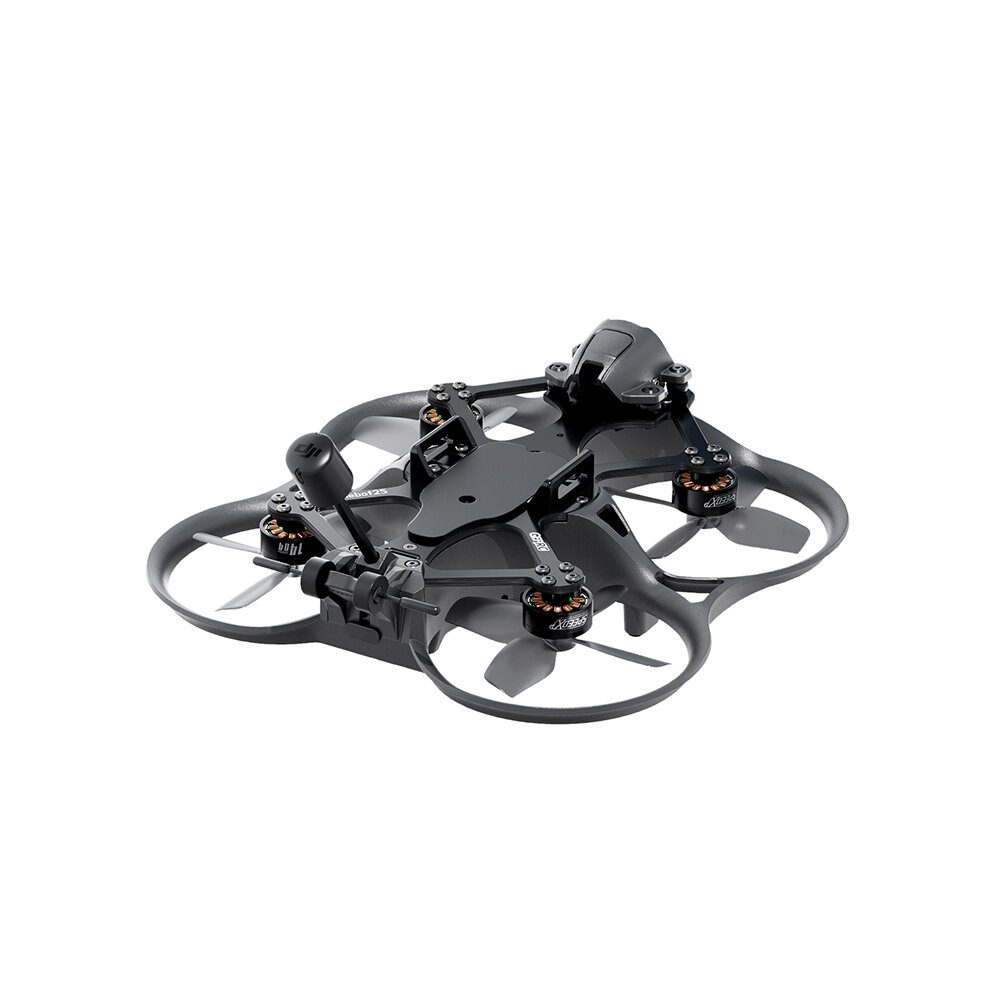

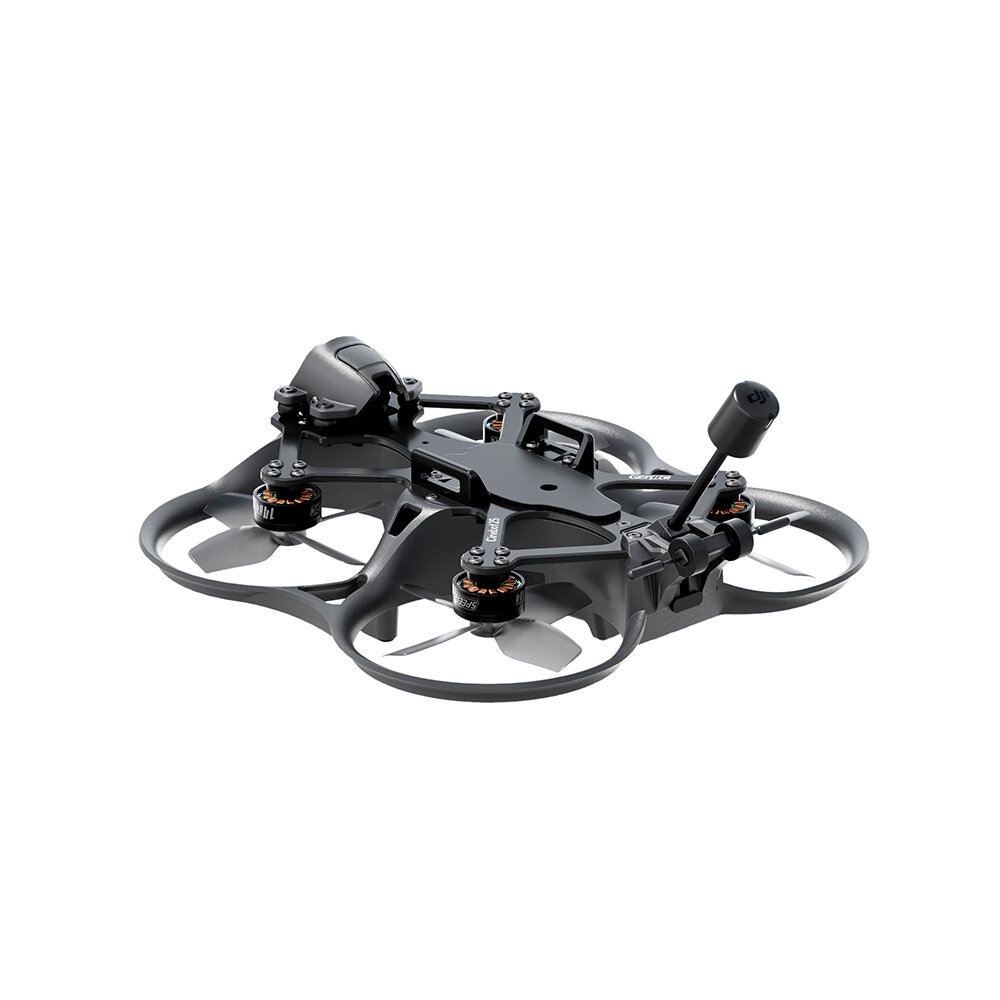

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

Cinebot 25 comes with two different options for the power version.

The anti-shake design applies four silicone damping balls to reduce vibration and filter jello, providing high-performance videos. The integrated structure adopts revolutionary modified materials to satisfy the need for rigidity and flexibility, reducing the possibility of damage to a minimum. The fuselage space is highly compatible with various video transmission systems like the DJI O3 Air Unit， and it is equipped with a convenient outlet to make the use of the SD card slot and USB faster and more effective.

After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A AIO FC that will breathe new life into the footage-shooting experience.



2. The shock-absorbing protection cover of the camera provides better stability for footage shooting.

4. The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.

6. Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g. ( NOT Include lipo battery)

8.The compatibility between DJI O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.

10.Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.



Model: Cinebot25 / Cinebot25 S ( DJI O3 Version)

Wheelbase: 115mm

MCU: STM32G473CEU6

FC firmware: TAKERG4AIO

		Version
Model		Cinebot25 S
	1404 4600KV	SPEEDX2

Connector: XT30

Camera: DJI O3 camera

Weight: 192.75g±1g ( Sport

Recommended battery: ( NOT Included)

4S 660mAh-720mAh XT30
Flight Time：5′-7’30”（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

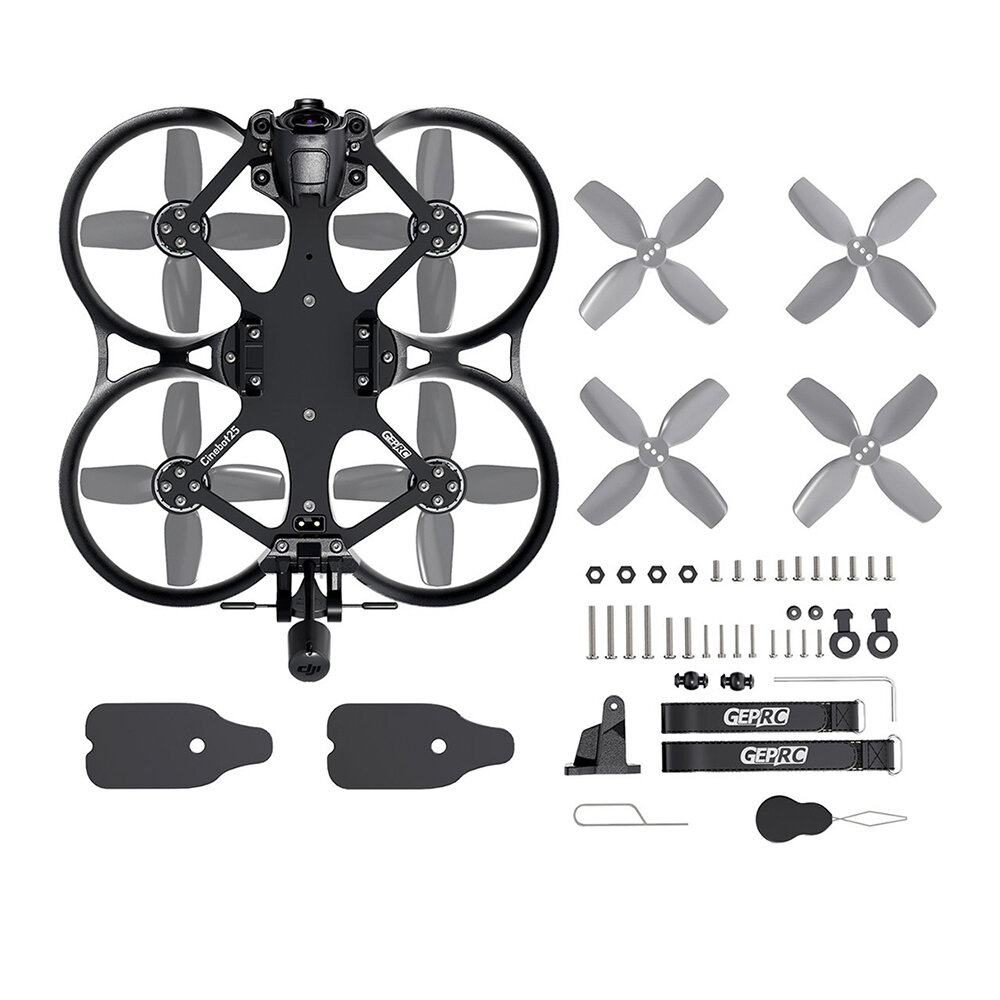

1 x HQprop DT63mmx4 propeller（pack）

1 x 15x150mm battery strap

1 x Mounting base for

1 x L-shaped screwdriver 1.5mm

1 x Damping ball puncher



4 x M2 nuts

4 x M2*18 button head screws

4 x M2*5 button head screws

2 x M2*12 button head screws

2 x T-shaped antenna fixing silicones
