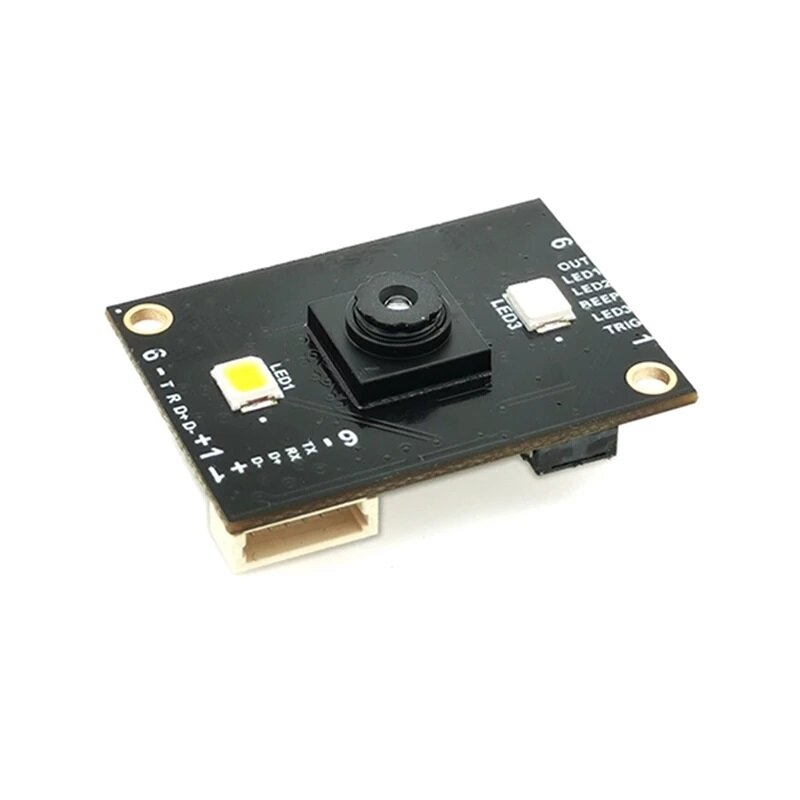

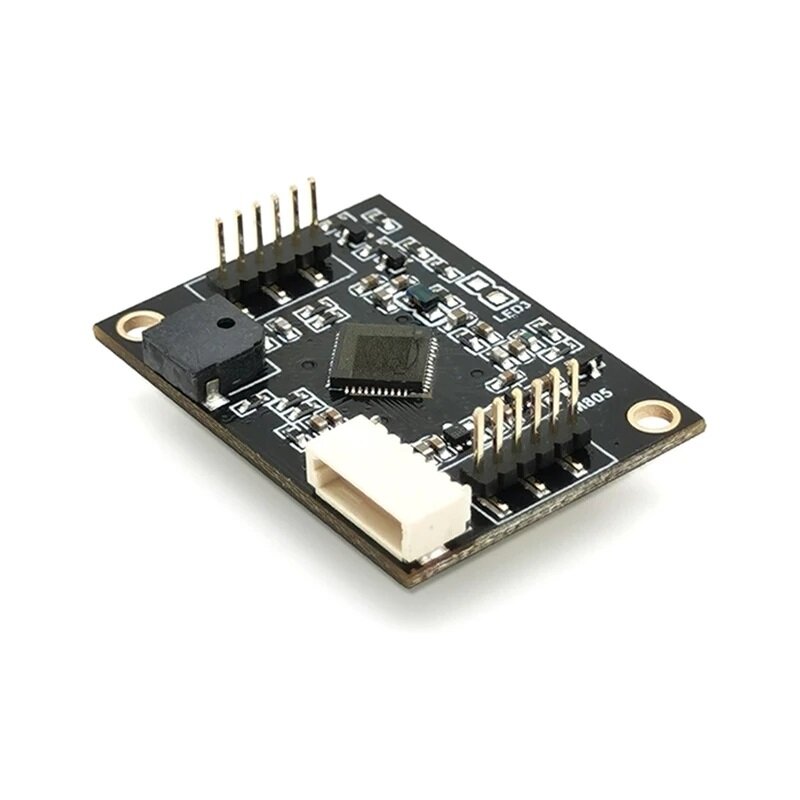

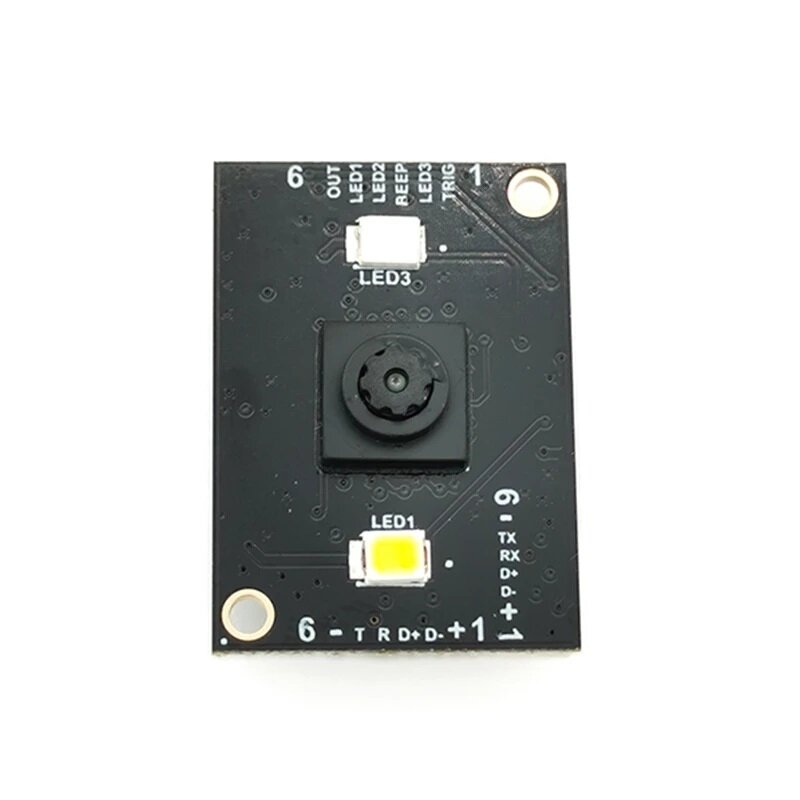

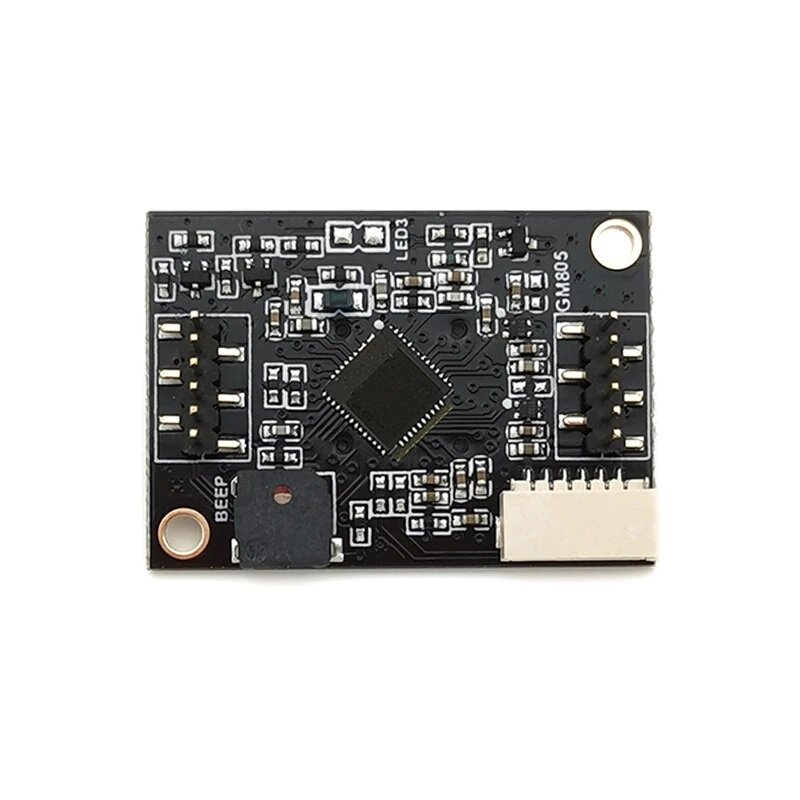

GM805 serial have GM805-S and GM805-L model.The only difference between GM805-S and GM805-L is the lens.GM805-S lens reading distance is 5-30cm.GM805-L lens reading distance is 7-50cm.(The actual data depends on the size and content of the code) GM805 serial bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen. GM805 serial bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

Parameter	Performance
GM805-S Reading Distance	5-30cm
GM805-L Reading Distance	7-50cm

Parameter
Interface	TTL-232/USB
Size(mm)	28*20 mm
Weight	2.1g
Prompting mode	Buzzer LED Indicator
Operation Current	70mA(Max)
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operating temperature	-20℃~60℃
Storage Temperature	-40℃~+100℃
Operating Humidity	5%~95%（Non-Condensing）
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

Package included:
