HABOTEST Digital Clamp Meter Multimeter High-Precision DC Voltage and AC Current Measurement Tool with Backlight Flashlight Auto Power-Off Versatile Applications

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

High-precision measure: The HABOTEST Digital Clamp Meter provides high precision measurements with a DC voltage range of 600mV/6V/60V/600V/1000V and an AC voltage DC current range of 60A/600A/1000A. It ensures less than 0.8% measurement error, delivering highly accurate and reliable results.

Versatile applications: This digital multimeter can operate in a variety of measurement modes including capacitance, resistance, and frequency, which makes it a versatile tool for dealing with a wide spectrum of electrical issues.

Convenient features: The meter is equipped with a continued data hold feature that allows for easy reading and recording of data. Additionally, it has a backlight for working in poorly lit environments, and a flashlight function that adds extra convenience for users.

Safety and efficiency: The HABOTEST Digital Clamp Meter adheres to the safety standards EN61010-1,-2-030; EN61010-2-033; EN61326-1 CAT IIl 1000V, CAT IV 600V, ensuring safe and efficient operation. It also incorporates an automatic power-off feature to conserve battery life.

Compact and lightweight: Weighing approximately 326g, this compact yet robust multimeter is perfect for carrying around in hand or in a toolbox. It measures 240×85×47mm, making it easy to handle and store.

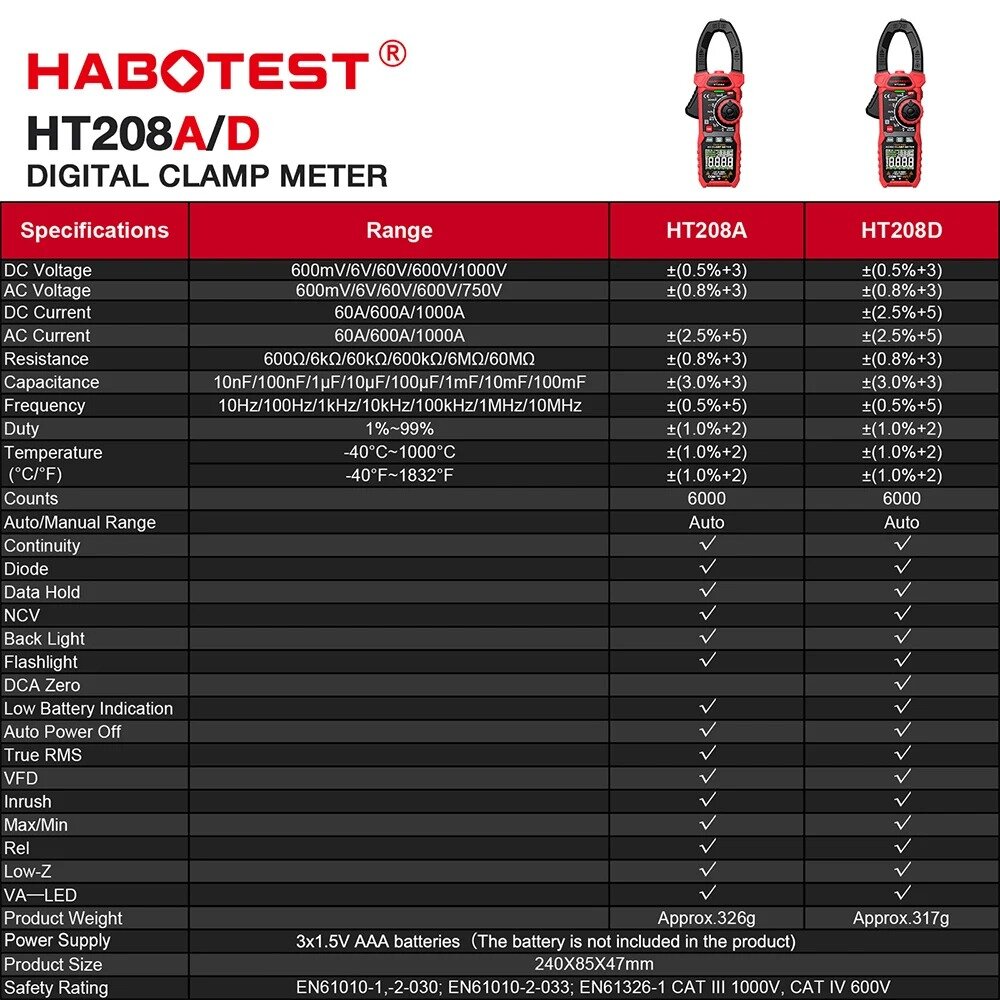

Model: HT208D

Product Weight: Approx. 326g

Power Supply: 3x1.5V AAA batteries (Batteries not included)

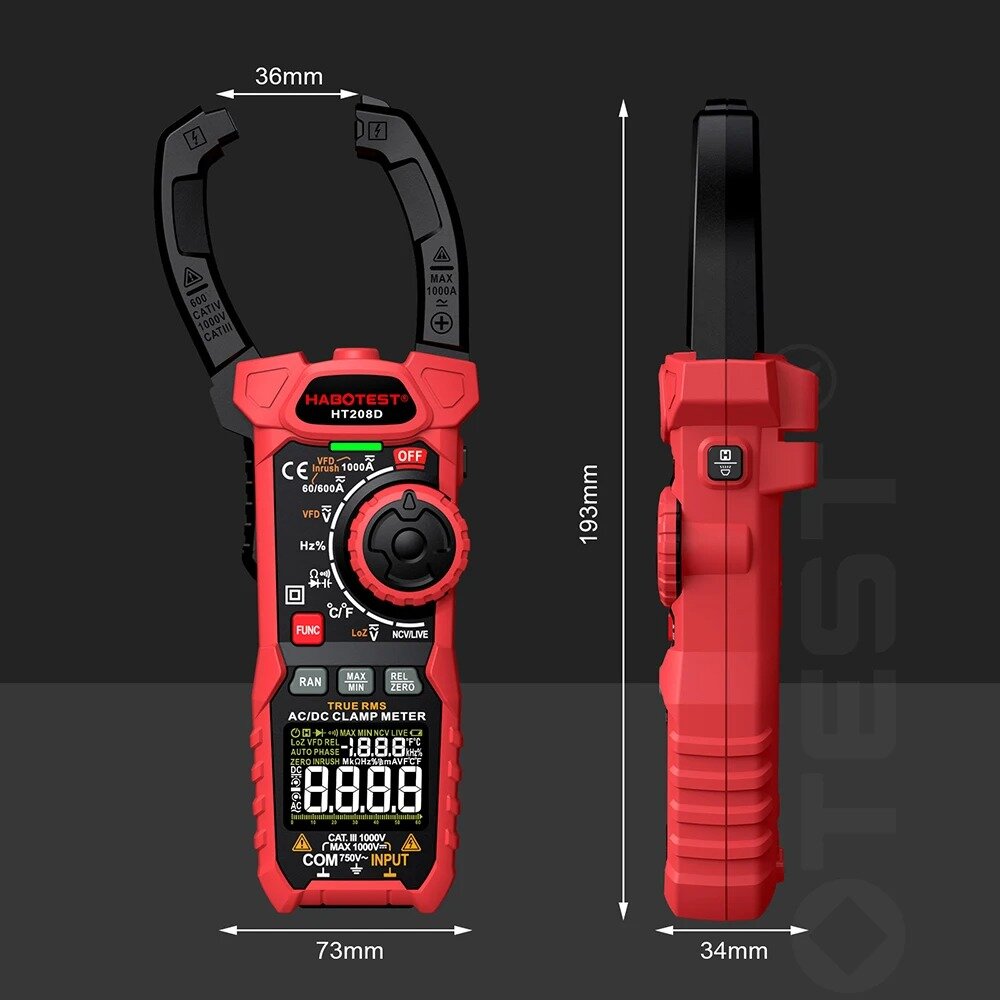

Product Size: 240×85×47mm

Safety Rating: EN61010-1,-2-030; EN61010-2-033; EN61326-1 CAT IIl 1000V, CAT IV 600V

Measurement ranges:

DC Voltage (600mV/6V/60V/600V/1000V)

AC Voltage DC Current (60A/600A/1000A)

Capacitance (10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF), Resistance (600Q/6kQ/60kQ/600KQ/6MQ/60MQ)

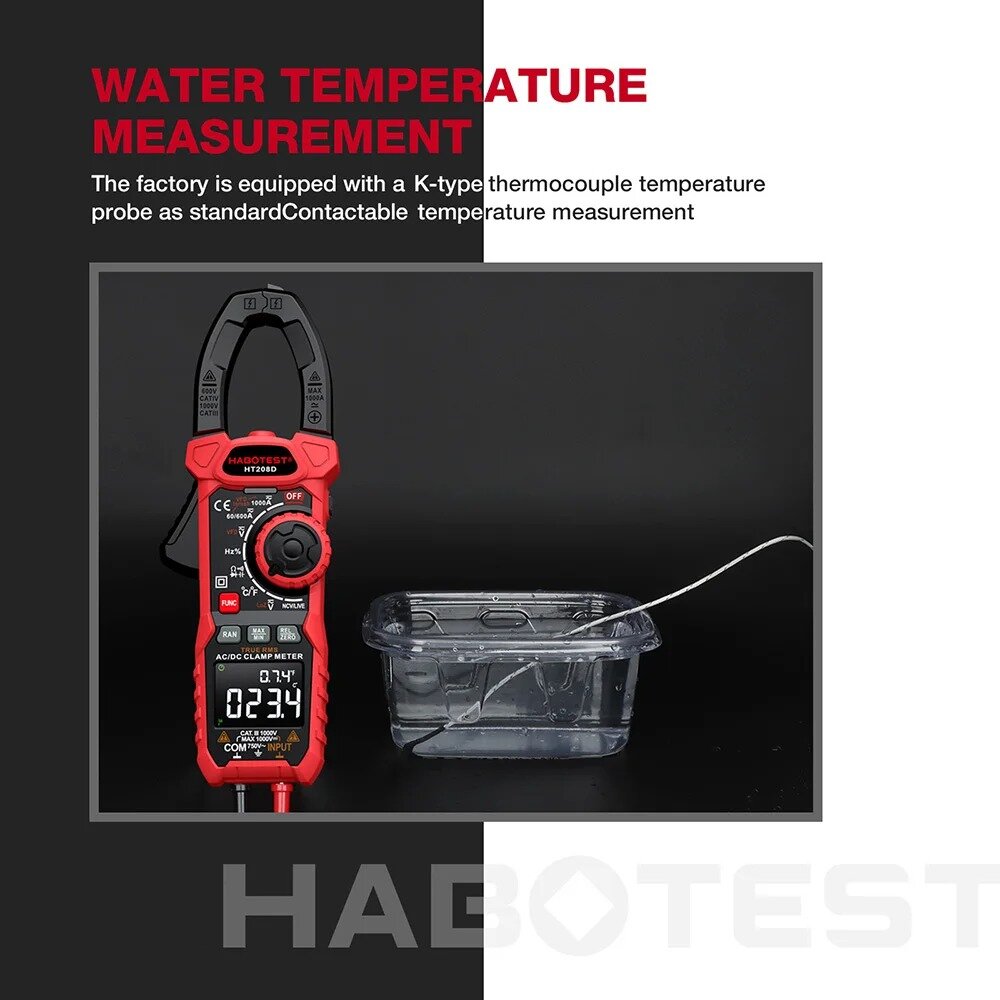

Temperature (-40℃~1000℃/-40°F~1832°F), Frequency (10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz)

Additional features: Data Hold, NCV, Back Light, Flashlight, DC A Zero, Auto Power Off, True RMS, VFD, Inrush, Max/Min, Rel, Low-Z



1 x HABOTEST Digital Clamp Meter Multimeter

1 x Detection Pen

1 x Probe

1 x Packing Case

1 x User Manual
