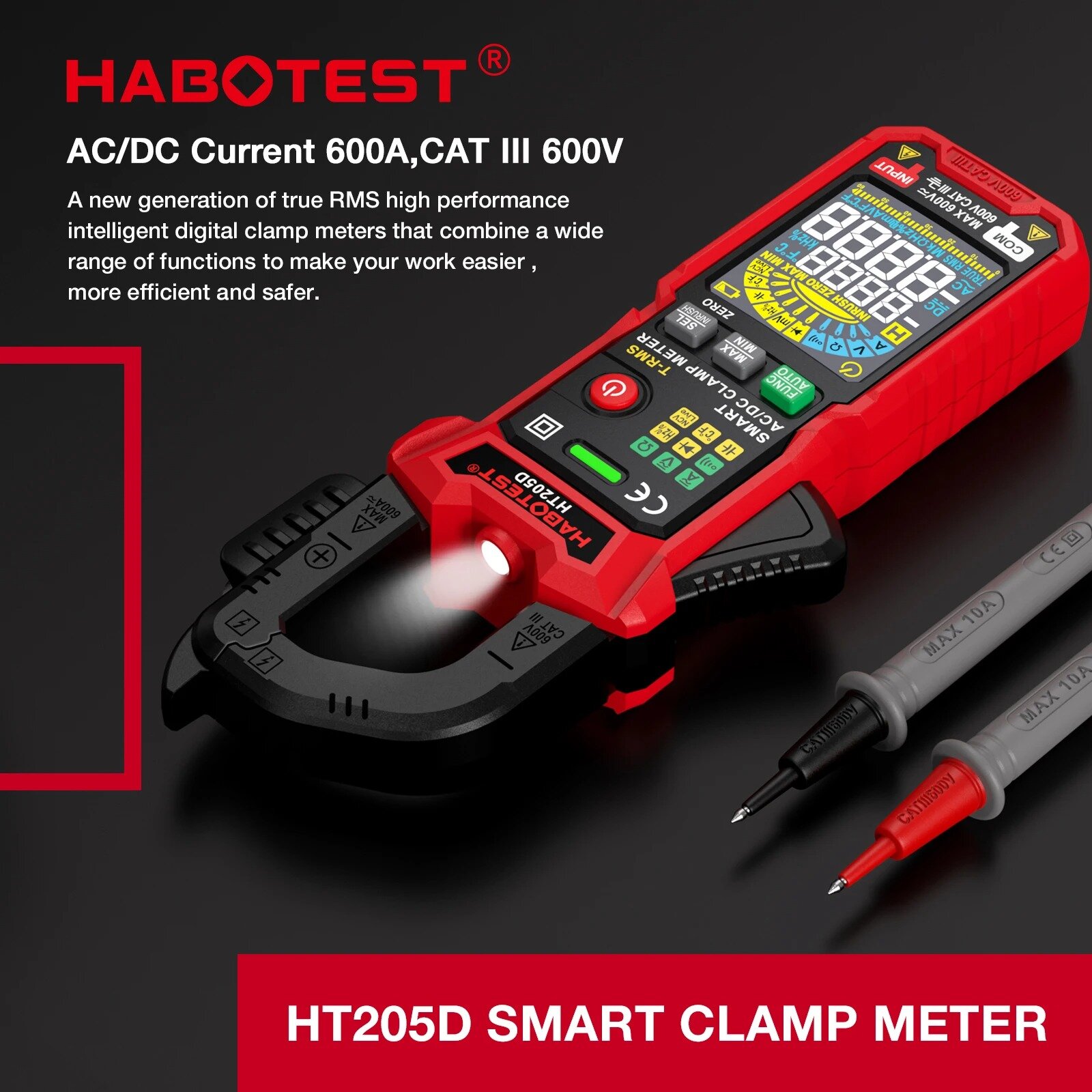

HABOTEST HT205 Inrush Clamp Meter 600A True RMS AC/DC Current Amp Meter Measures Current Voltage Temperature Capacitance Tester COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



DC Voltage	600mV/6V/60V/600V±(0.5%+5)
AC Voltage	±(0.8%+5)600mV/6V/60V/600V±(2.5%+5)
DC Current	60A/600A±(2.5％+5)
AC Current	60A/600A±(2.5％+5)
Resistance	600Q/6kQ/60kQ/600kQ/6MQ/60MQ±(1.0％+5)
Capacitance	6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF±(4.0%+5)
Frequency	100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz±(1.0%+3)±(3.0%+3)
Duty	1%~99%±(1.0%+3)
Temperature (°℃/°F)	-40℃~1000℃/-40°F~1832°F±(1.0%+3)
Continuity	600Q√
Diode	√

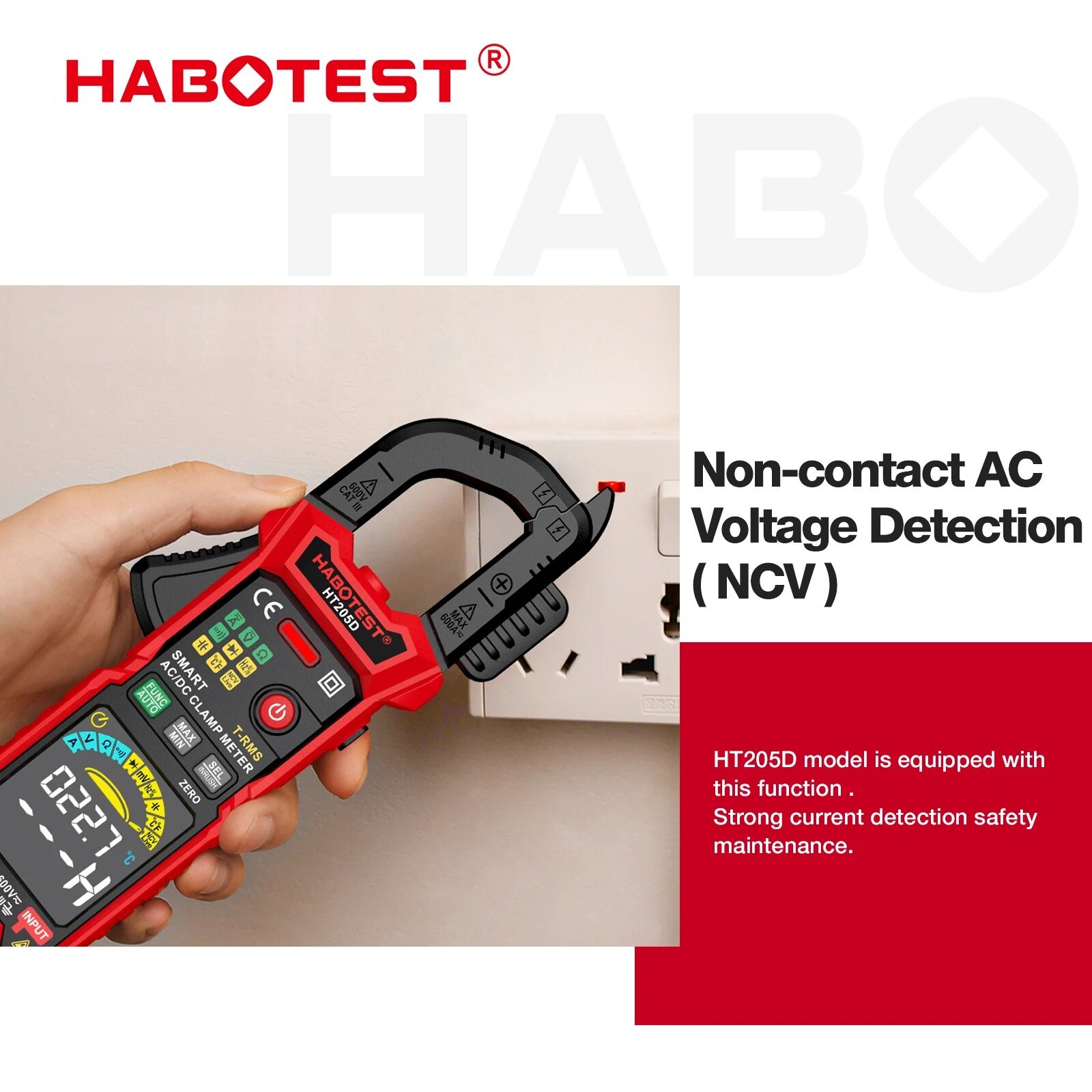

NCV	√
Live
Counts	6000
Analog bar	√
Data hold	√
Max/Min	√
Backlight	√
Flashlight	√
DCA ZERO	√
SMART or (AUTO)	√
Low battery indication	√
Auto power off	√
True RMS	√
Product weight	Approx.206g
Power	3x1.5V AAA batteries (The battery is not included in the product)

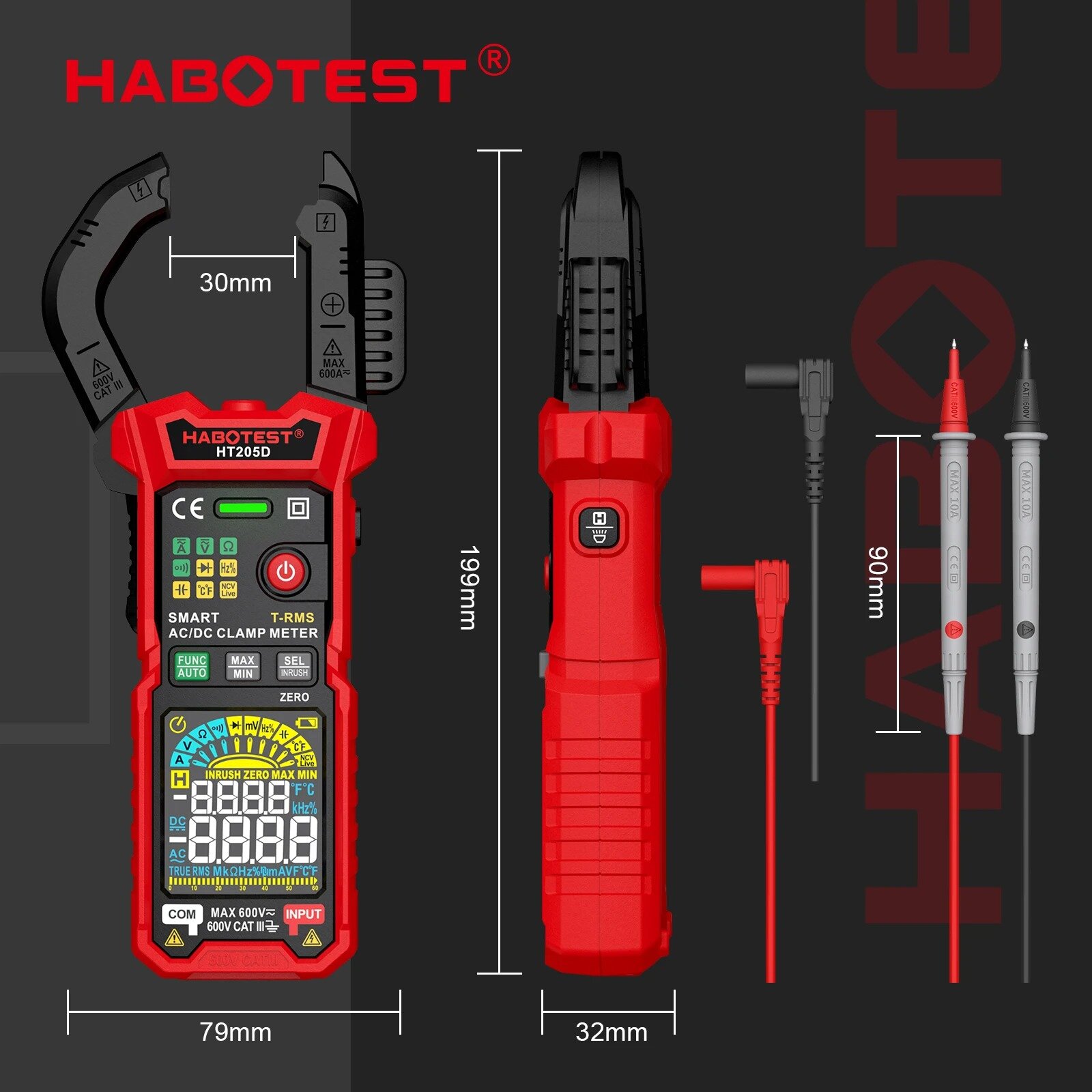

Product size	199×79×32mm
Safety Rating	EN61010-1,-2-030,EN61010-2-033,EN61326-1, CAT III 600V

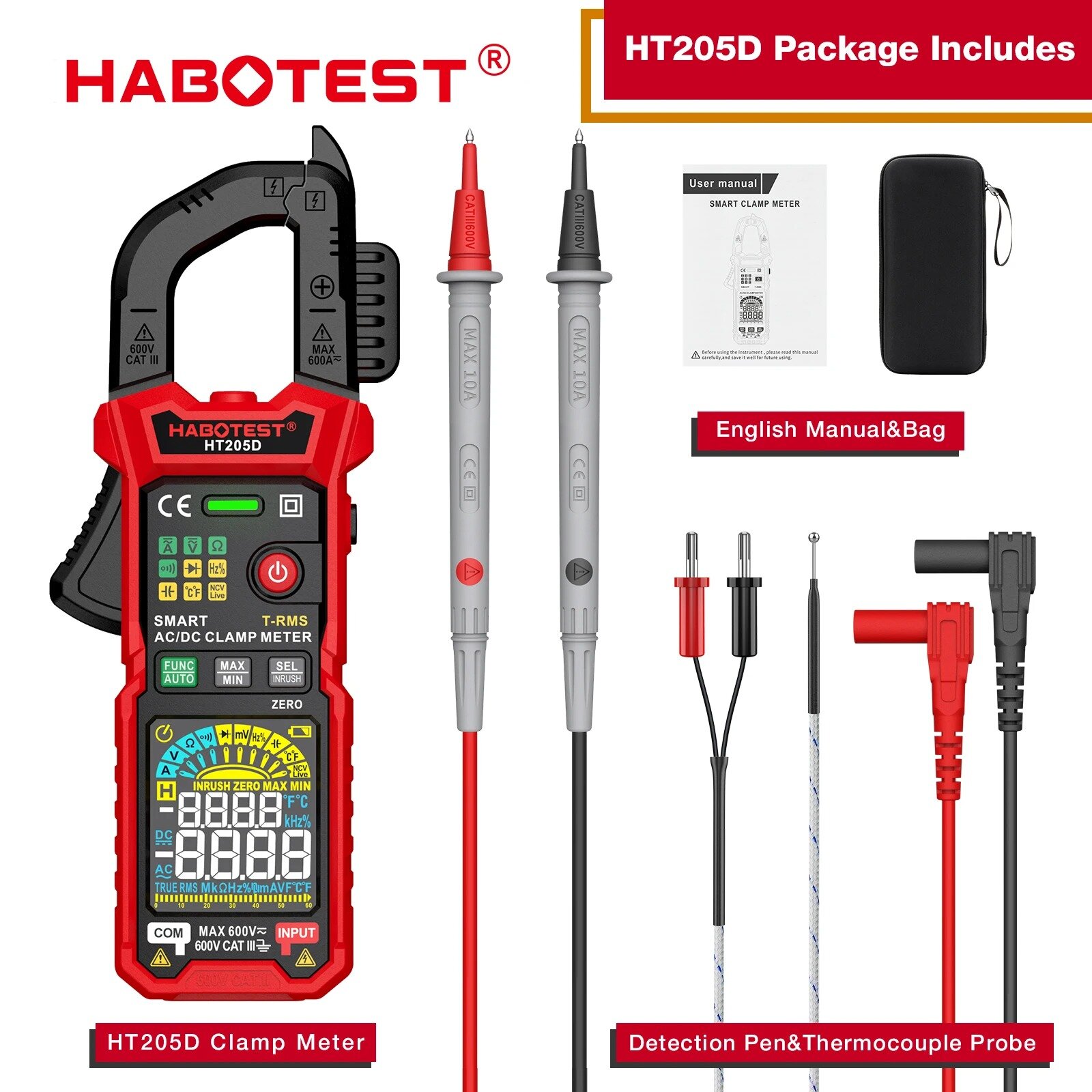

1 x HT205D Digital Clamp Multimeter

1 x Test Pen

1 x User Manual
