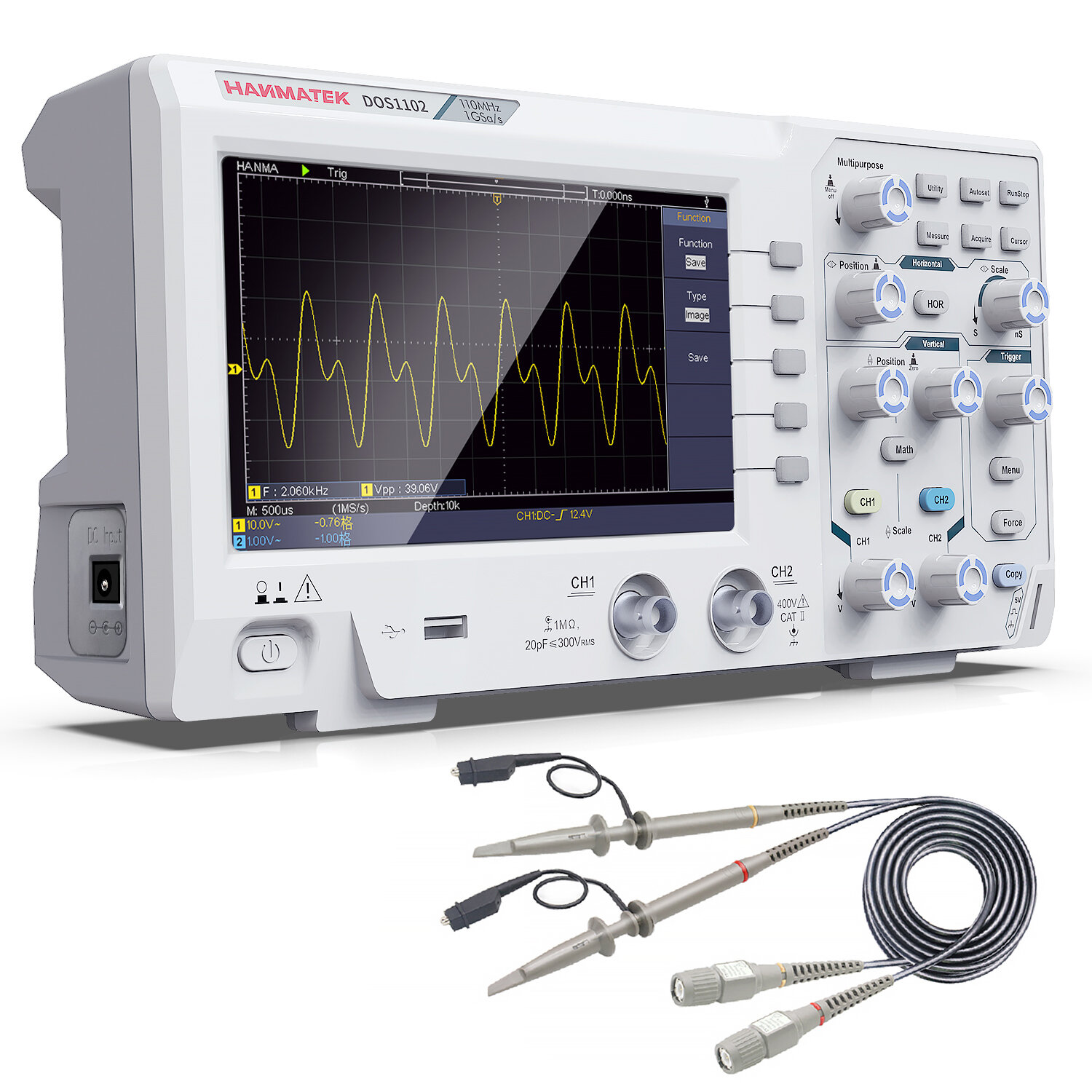

HANMATEK DOS1102 Digital Oscilloscope Portable 110MHz Bandwidth 500 MS/s Sampling 7 Inch LCD Display Dual Channels with Built-in FFT Spectrum Analysis Labview SCPI compatible USB Connectivity

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

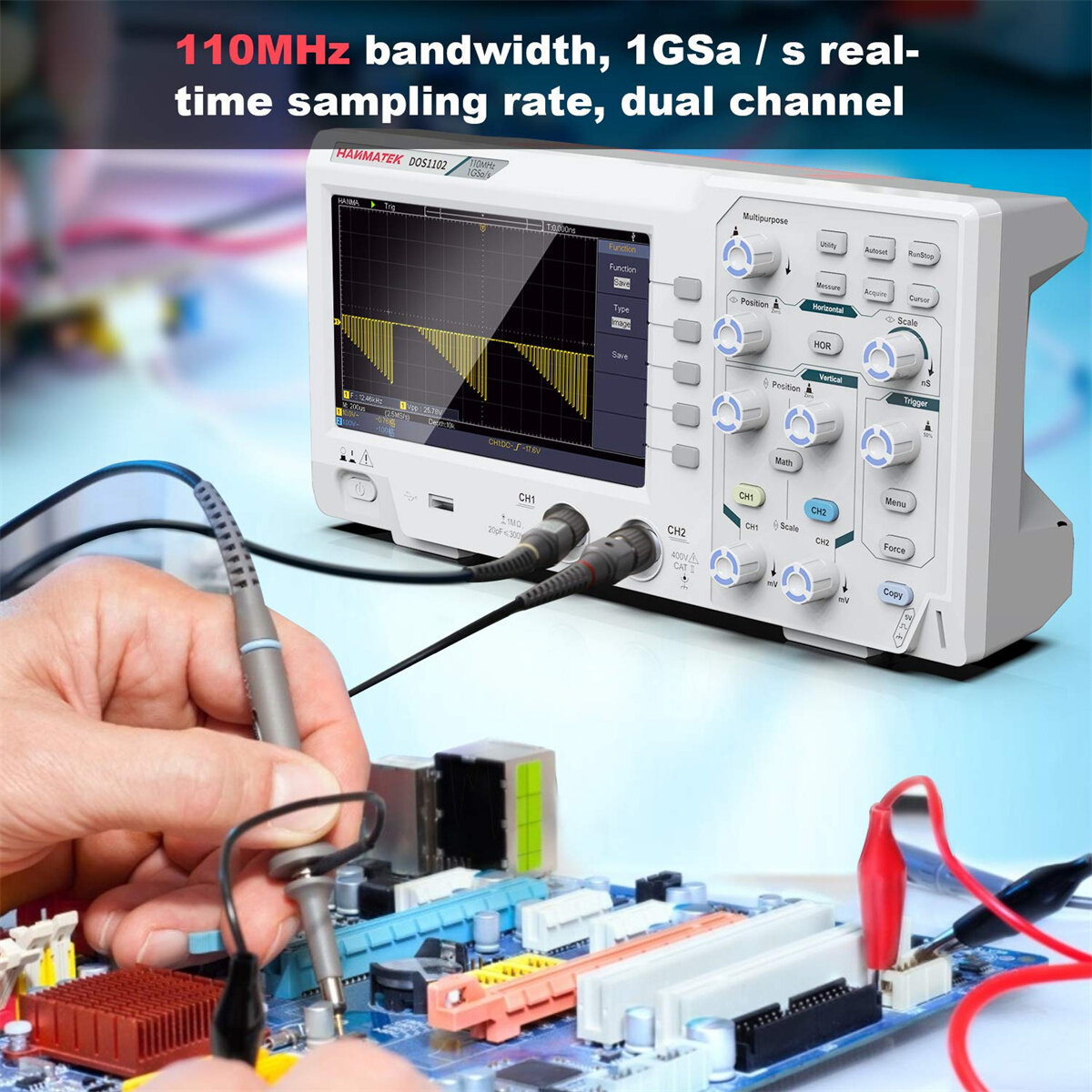

Robust Functionality: The HANMATEK digital oscilloscope features a 110 MHz bandwidth and 500 MS/s *2 real-time sampling rate. It boasts a fast 2 ns / Div ~ 1000s / Div time base range and can store not less than 16 groups of waveforms, making it a powerful tool for professional use.

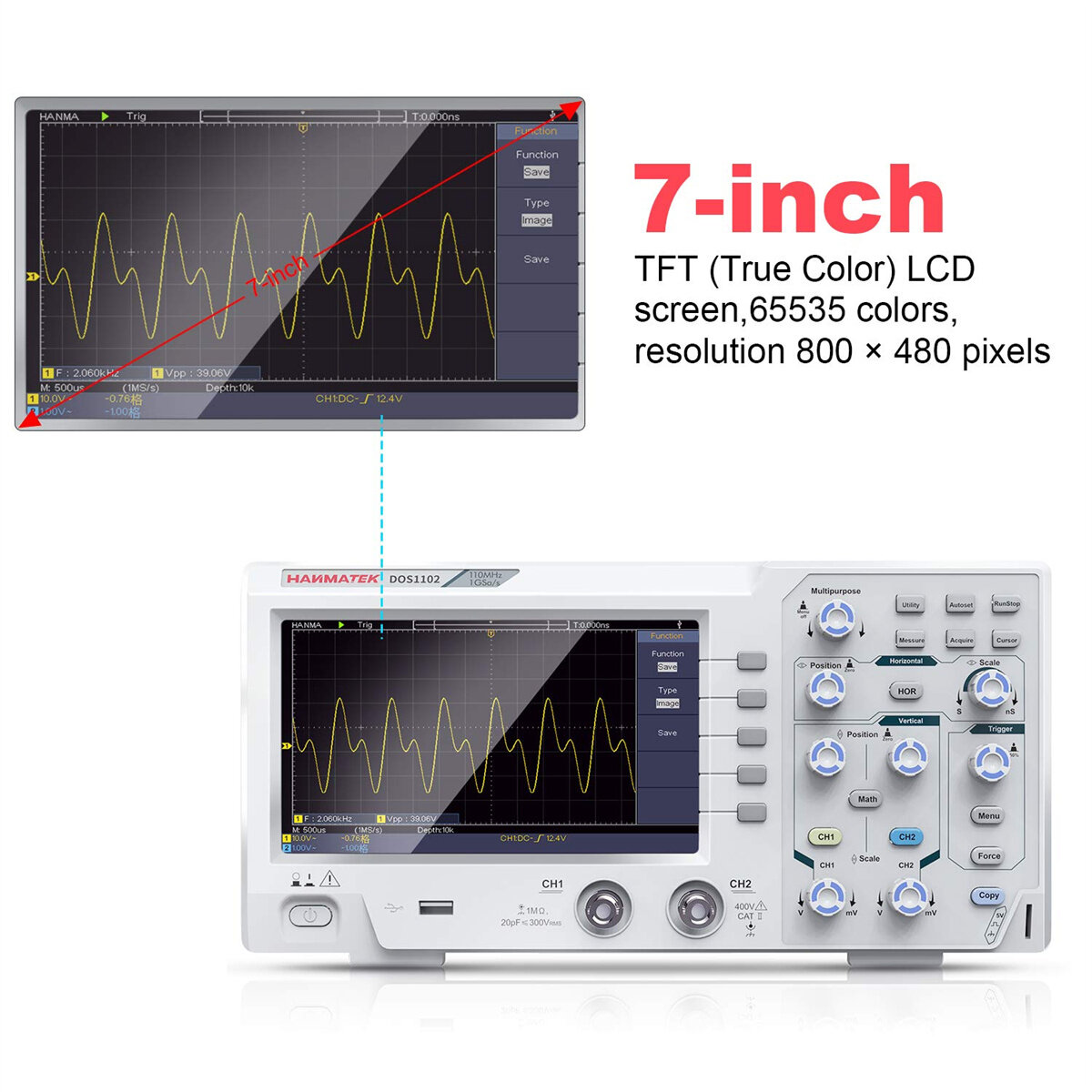

Advanced Display: With a 7-inch TFT LCD true color screen, the oscilloscope delivers high-resolution display (800×480 pixels), supporting cursor measurement for precise tracking and examination of input signals.

Intelligent Tracking and Range: This device supports horizontal, vertical, single waveform/multiple waveform tracking and has an automatic range function. The four probe attenuation multiples: 1X, 10X, 100X, 1000X allow for varied input signal ranges.

Detailed Frequency and Current Measures: Along with a precise 6-digit hardware frequency meter, the device also incorporates a current measurement function with a range of 100.0 mA/V ~ 1 kA/V. This ensures detailed and accurate readings.

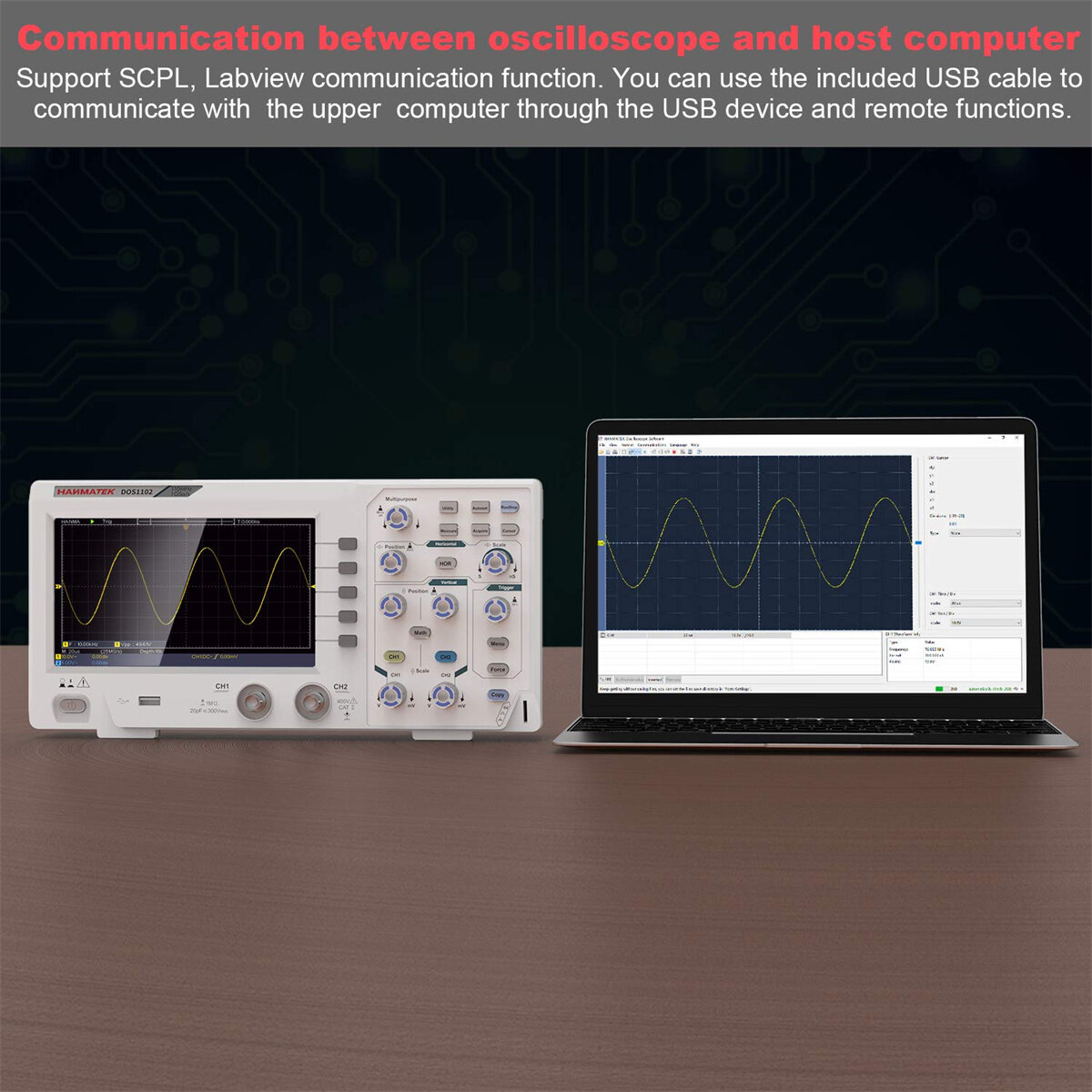

Enhanced Features: From 30 automatic measurement functions to a built-in FFT spectrum analysis function, the oscilloscope is designed with efficiency in mind. It supports LABVIEW communication and the SCPI standard, making it ideal for research and development environments.

Brand: HANMATEK

Screen Size: 7 Inches

Connectivity Technology: USB

Display Type: LCD

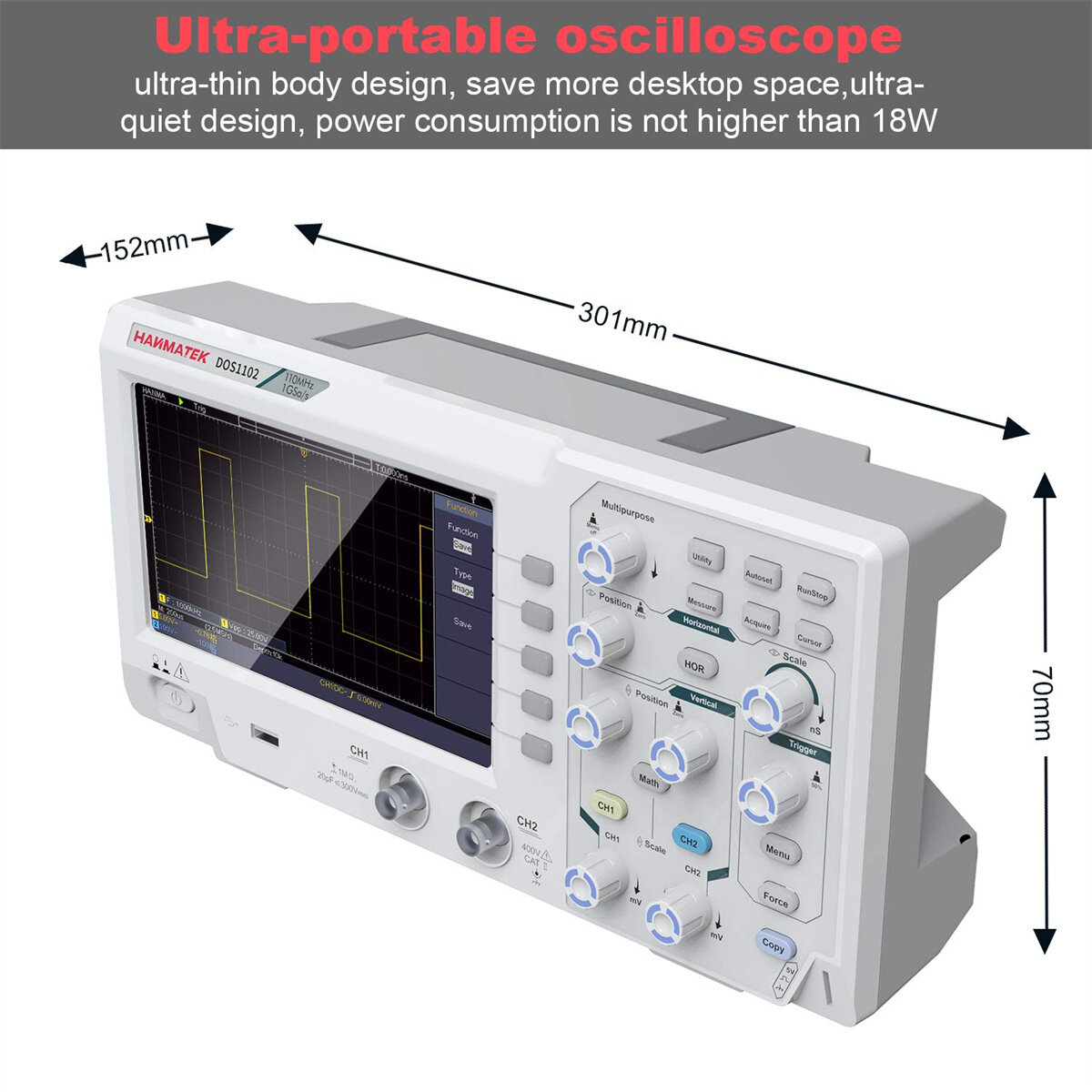

Special Feature: Portable

Bandwidth: 110MHz

Channels: 2

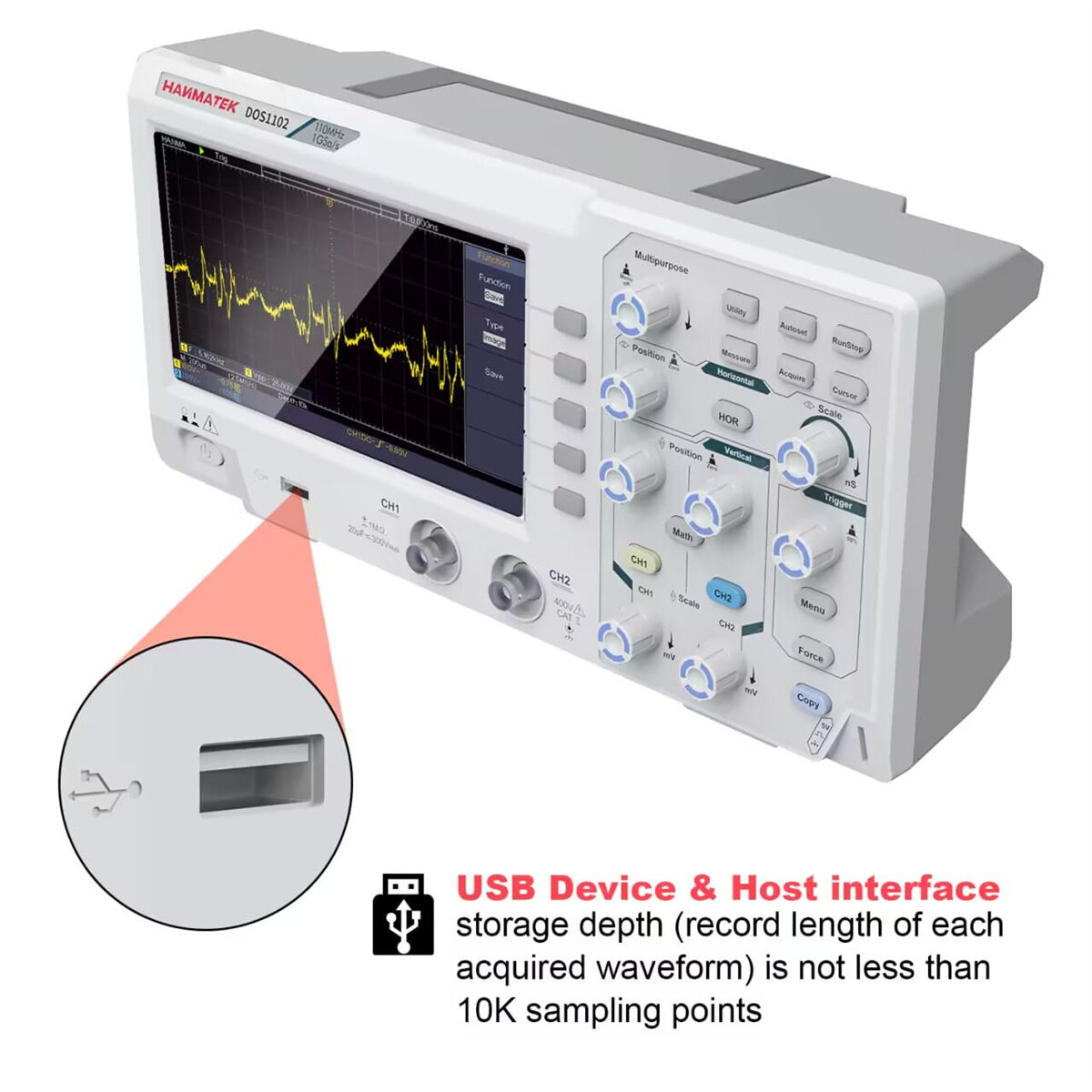

Storage Depth: >10K

Sampling Rate: 500 MS/s *2

Built-in FFT Function

Optional Plug Type: EU/US

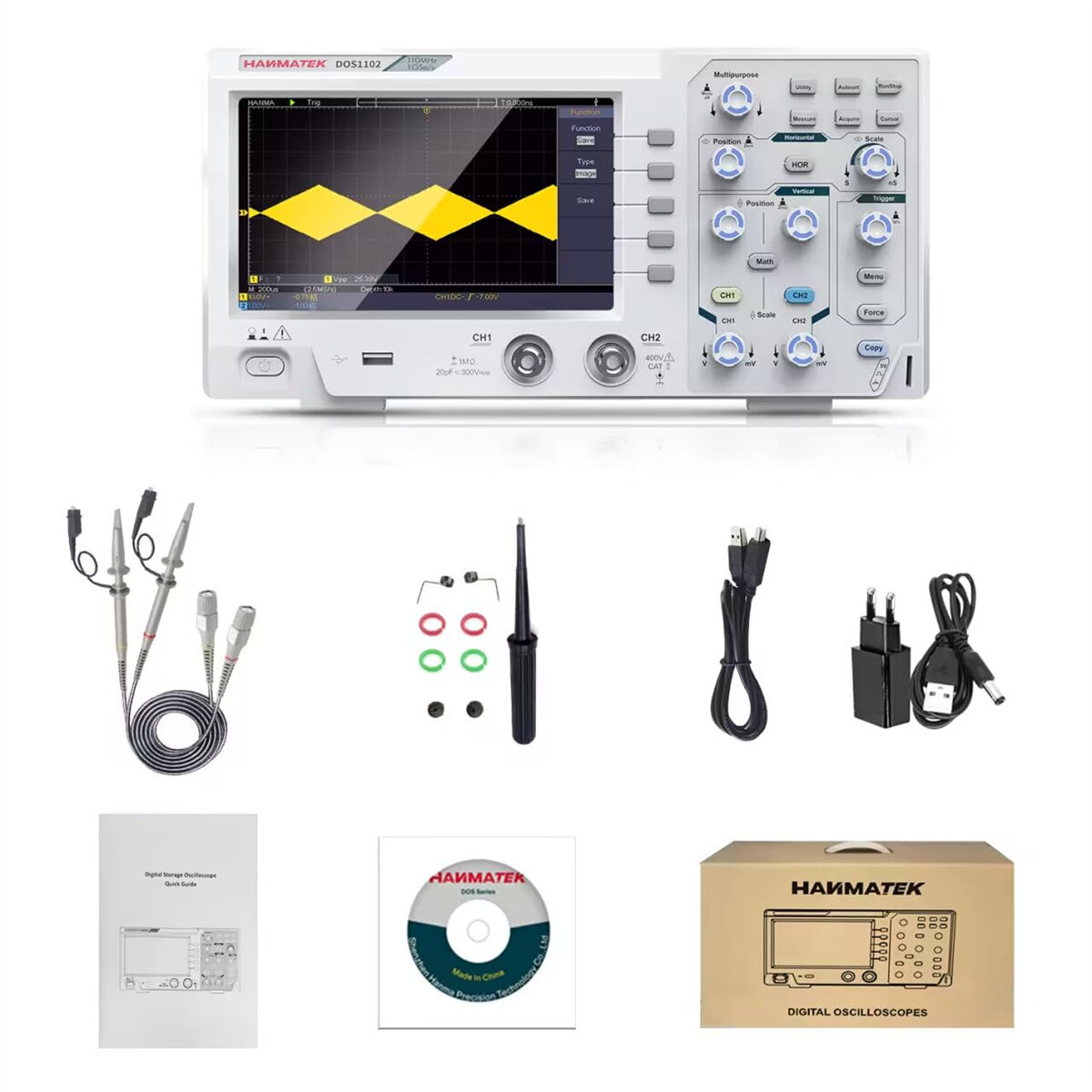

1 x HANMATEK Digital Oscilloscope

1 x USB Cable

1 x Power Adapter (Plug Type as your choice)

2 x Probes

1 Pack x Accessories

1 x User Manual

1 x CD-ROM (Software + manual)
