Model:DSO2D10

1), 2 channels, each channel has independent knob control;

2), Analog bandwidth

3), The highest sampling rate is ;

4), The storage depth is 8Mpts;

5), The vertical range 2mV/div ~ 10V/div;

6),

7), Vertical resolution: 8bit;

8), Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC;

9),

10), Can save settings, waveforms, reference waveforms, CSV, pictures and other data formats.

11), 3-digit digital voltmeter and 6-digit frequency meter functions;

12), Support 32 kinds of automatic measurement and statistics functions, real-time statistics of minimum, maximum, standard deviation and other statistical information;

13), Two sets of digital voltmeter functions;

14), Support threshold test to realize free measurement in the screen;

15), Rich SCPI remote control instructions;

16), .

()：

			Sampling Rate		Signal Source (AWG)
		100MHz
				8M
	2CH+1CH	100MHz	1GSa/S		1CH
>>DSO2D15<<		150MHz	1GSa/S		1CH

DSO2D10

2 x BNC to Alligator Clip Test Cables

1 x Power Cable(EU plug)

1 x USB Cable

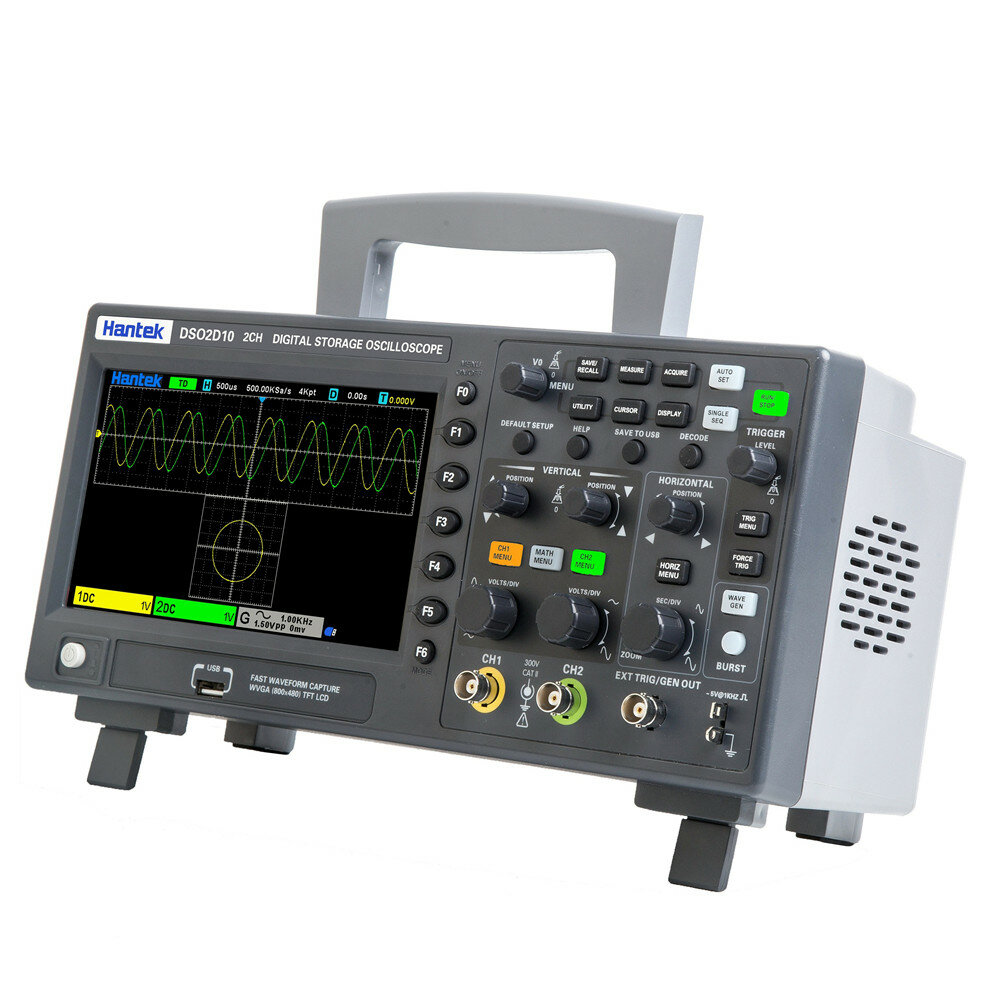

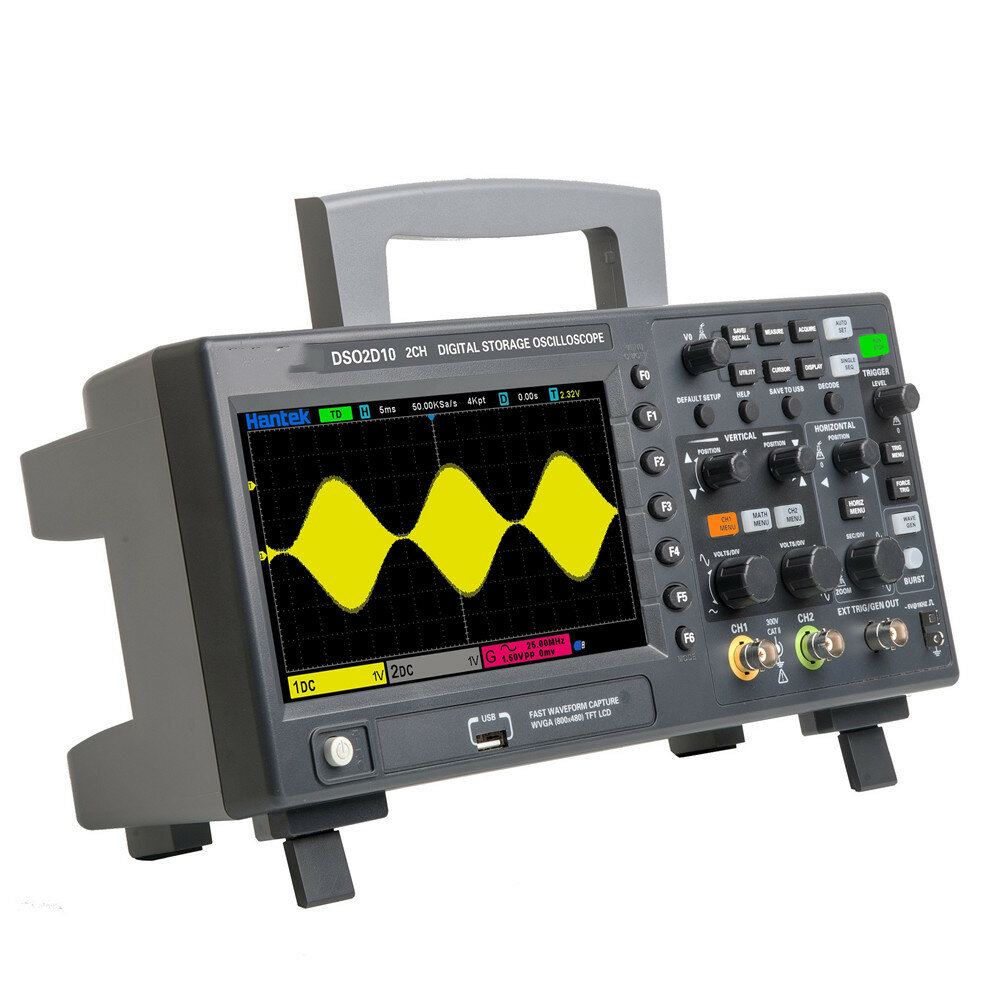

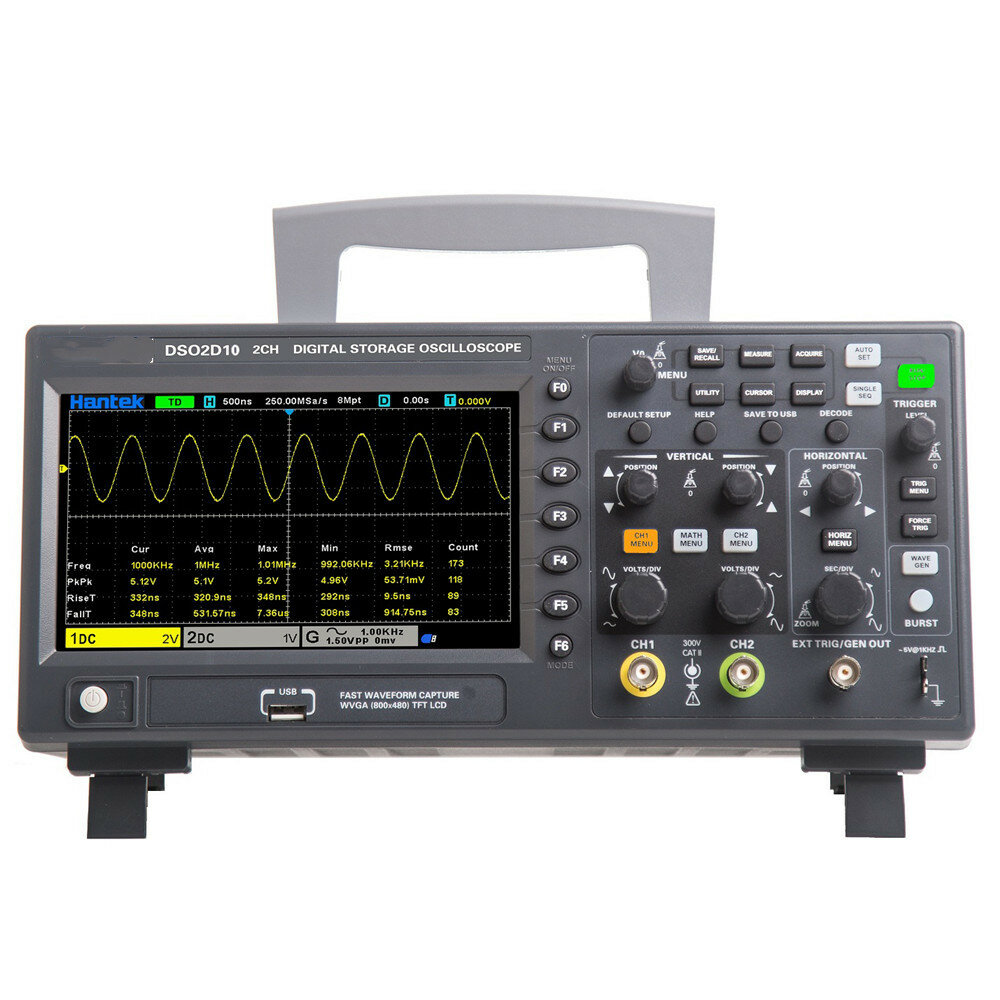

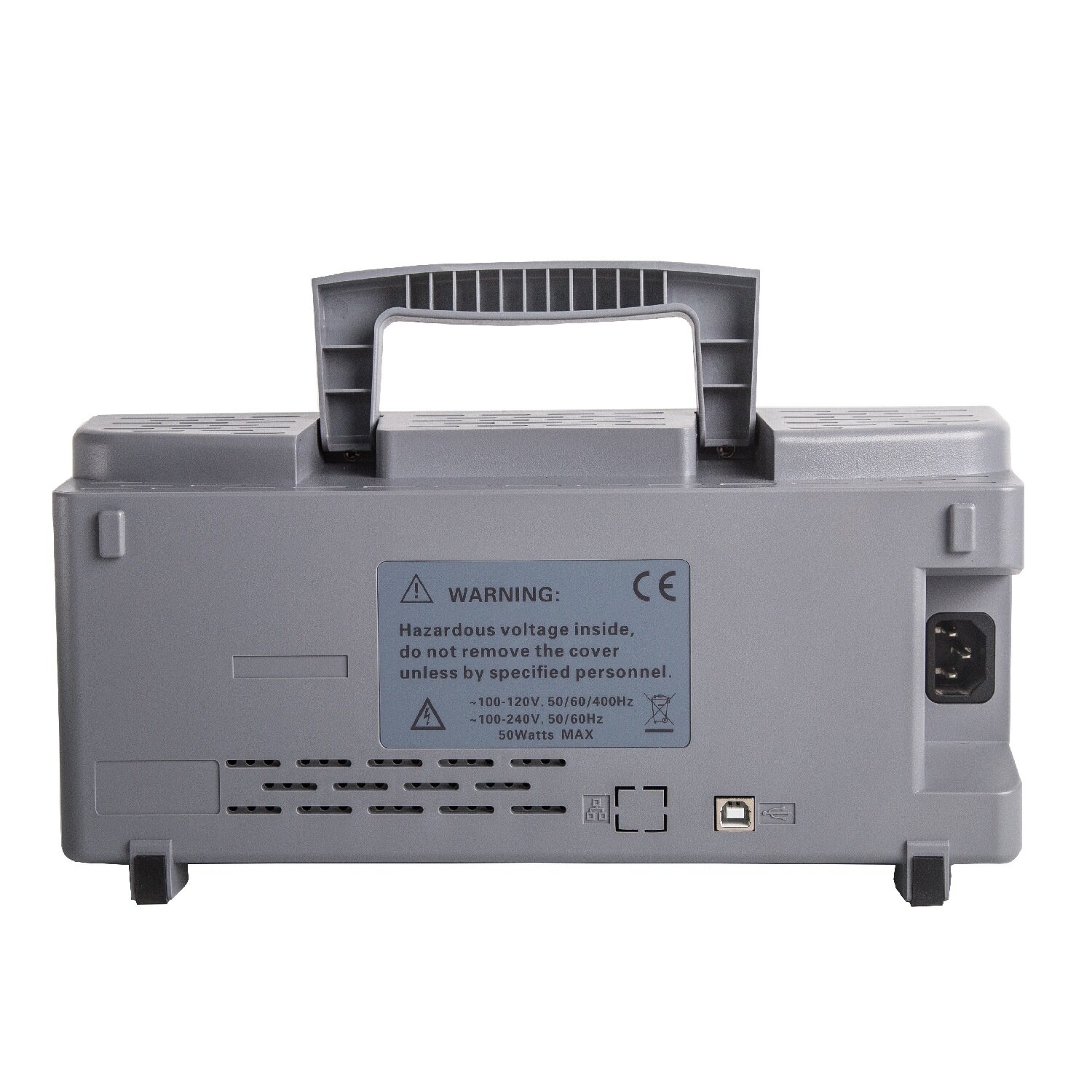

Details pictures:
