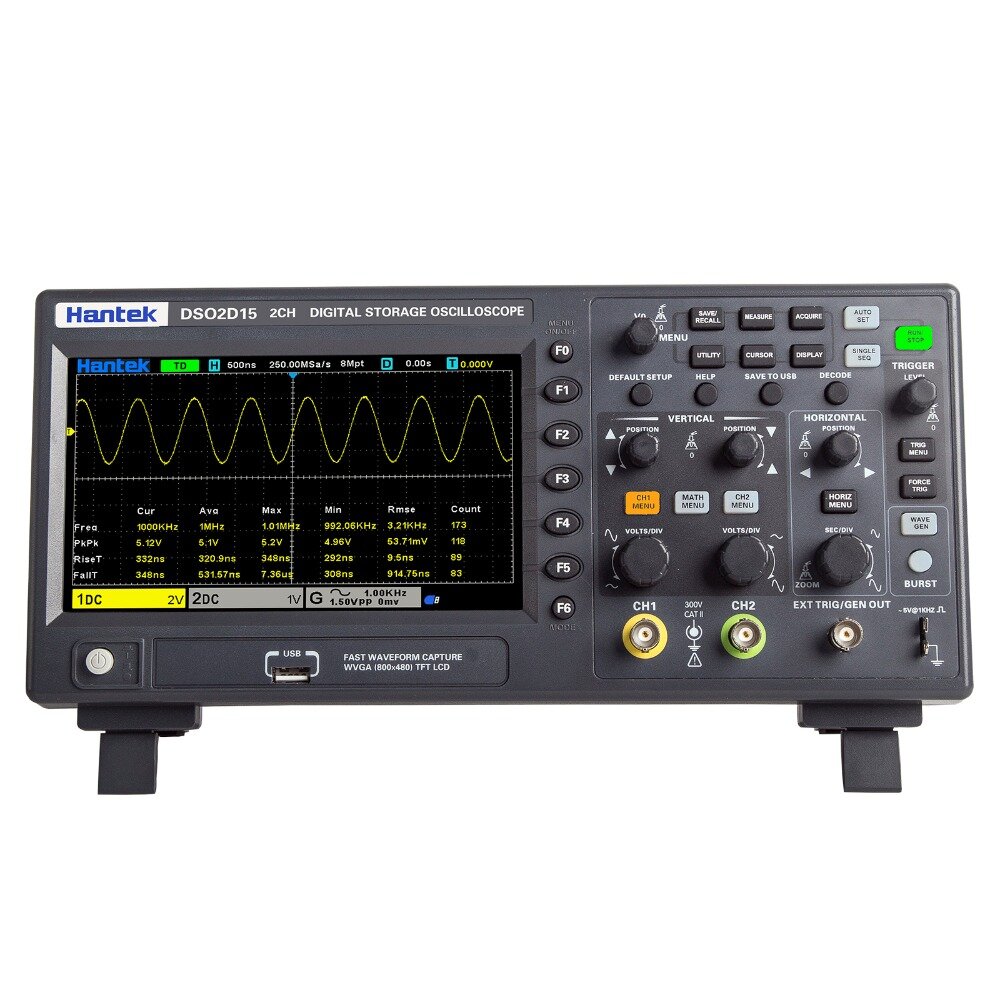

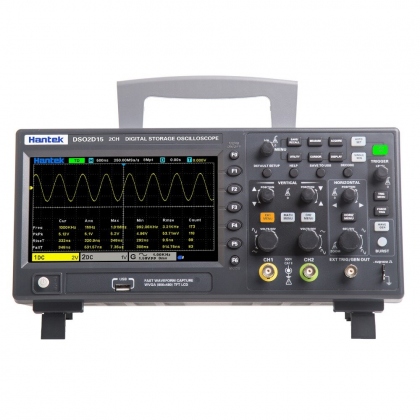

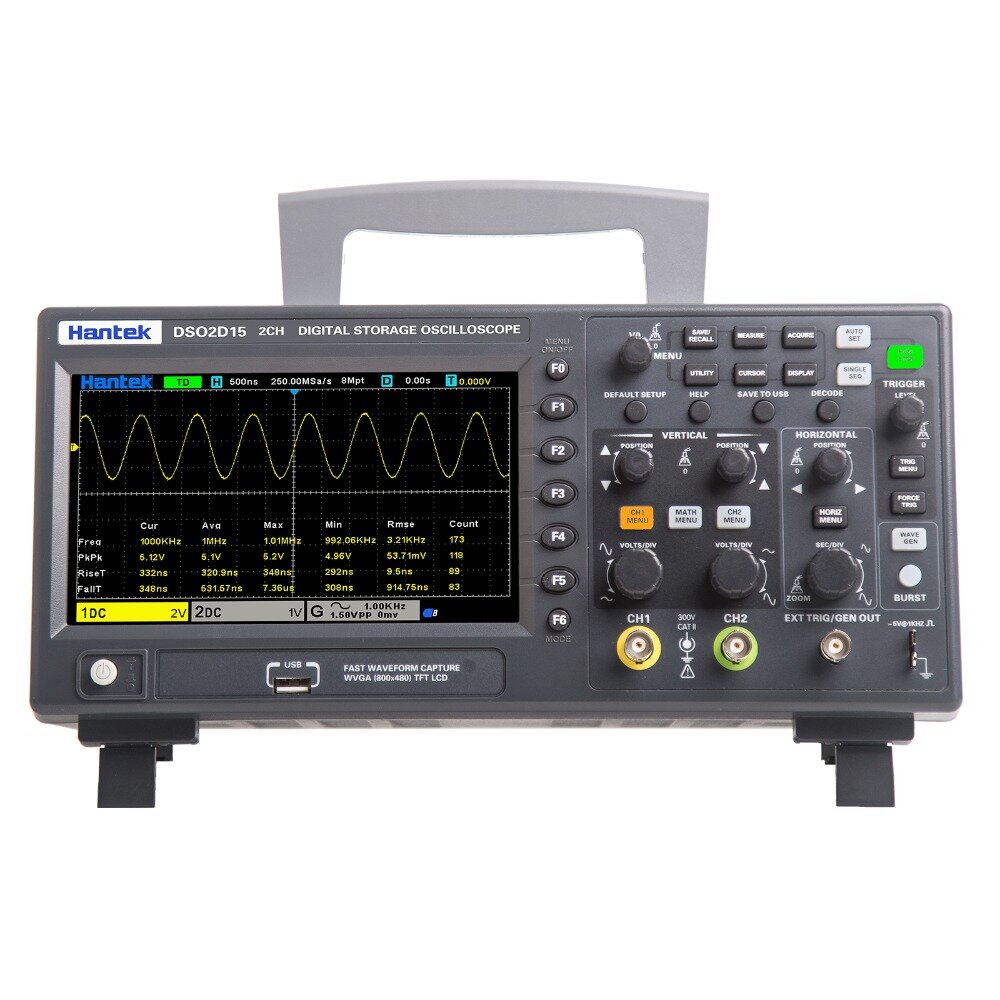

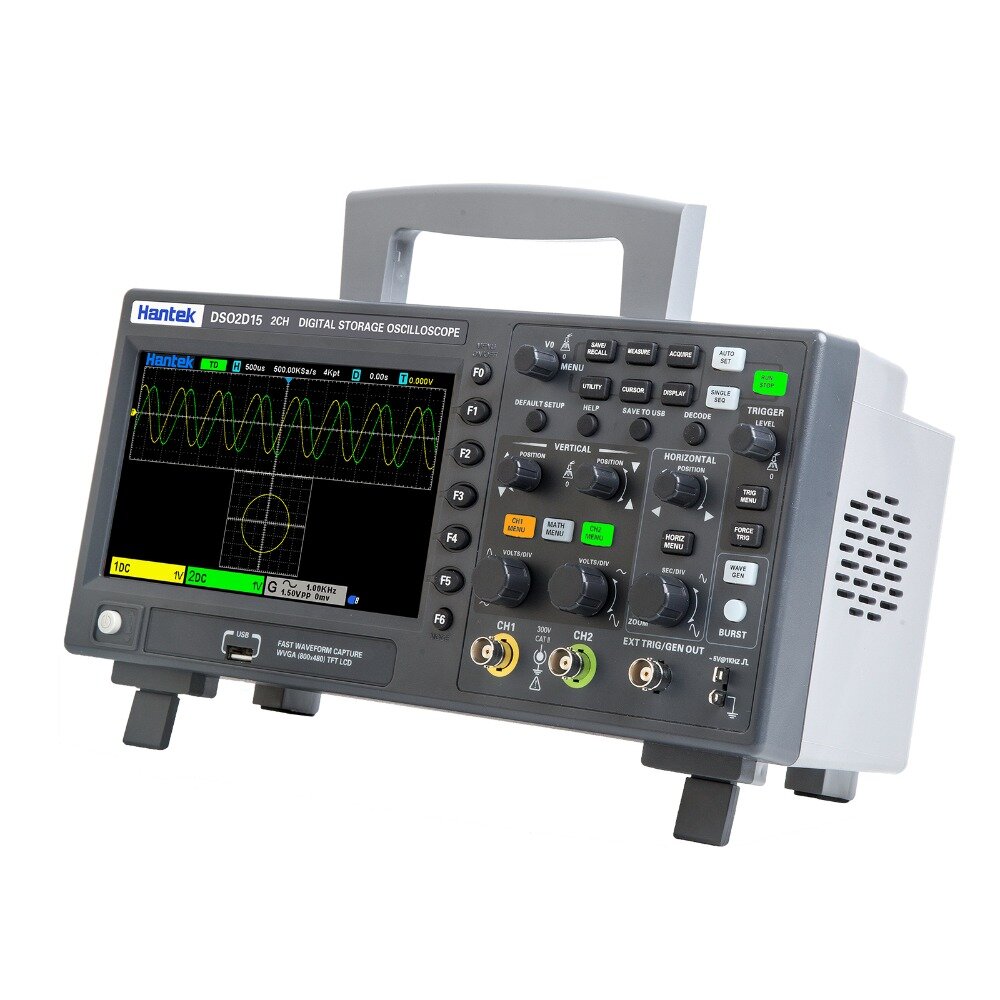

Feature: 1) 2) 3) 1 GSa/s real-time sample rate;4) 8M memory depth;5) Vertical range 2mV/div ~ 10V/div;6) 7) Vertical resolution : 8bit;8) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;9) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;13) 2 sets of digital voltmeter;14) Support threshold testing, free measurements within the screen;15) Abundant SCPI remote command control;16) Many external interface: USB Host/Device.
Product Model()
Model
Channels
Bandwidth
Storage Depth
>>DSO2C10<<
2CH
1GSa/S
8M
/
>>DSO2C15<<
2CH
150MHz
1GSa/S
/
>>DSO2D10<<
8M
>>DSO2D15<<
2CH+1CH
8M
>>Please Click Here to Download the English User Manual<<
>>Click to Download DSO2000 Software<<
DSO2D10
DSO2C15
DSO2C10
Bandwidth
150MHz
100MHz
150MHz
100MHz
Oscilloscope channels
2CH
2CH
2CH
2CH
Waveform generator
1CH
1CH
-
-
Oscilloscope
Sample rate
1GSa/s (single channel) 500MSa/s (two channels)
Acquisition
Sampling
Sample data
Peak-to-peak value
Display high frequency and random burr
Average
Average waveform, times: 4, 8, 16, 32, 64, 128
High resolution
Up to 12bit
Input
Input coupling
DC, AC, GND
Input impedance
1MΩ±2% ‖20pF±3pF
Probe attenuation factor
1X, 10X, 100X, 1000X
Voltage classes
300V CAT II
Maximum input voltage
300VRMS (10X)
Horizontal
Waveform interpolation
(sin x)/x
Maximum record length
8M
Two channels maximum4M
Horizontal scale range
2ns/div~100s/div 1, 2, 5 step by step
Time base mode
Y-T, X-Y, Roll
Zero offsets
±0.5 div×minimum time base gear
±25ppm
Clock drifting
≤±5 ppm/year
single, ''acquisition'' mode
(Full Bandwidth)
±（1 sample interval+100ppm×reading+0.6ns）
＞16 times averages
±（1 sample interval+100ppm×reading+0.4ns）
Sample interval=sec/div÷200
Sample Rate and Delay Time Accuracy
±50ppm（at any interval greater than 1ms）
Vertical
Model
DSO2D15
DSO2D10
DSO2C15
DSO2C10
Bandwidth
150MHz
100MHz
150MHz
100MHz
Rising time in BNC position (typical)
2.3ns
3.5ns
2.3ns
3.5ns
Vertical resolution
8 bits resolution, each channel samples simultaneously
