Hantek PP-150 1PCE Oscilloscope Probes 100MHz 1X 10X Digital Multimeter Oscilloscope Clip Probe COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:

Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Features:

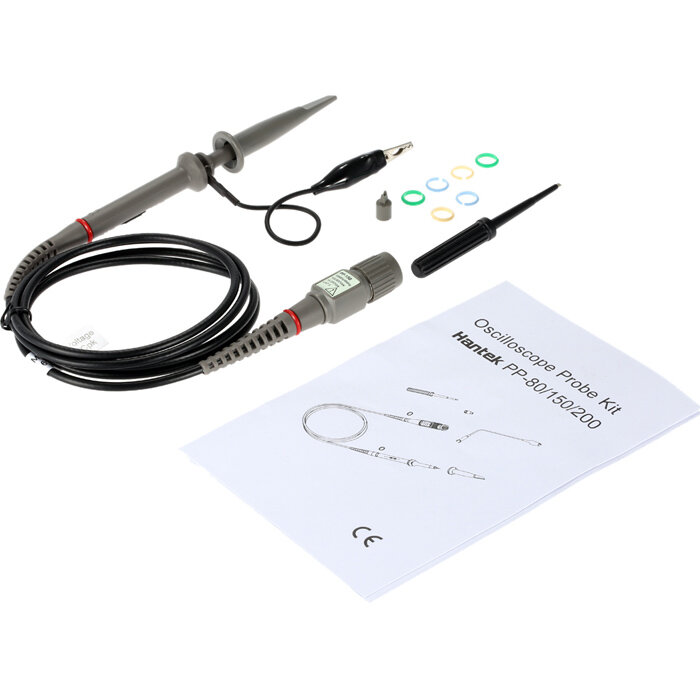

Color: Black + Grey Type: PP-80 / PP-150 Attenuation: x1  x10 Input Resistance: 1MΩ: 10MΩ Input Capacitance: x1: 85pF-115pF                               x10: 18.5pF-22.5pF Compensation Range: 15pF ~ 35pF System Bandwidth: x1: DC-5MHz                                x10: DC-100MHz Input Voltage: x1: <200V DC +Peak AC                         x10: <600V DC +Peak AC Operating Temperature: -10℃~ +50℃ / 14℉~ 122℉ Non Operating Temperature: -20℃~ +75℃/ -4℉~ 167℉ Humidity: ≤85% (Relative Humidity) Cable Length: 120cm / 47.2in Item Size: Approx. 17 x 2 x 2cm / 6.7 x 0.8 x 0.8in (ONLY Probe) Item Weight: Approx. 49.1g / 1.7oz  Package Size: Approx. 20 x 13 x 2cm / 7.9 x 5.1 x 0.8in Package Weight: Approx. 74g / 2.6oz Package included:
