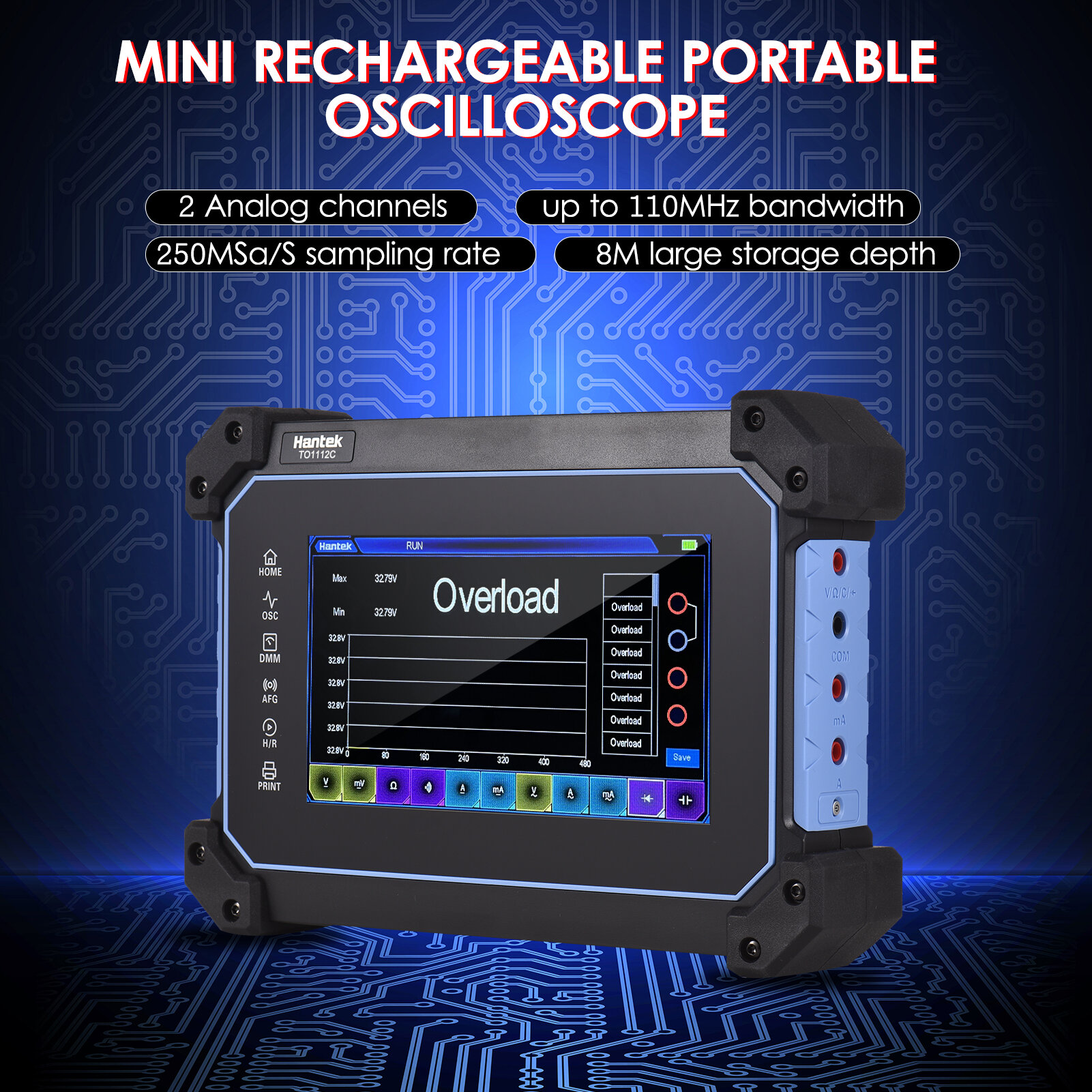

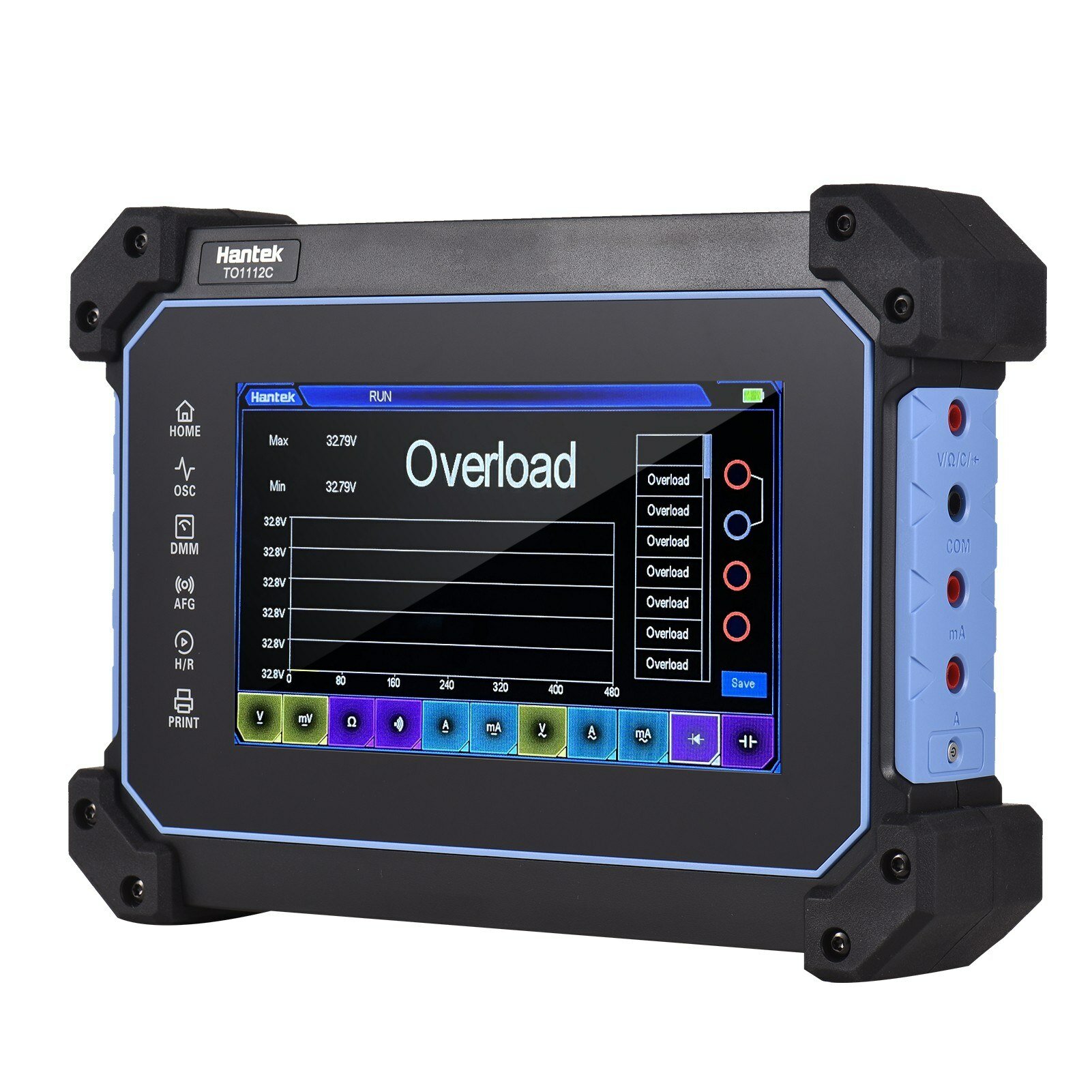

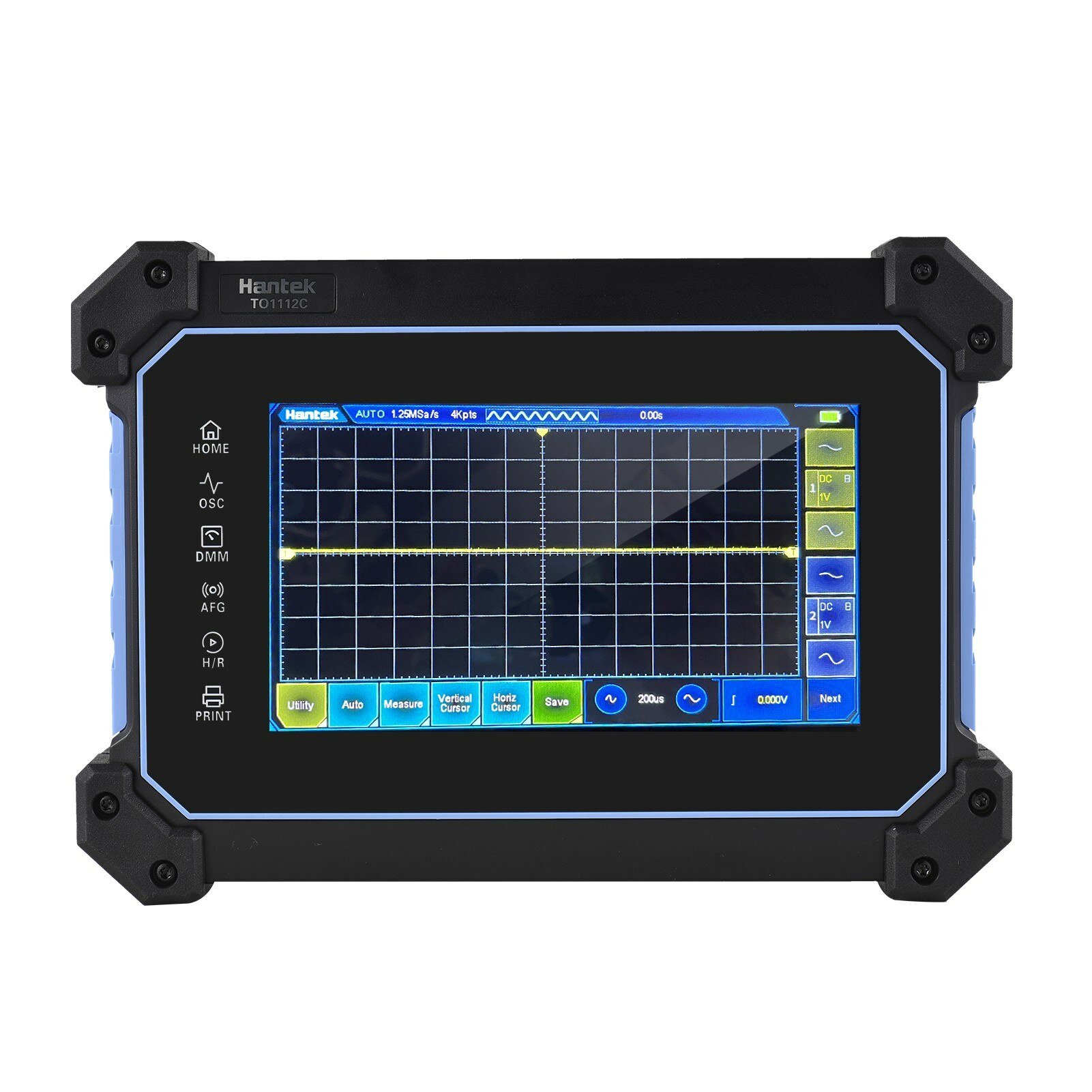

Hantek TO1112C Rechargeable Portable Oscilloscope Multimeter 2-Channel 110MHz Bandwidth 250MSa/S Sampling Rate 8M Storage Depth 7-inch TFT LCD Digital Storage Oscilloscope Arbitrary Waveform Generator

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

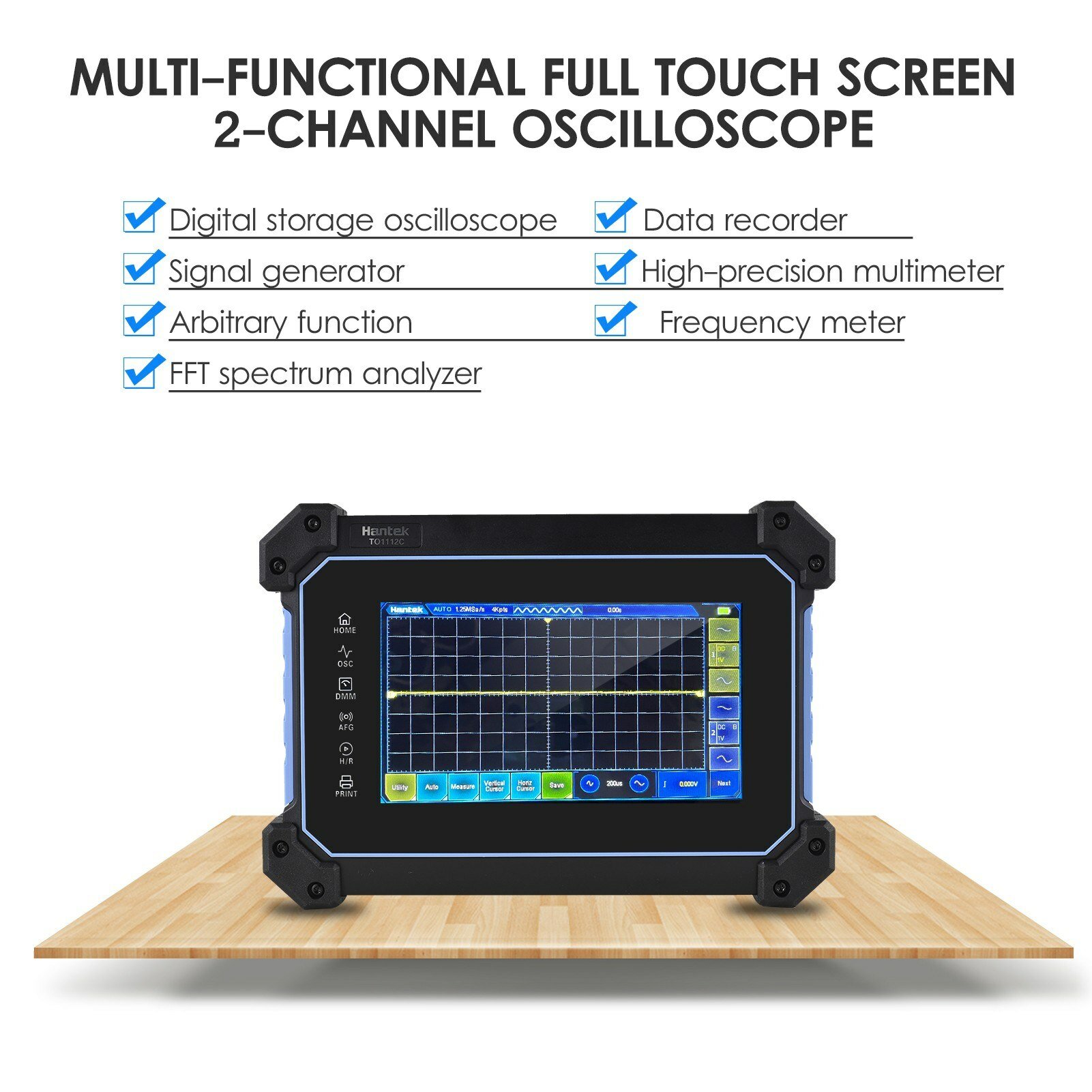

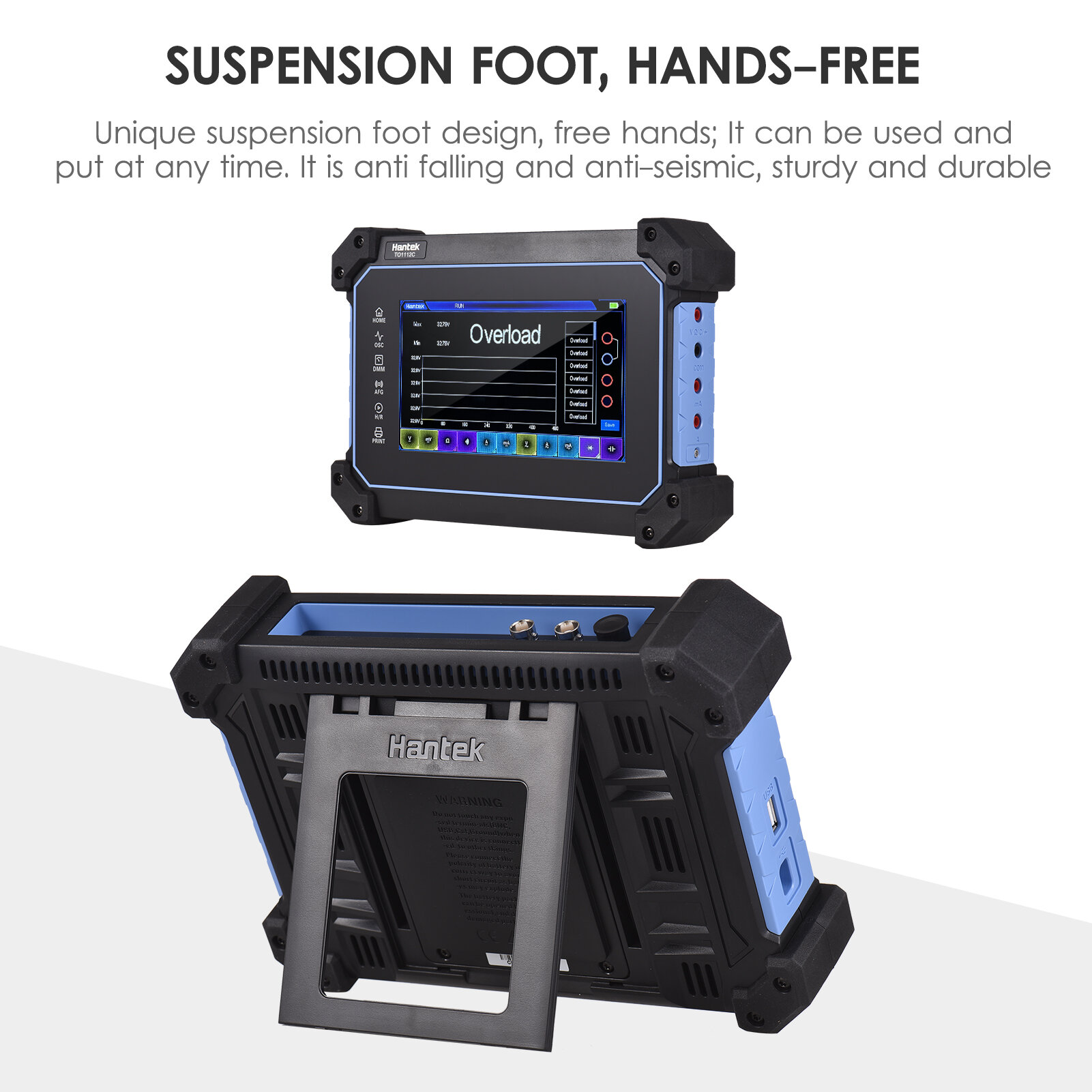

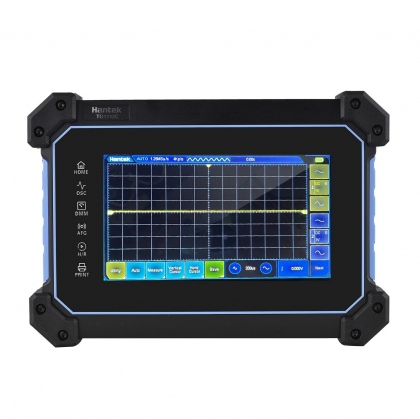

The multi-functional full touch screen oscilloscope has a thin body, light weight and is easy to carry. Unique hanging design, hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and spectrum analyzer; Built in super large capacity battery, long endurance, support fast charging, and abundant power.

Features:

2-channel Digital Storage Oscilloscope: bandwidth up to 110MHz, 250MSa/s high sampling rate, 8M large storage depth; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.

Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

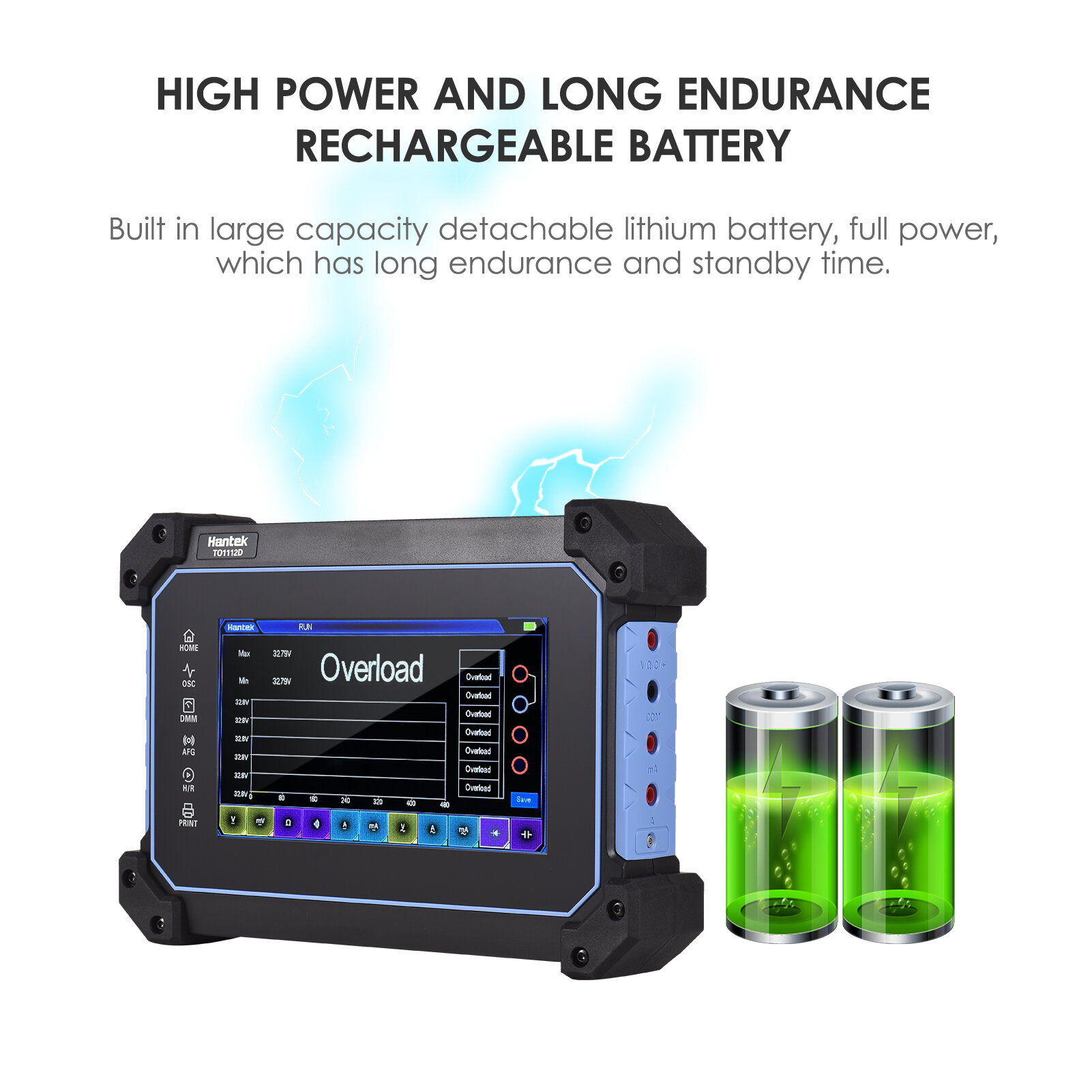

High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.

7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.

Specifications:

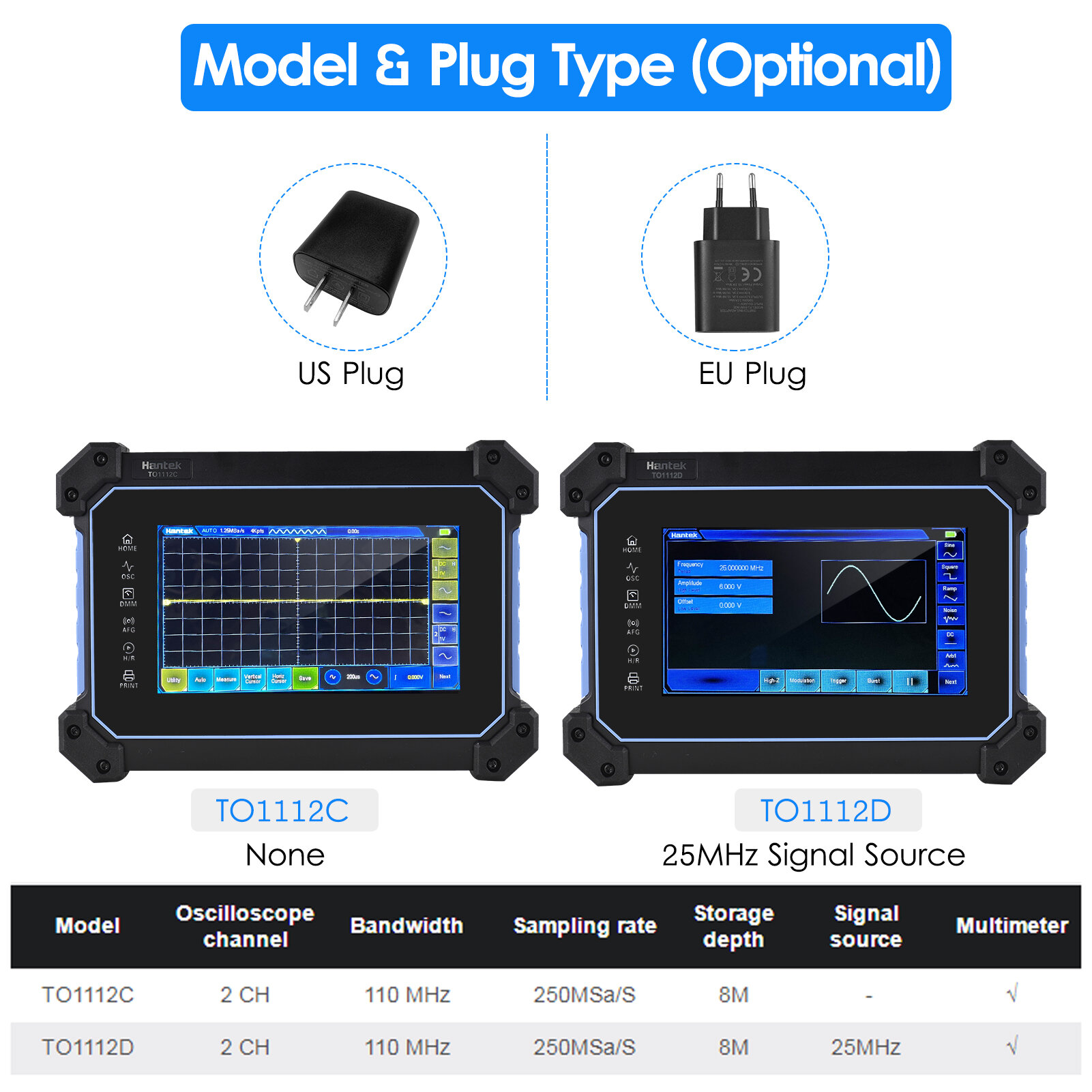

Plug Type: EU / US (Optional)
Model: TO1112C / TO1112D (Optional)

  TO1112D: 25MHz signal source

OSCILLOSCOPE:

Bandwidth: 110MHz

Storage Depth: 8Mpts



Channel Number: 1

Vertical Resolution: 12bit

Standard Waveform: Squar,Sine wave, Triangle wave, Noise, DC

Amplitude: 50Ω+2%



Maximum Resolution: 4000 points

Maximum Input Voltage: AC: 600V; DC: 600V

Input Impedance: 10MΩ

AC Voltage: 4V/40V/400V/600V

AC Current: 40mA/400mA/4A/10A

Capacitance: 40nF/400nF/4μF/40μF/100μF

On off Measurement: <50Ω

GENERAL SPECIFICATIONS:

Display Resolution: 800 (horizontal) *480 (vertical) pixels

Waveform Brightness: Adjustable

Grid Brightness: Adjustable

Afterglow: 1s, 5s, 10s, 30s, Infinite, Off

Power Supply: AC 100~240V, 50/60Hz; DC input: 5V3A/9V2A/12V1.5A

Fast Charge: Support fast charging



Temperature: 0~50℃

Humidity: ≤104℉(≤40°C): ≤90%RH; 106~122℉(41~50°C): ≤60%RH



Item Weight: 1006g / 2.22

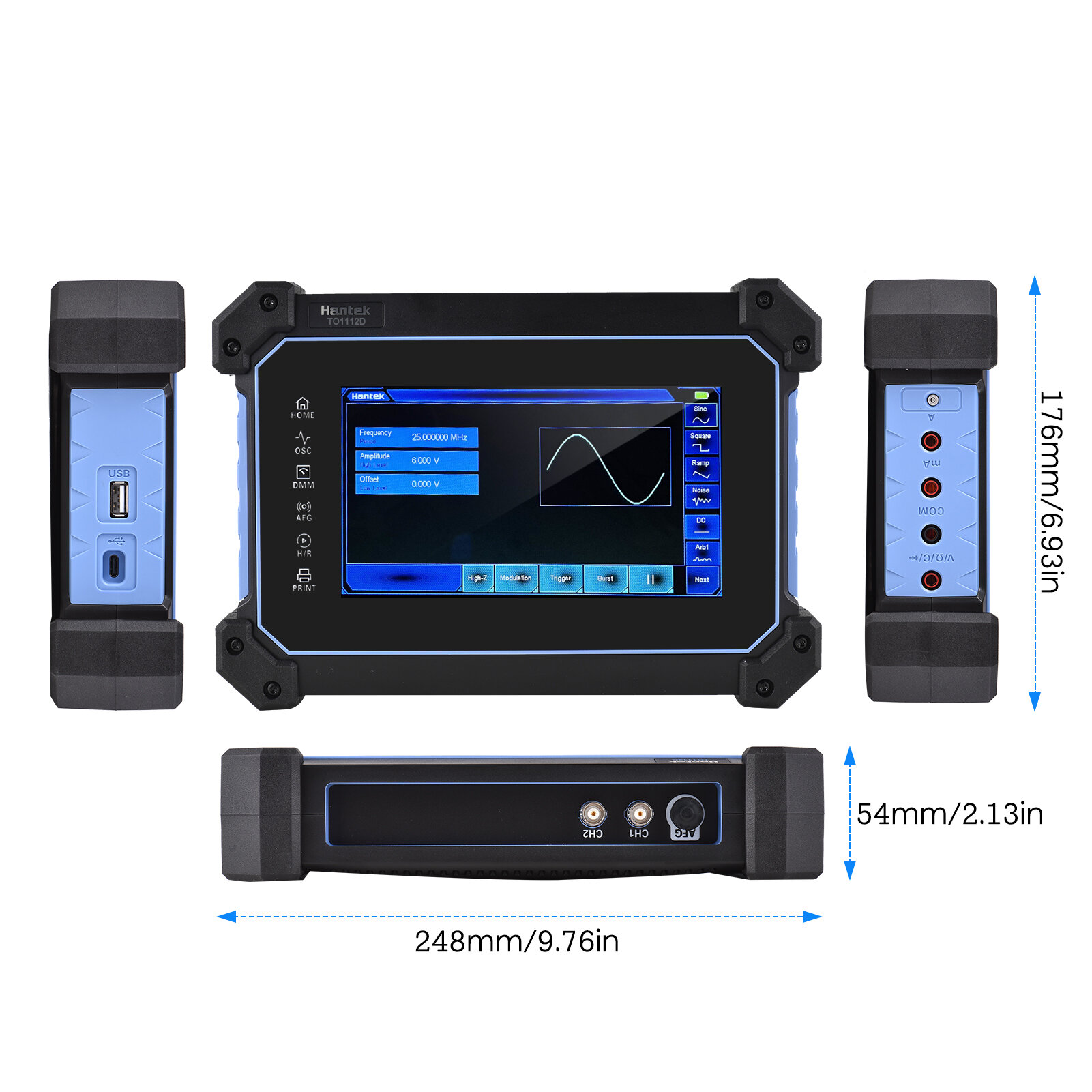

Package Size: 31.5 * 23.5 * 10.5cm / 12.40 * 9.25 * 4.13in

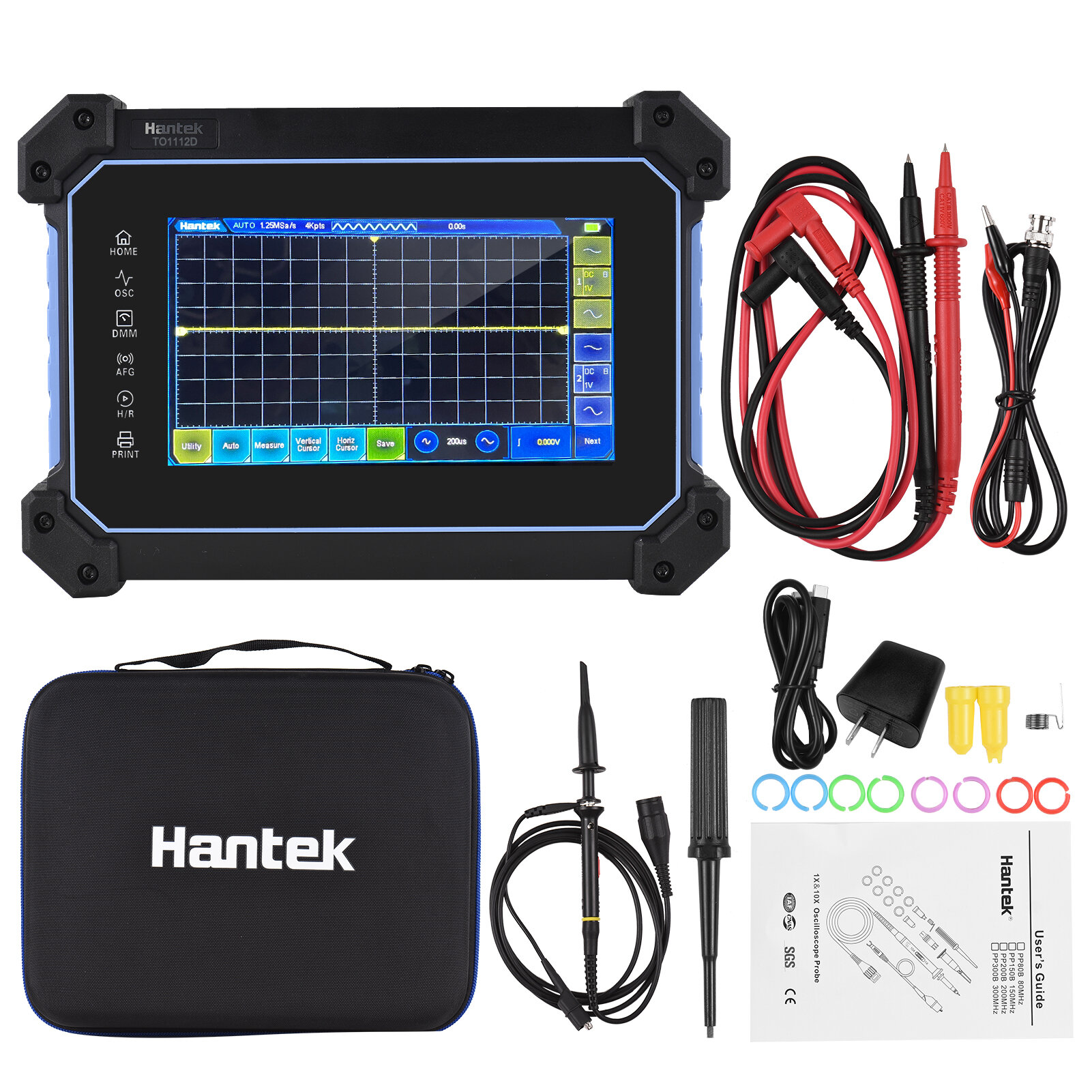

Package included:

1 x 1X & 10X Oscilloscope Probe

1 x Type-C Cable

1 x Package of Accessory

1 x Zipper Case
