Hantek TO1154D Rechargeable Portable Oscilloscope Multimeter 4-Channel 150MHz Bandwidth 1GSa/S Sampling Rate 8M Storage Depth 25MHz Signal Source 7-inch TFT LCD Digital Storage Oscilloscope Arbitrary

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

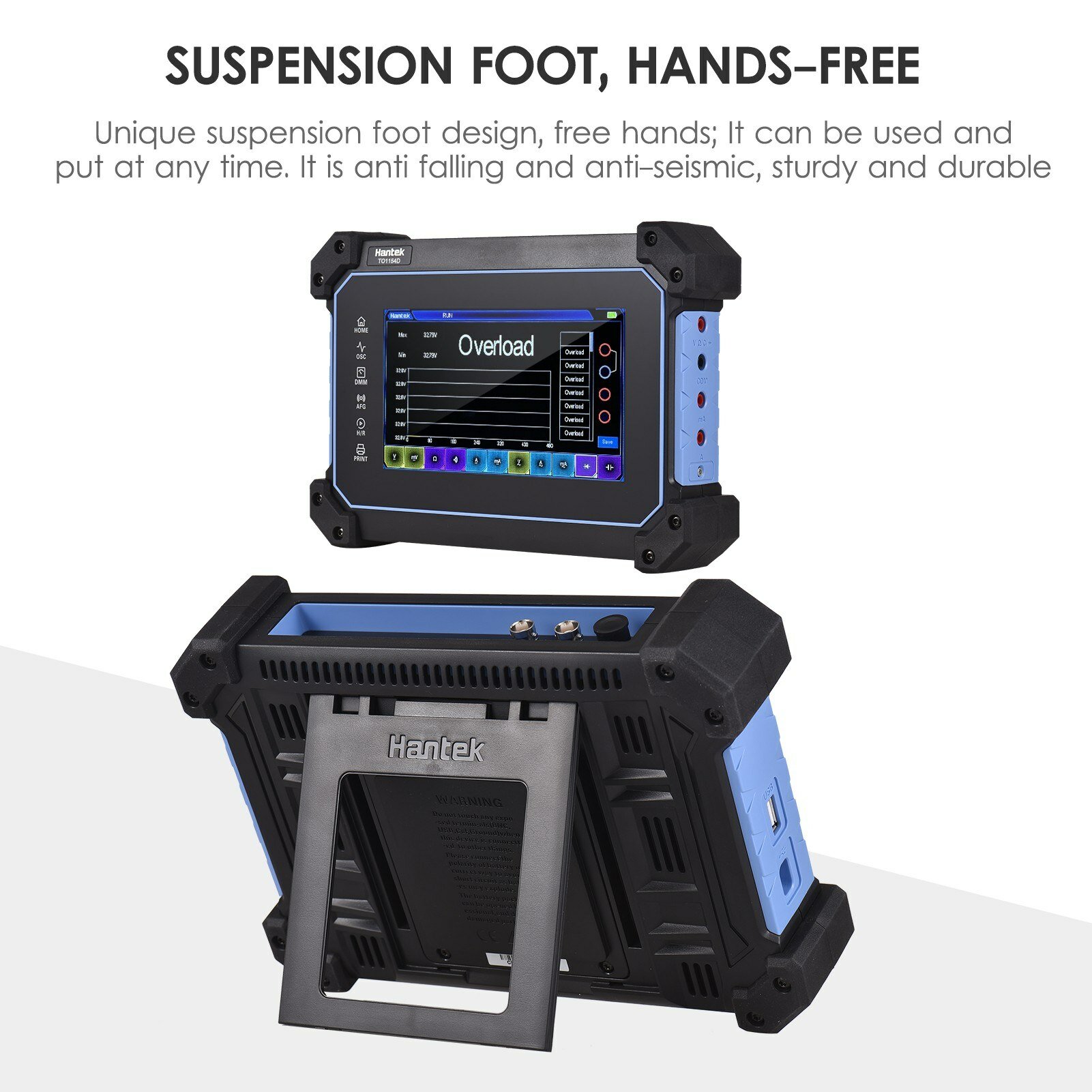

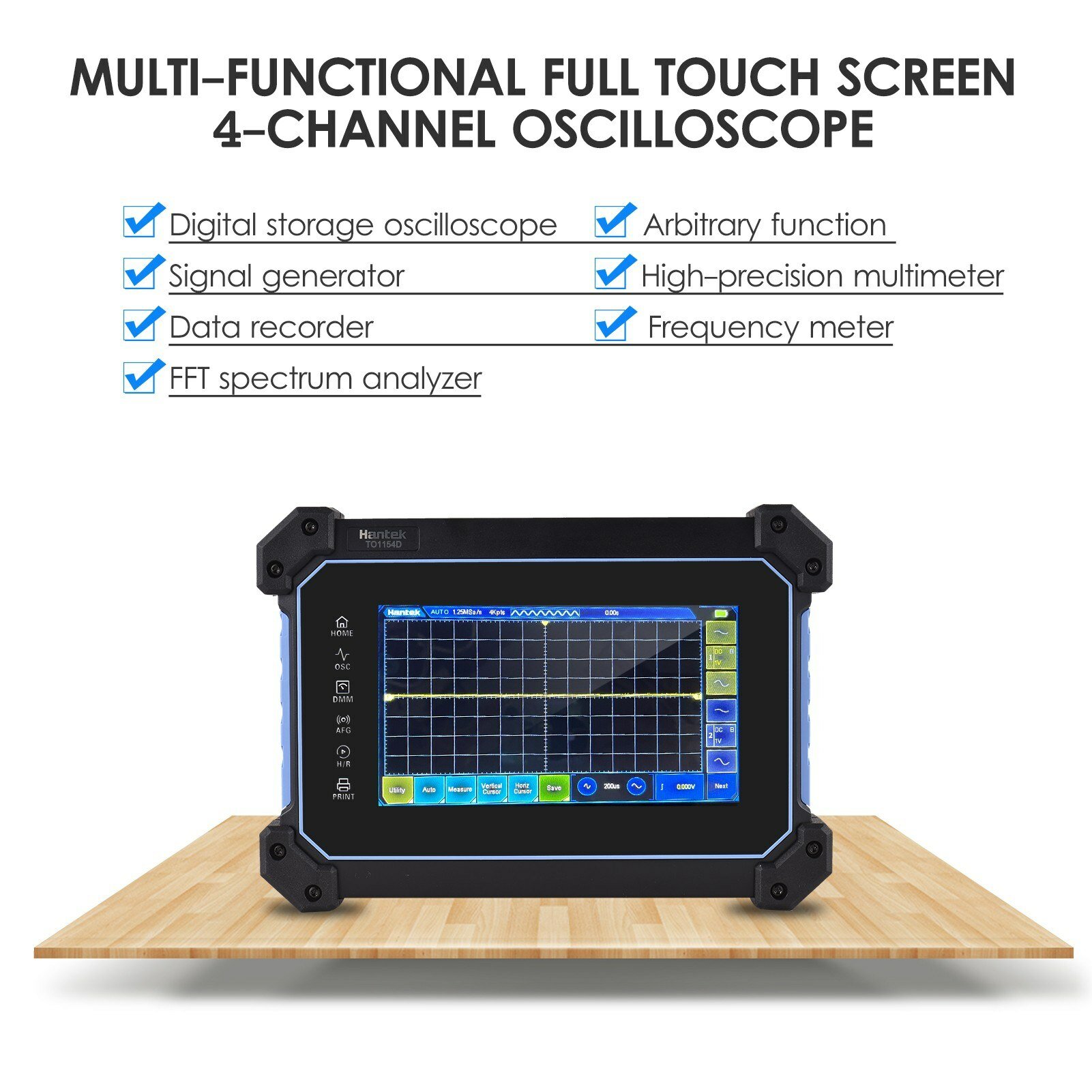

The multi-functional full touch screen oscilloscope has a thin body, light weight and is easy to carry. Unique hanging design, hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and spectrum analyzer; Built in super large capacity battery, long endurance, support fast charging, and abundant power.

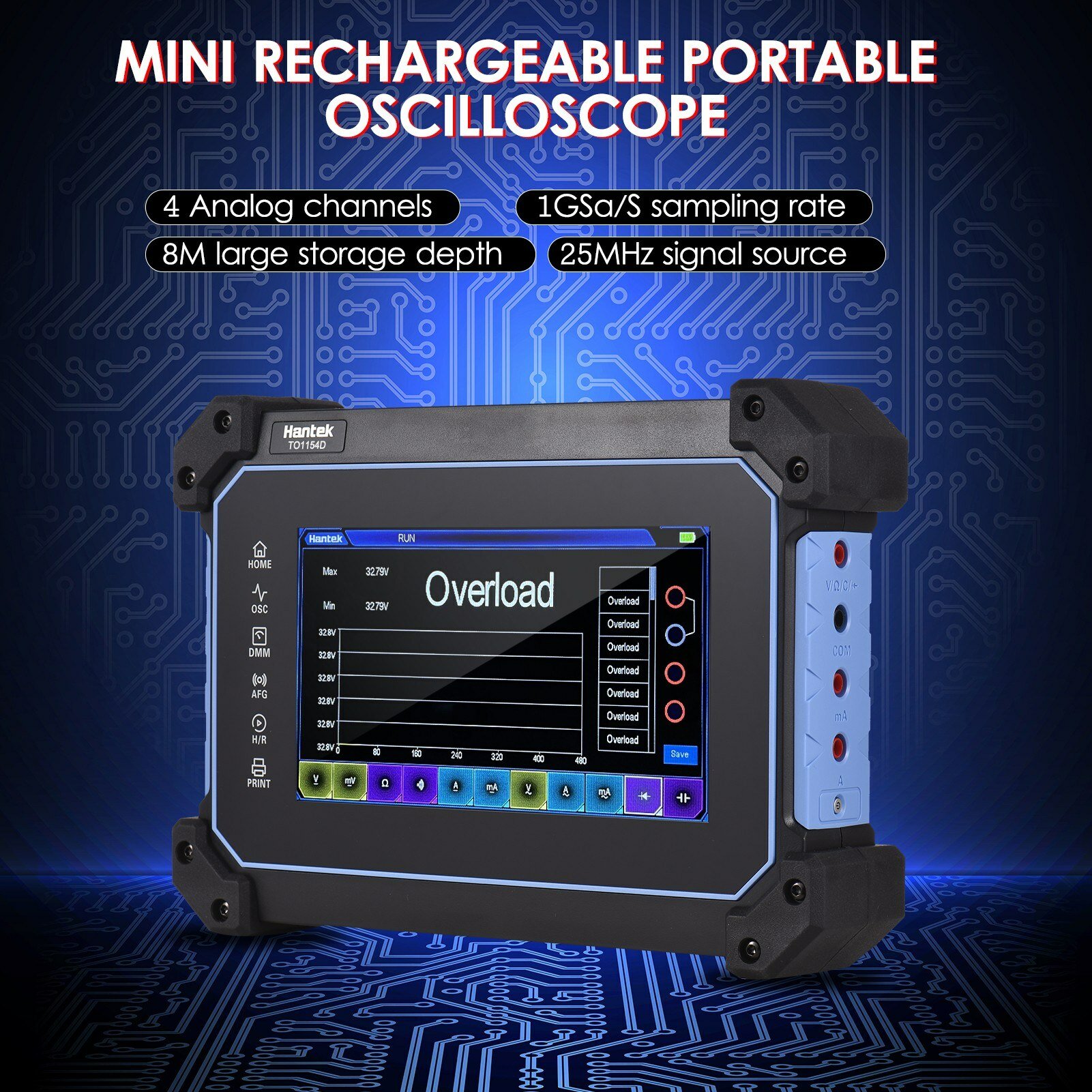

4-channel Digital Storage Oscilloscope: 1GSa/s high sampling rate, 8M large storage depth, 25MHz signal source; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.

Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

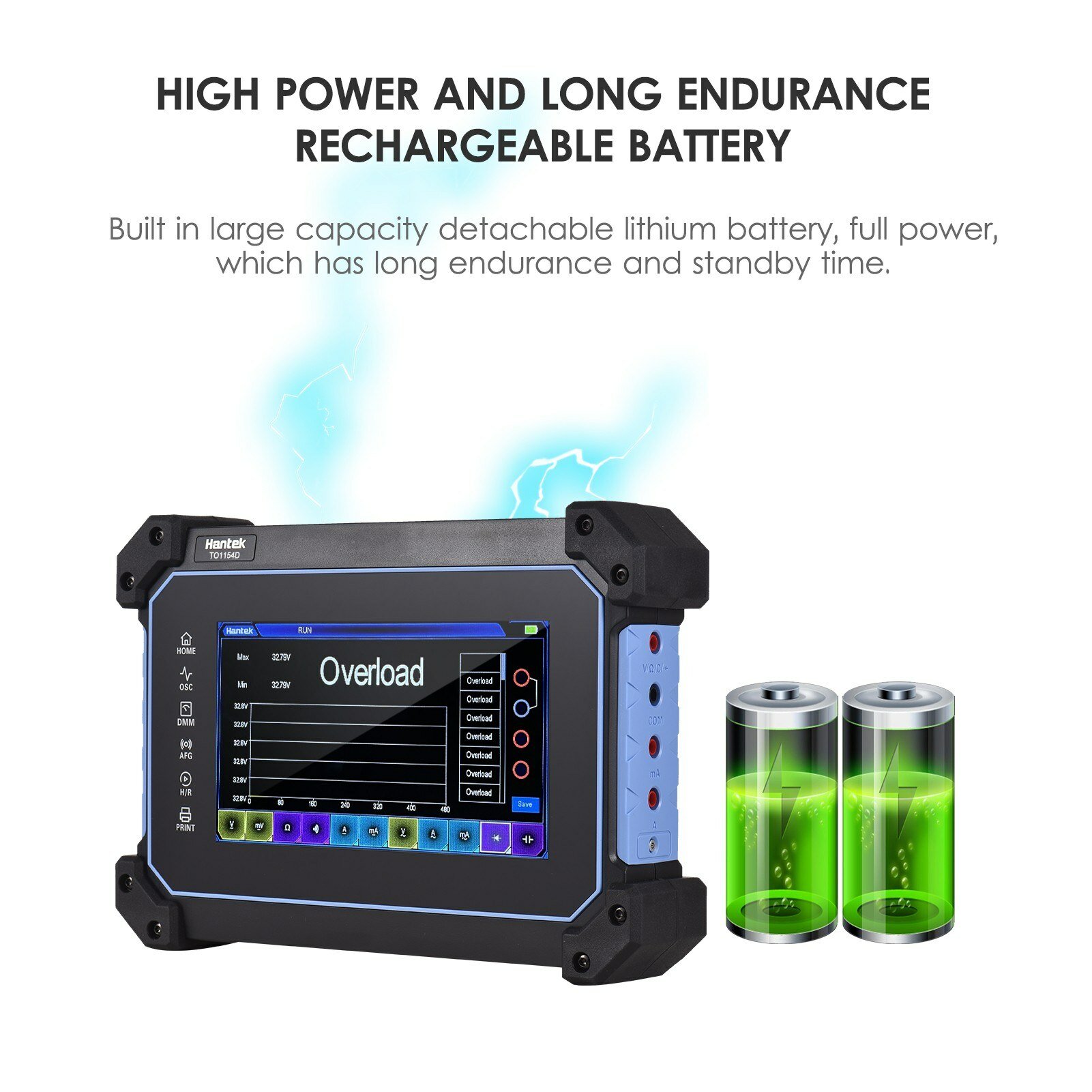

High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.

7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.

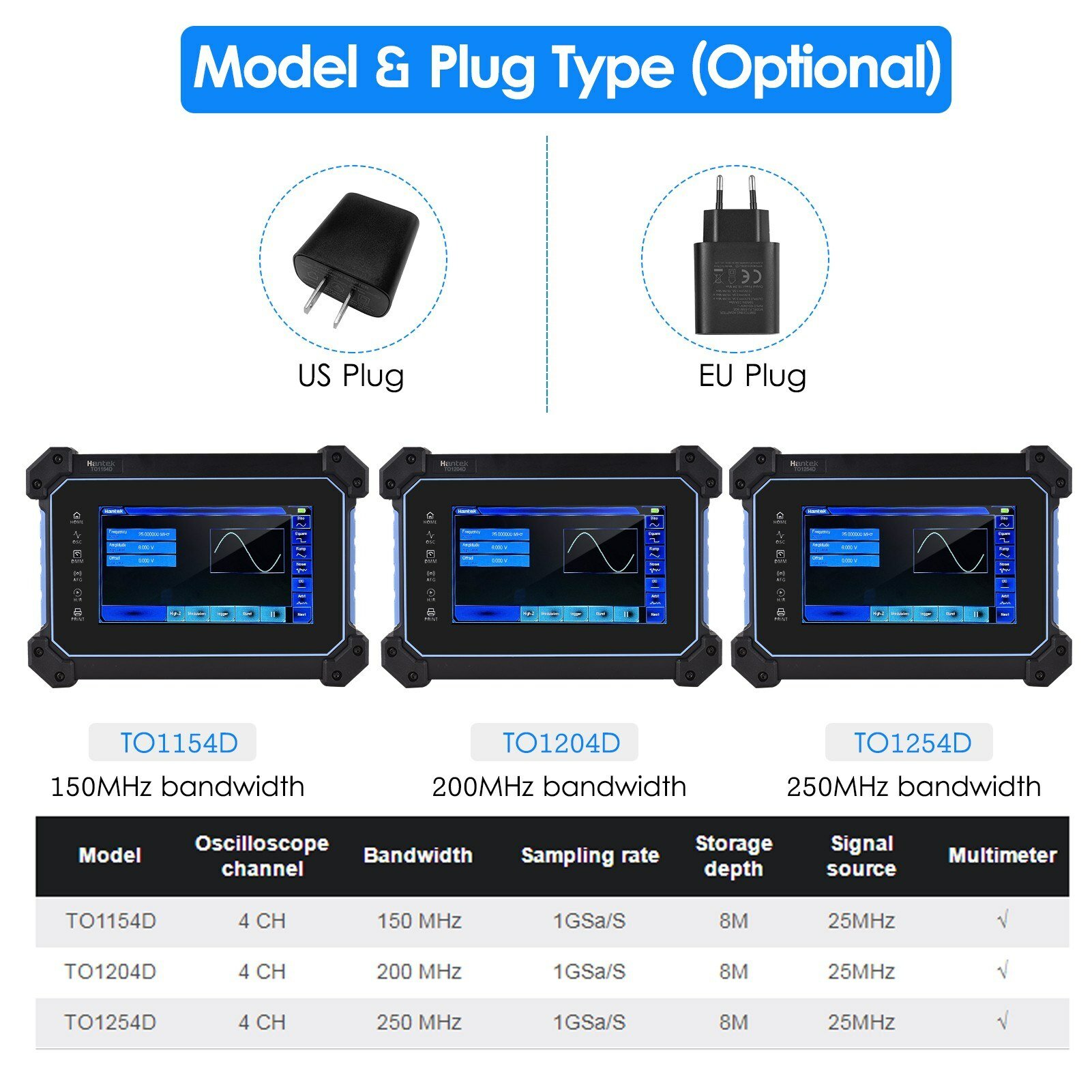

(Optional)
Model: TO1154D



OSCILLOSCOPE:

Sampling Rate: 1GSa/S

Signal Source: 25MHz

ARBITRARY WAVEFORM GENERATOR:

Sampling Rate: 200MSa/s

The Highest Frequency: 25MHz

Amplitude: 50Ω+2%



Maximum Resolution: 4000 points

Maximum Input Voltage: AC: 600V; DC: 600V

Input Impedance: 10MΩ

AC Voltage: 4V/40V/400V/600V

AC Current: 40mA/400mA/4A/10A

Capacitance: 40nF/400nF/4μF/40μF/100μF

On off Measurement: <50Ω

GENERAL SPECIFICATIONS:

Display Resolution: 800 (horizontal) *480 (vertical) pixels

Waveform Brightness: Adjustable

Grid Brightness: Adjustable

Afterglow: 1s, 5s, 10s, 30s, Infinite, Off

Power Supply: AC 100~240V, 50/60Hz; DC input: 5V3A/9V2A/12V1.5A

Fast Charge: Support fast charging



Temperature: 0~50℃

Humidity: ≤104℉(≤40°C): ≤90%RH; 106~122℉(41~50°C): ≤60%RH

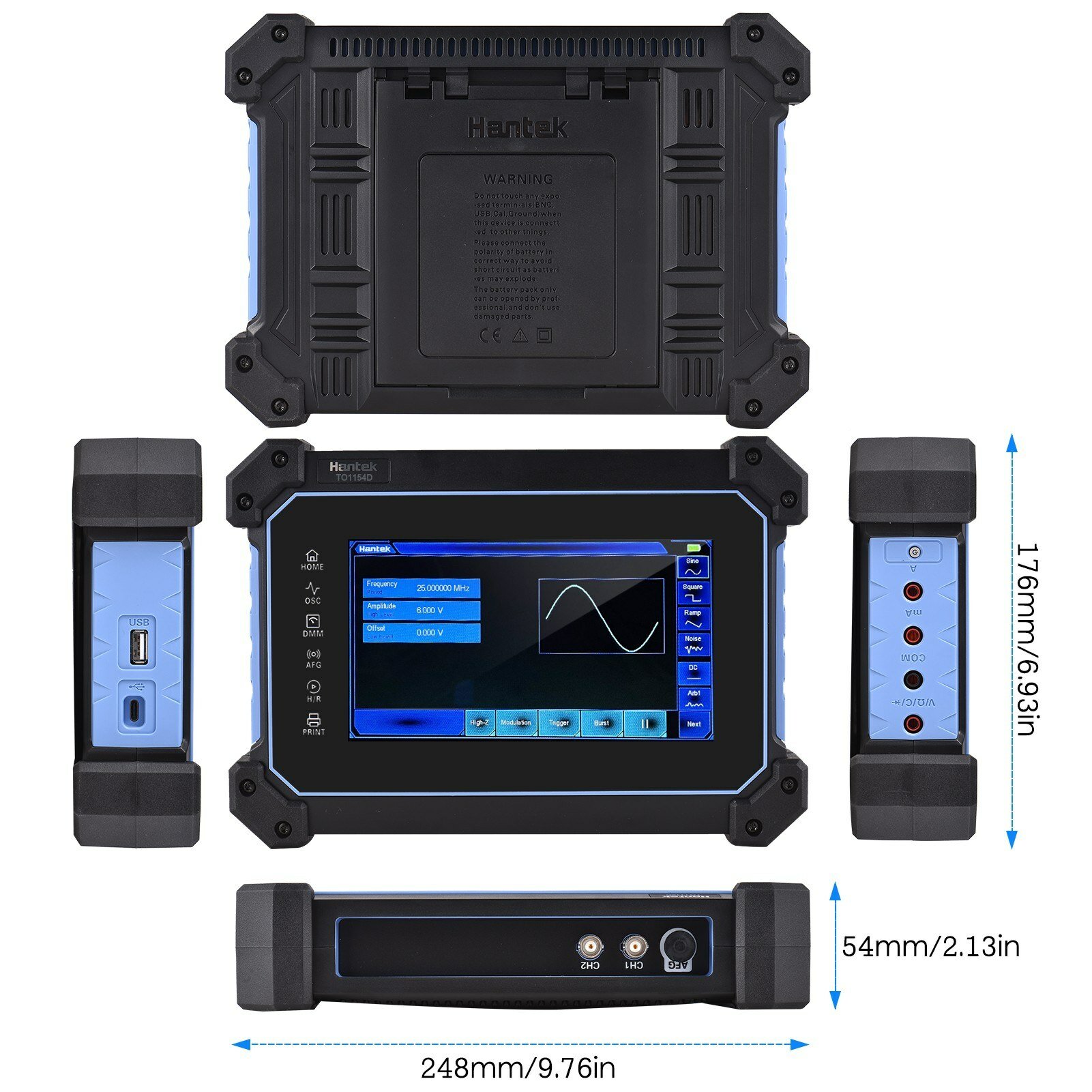

Item Size: 248 * 176 * 54mm / 9.76 * 6.93 * 2.13in

Package Weight: 2193g / 4.84lb

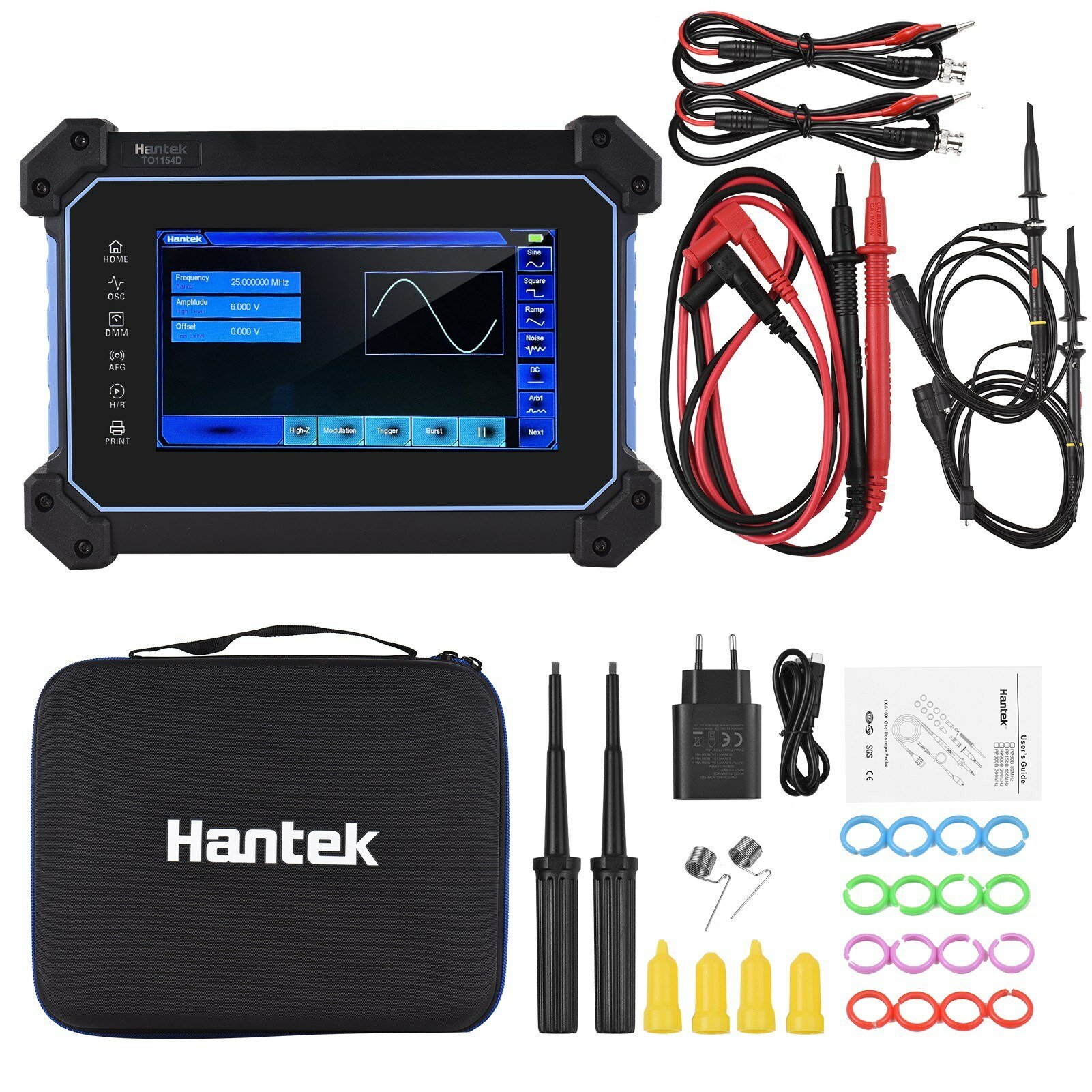

Package included:
1 x Digital Oscilloscope

2 x Alligator Clip Line

1 x Plug (Plug Type as your choice)

2 x Multimeter Probe
