HAYEAR 2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.

4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

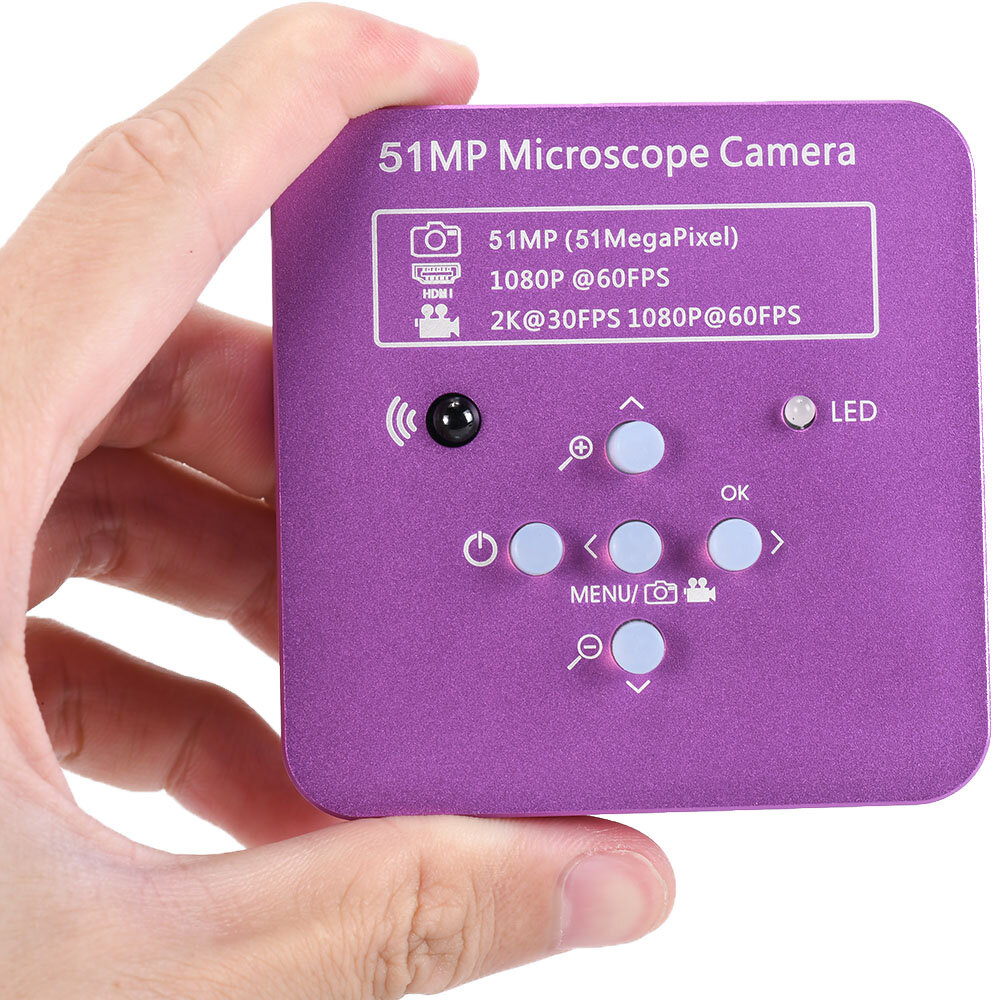

Model: Camera with HDMI USB2.0 two output

Image resolution: 51 MegaPixel  （take a picture For HDMI）

Video recorder: 2K@30FPS, 1080P@60FPS

HDMI Video resolution: 1920*1080 @ 60FPS

White Balance: Auto/Manual

Color: Color

Freeze: Support

Line: different color,5 horizontal line , 5 vertical line,any positions



Image sensor: 51 megapixel Panasoniic CMOS sensor 1/2.33 inch

Pixel size:1.335μm × 1.335μm

Definition:FULL HD

Lens:C/CS

Digital Zoom:Support

Color:R/G/B adjustable

Cross cursor:Support multi-color, size adjustable

Support multi-color, 5 pcs of transverse lines/vertical lines, moveable

TF card interface:Max 64G

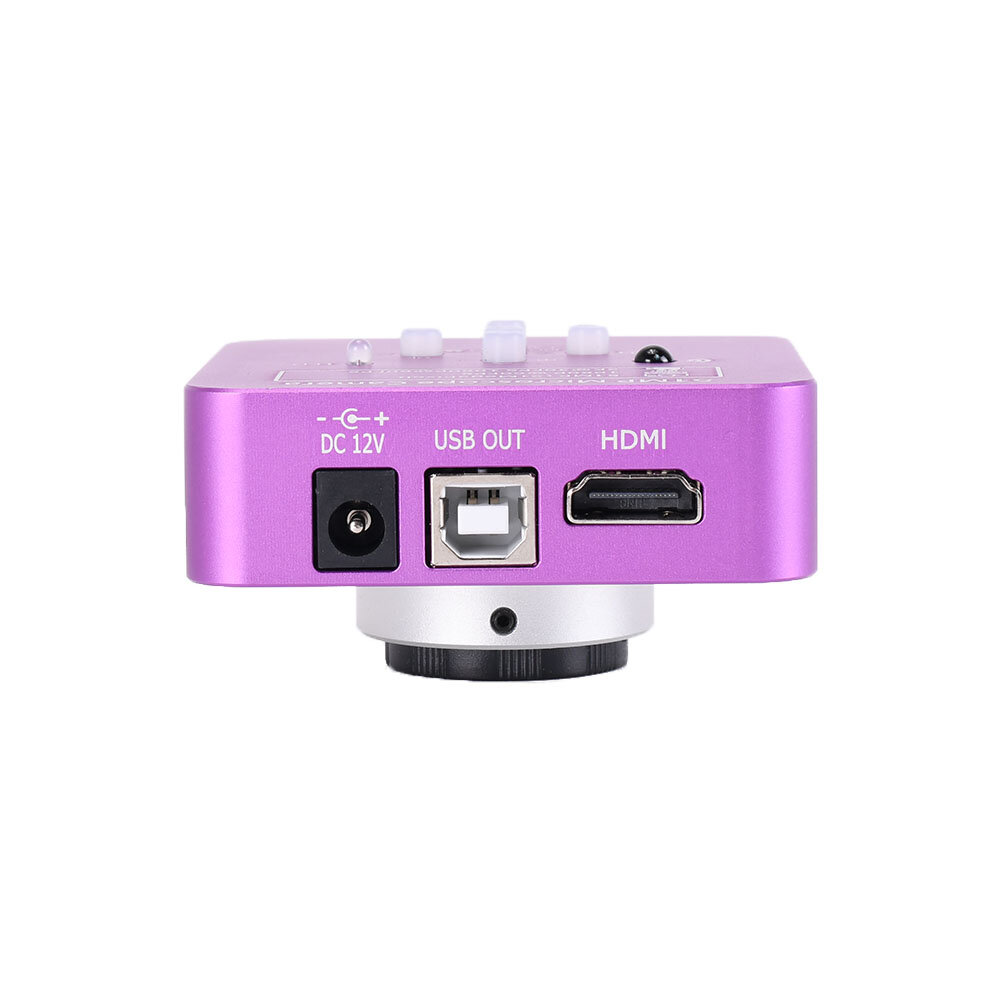

USB interface:Standard usb2.0 interface (Type B)

Magnification: 0.5X

C-mount Thread: 32TPI-UN-2A


Feature:

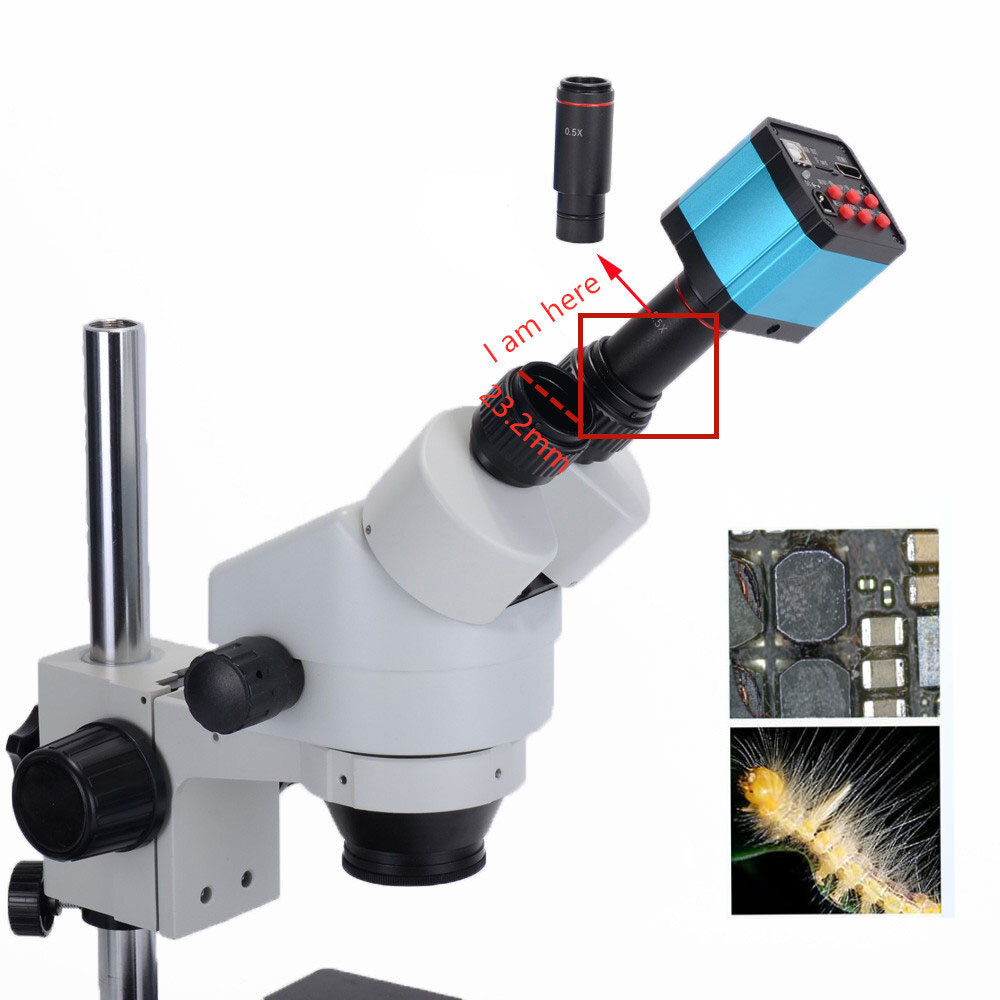

0.5X magnification to get a more wide view of microscope

Including two adapters from 23.2mm to 30mm and 30.5mm

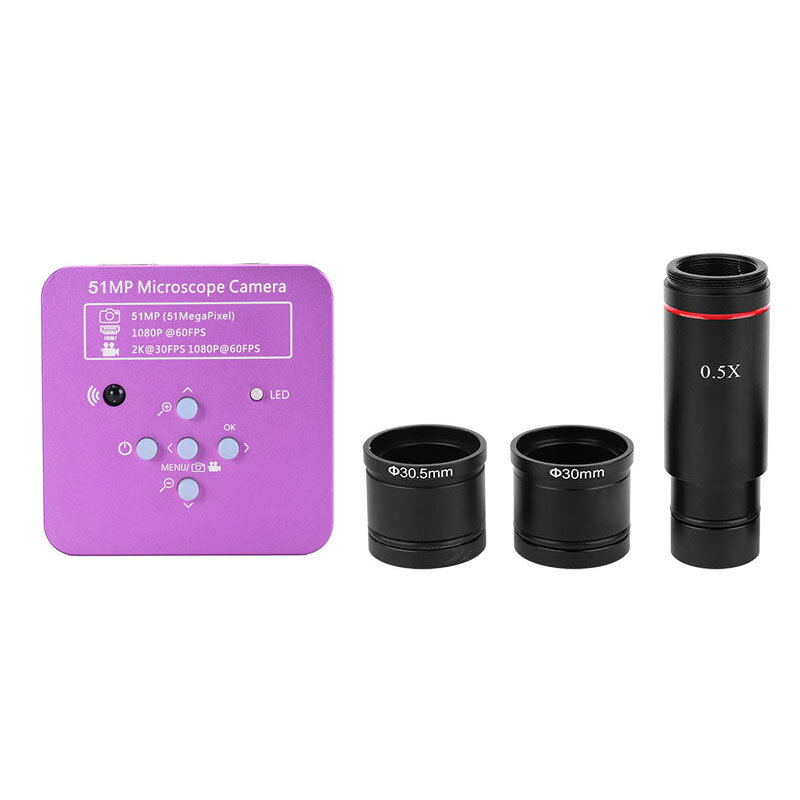

Package including:


1 x Power supply

1 x Software DISC

1 x Remote Control

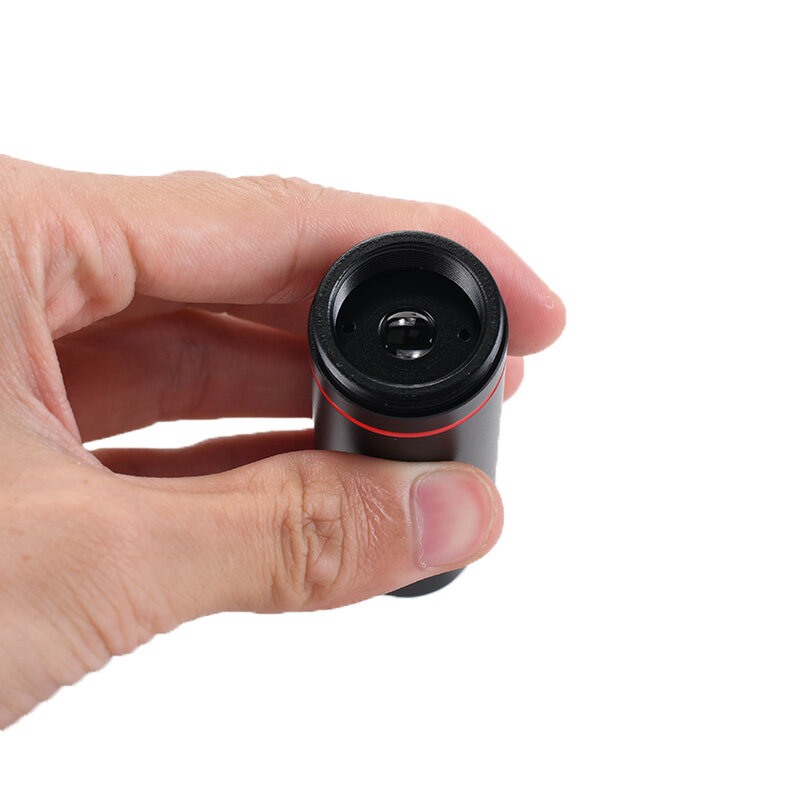

1 x 0.5X C-MOUNT adapter

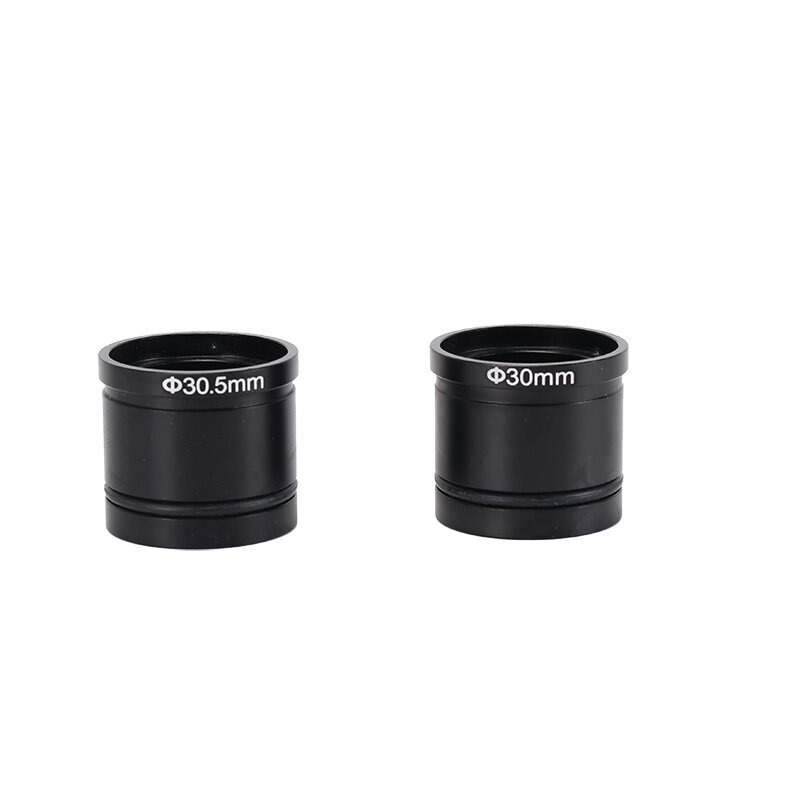

1 x 23.2mm to 30mm adapter ring

1 x 23.2mm to 30.5mm adapter ring



ictures:
