High Efficiency Versatile Device 800MHz Max Input 4.4GHz Max Output 4" TFT LCD Display USB-CDC Type-C Interface 3000mAh Li-Polymer Battery Multiple Accessories Included

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:

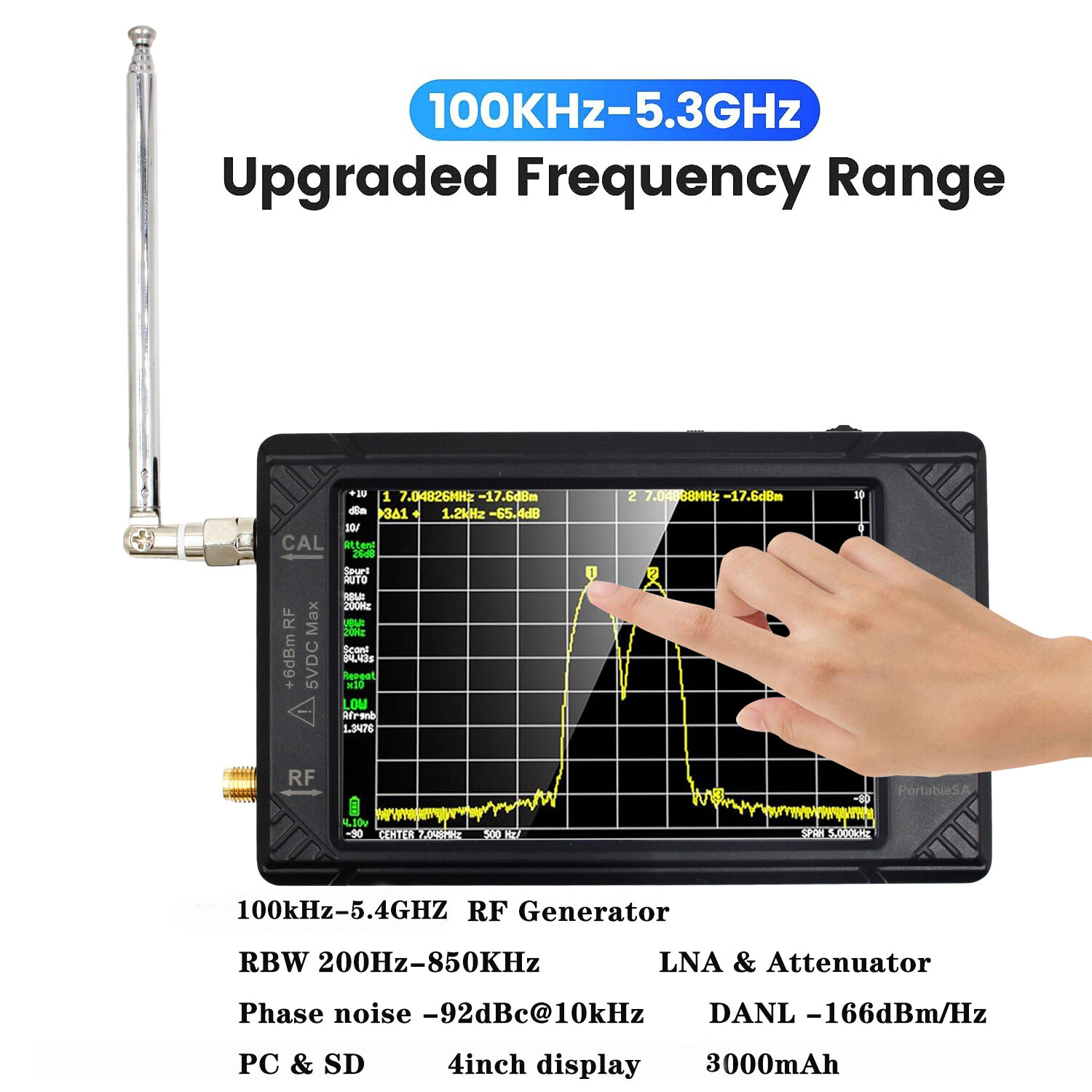

Powerful Performance: The device operates with max low input frequency up to 800MHz and max output frequency up to 4.4GHz. It offers high speed and impressive performance, making it ideal for demanding tasks.

High Efficiency: The device features a quick scan time of 165ms for 0-350MHz and shortest zero span time of 17ms. This efficiency ensures accurate results without any delay, enhancing the user experience.

Versatile Interface: The device is designed with multiple interfaces like USB-CDC(Type-C) and UART-TTL(2.54mm Connector) to ensure multiple connection options and smoother data transfer.

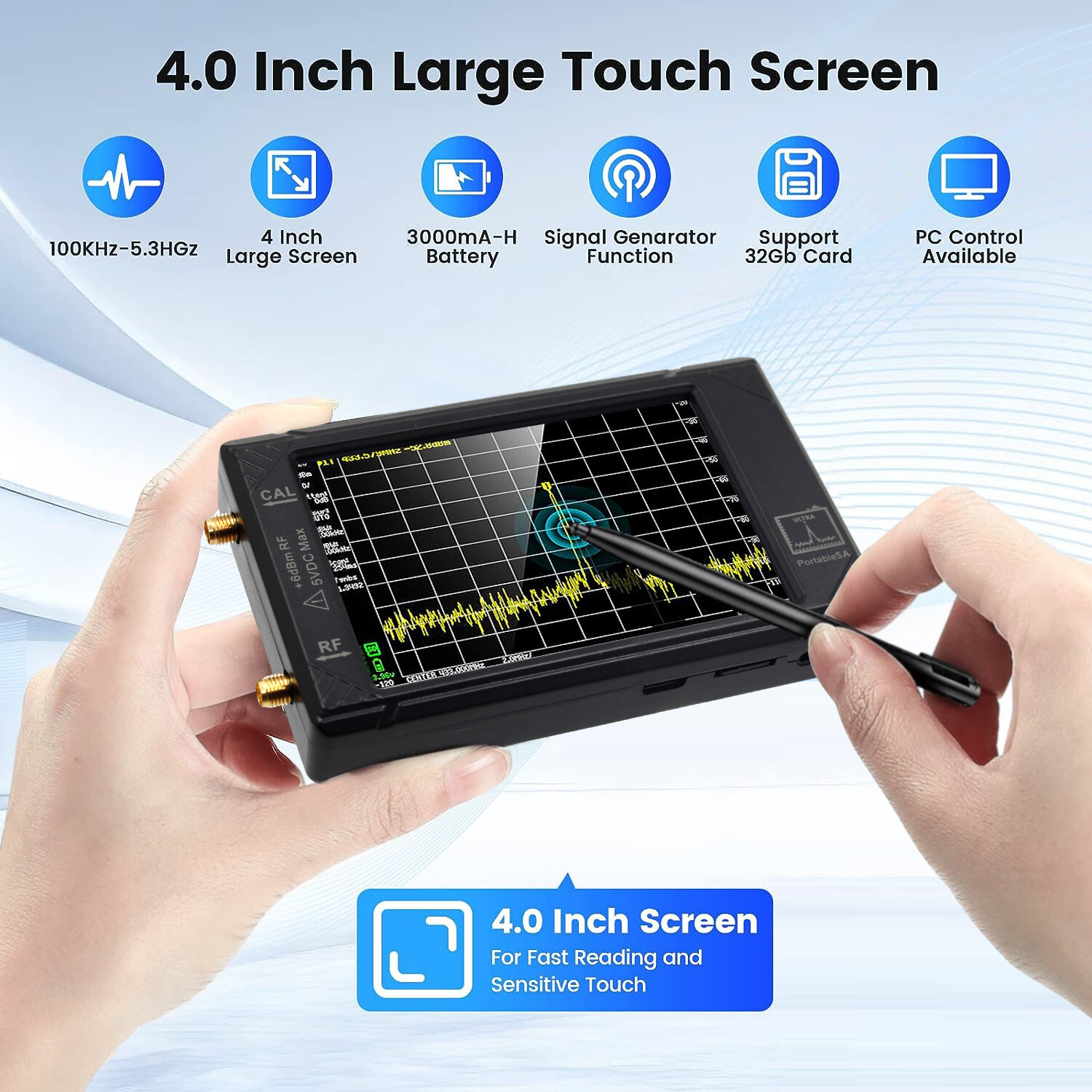

High-Resolution Display: Equipped with a 4” TFT LCD display, this device offers high-quality, sharp images for a clear view of the metrics, improving overall visibility and ease of operation.

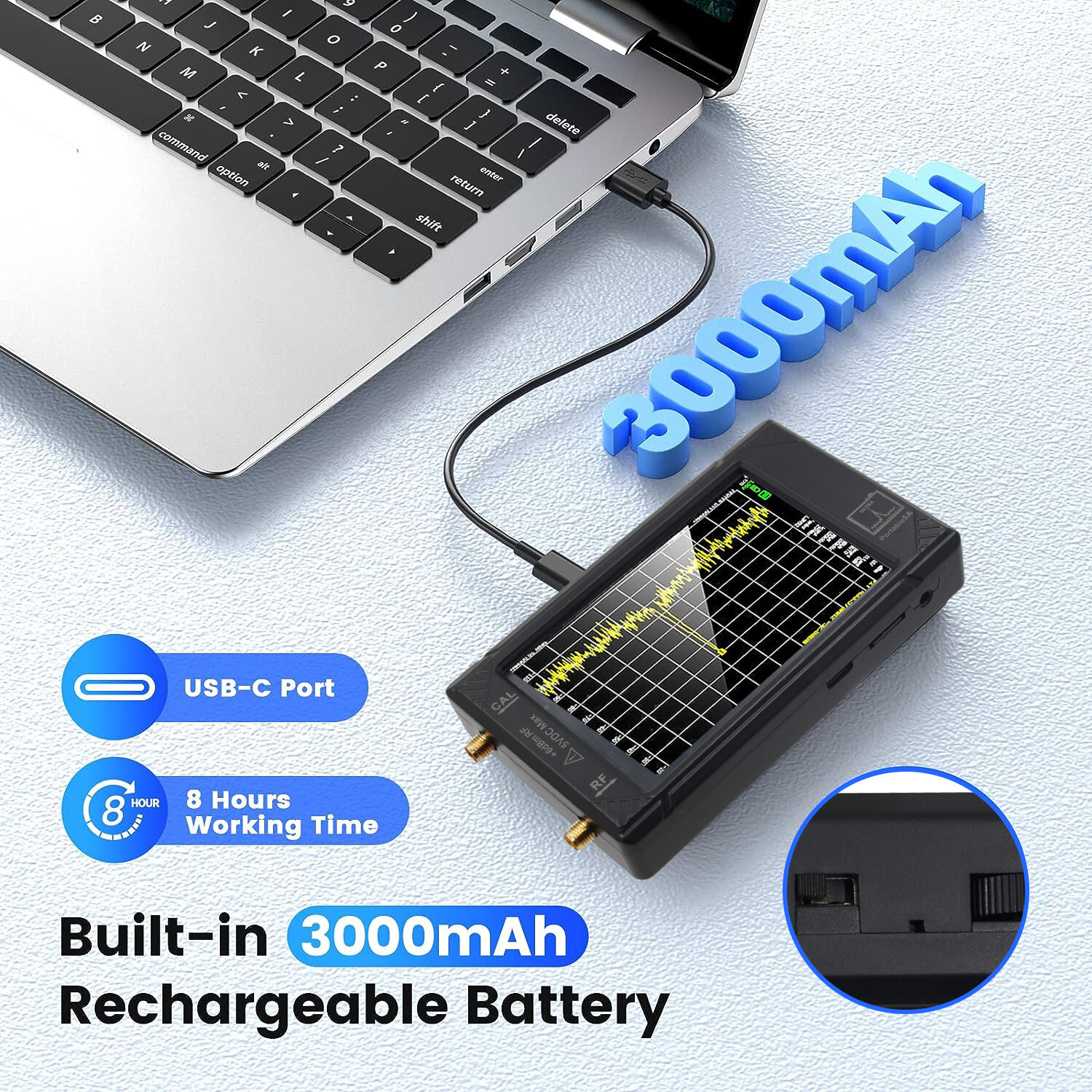

Energy Saver: Fitted with an Li-polymer 3.7V 3000mAh battery, this device promises longer operation time while keeping energy consumption low.



Specifications:

Display size	4” TFT LCD (480×320)
Max low input frequency	800MHz, 6GHz in Ultra mode

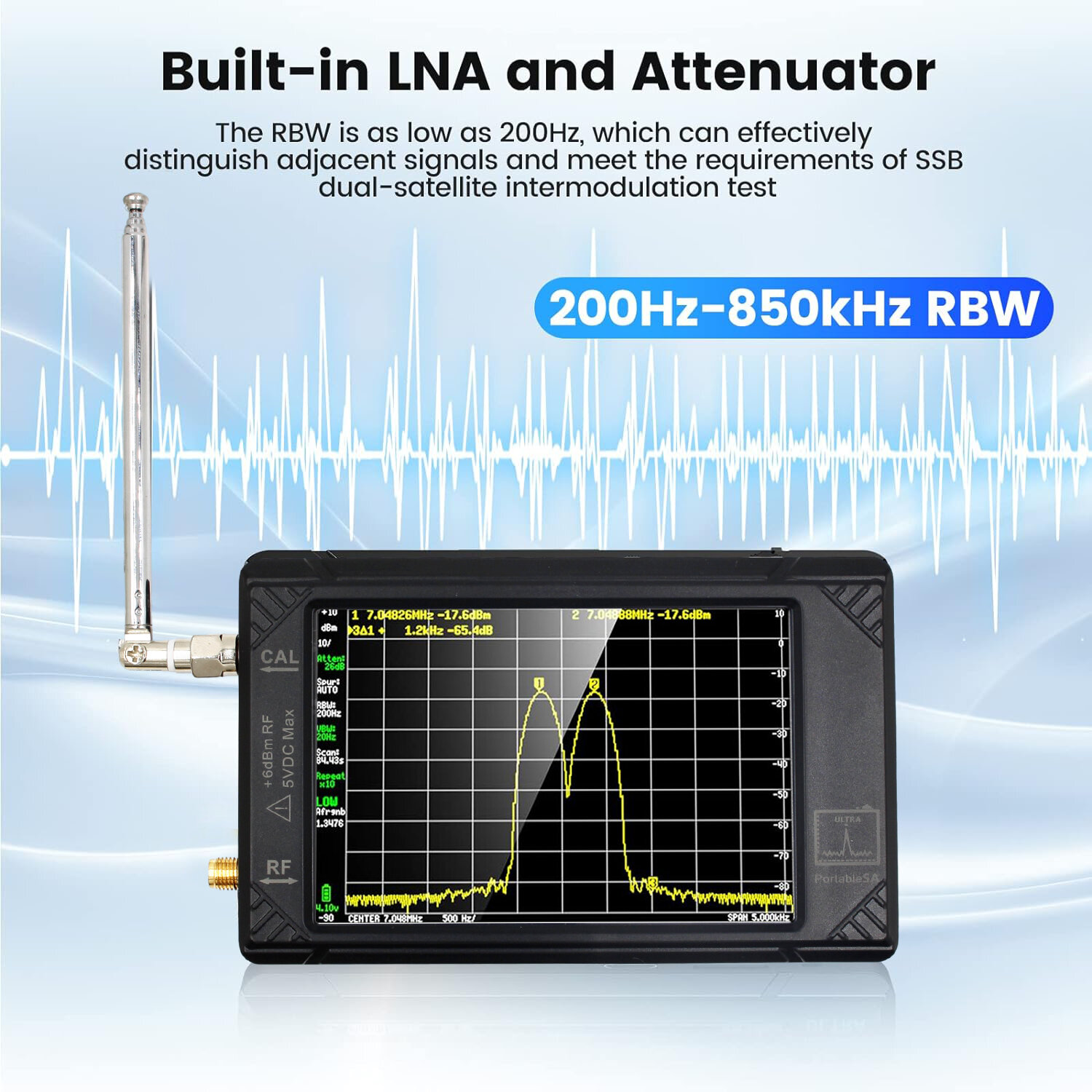

Resolution filters in 1,3,10 steps	from 200Hz to 850kHz

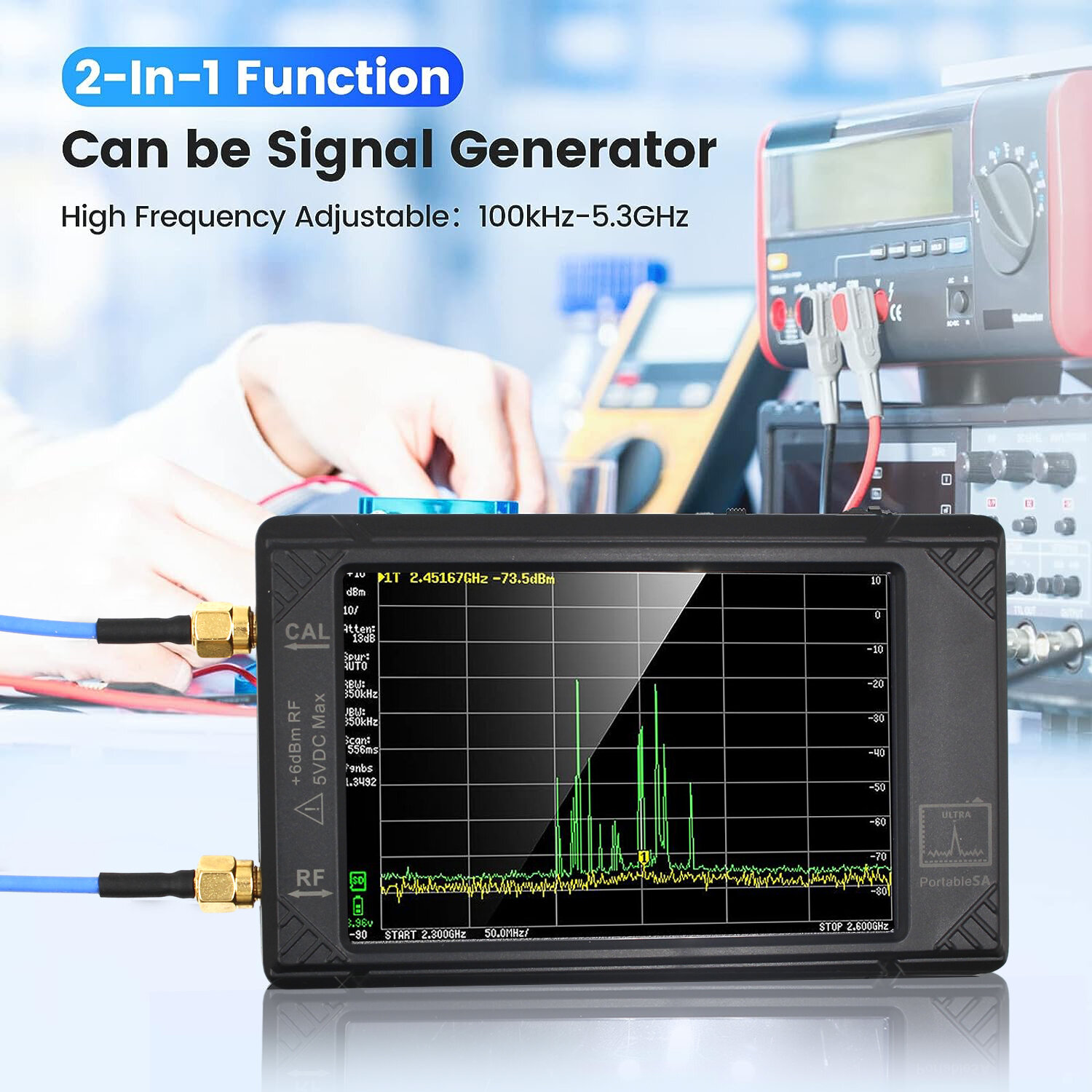

Max output frequency	Sinus up to 800MHz, SQW up to 4.4GHz
output level	-104dBm to -16dBm
Ultra mode	Level calibrated up to 5.3GHz
Internal LNA gain	20dB up to 4GHz
Displayed points per scan	max 450
0-350MHz scan time	165ms
Shortest zero span time	17ms
DANL at 100MHz	-153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On)
DANL degrading in ultra mode	10dB above 2.5GHz, 25dB above 5.3GHz
Phase noise at 10kHz bias	-92dBc/Hz
Phase noise at 100kHz bias	-110dBc/Hz
Input 1dB compression level	+0.5dBm (LNA Off) / -26.5dBm (LNA On)
IIP3 without LNA	+18dBm (at least 2MHz apart) / 0dBm (500Hz apart)
IIP3 with LNA	-8dBm (at least 2MHz apart)
Frequency stability

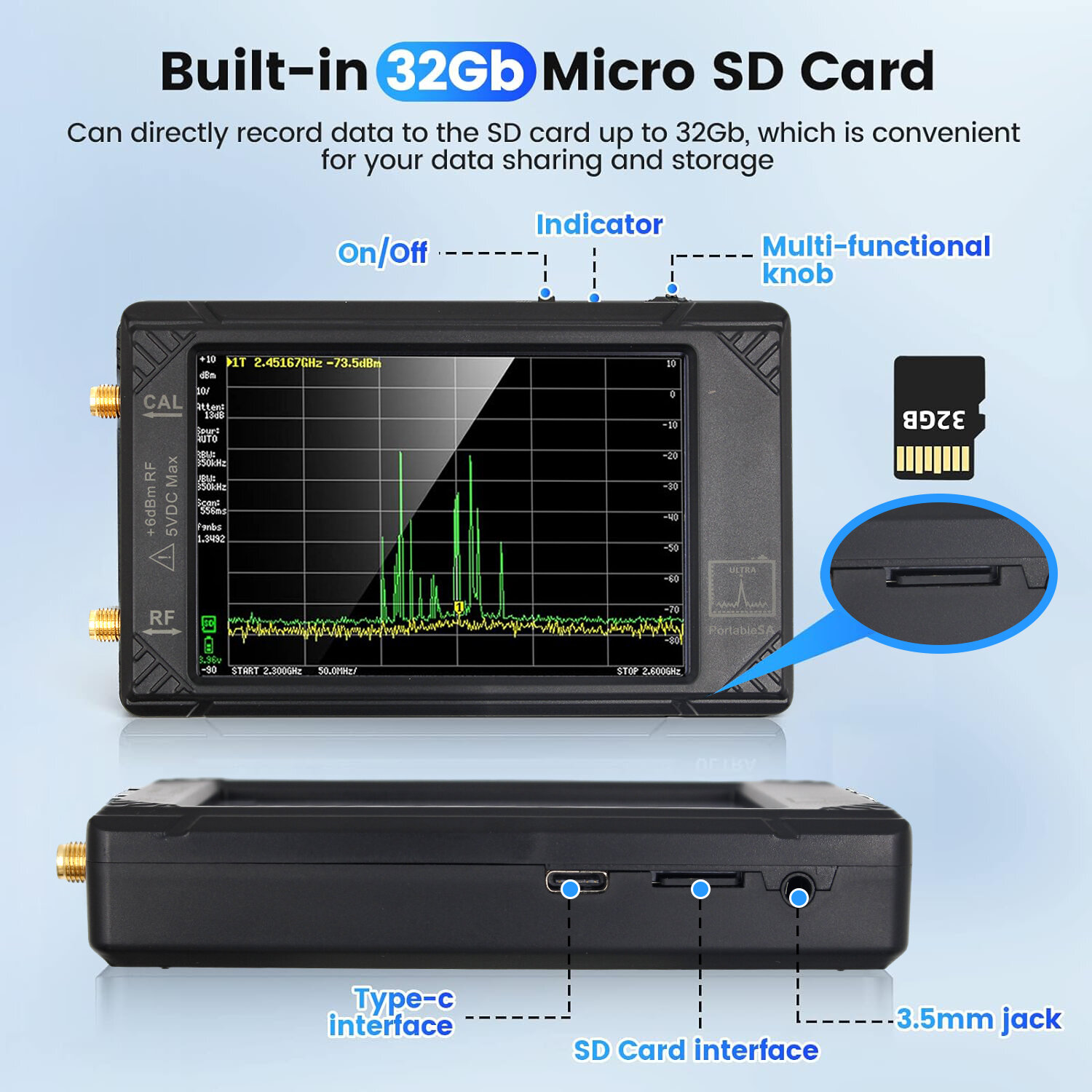

SD card slot	micro SD card
Audio out	3.5mm headphone plug
FW update mode activation	Push jog button before switch on
Maximum current consumption	330mA
Maximum charging current	1300mA
Battery	Li-polymer 3.7V 3000mAh
RF connectors	SMA female
Communication Interface	USB-CDC(Type-C)，UART-TTL(2.54mm Connector)

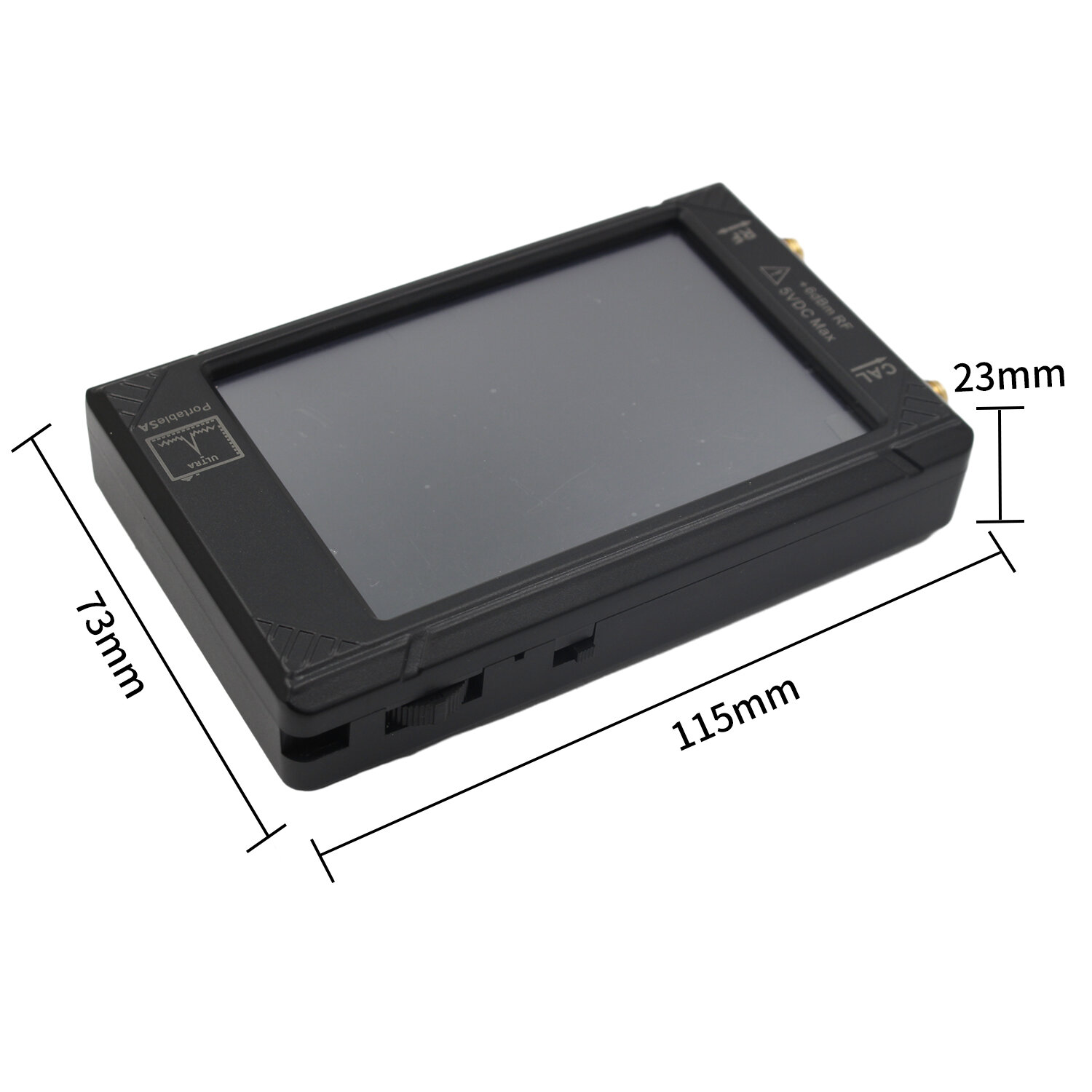

Appearance Size	117x72x23mm (Excluding protruding parts)



Package Included:

1 x Main Unit (with 3000mAh battery, 4 inch screen)

1 x USB Type-C Data Cable

2 x 30cm RG405 SMAJB2/SMAJB2 RF Cable

1 x SMA-SMA Barrel Connector

1 x Antenna with SMA Connector

1 x Lanyard Touch Piece

1 x Touch Pen

1 x 32GB MicroSD Card (installed in the host)
