Notice:

Model Name change from Nazgul5 V3 into Nazgul XL5 V3

April 1st, 2024.

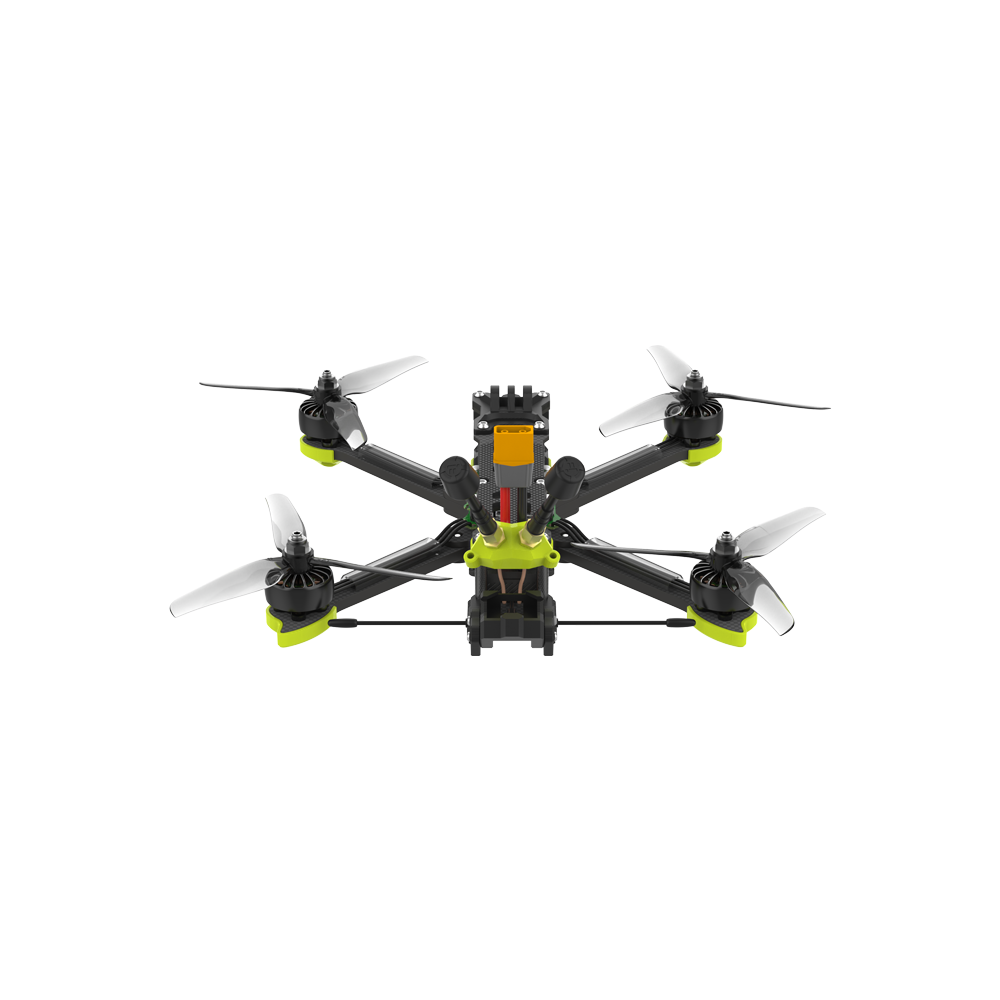

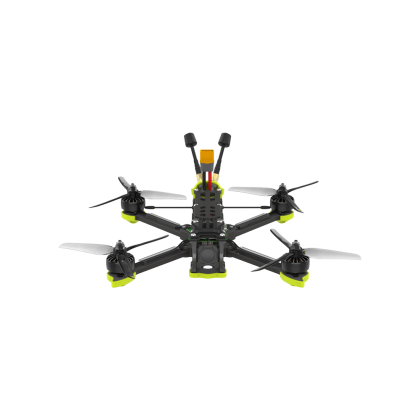

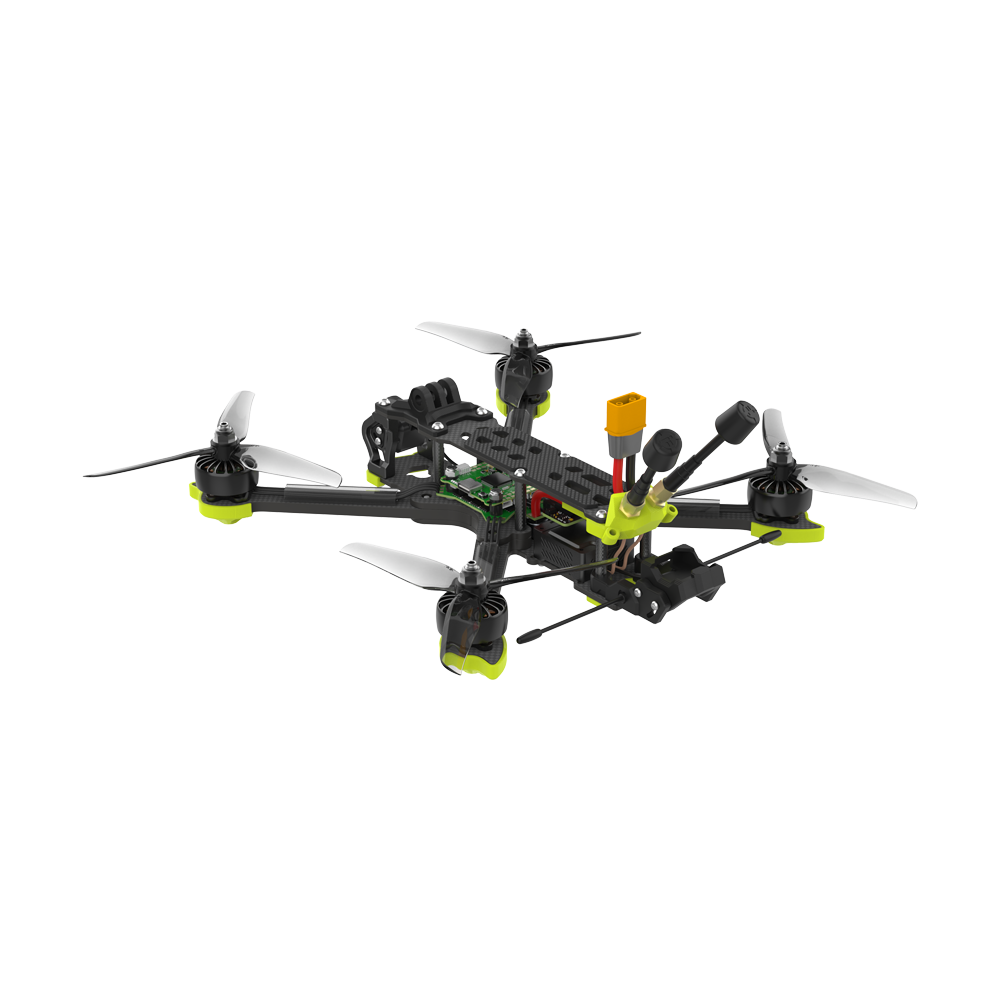

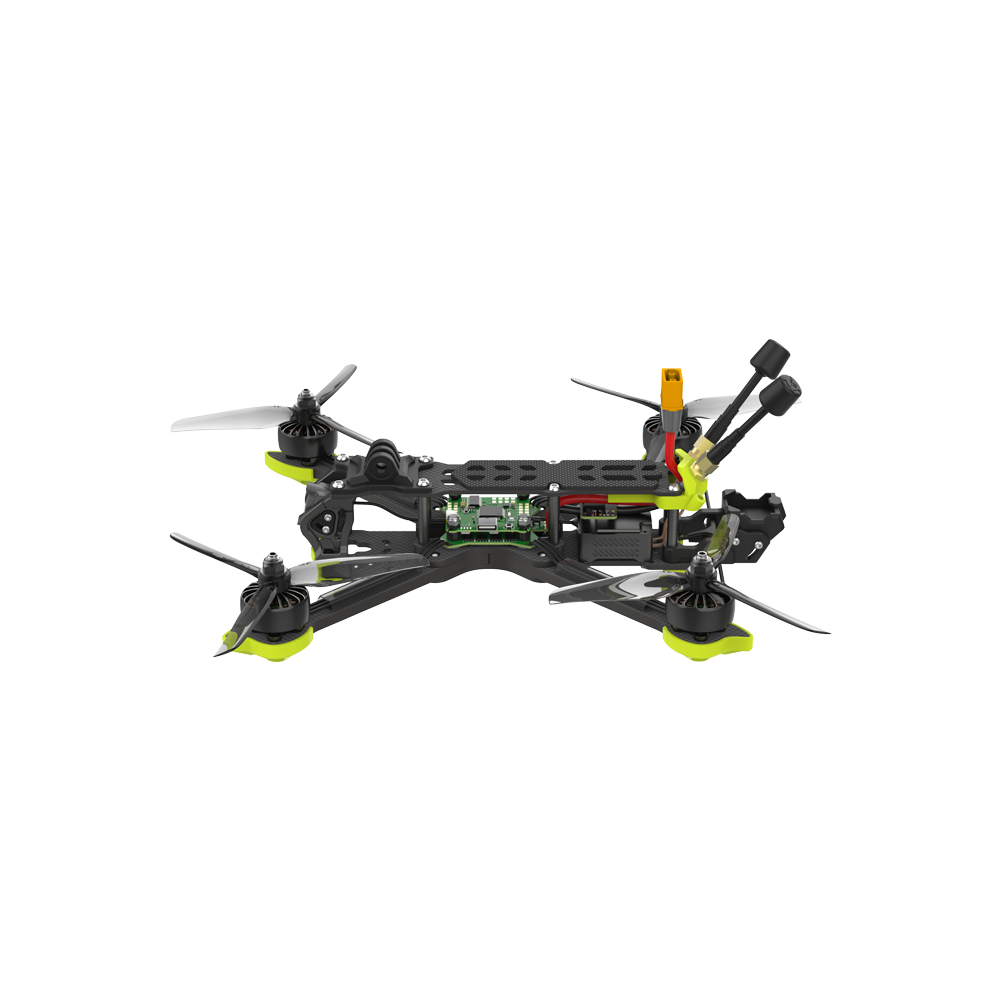

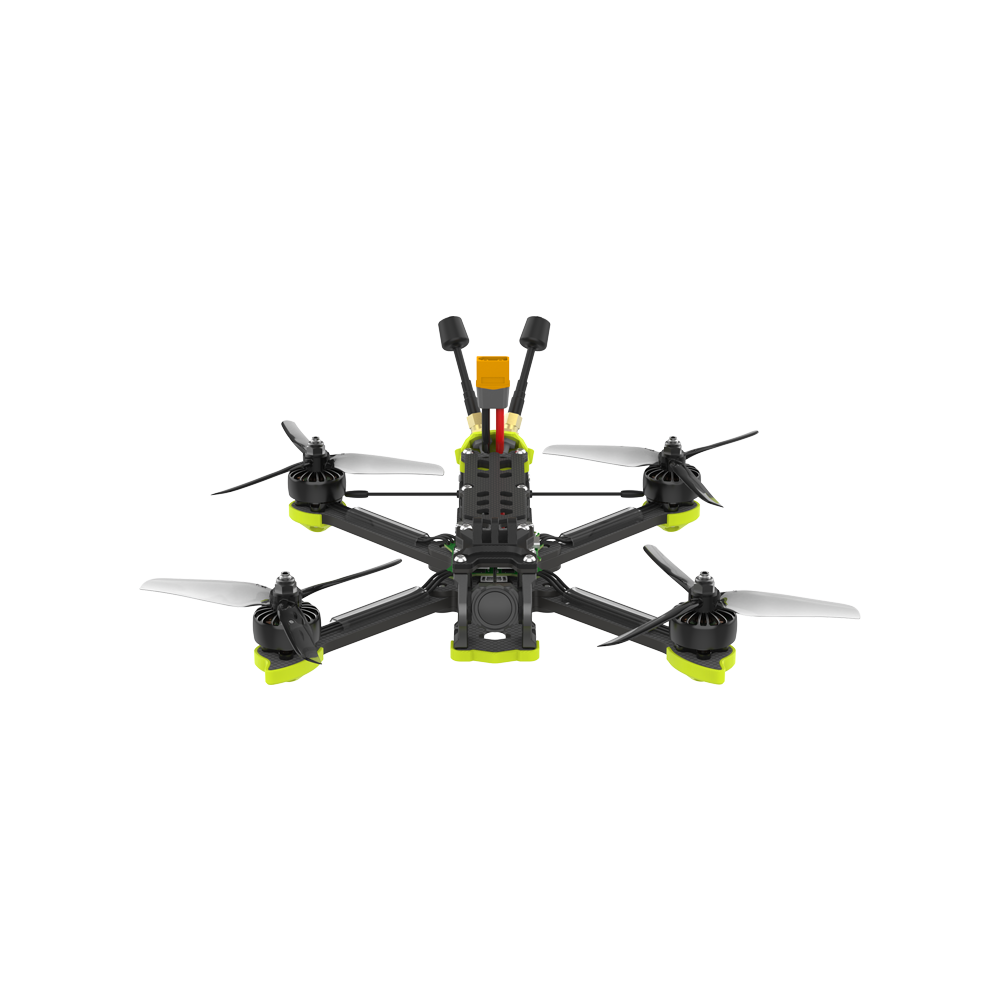

This Nazgul5 V3 HD is a 5 inch quadcopter that comes with the DJI O3 Air Unit Digital HD System,

need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight

XING-E 2207 motors and NAZGUL 5140 props

Fits both 30.5x30.5 and 20x20 stacks

5mm arm design for more durability

LED illuminated Logo

Easy-Swap arms

Specification:

ESC: BLITZ E45S 45A 4-IN-1 ESC

Frame: 255mm wheelbase

Prop: Nazgul 5 inch propellers

Dimensions (L×W×H): 180×180×80 mm

Maximum Speed: 130 Km/h (Manual Mode)

Maximum Hover Time: Approx. 8 mins

Maximum Wind Speed Resistance: 130 Km/H (Level 4)

Antennas: 2 Antenna

Product Name: DJI O3 Air Unit Dimensions (L×W×H): L167 * W1039 * H 813mm Resolution (single screen): 1920×1080 Interpupillary Distance Range: 56-72 mm FOV (single screen): 51° Transmission Power (EIRP):  5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC) Operating Temperature Range: 0° to 40° C (32° to 104° F)

1 x Nazgul5 V3 6S HD Drone

2 x Battery pads
