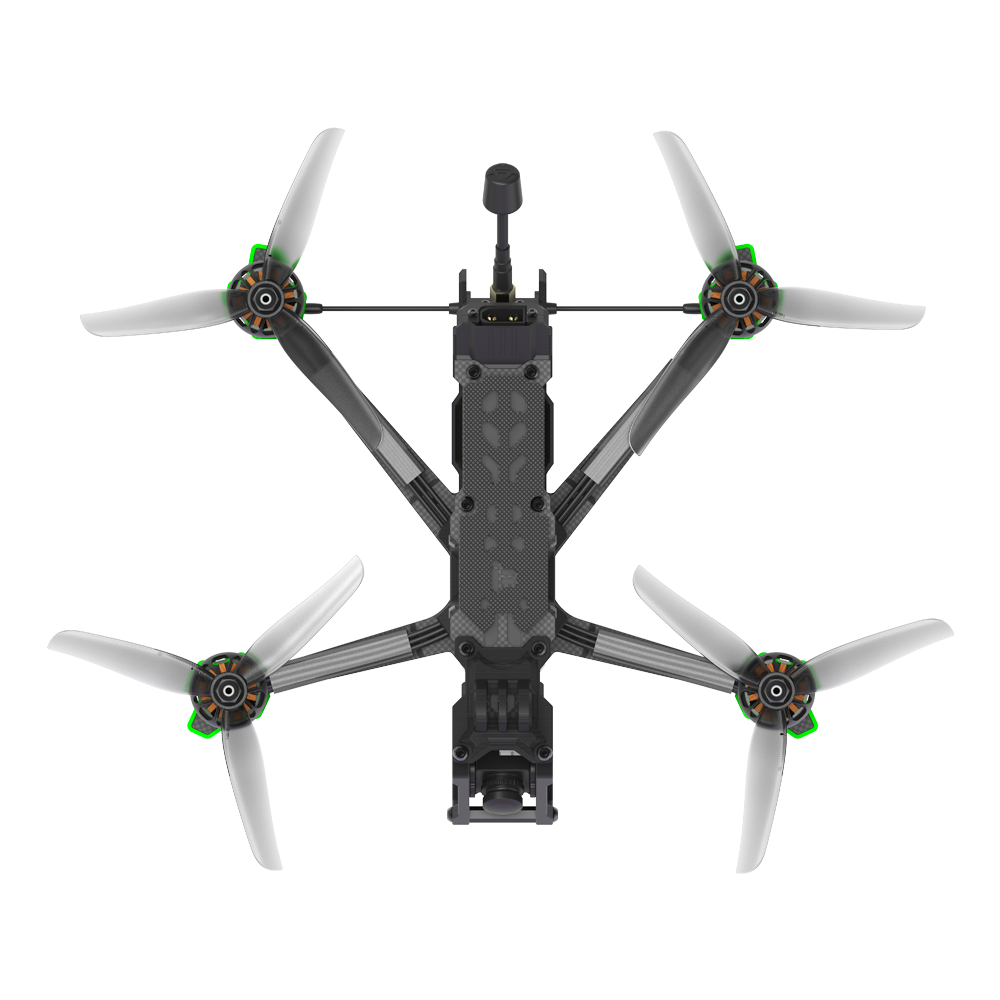

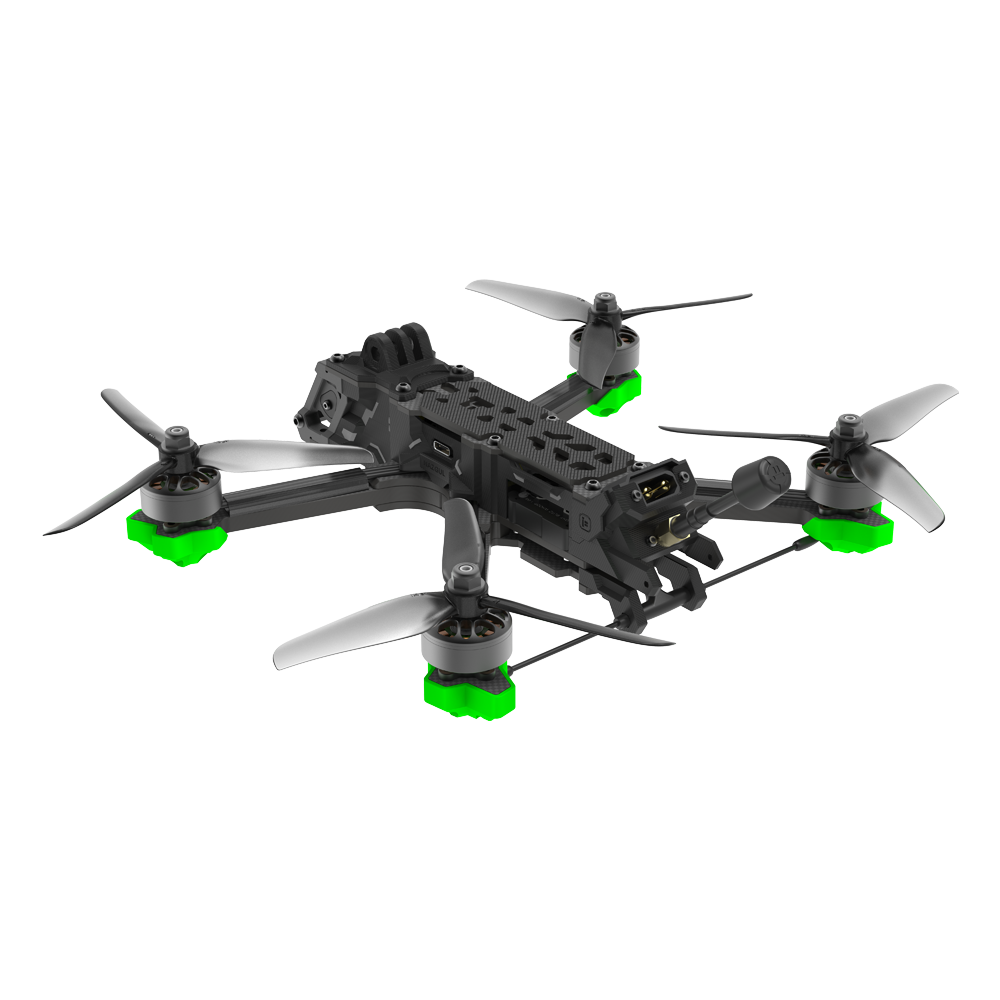

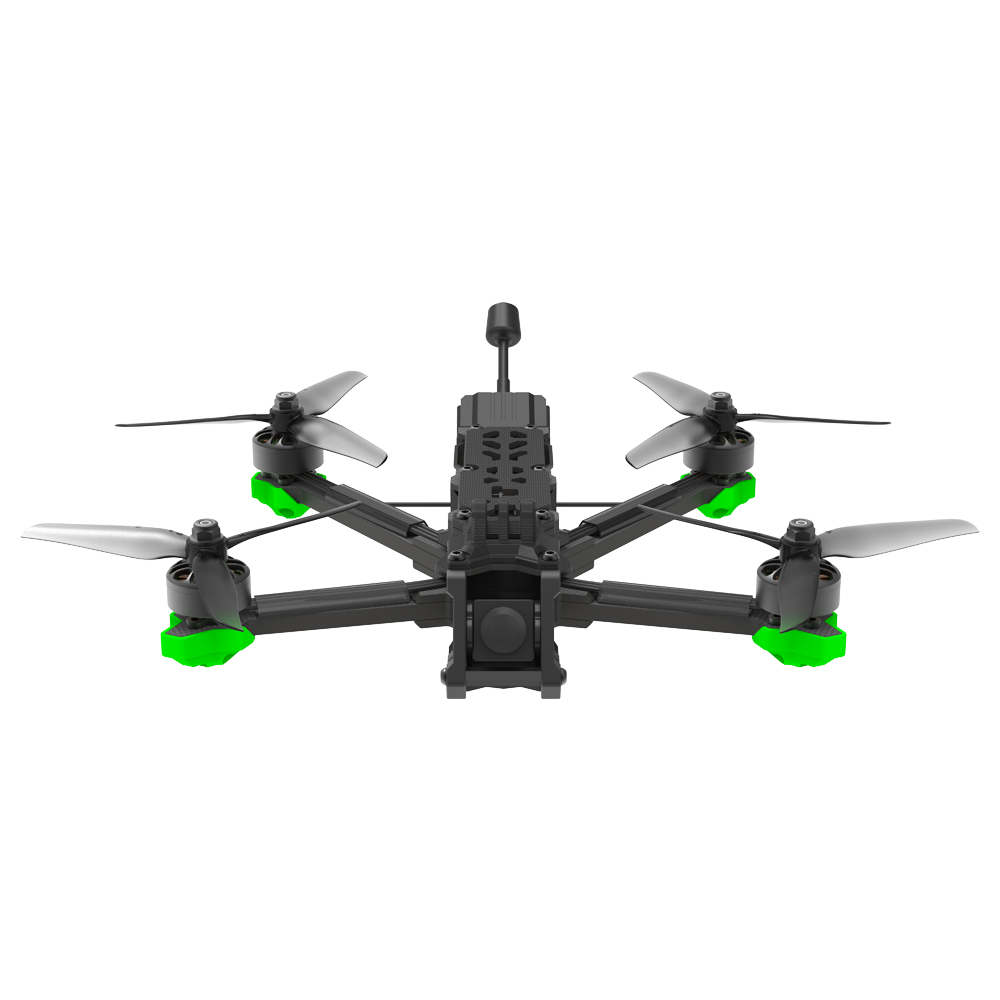

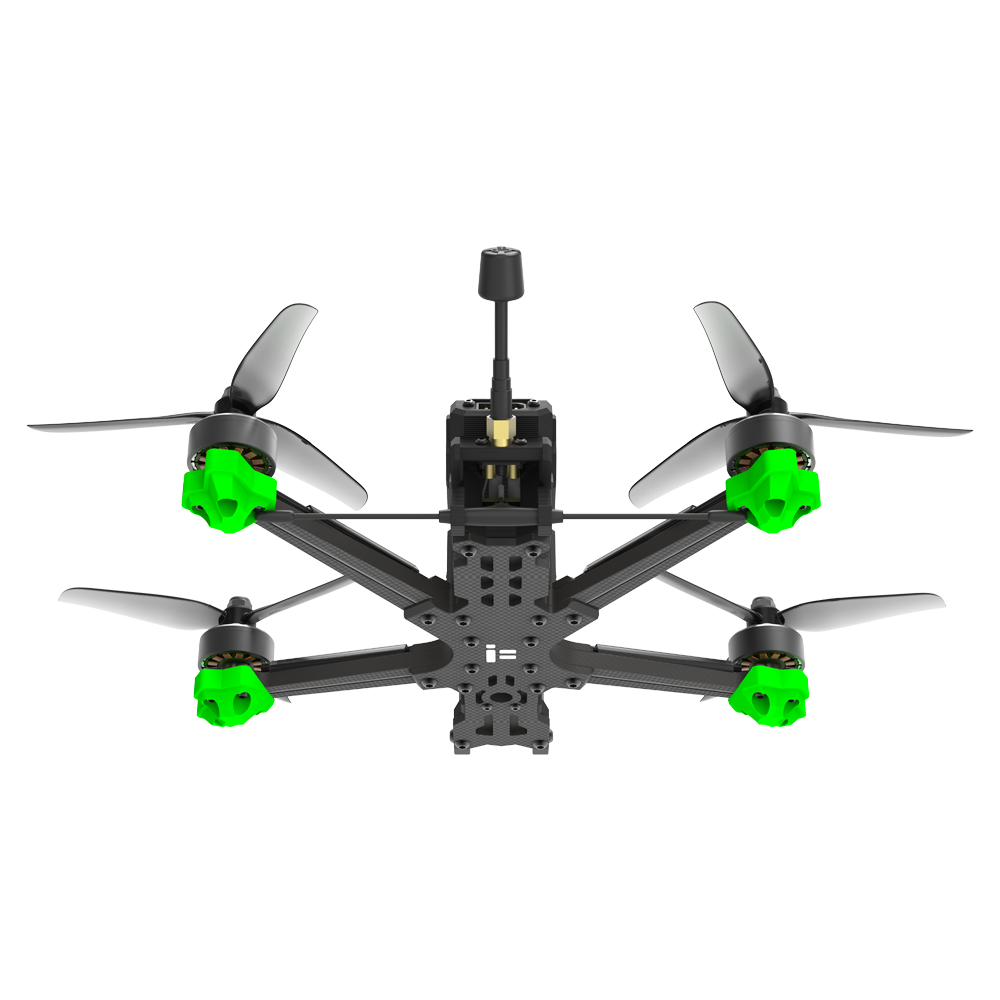

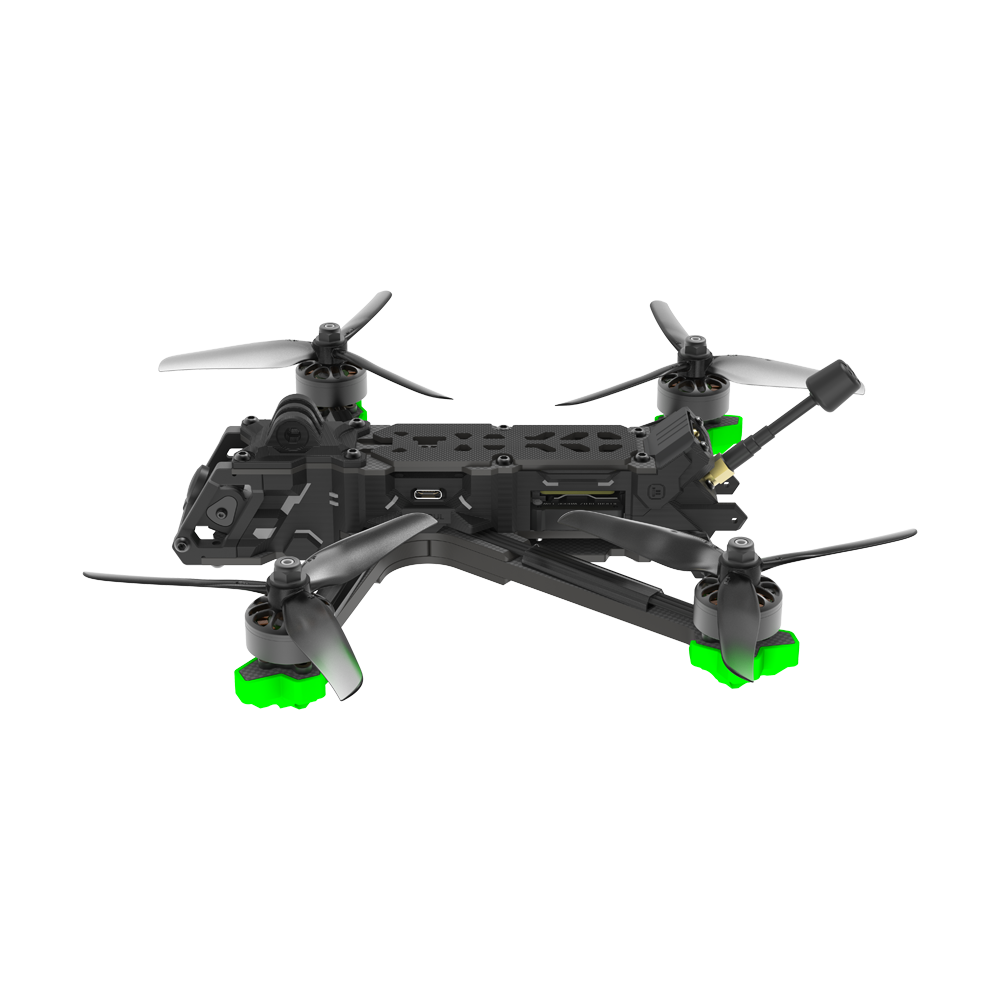

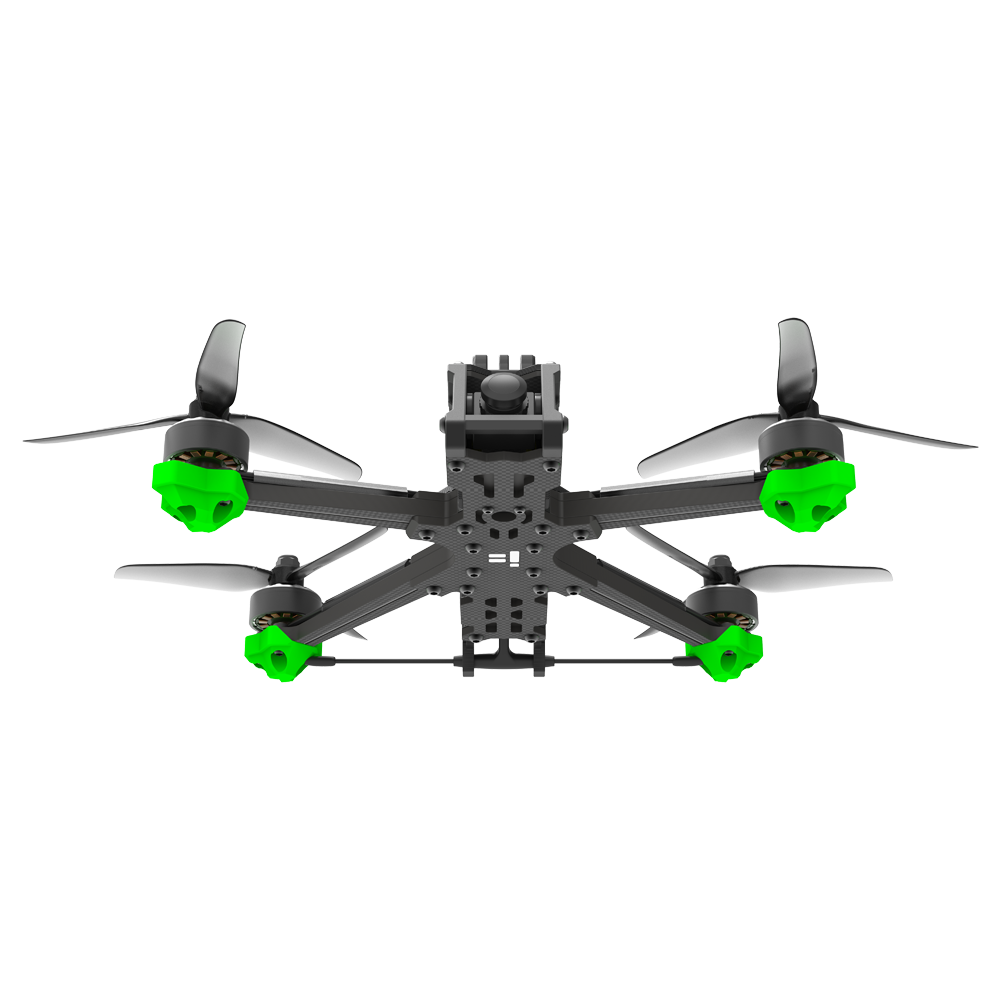

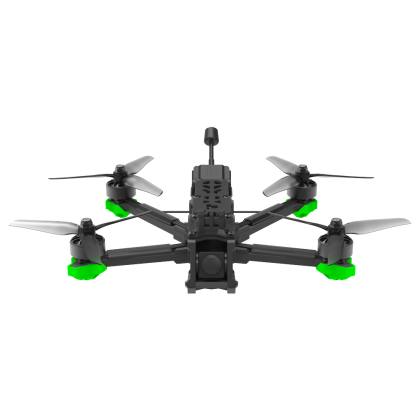

Diffirence: - V2 Comes with New F5X V2 frame ( Like pohotos showed)- V2 Comes with BLITZ Whoop 1.6W VTX ( Analog Version) ; V2 Comes with Runcam Link WASP ( HD Version) V1 is 5.8GHz SucceX Mini Micro 600mW VTX ( Analog Version)
Specifications:
Takeoff Weight: Approx. 610 g
Diagonal Distance: 225 mm
Maximum Takeoff Altitude: 5000 m
Maximum Flight Distance: 5 km
Operating Temperature Range: -10° to 40° C (14° to 104° F)
FC // BLITZ Mini F7 Flight Controller（HD & Analog）
( Link)
MCU: STM32 F722
Barometer: DPS310
Flash: 16MB (Blackbox flash)
Motor outputs: 4x (SH1.0 connector)
Smartaudio / IRC Tramp VTX protocol supported
Beeper pad: Yes
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Weight: 5g
ESC // BLITZ Mini E55 4IN1 ESC (HD & Analog)
( )
- DIMENSION: 35*42MM
- WEIGHT: 11.3G
- MCU： G071
- BURST: 60 AMPS
- BEC: NO
- SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
