IP5328P Dual USB 18650 Battery Charger Board Mobile Power Motherboard 3.7V to 5V9V12V Step Up COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:

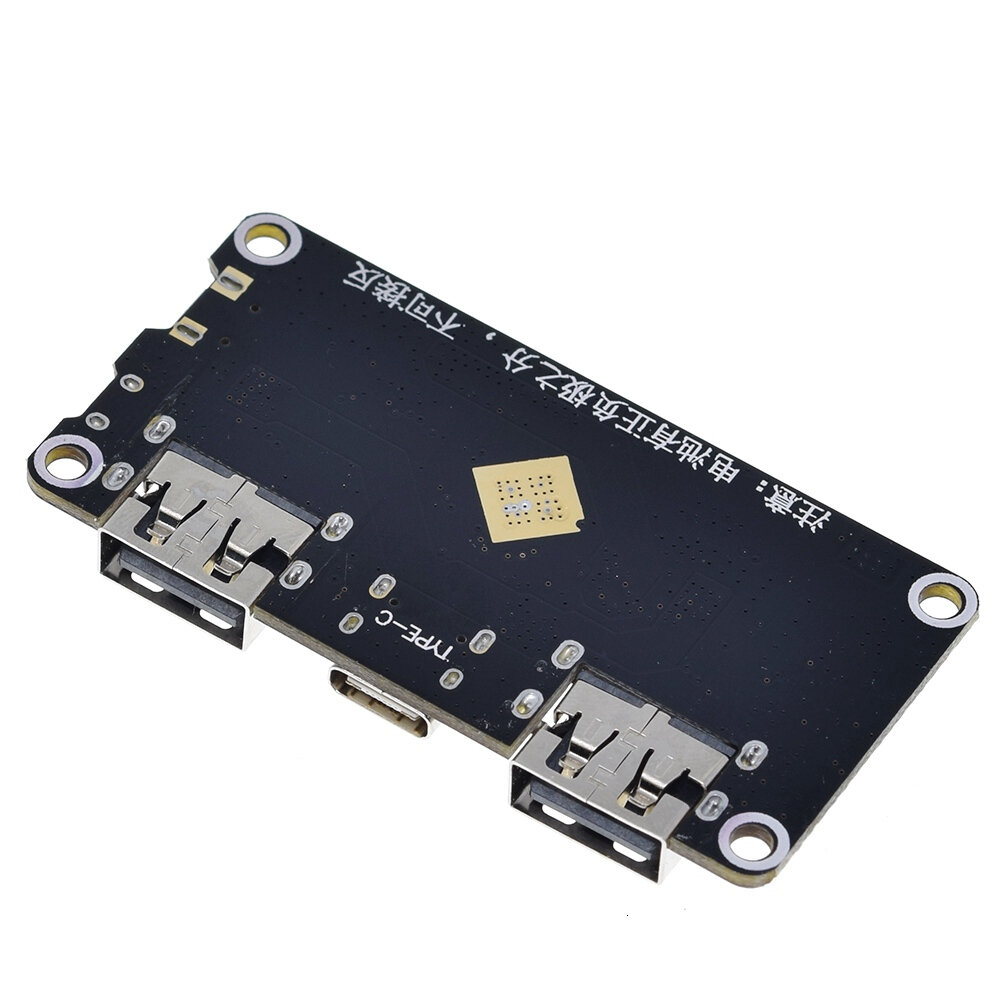

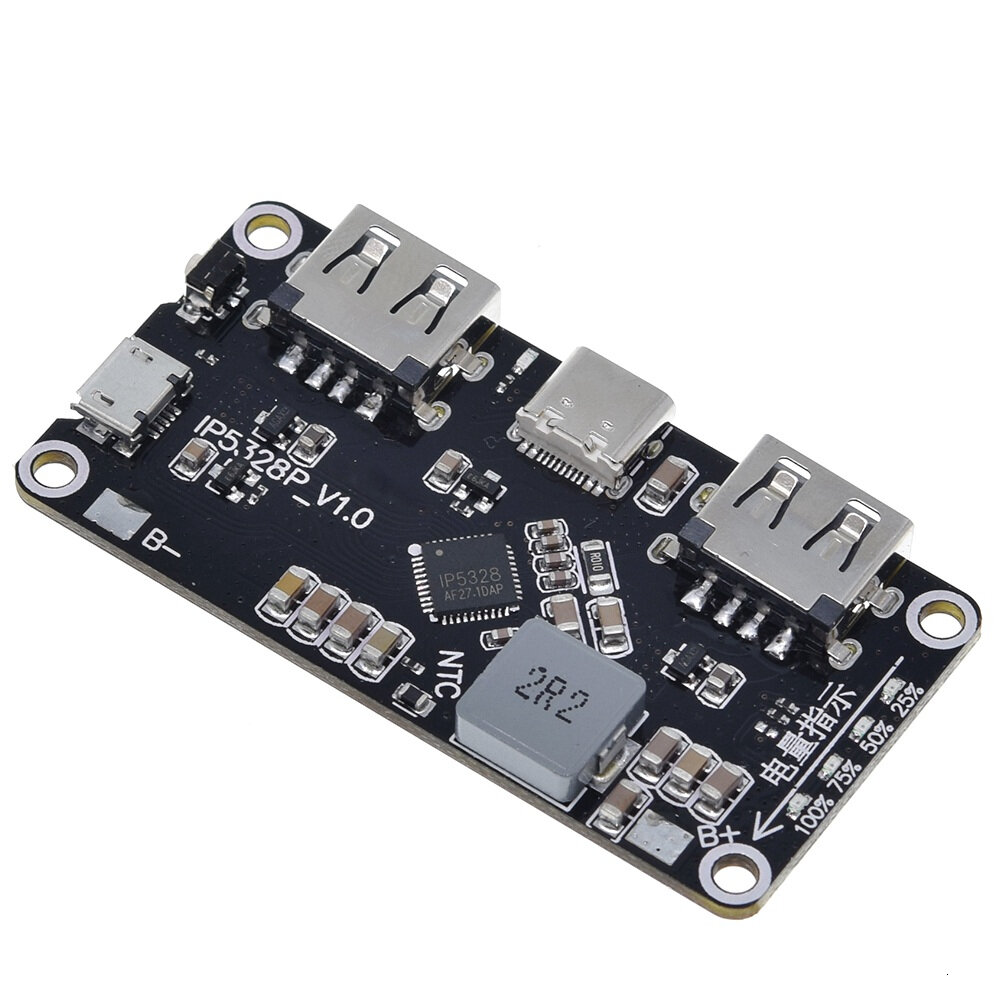

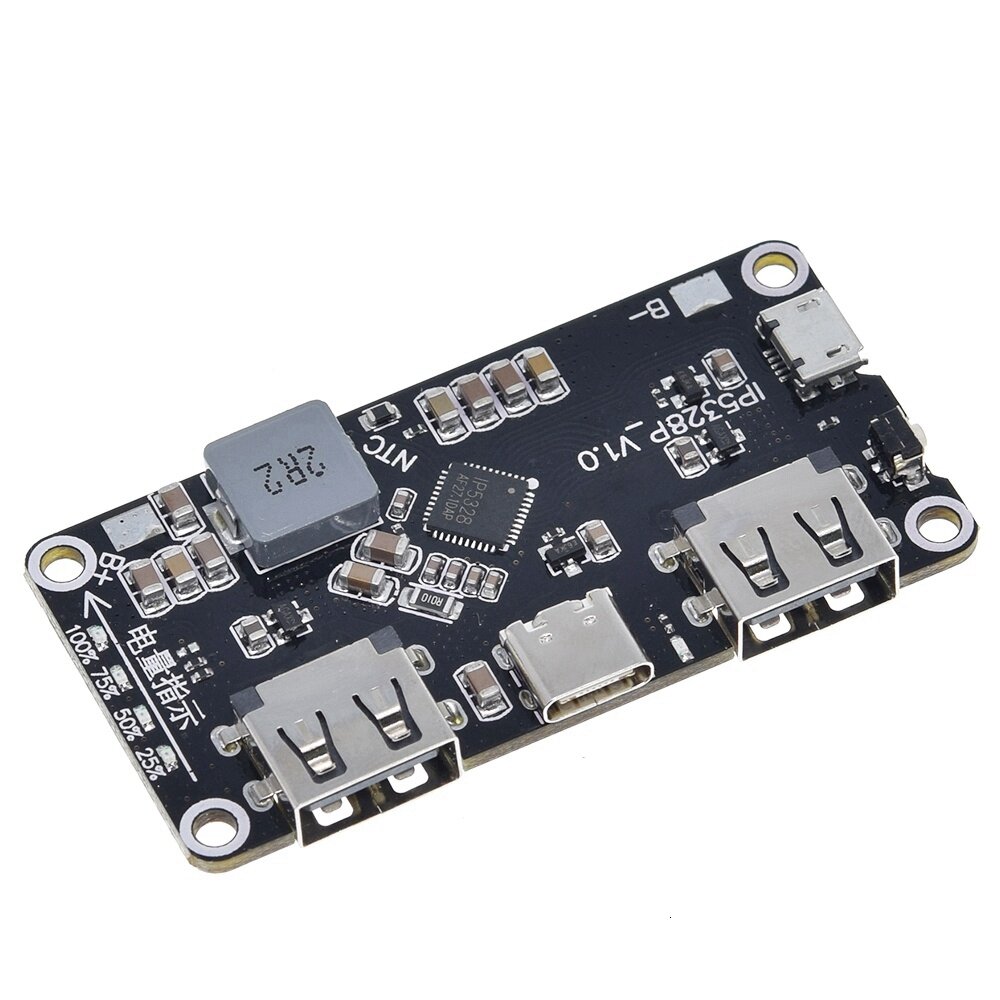

Adopt Yingjixin IP5328P mobile power solution, four-layer immersion gold board, optimized layout and wiring, support multiple fast charging protocols, two-way 18W fast charging, can support a total of 4 charging ports: 2 USB-A output ports, 1 USB-C interface, 1 Micro USB interface, 4 interfaces support fast charging, of which 2 USB-A ports support QC3.0, FCP, AFC, MTK, SFCP fast charging output, power up to 18W; support Apple, for Samsung, BC1.2 protocol. The USB-C port supports USB PD two-way fast charging, and is compatible with FCP, AFC, SFCP fast charging input and QC3.0, FCP, AFC, MTK, SFCP fast charging output. MicroUSB supports FCP, AFC, SFCP fast charge input.

Size: 65mm*32.5mm ultra-thin four-corner hole diameter 3mm

Output interface: USBA+USBA+TYPE-C supports fast charging output (see the specification for the fast charging protocol)

Input interface: MICRO + TYPE-C supports fast charging input (see the specification for the fast charging protocol)

Battery type: 3.7V battery (aggregate or 18650 lithium battery) connected in parallel, the capacity is not limited, the larger the capacity, the longer the charging and discharging time, please add a protection board for the battery, the main board has positive and negative poles, the battery cannot If you connect it backwards, you will be responsible for the consequences of burning the motherboard! ! !

Fast charge indication: input and output high voltage fast charge indicator

Conversion efficiency: 95% efficiency (power efficiency varies with different voltages) For details, please refer to the specification for introduction

Press the button: If the button lasts longer than 60ms but less than 2s, it is a short press action. A short press will turn on the battery indicator light and boost output, and a super long press for 10s can reset the entire system. There will be no response to the button action of less than 30ms.

Mobile phone insertion automatic detection function:

IP5328P automatically detects the insertion of a mobile phone, wakes up from the standby state immediately, turns on the boost 5V to charge the mobile phone, saves button operation, and supports no button solution.

:

When the IP5328P is connected to the battery for the first time, no matter what the battery voltage is, the chip is in a locked state, and the lowest bit of the power indicator will flash 4 times to prompt; in the non-charging state, if the battery voltage is too low, it will trigger a low-power shutdown , IP5328P will also enter the locked state.

In the locked state, in order to reduce the static power consumption, the IP5328P does not have a mobile phone insertion detection function, nor can it be activated by pressing a button. At this time, the button action cannot activate the boost output, but the lowest position of the battery light will flash 4 times as a reminder.

In the locked state, you must enter the charging state to activate the chip function.

Charge

IP5328P integrates a synchronous switching converter system that supports high voltage output, supports 5V~12V wide voltage range output, and the load capacity is 5V—3.1A, 7V—2.4A, 9V—2.0A, 12V—1.5A. The switching frequency is 375KHz. Built-in soft-start function to prevent failure caused by excessive inrush current at startup, integrated output over-current, short-circuit, over-voltage, over-temperature and other protection functions,

Make sure the system works stably and reliably.

The output current of the boost system can be automatically adjusted with the temperature to ensure that the IC temperature is below the set temperature.

1× Battery Charger Board
