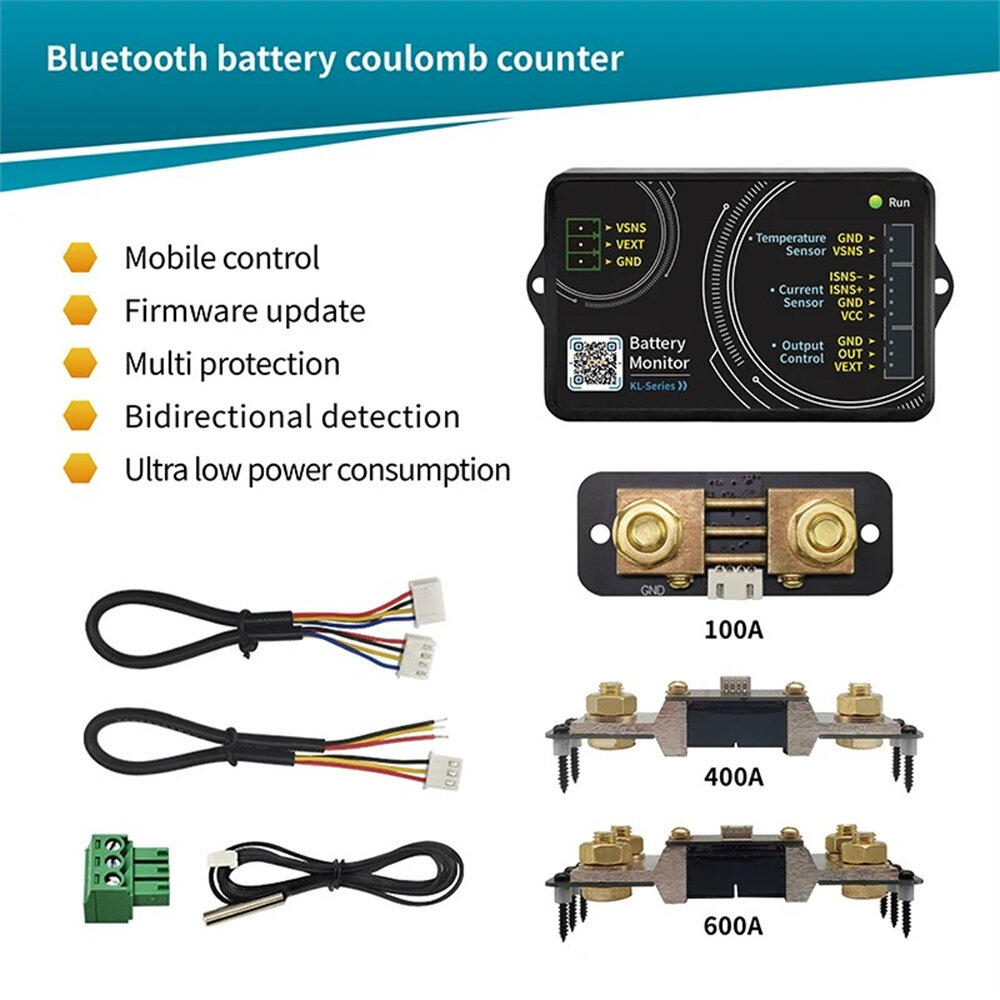

►The product automatically recognizes and detects the current in both charging and discharging directions. When charging, the color of the current is green; when discharging, the color of the current is blue.
►The shunt and screws are made of pure copper material, which has good electrical conductivity, low heat generation, and low power consumption. In the standby state, it will not consume too much battery power.
►Amp-hour, watt-hour, and time data can be cleared during the measurement process without affecting the next measurement. The voltage and current values can also be fine-tuned to ensure accurate capacity.

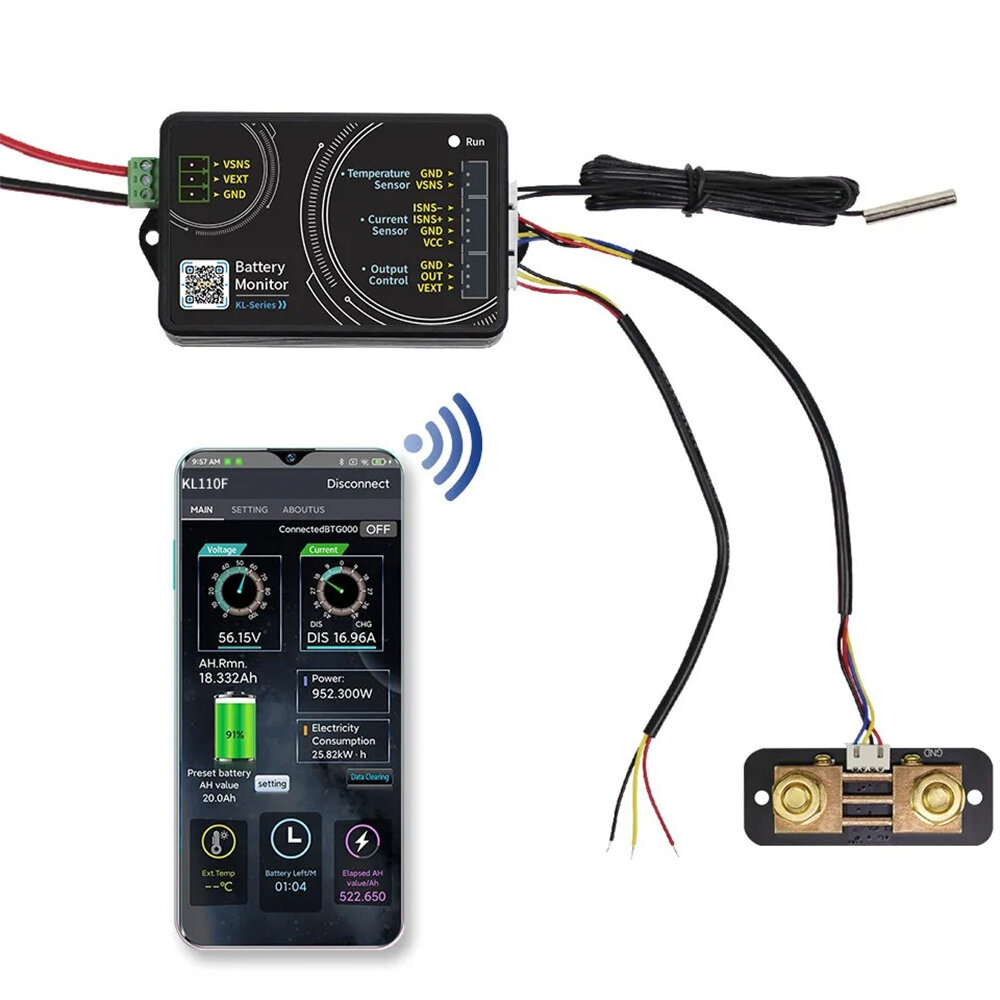

►The product can accurately measure parameters such as voltage, current, battery capacity, power, power consumption, ambient temperature, battery life, charging time, and battery cumulative capacity.
Model
KL110F

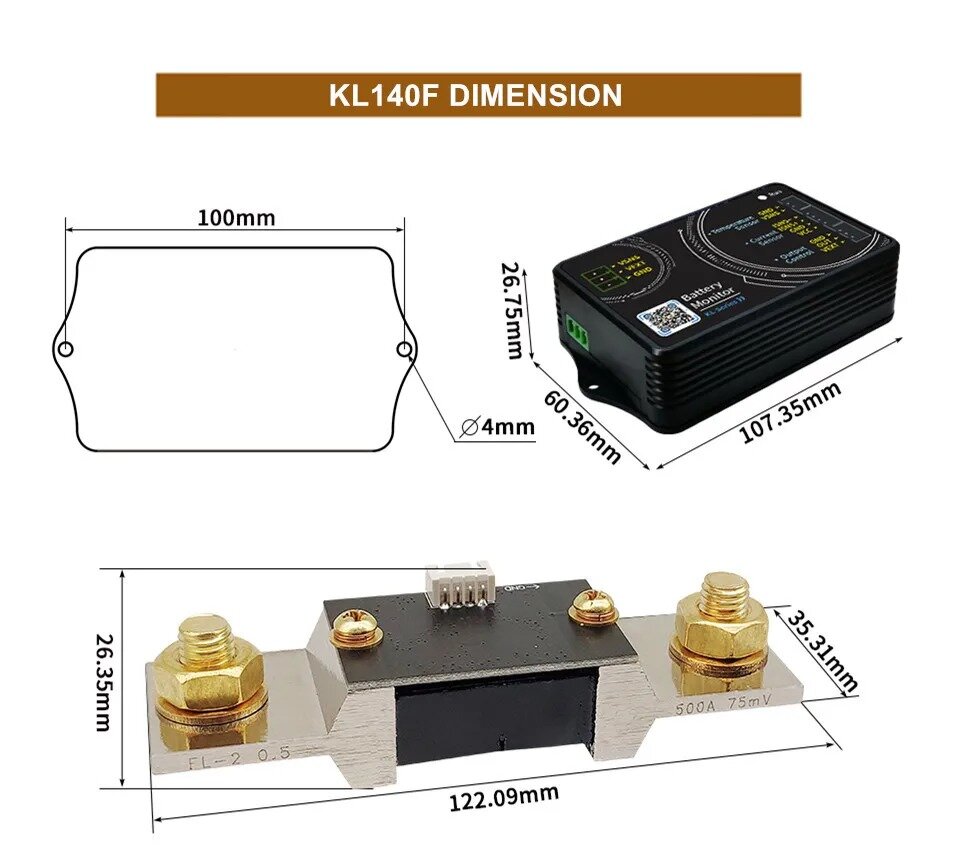

KL140F

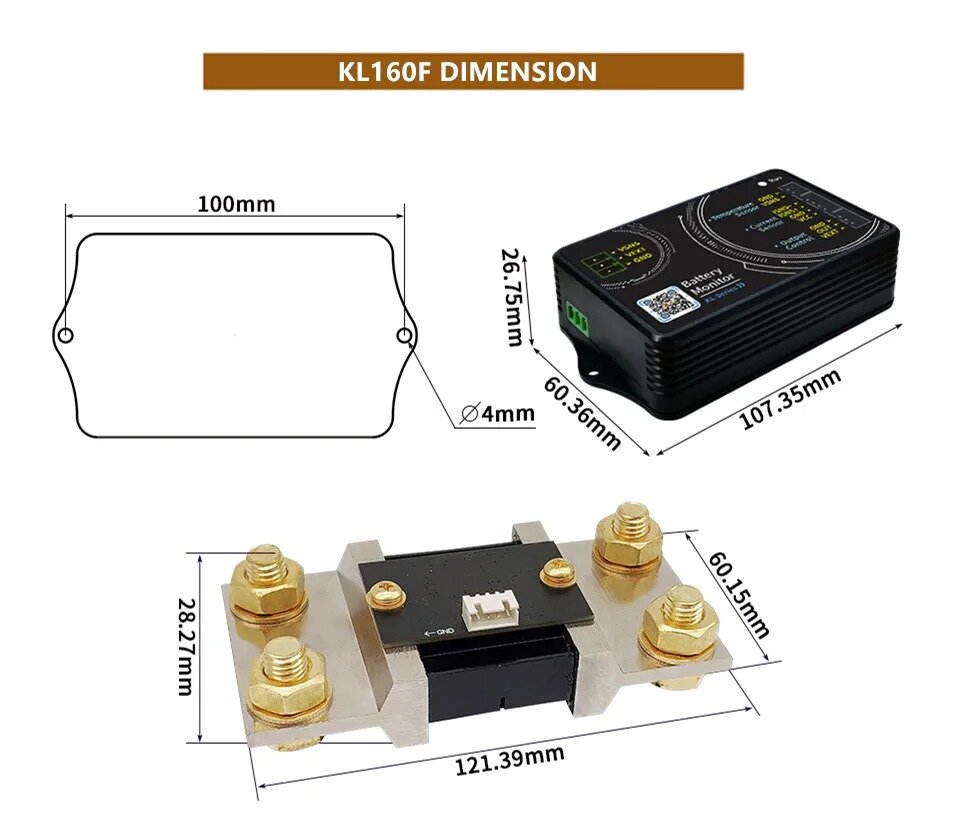

KL160F
Sampling method
Shunt
Shunt
Shunt
Voltage measurement range(External power supply)
0-120V
0-120V
0-120V
Voltage measurement
range(Self-powered)
10-80V
10-80V
10-80V
Voltage resolution
0.01V
0.01V
0.01V
Current measurement range
0~100A
0~400A
0~600A
Current resolution
0.01A
0.1A
0.1A
Relay
optional
Temperature measurement range
-20-120℃
Capacity display range
0%~100%
Power measurement range
0~72KW
Power resolution
0.01W
AH measurement range
0~9999.99AH
Capacity resolution
0.001AH
Watt-hour measurement range
0~9999.99kWH
Watt-hour accuracy
0.001WH
Time measurement range
0~999:59:59S
Time resolution
1second
Bluetooth communication distance
10m
Voltage accuracy
±1%+2 characters
Current accuracy
±1%+5 characters
Sampling rate
1time /second
Measuring module
power consumption
About 0.4W
Over power protection
0-99999.99W
Negative overcurrent protection
0~100A/400A/600A
Forward overcurrent protection
0~100A/400A/600A
Overvoltage protection
0~120V
Undervoltage protection
0~120V
External over temperature protection
0-120℃
Protection recovery time
0-99s
Enter standby time
0-60s
Delay time setting
0-99S
