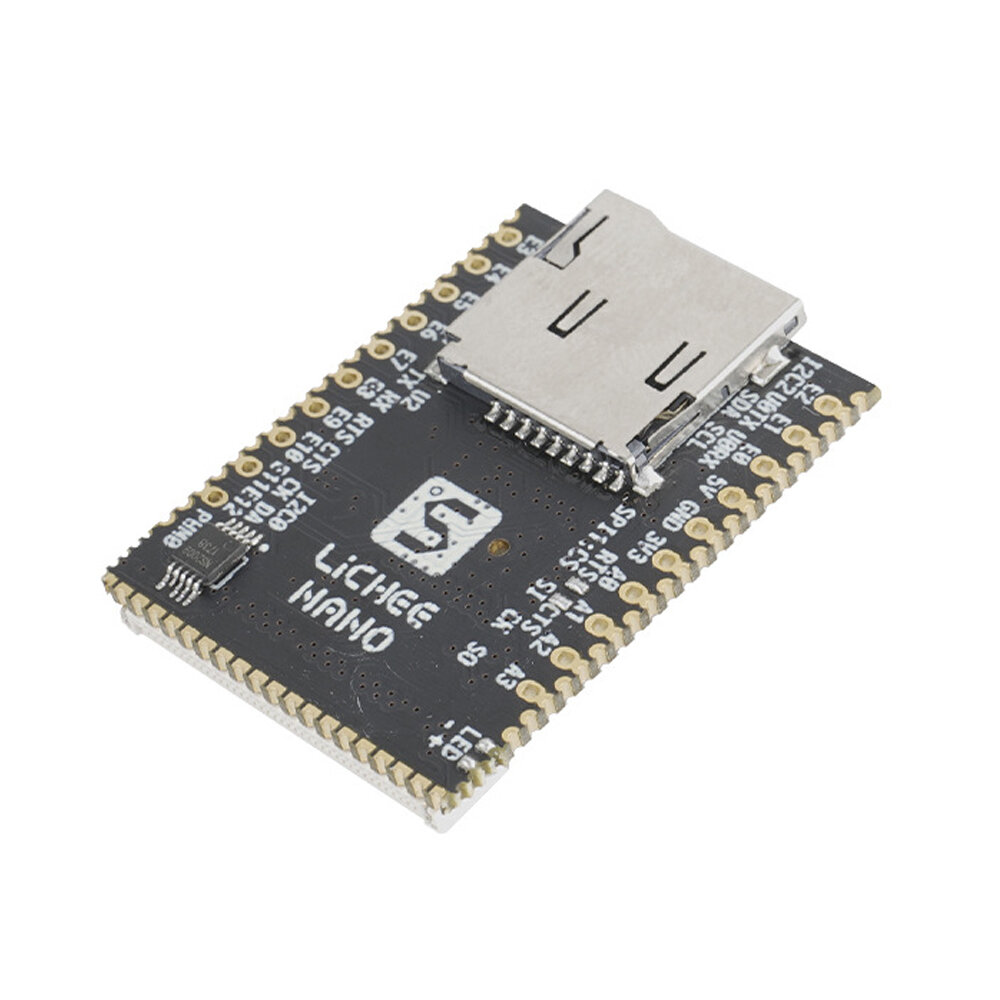

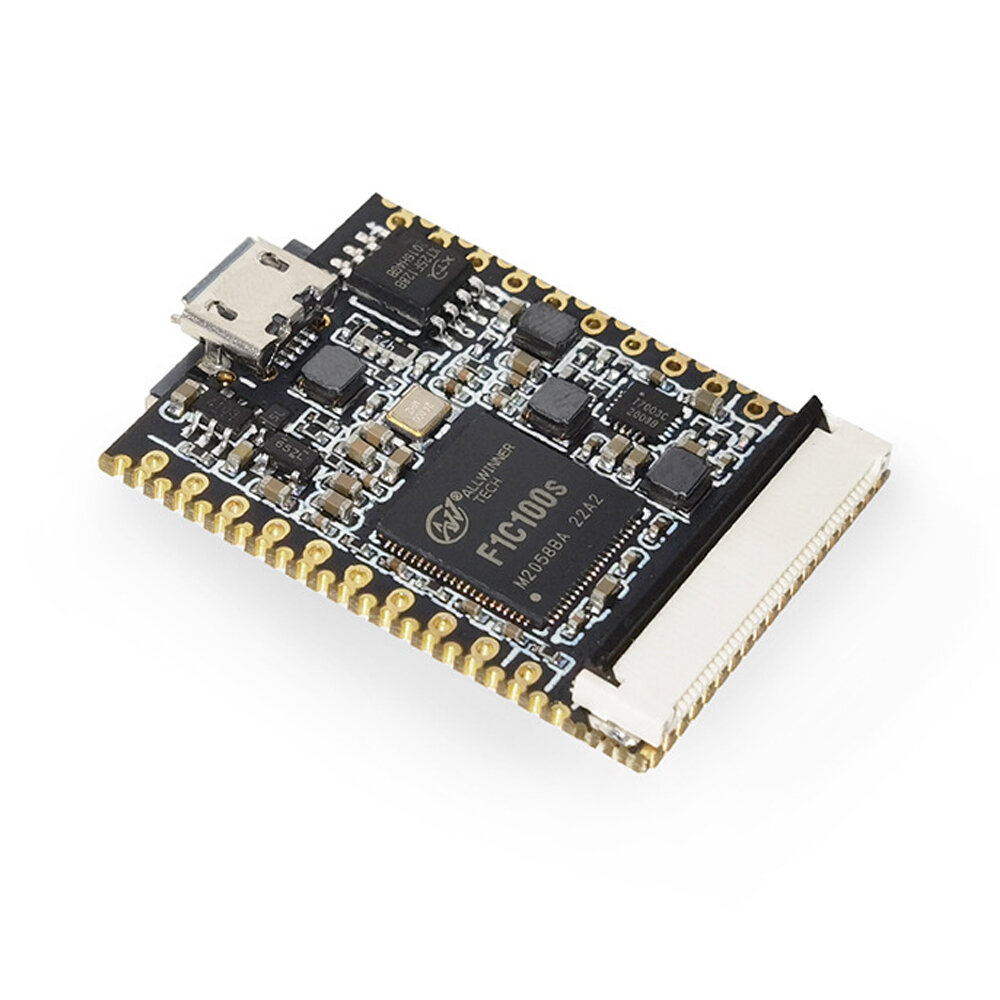

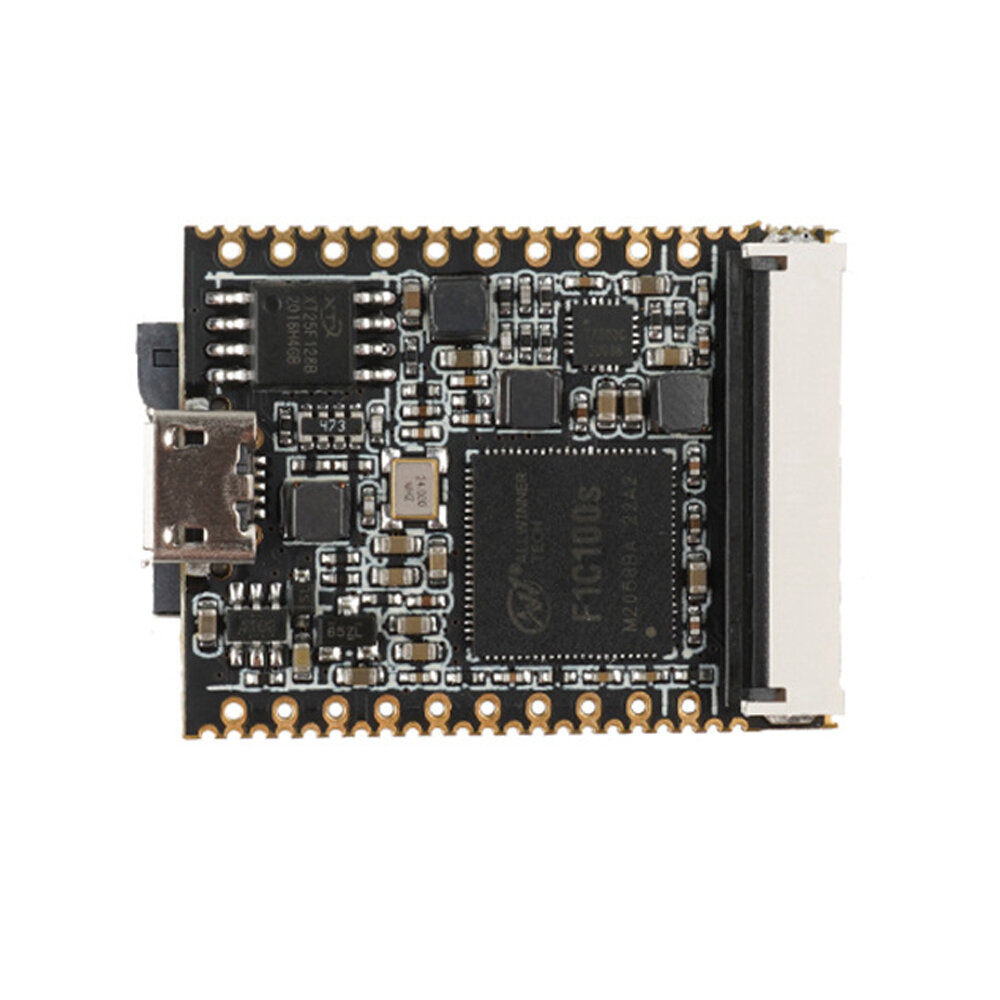

Lichee Nano Motherboard F1c100s Development Board Linux Programming Learning COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Electrical characteristics:
- Input 5V through the micro USB port, input 3.3 to 5V through the pin- Output - 3.3V, optional input RTC voltage- Power consumption - 54mA (idle) when using Linux, 250mA with display- Storage temperature: -40~125°C; Operation: -20 to 70°C  Support for 3.10 BSP linuxSupport 4.19 main line linuxSupport xboot bare metal development environmentSupport RT-Thread
Target application scenario:

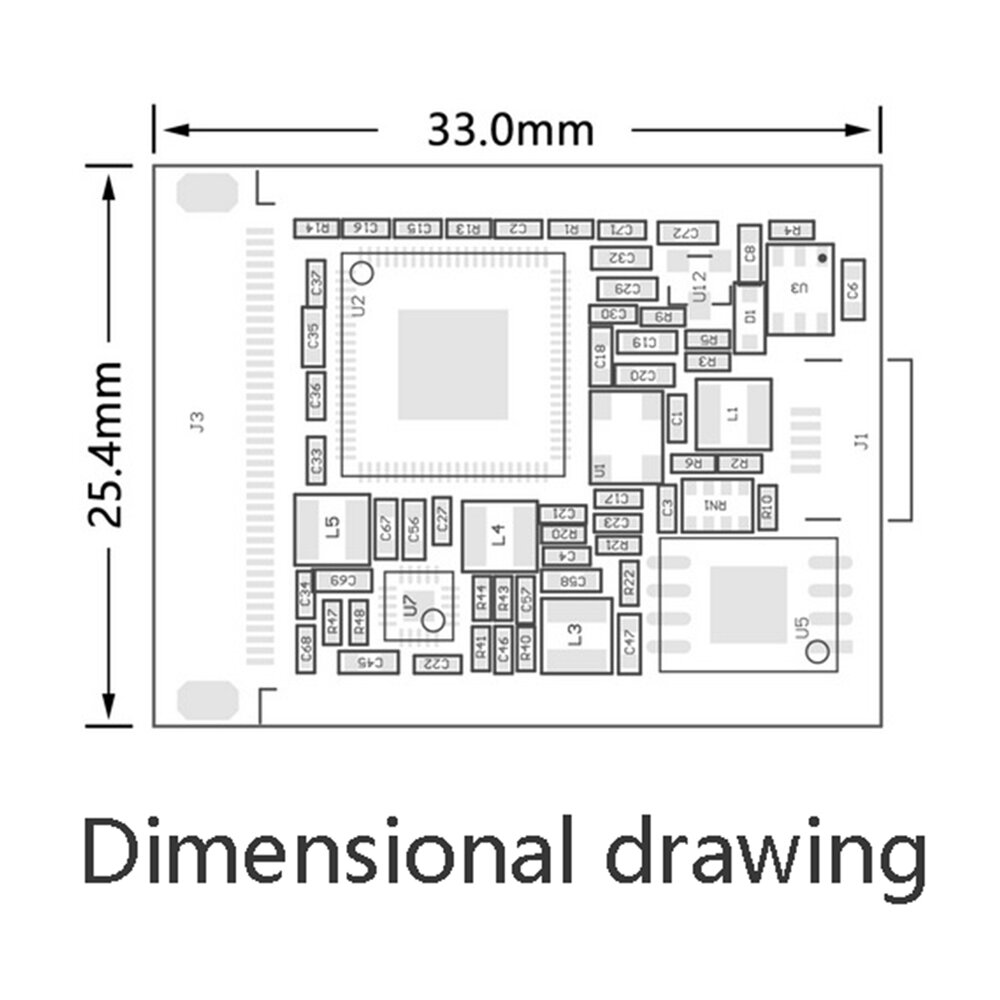

Size and weight:Core board size is 25.4x33.0mmCore board weight 4.2±0.2g
Precautions:
Starting the Nano requires a card boot (or solder SPI flash), just plugging in the USB without any symptomsSystem debugging serial port UART0, specific location reference pin diagramUSB interface OTG usb, power and communicationWorking temperature -20~70°C
Package includes:(Note: Each option is a separate purchase, not a kit)
Option 1: 1 x Lichee Nano Motherboard with pinsOption 2: 1 x Wifi moduleOption 3: 1 x 5 inch resistive screen
