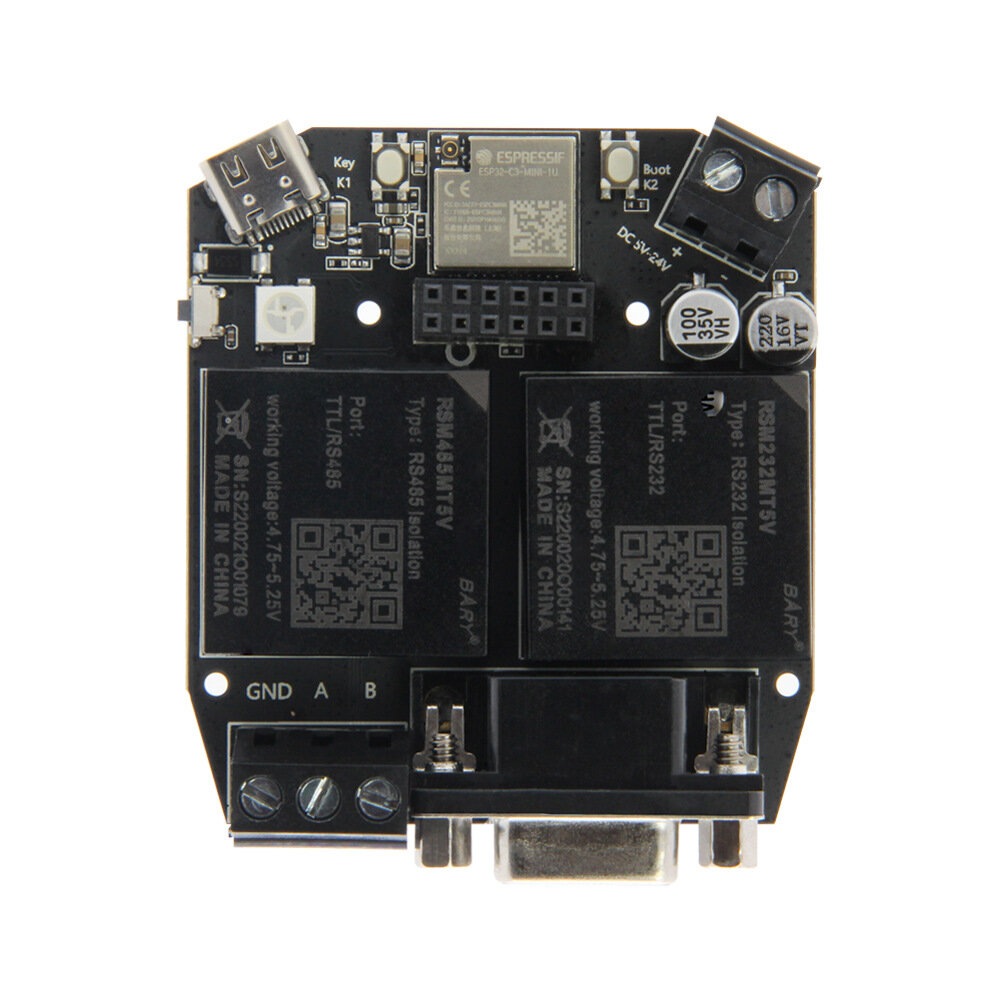

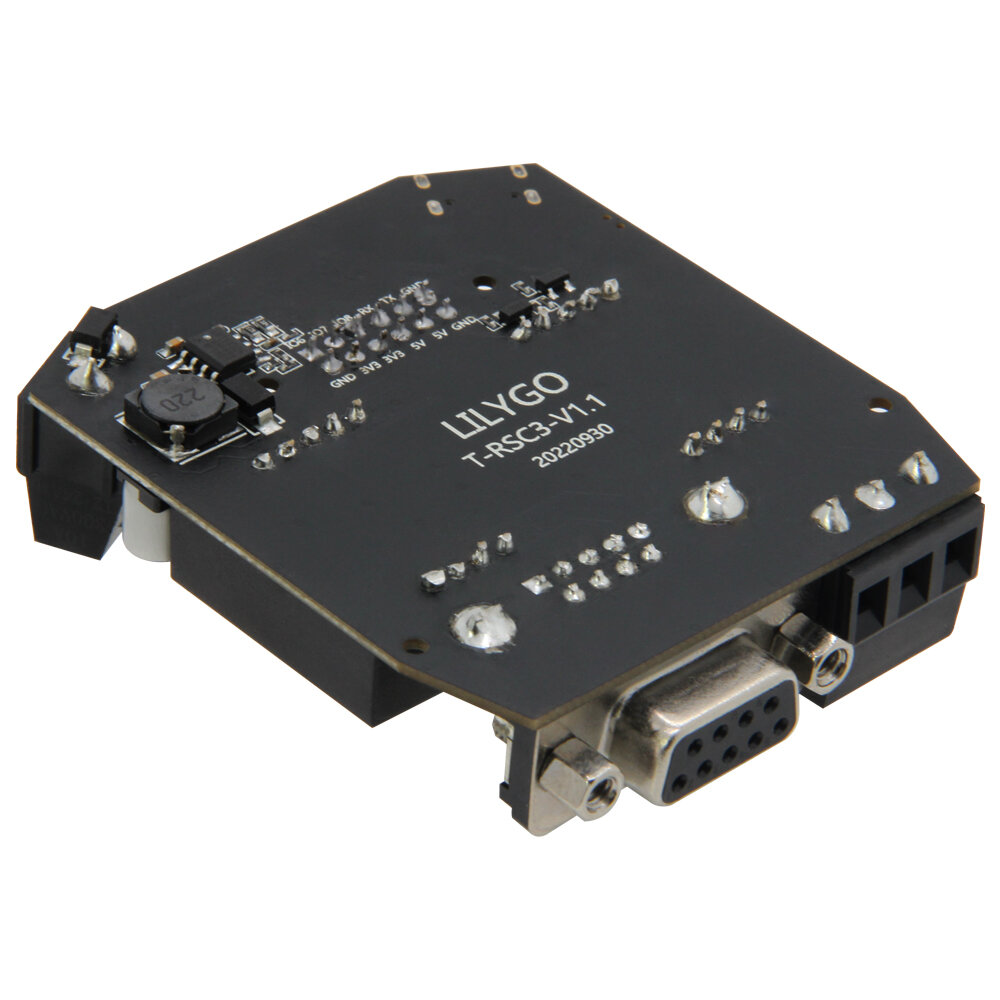

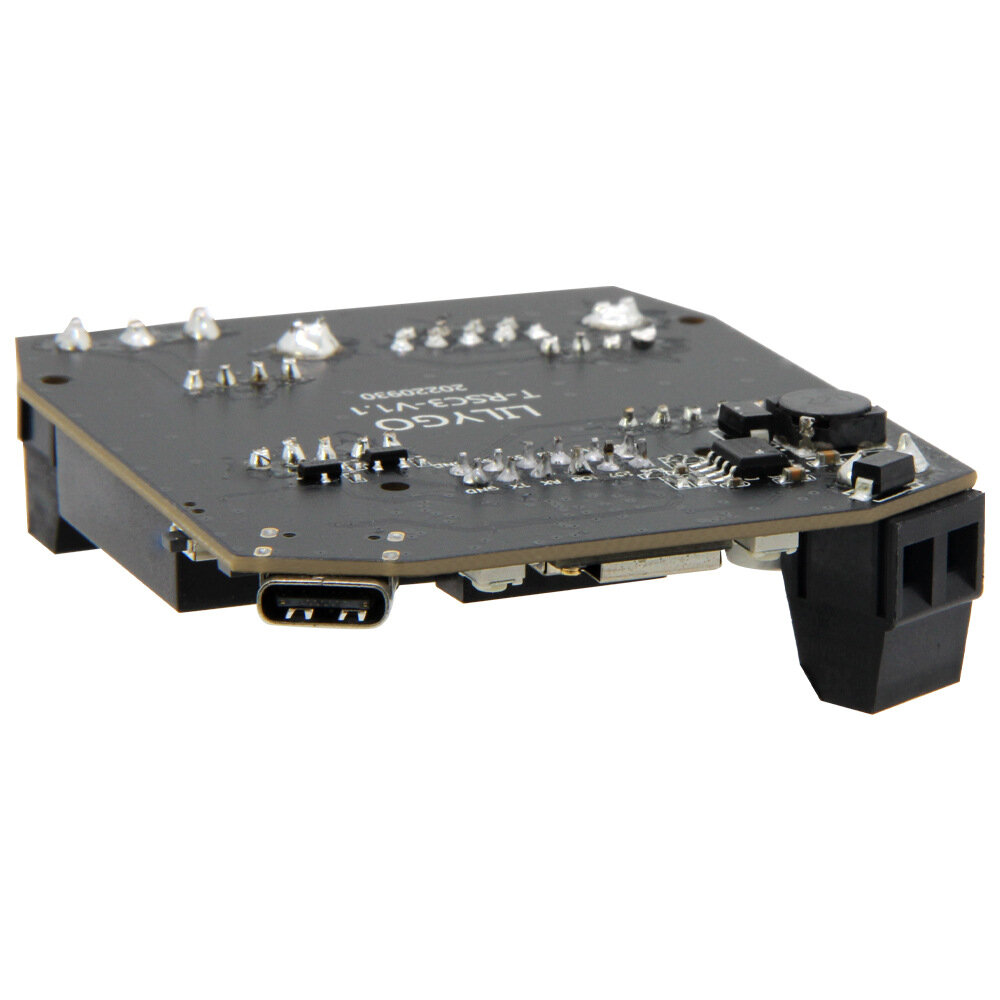

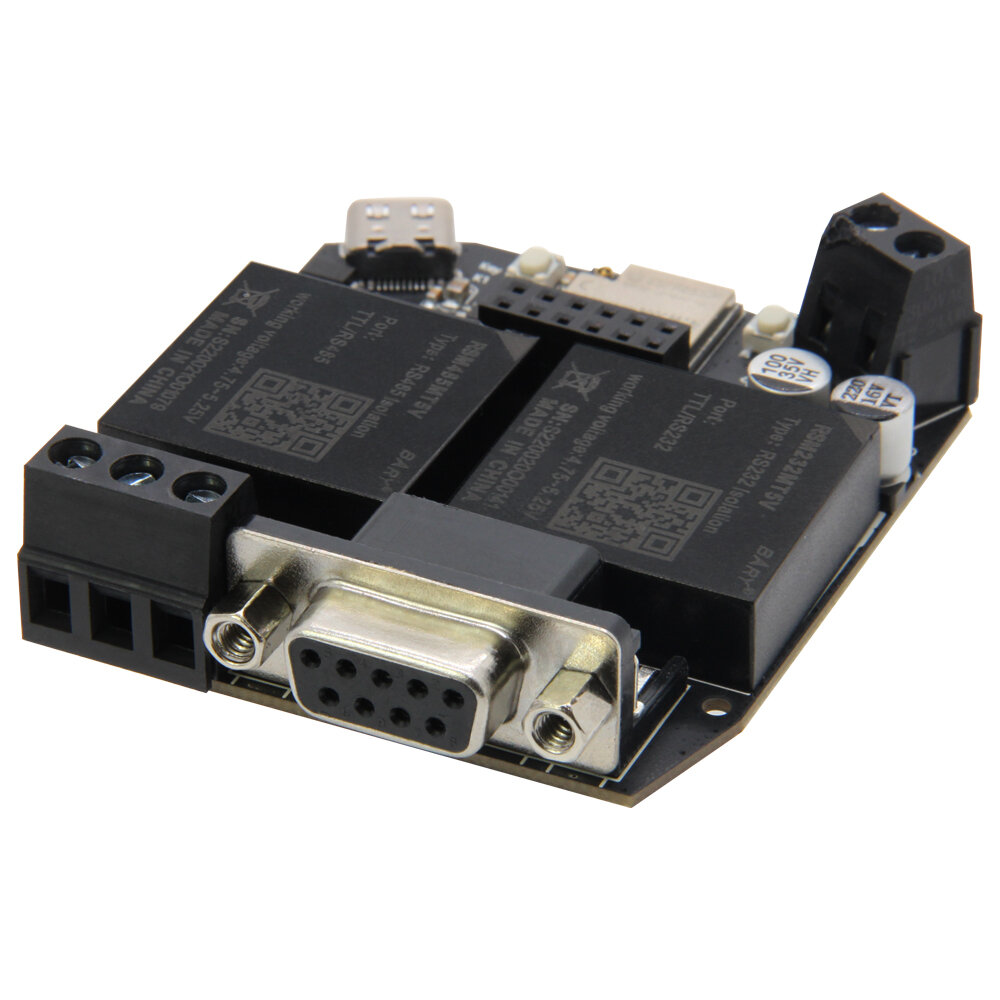

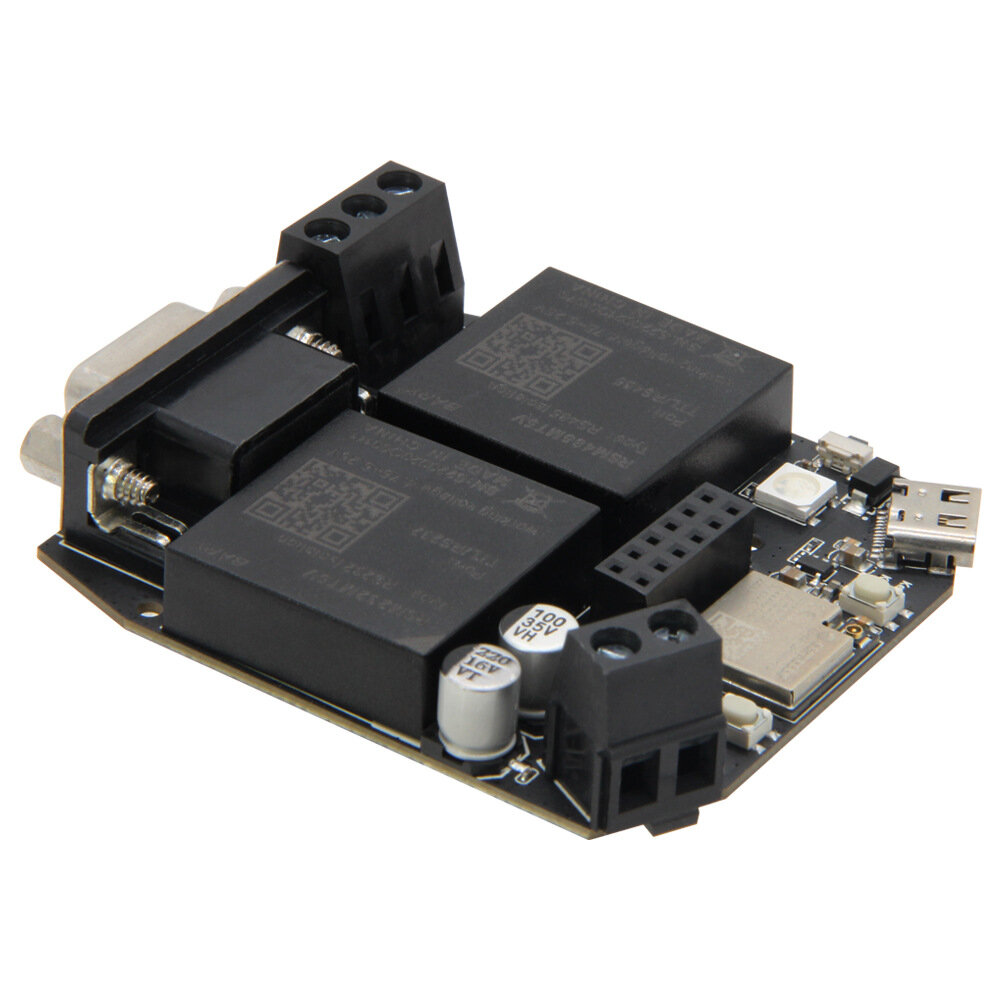

LILYGO® T-RSC3 ESP32-C3 T-RSS3 ESP32-S3 Development Board RS232 RS485 5V Wi-Fi bluetooth 5.0 Module Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:
The standout feature of T-RSC3 is its multiple capabilities, with both ESP32-C3 and RS232/RS480 capabilities. It offers seamless connectivity through Wi-Fi and Bluetooth 5.0, while also supporting industry-standard RS232 and RS480 communication.
https://github.com/Xinyuan-LilyGO/T-RSC3
Specifications:

MCU	ESP32-C3 32-bit, RISC-V-based MCU	ESP32-S3 dual-core XTensa LX7 MCU
Communication	Support Wi-Fi & Bluetooth 5 (LE)	Support Wi-Fi & Bluetooth 5 (LE)
Flash	4MB	8MB
Development Platform	Arduinno, ESP-IDF, PlatformIO-IDE	Arduinno, ESP-IDF, VS Code
Onboard function	WS2812 RGB LED, keys: Reset + Boot + IO2 Adapt to RS232 DB9 female connector, DC input power supply 5V~12V	WS2812, Button: Reset + Boot + IO2 Adapt to RS232 DB9 female connector, DC input power supply 7V~24V
Module name	RSM232MT5V	RSM232MT5V
Port	TTL/RS232	TTL/RS232
Isolation voltage	3000V	3000V
Isolated output	5V/50mA 0.5W	5V/50mA 0.5W
Communication rate	1200~256000bps	1200~256000bps
Module name	RSM485MT5V	RSM485MT5V
Port	TTL/RS485	TTL/RS485
Isolation voltage	3000V	3000V
Isolated output	5V/50mA 0.5W	5V/50mA 0.5W
Communication rate	1200~256000bps	1200~256000bps
