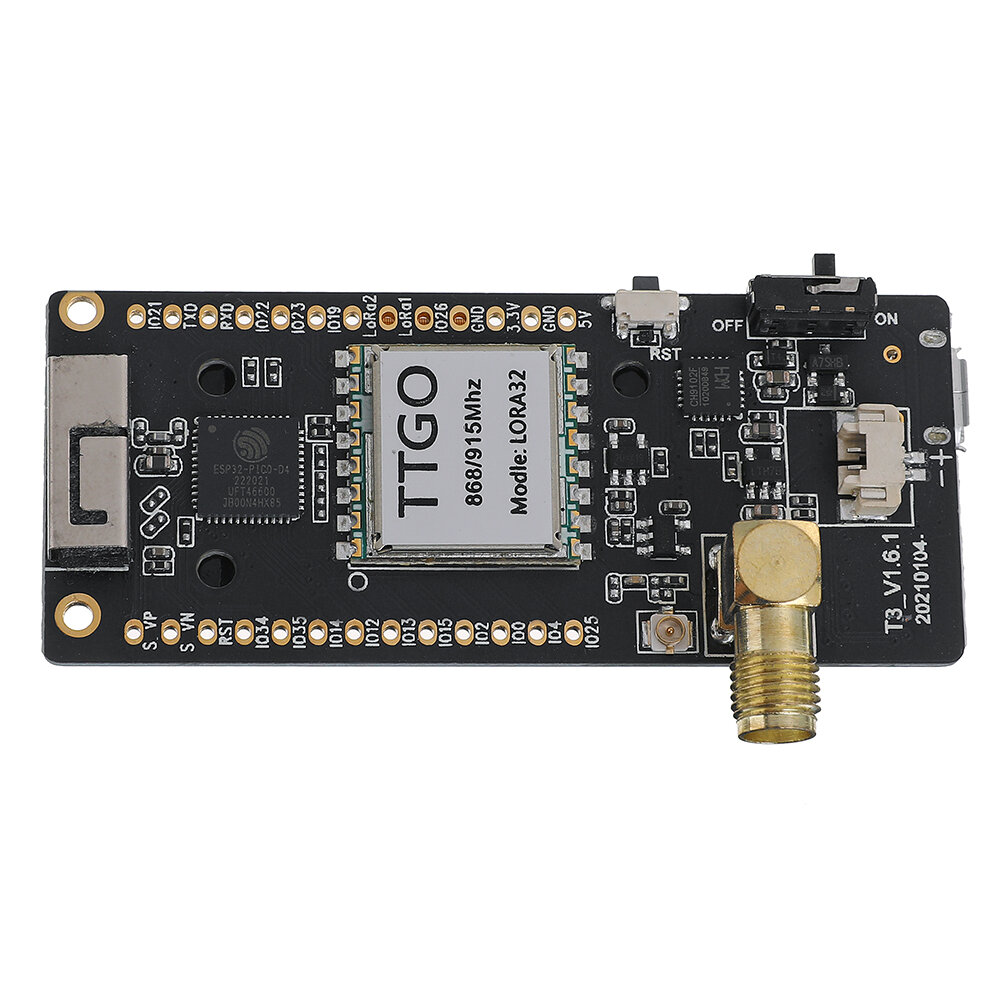

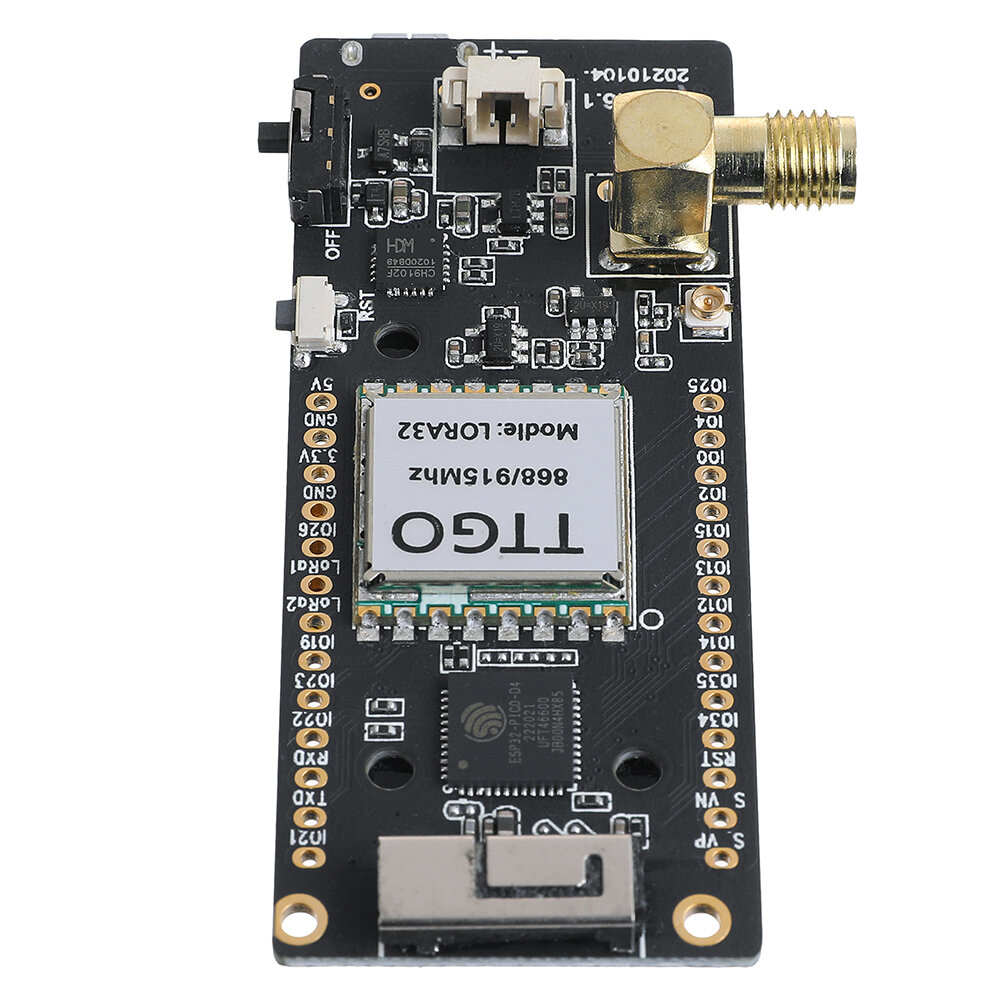

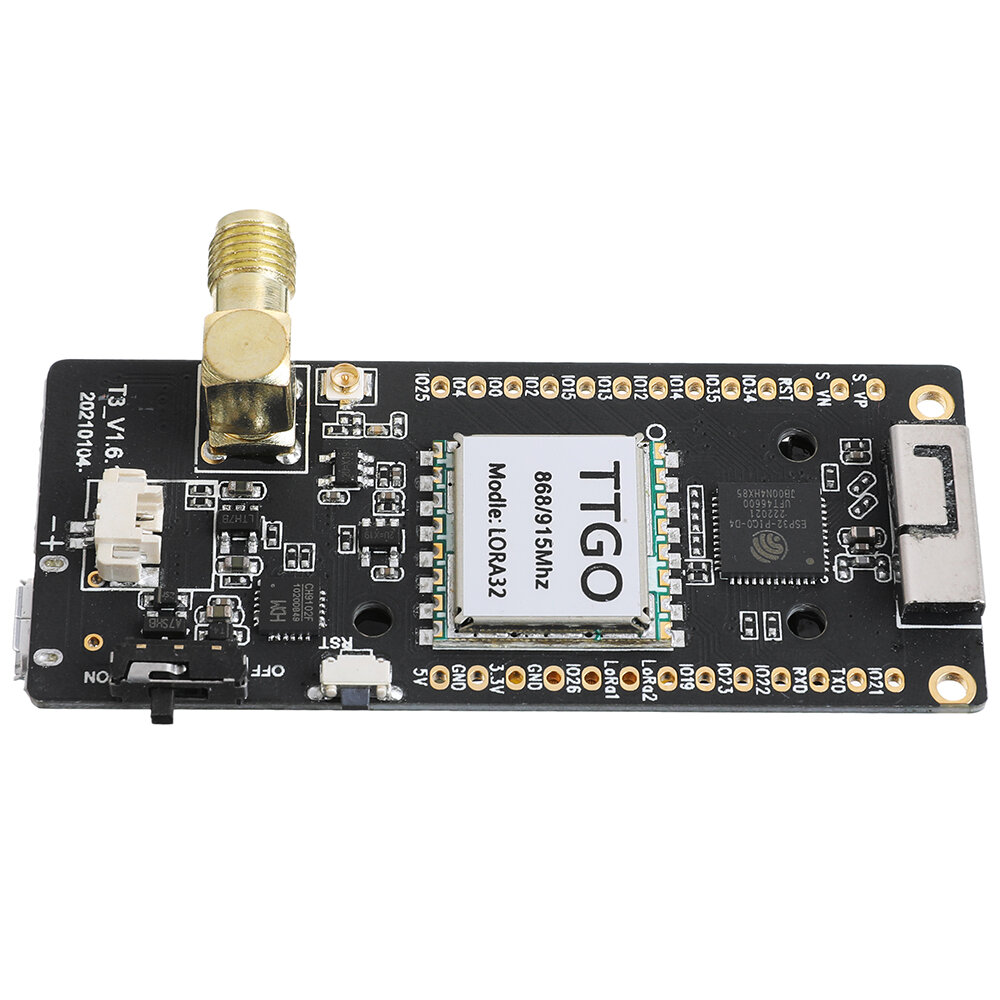

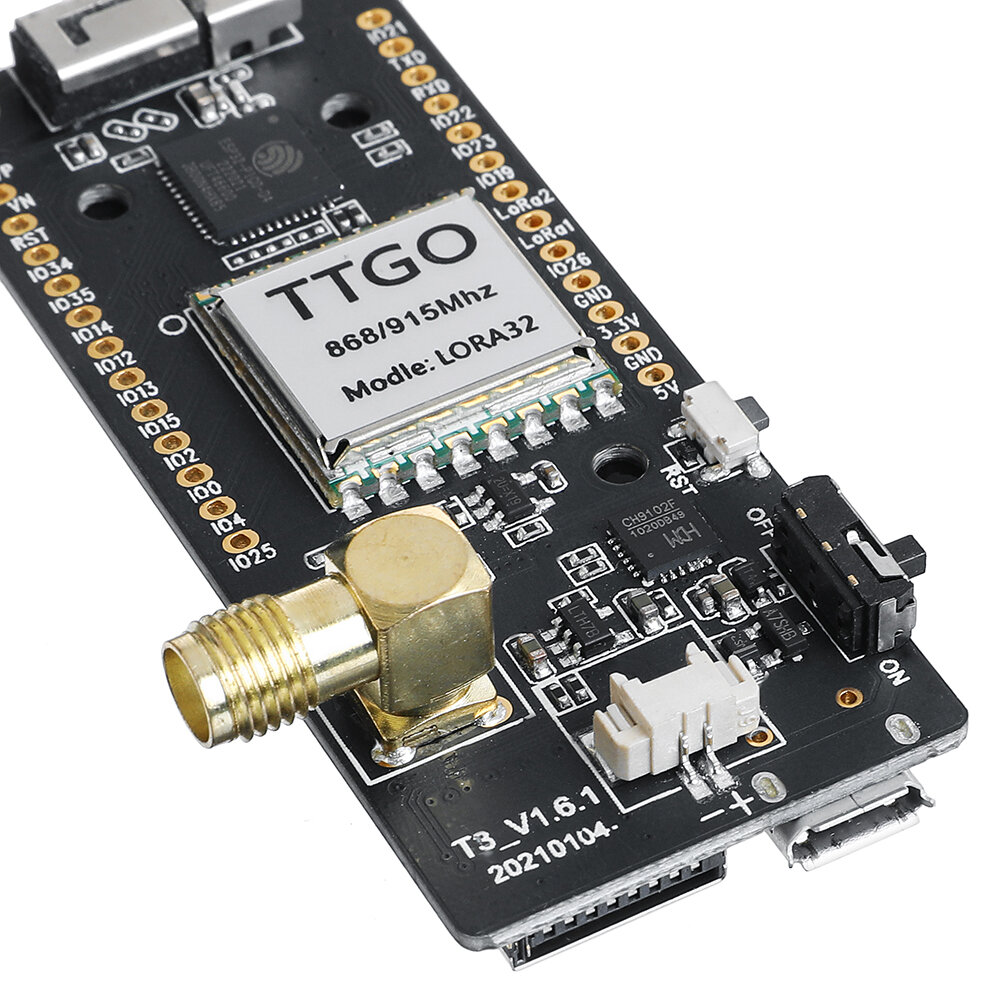

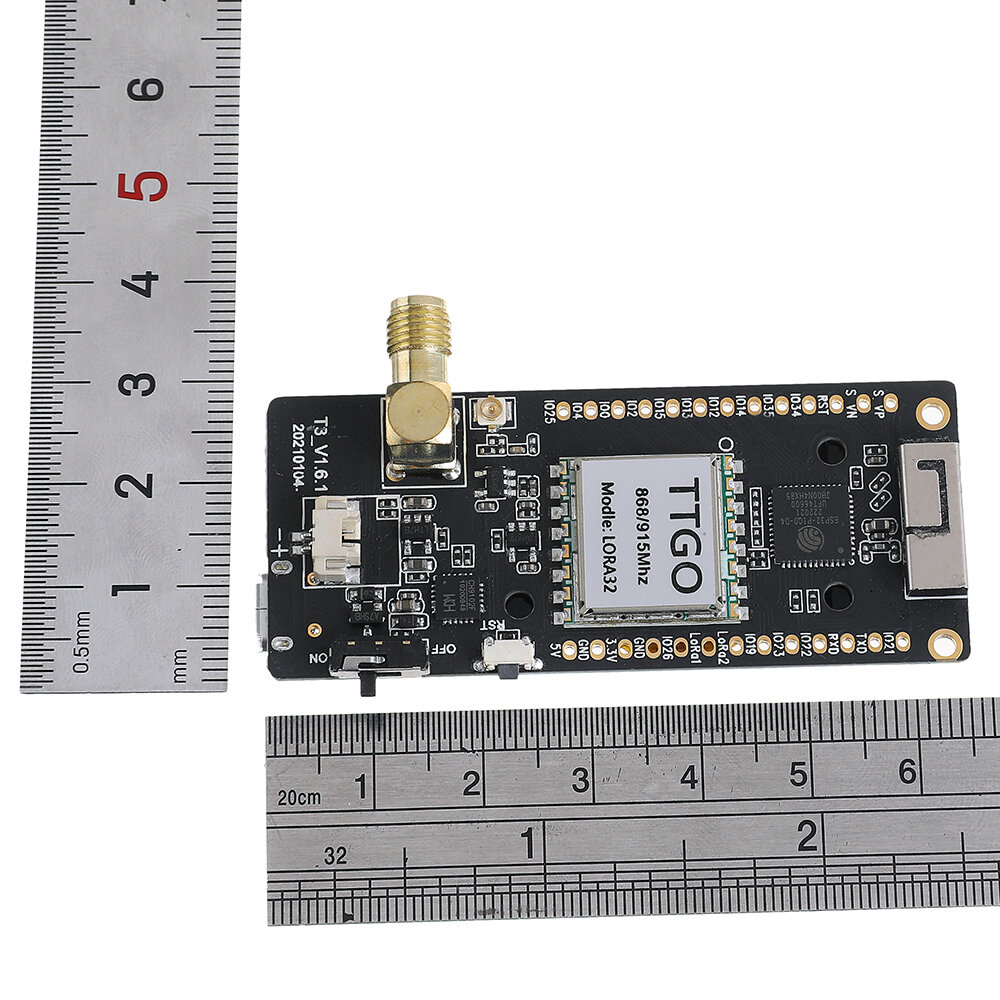

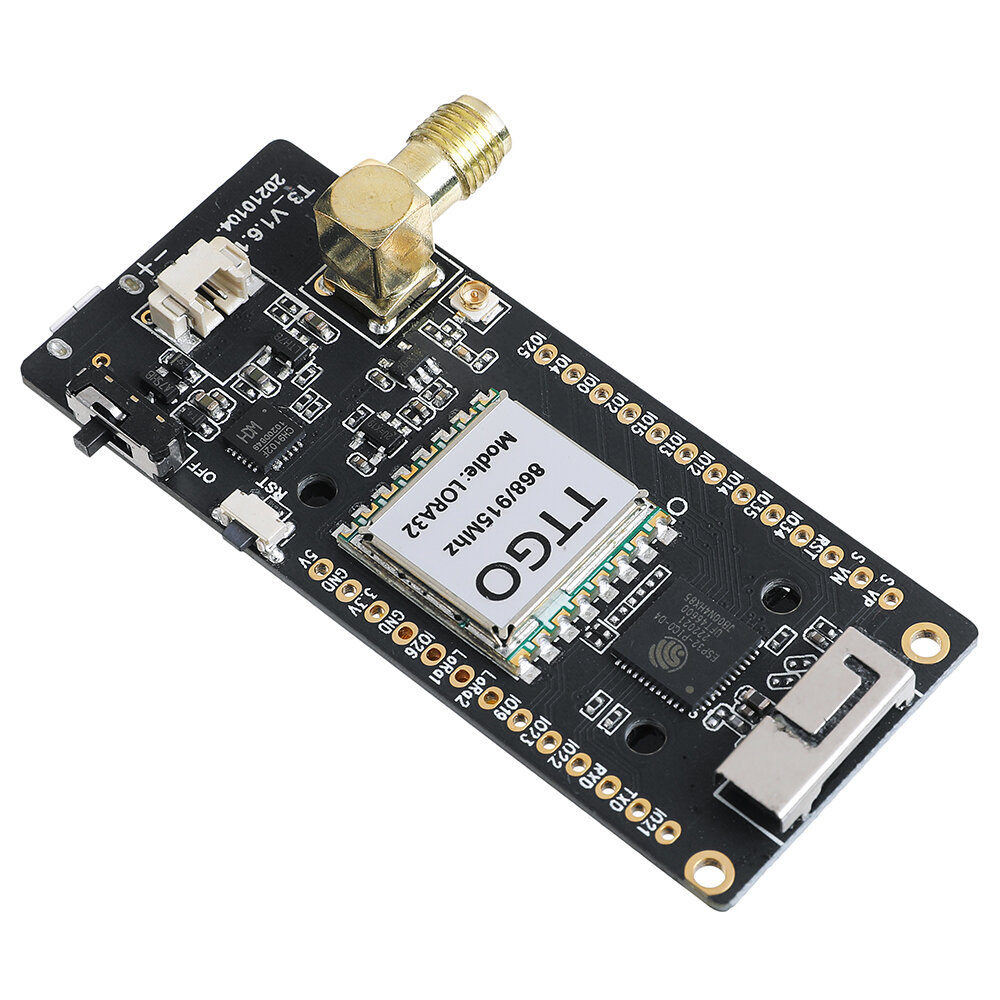

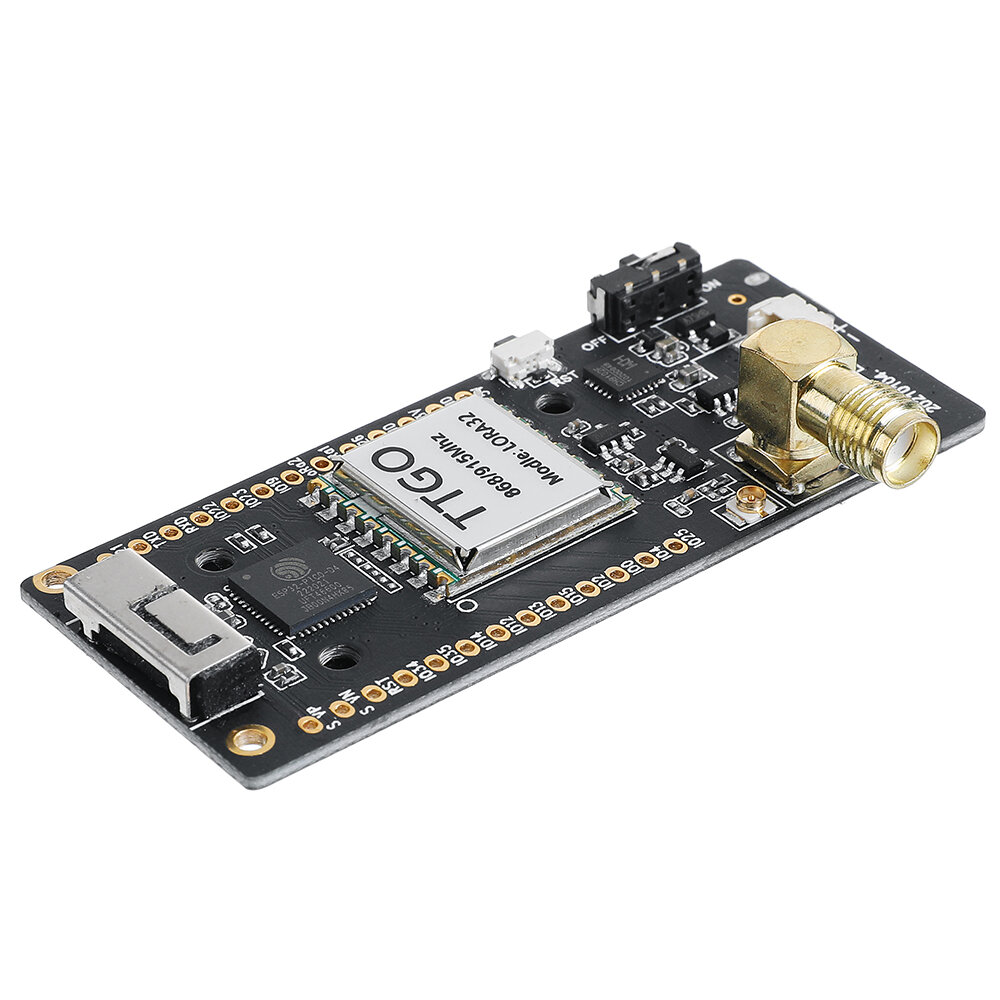

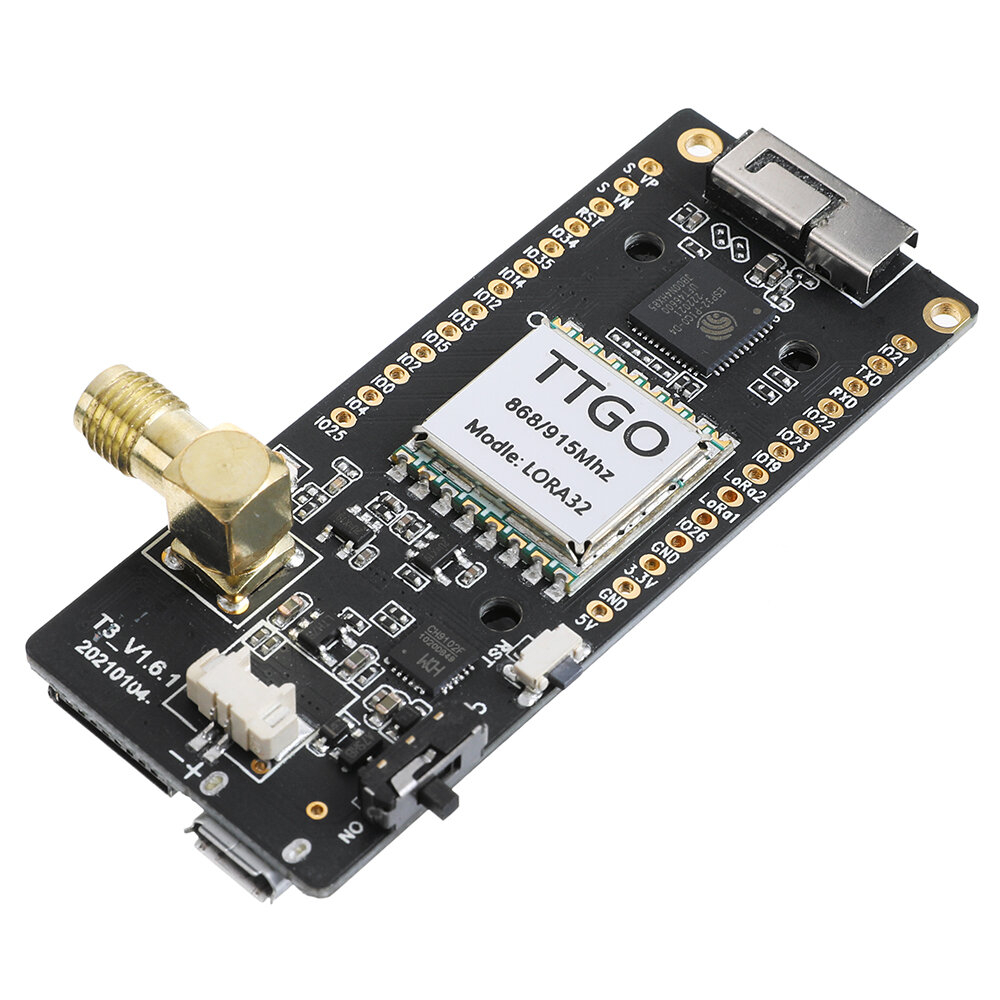

Working voltage: 1.8~3.7v Acceptable current: 10~14mA Transmit current: 120mA@+20dBm 90mA@+17dBm 29mA@+13dBm Operating frequency: 433/868/915MHz Transmit power: +20dBm Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps -136dBm@LoRa &125Khz&SF=12&293bps -118dBm@LoRa &125Khz&SF=6&9380bps -123dBm@FSK&5Khz&1.2Kbps Frequency error: +/-15KHz FIFO space: 64Byte Data rate: 1.2K~300Kbps@FSK 0.018K~37.5Kbps@LoRa Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM,OOK Interface form: SPI Operating temperature: -40℃- +85℃ Digital RSSI function: Automatic frequency correction Automatic gain control Fast wake-up and frequency hopping Highly configurable data packet handler SMA Antenna IP5306 Github: Package includes: 1 x TTGO LoRa32 868Mhz Module 2 x Pin 1 x Antenna 1 x Power Cable (Notice:The shipping list does not include battery and SD card) Hot Products
