More Information: https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-POE

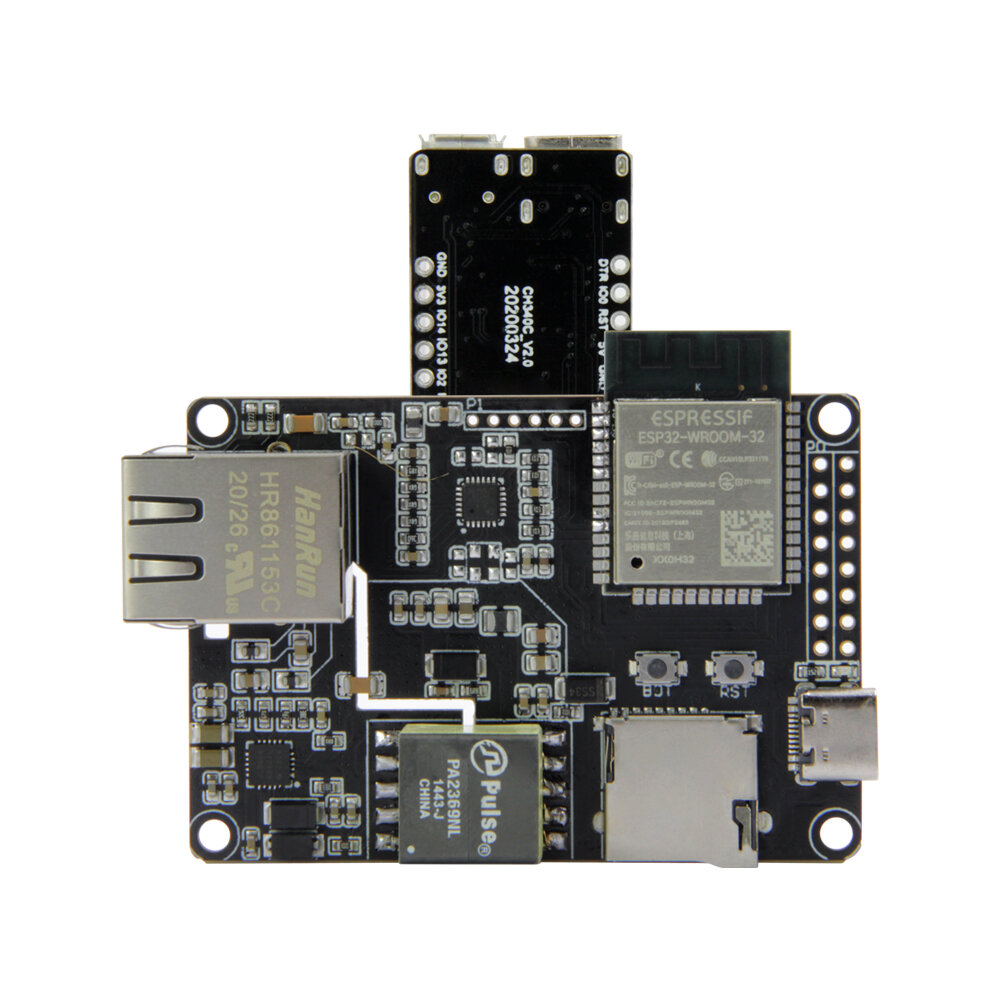

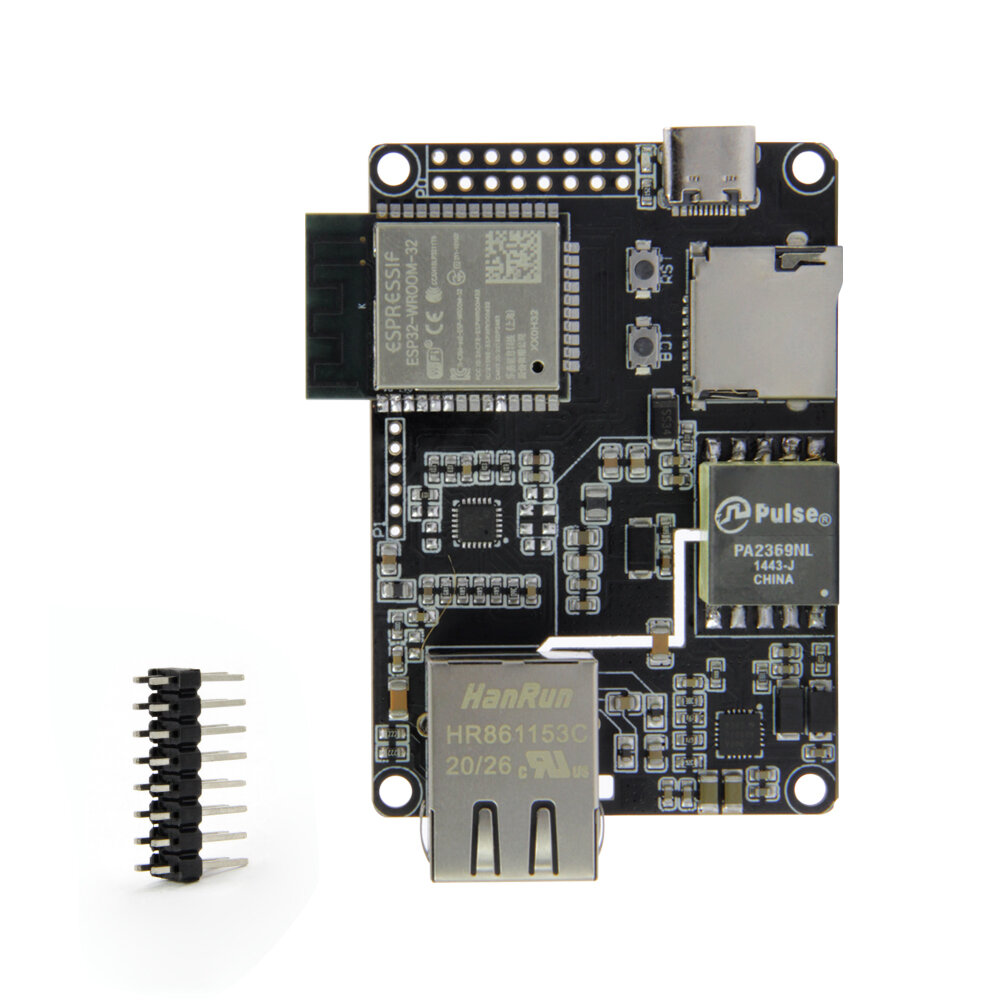

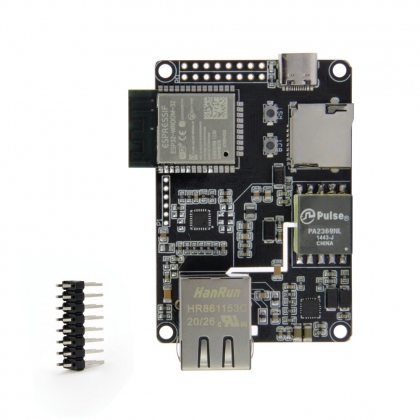

T-Internet-POE Compatible with PoE mode A (powered by data pair) and PoE mode B (powered by backup pair), and auto MDIX, allowing the use of straight and crossover Ethernet cables.
Compatible with 4 mounting holes for regular M2.5 or 4-40 screws.

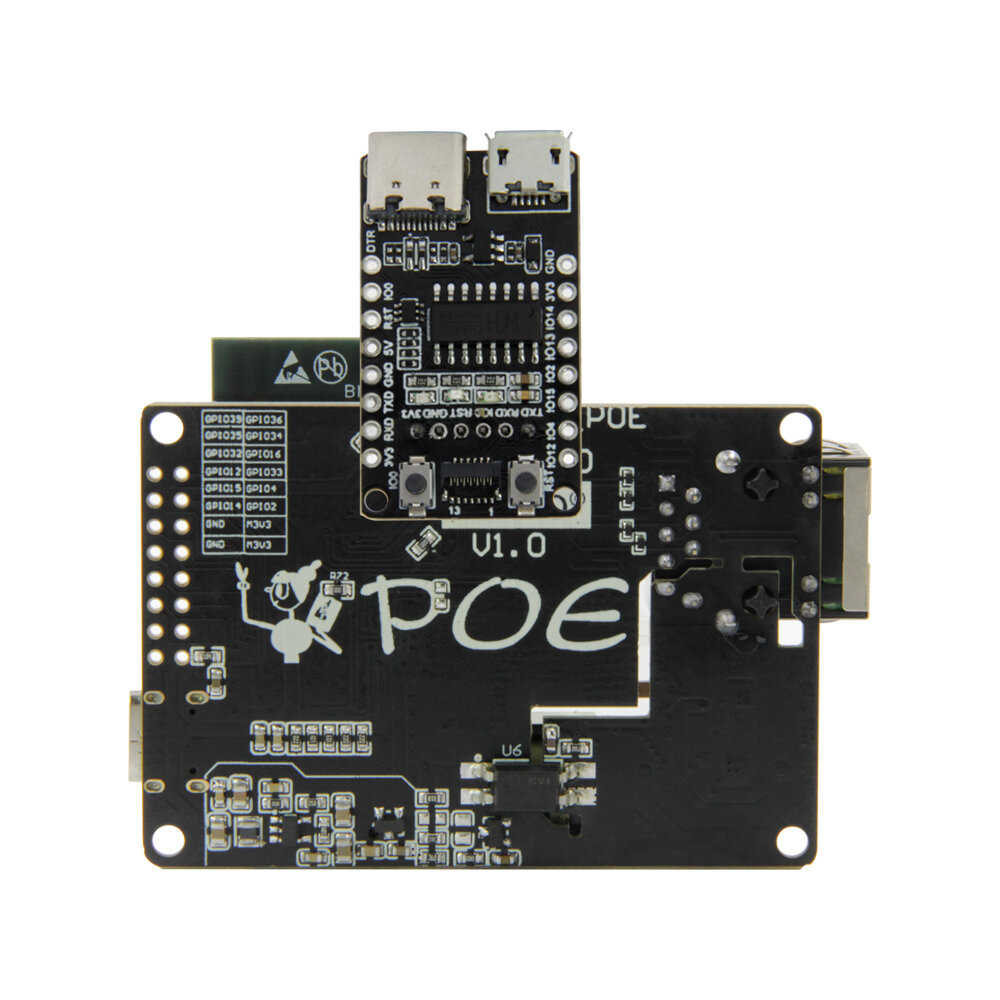

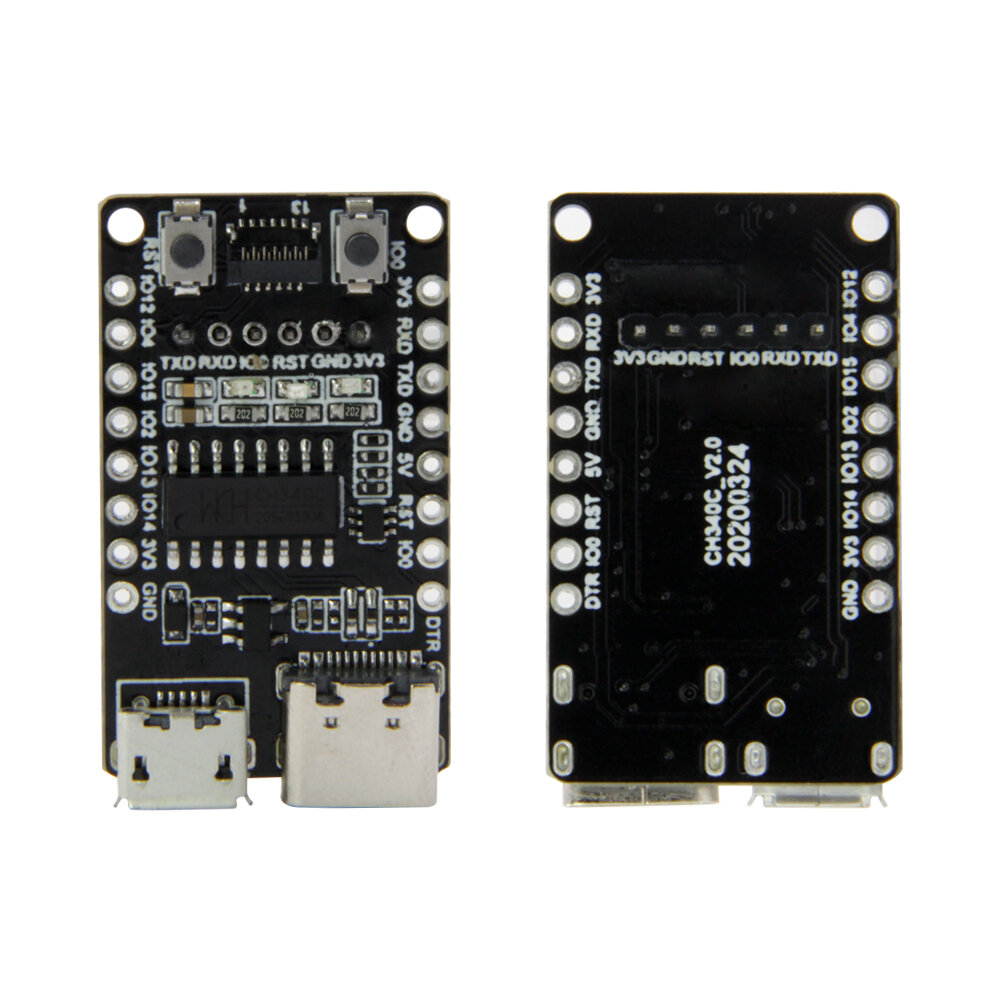

When purchasing multiple T-Internet-POE modules, you only need one Download Board. The Download Board can be connected using pins without the need for soldering, making it more convenient to use.

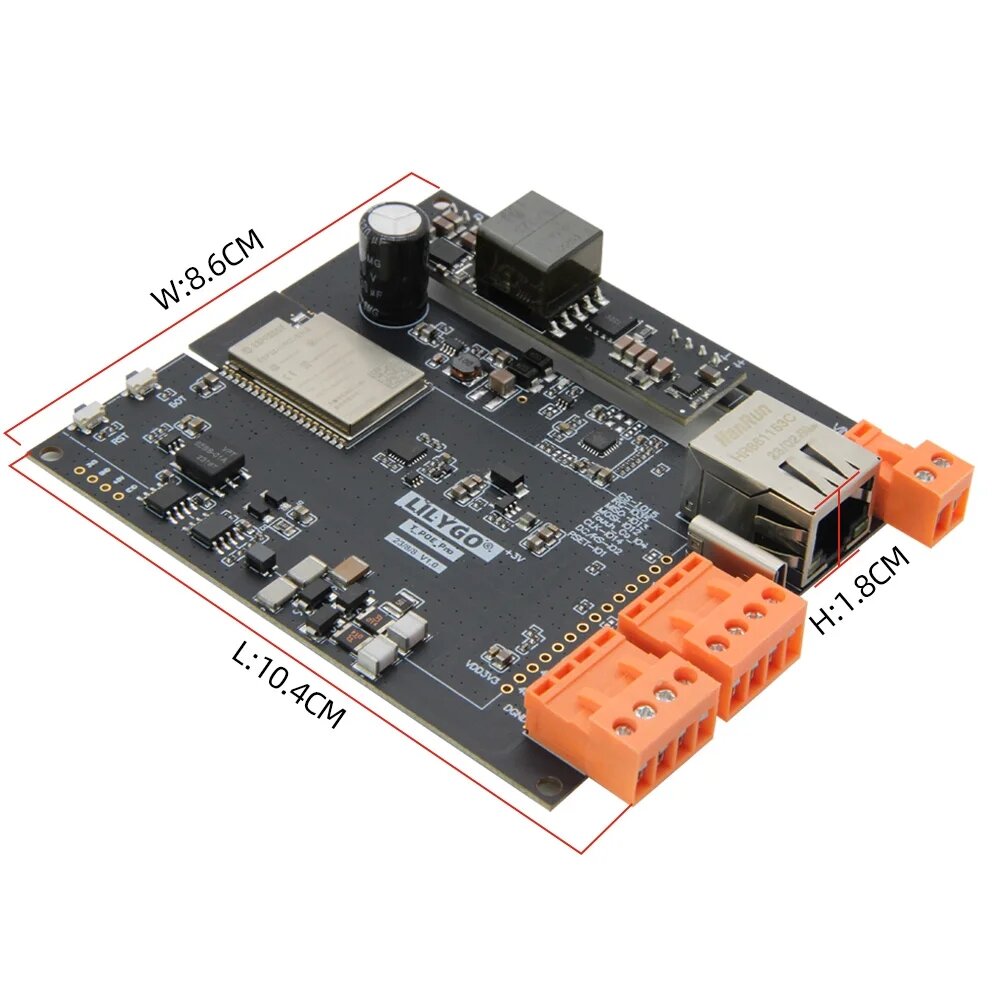

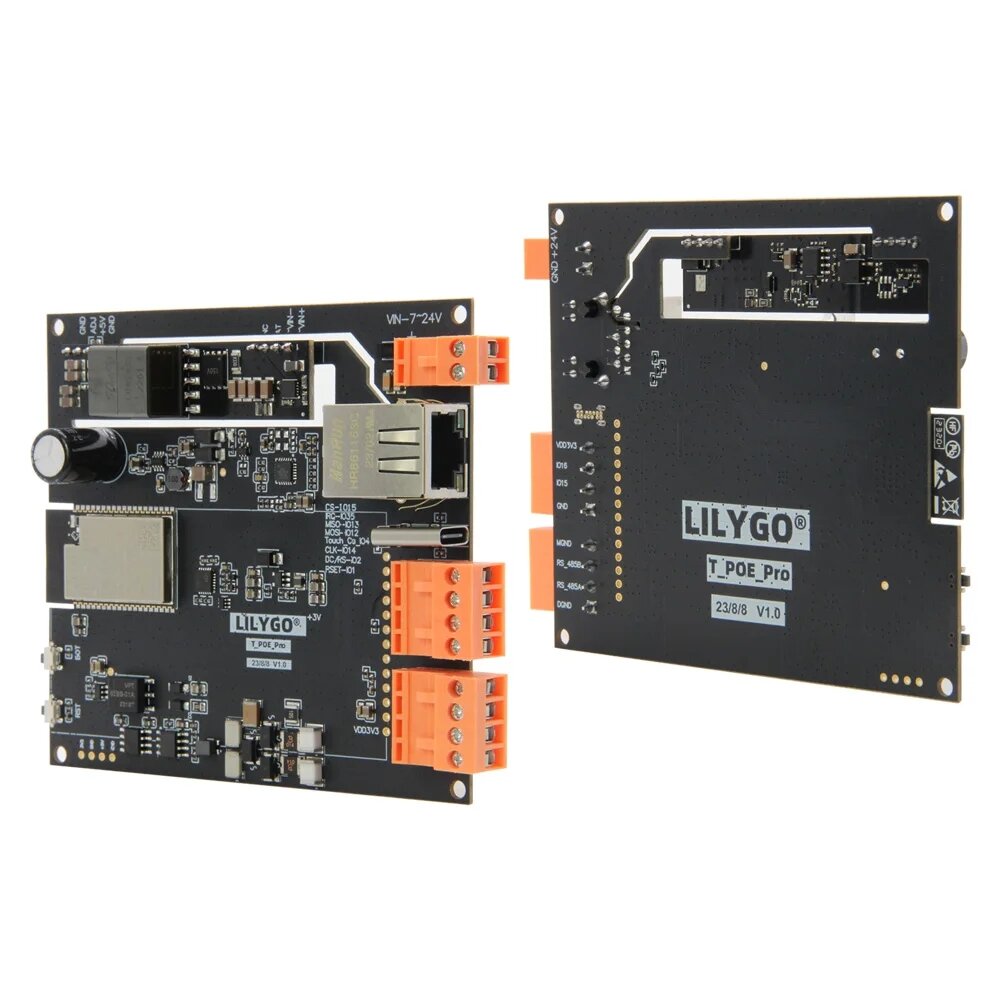

Introducing the upgraded version of T-Internet-POE to T-POE-Pro, a comprehensive solution for IoT enthusiasts and professionals.
Powered by the ESP32-WROVER-E CPU at 240MHz, it offers substantial processing power.
With 16MB of Flash and 8MB of PSRAM, you'll have the resources needed for complex IoT projects.
The LAN8720 Ethernet port ensures reliable and rapid internet connectivity.
The board's POE feature provides a stable power supply, making it an ideal choice for IoT applications.
Chipset
ESPRESSIF-ESP32-WROOM,LAN8720A Ethernet chip,SI3404 Power management chip
802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range
2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power
22dBm
Communication distance
300m
Protocol
Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency
With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency
CVSD&SBC audio frequency
Wi-Fi Mode
Station/SoftAP/SoftAP+Station/P2P
Security mechanism
WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type
AES/RSA/ECC/SHA
Firmware upgrade
UART download/OTA(Through network/host to download and write firmware)
Software Development
Support cloud server development /SDK for user firmware development
Networking protocol
IPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT
User Configuration
AT + Instruction set, cloud server, android/iOSapp
OS
FreeRTOS
1 x Downloader Expansion Board (optional)
Note: The USB interface only has a charging function, the product needs downloader to program.
