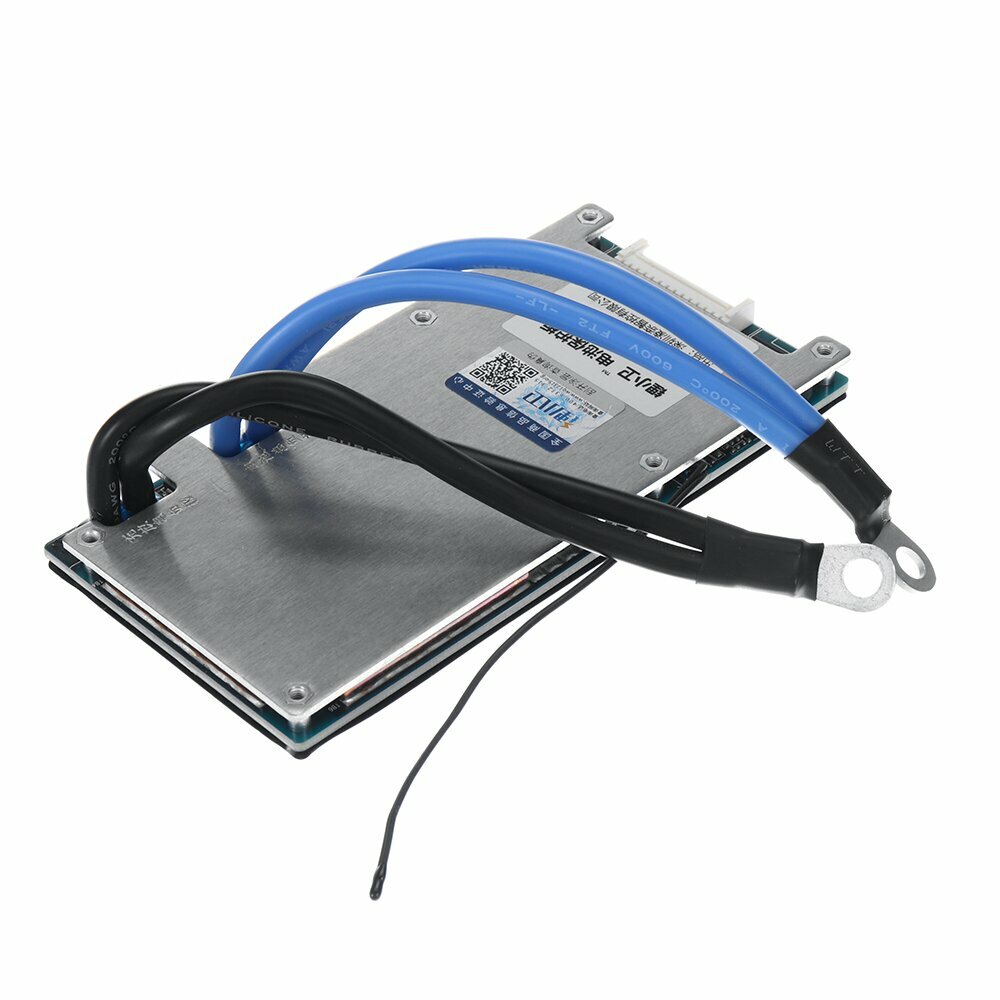

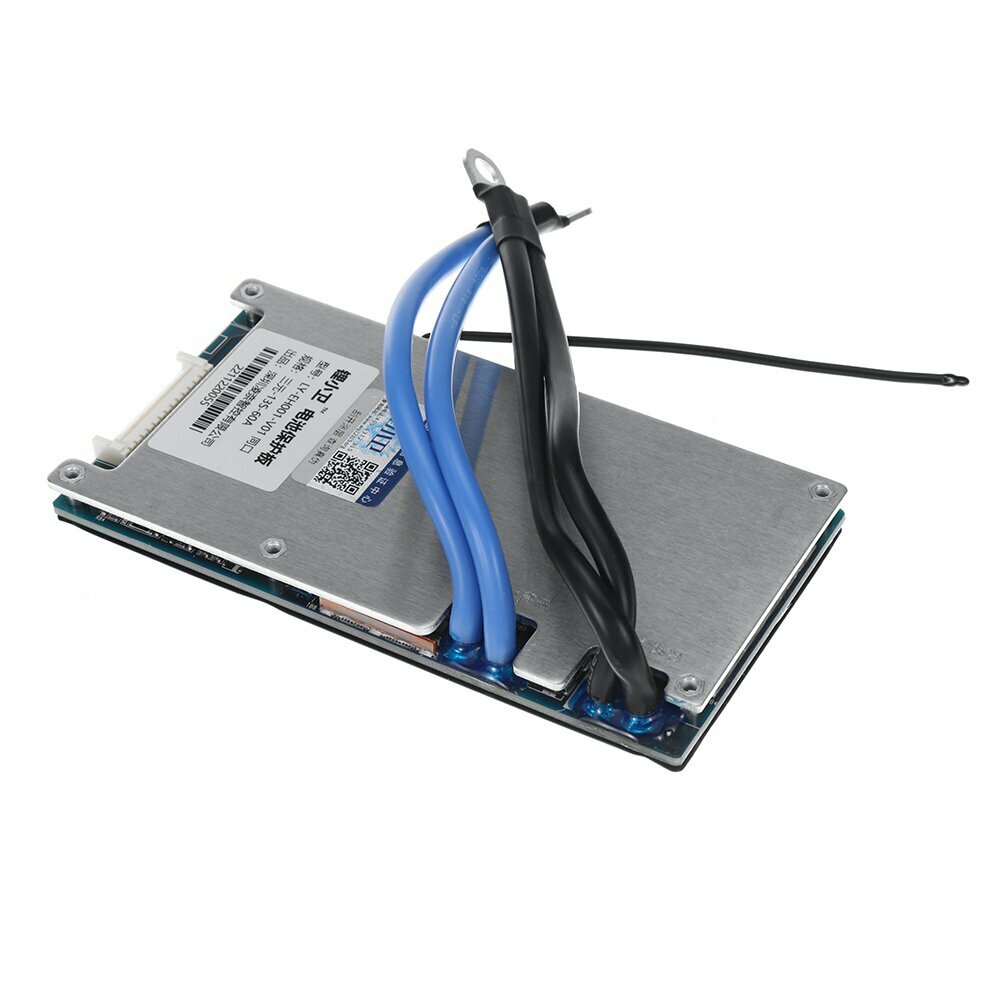

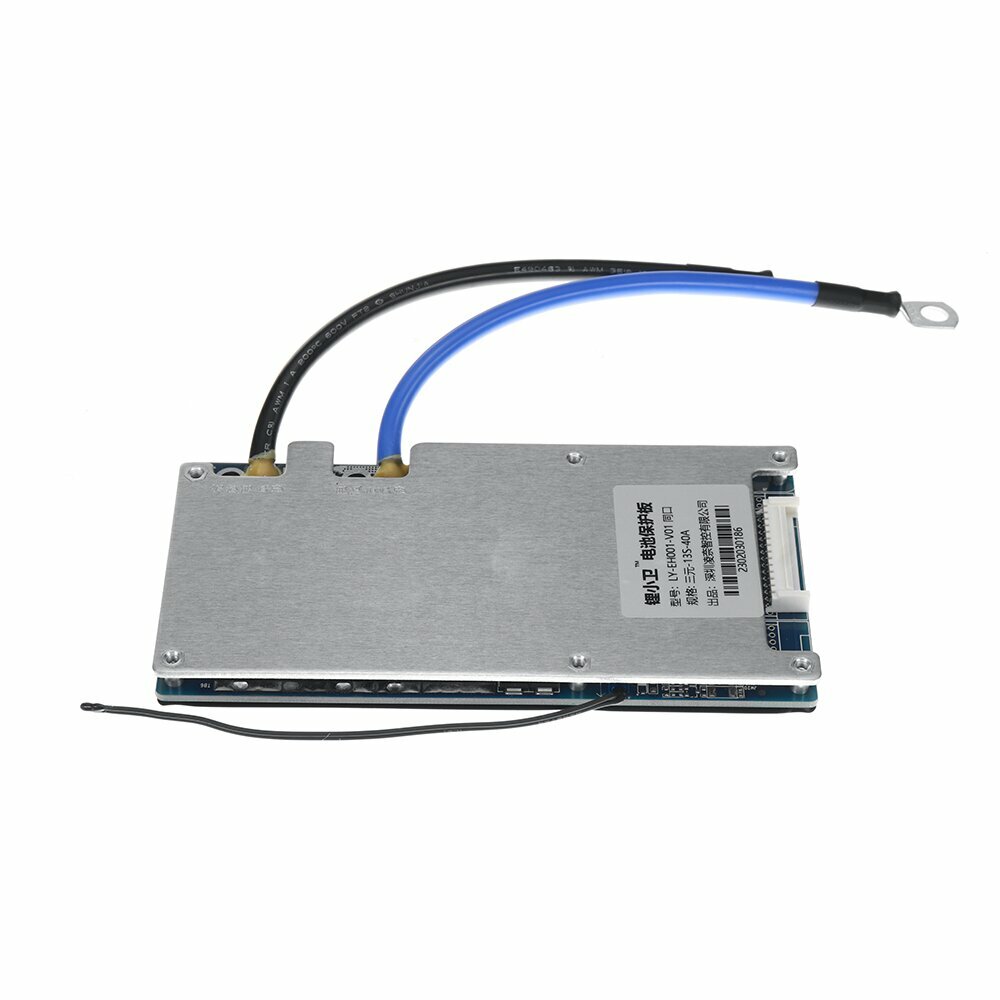

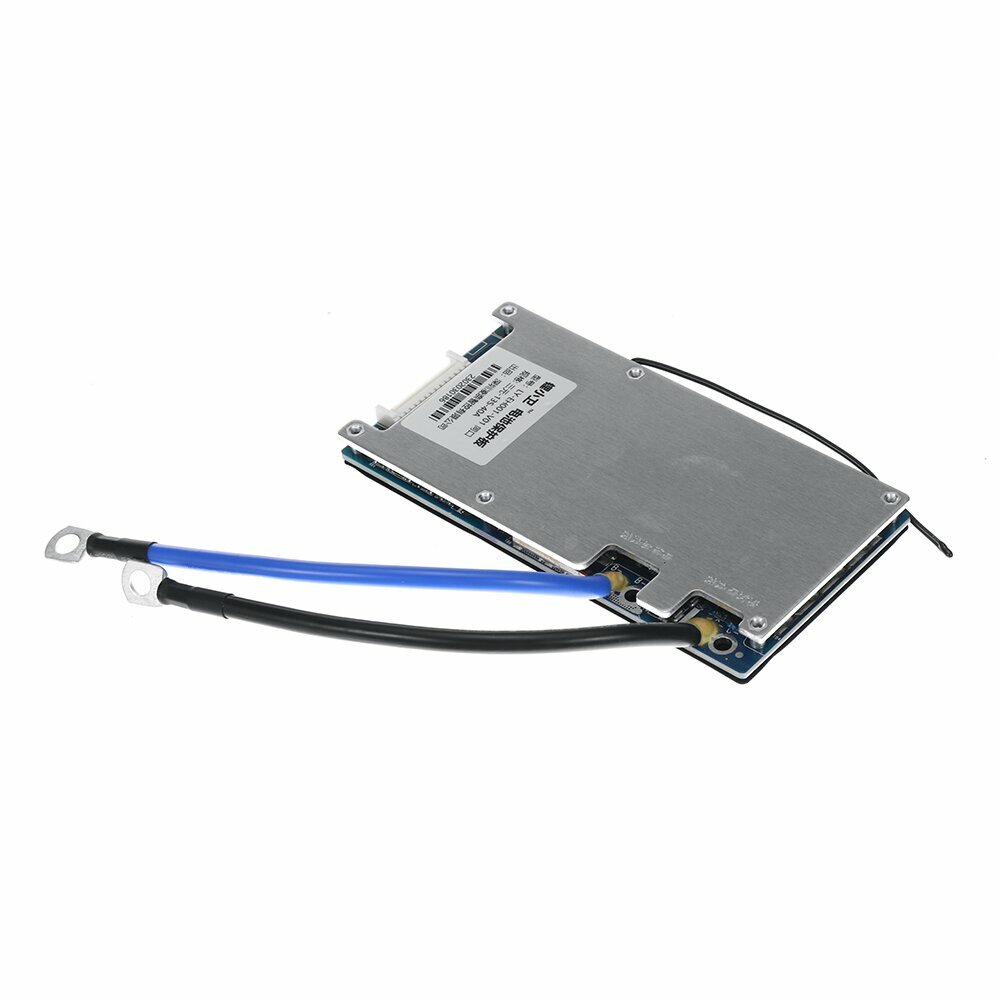

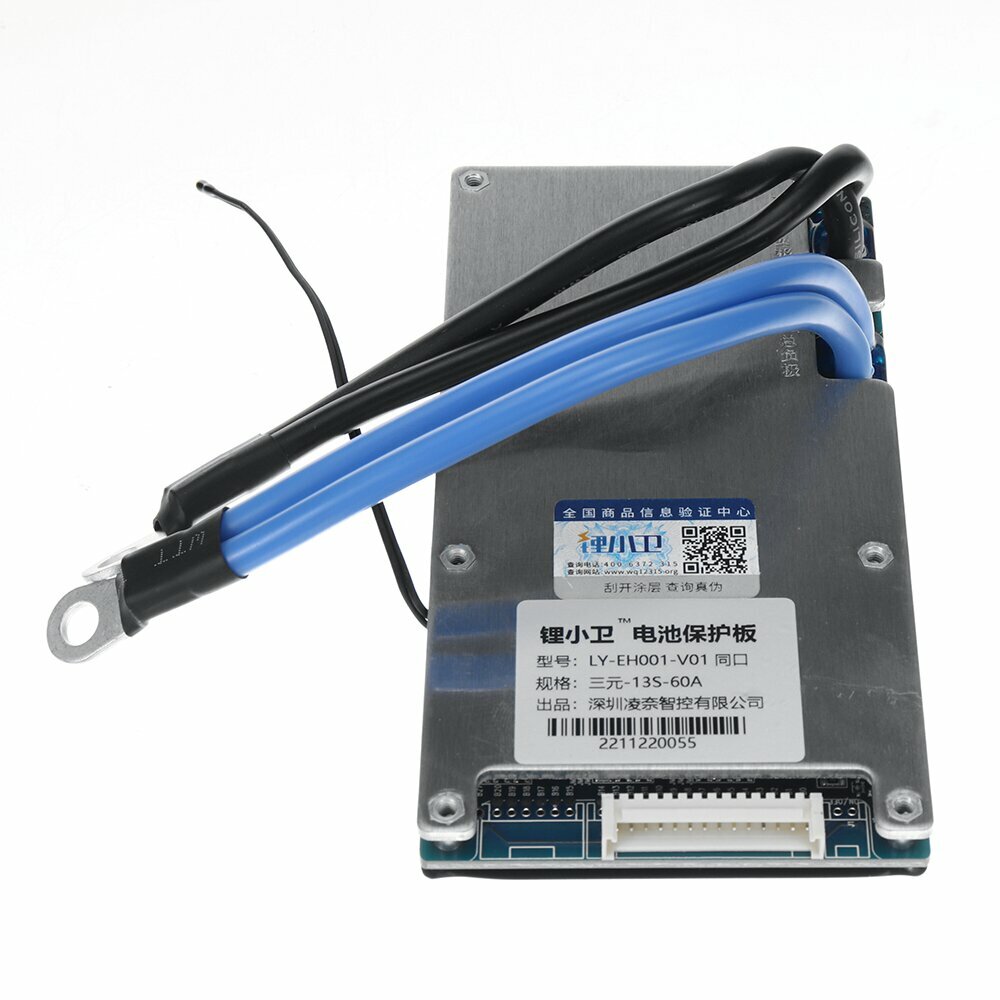

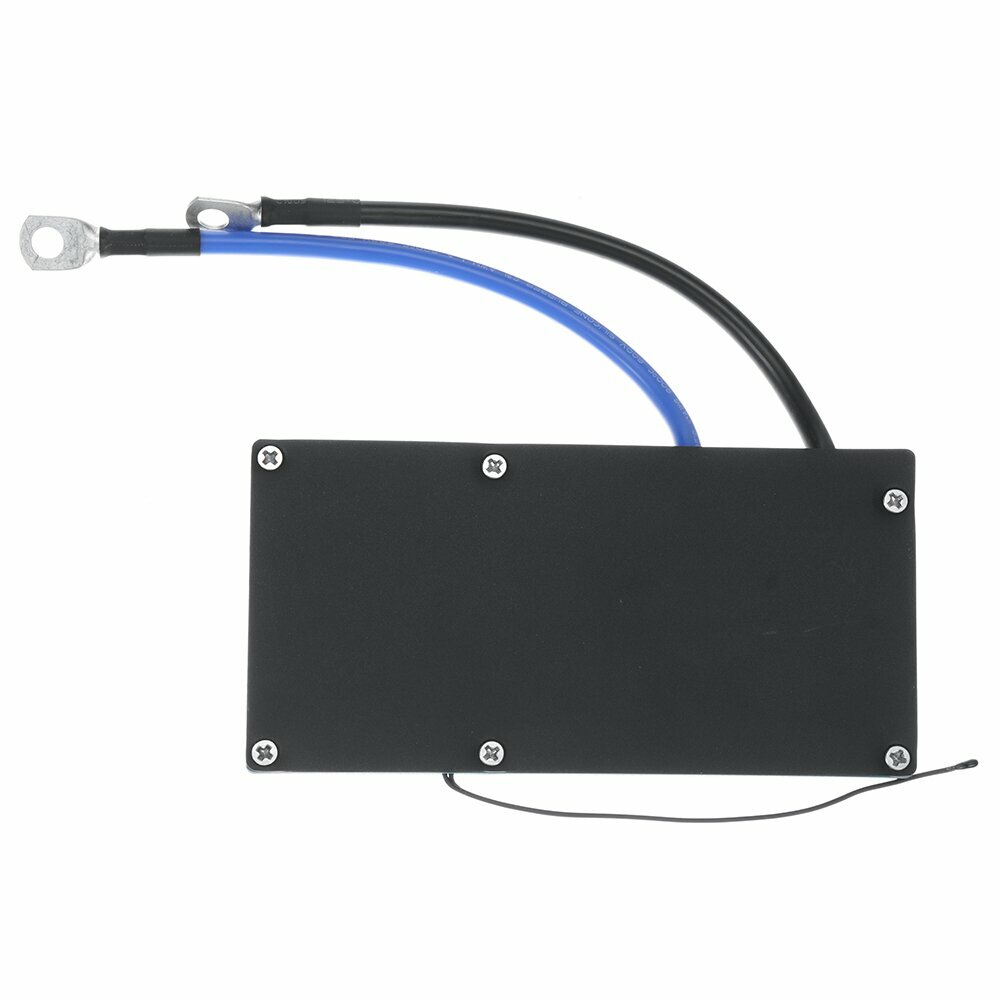

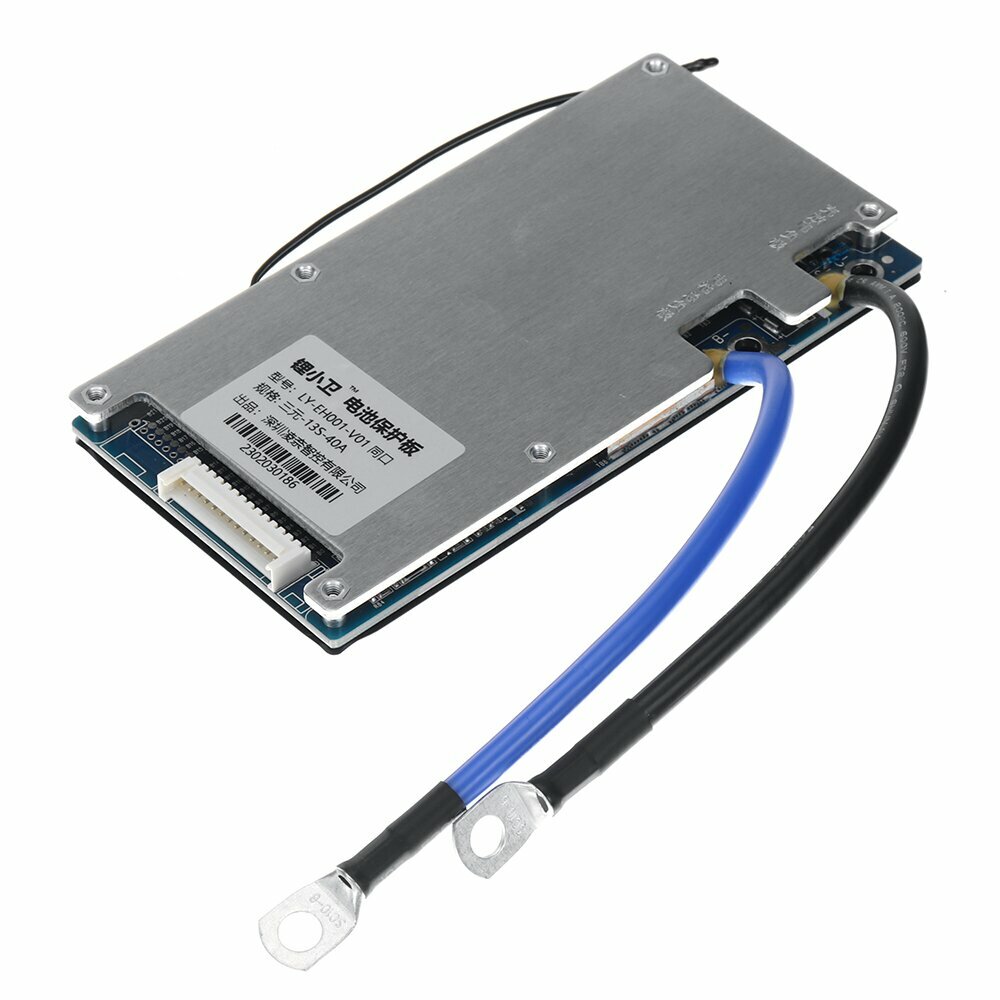

LY-EH001 13S 48V 40A 60A BMS Battery Protection Board Waterproof BMS For Rechargeable Lifepo4 Lithium Battery E-Bike E-Scooter With Balance Function COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



Continuous Current	40A	60A
Overcurrent Protection Value	80 ± 8A	120 ± 12A
Charging Overcurrent Protection	32 ± 8A	48 ± 12A
Product Size	138mm*70mm*10mm (Long*Width*Thick)
Self Consumption	<80UA (Weak Electric Switch Version)
Weak Electric Switch (Optional)	Close: Switch Activation/Turn n Discharge: Turn f Discharge
Overcharge Protection Detection Voltage	4.250 ± 0.025V
Release Voltage	4.125 ± 0.025V
Detection Delay	800-1200ms
Equal Current	55 ± 15mA
Overdischarge Protection Detection Voltage	2.8 ± 0.03V
Release Voltage	<3.0 ± 0.3V
Low Temperature Protection	-20 ± 4 ℃
High Temperature Protection	70 ± 4 ℃



- BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time

- Use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

- Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged.

- Temperature protection during charging and discharging.


Package Included:
1 x 13S 48V BMS Battery Protection Board



2.Please check as much as possible to make sure the item is the one that you need.
