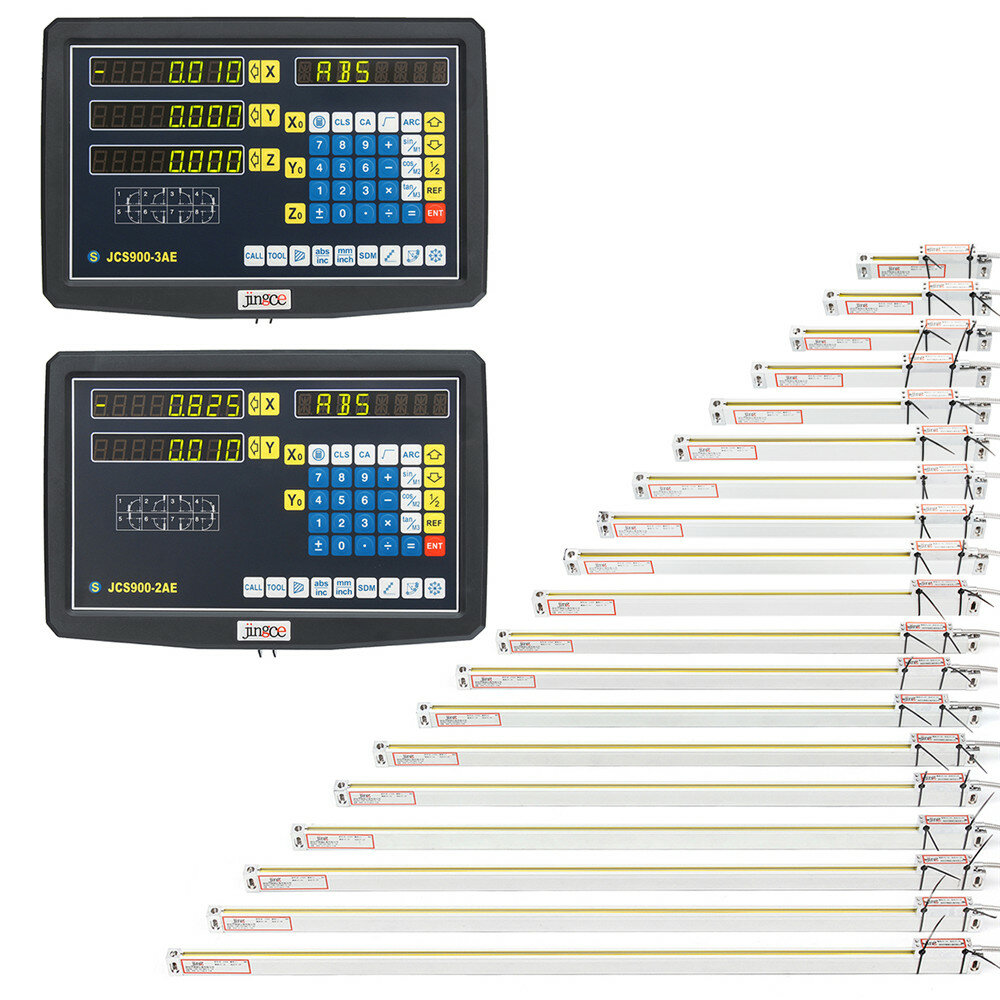

2/3 Axis Grating CNC Milling Digital Readout Display / 50-1000mm Electronic Linear Scale Lathe Tool
Note: The item just includes 1pcs item which you select.


Specification:


2.Accuracy class: ± 1um

4.Operating voltage: 5V ± 5% DC

6.Acceleration: ≤ 60m / s²

8.Grating pitch: 20um (0.020mm)

10.Signal mode: TTL

12.Grating measurement system: transmission infrared optical measurement system, infrared wavelength 940nm

14.Anti-vibration: 50Hz-2KHz, ≤ 180m / s ²

16.Displacement frictional resistance: ≤ 5N

18.Signal electrical connection: independent adapter cable (2.5M / 3M / 4M / 5M, ≤ 100M, can be connected to install the block)

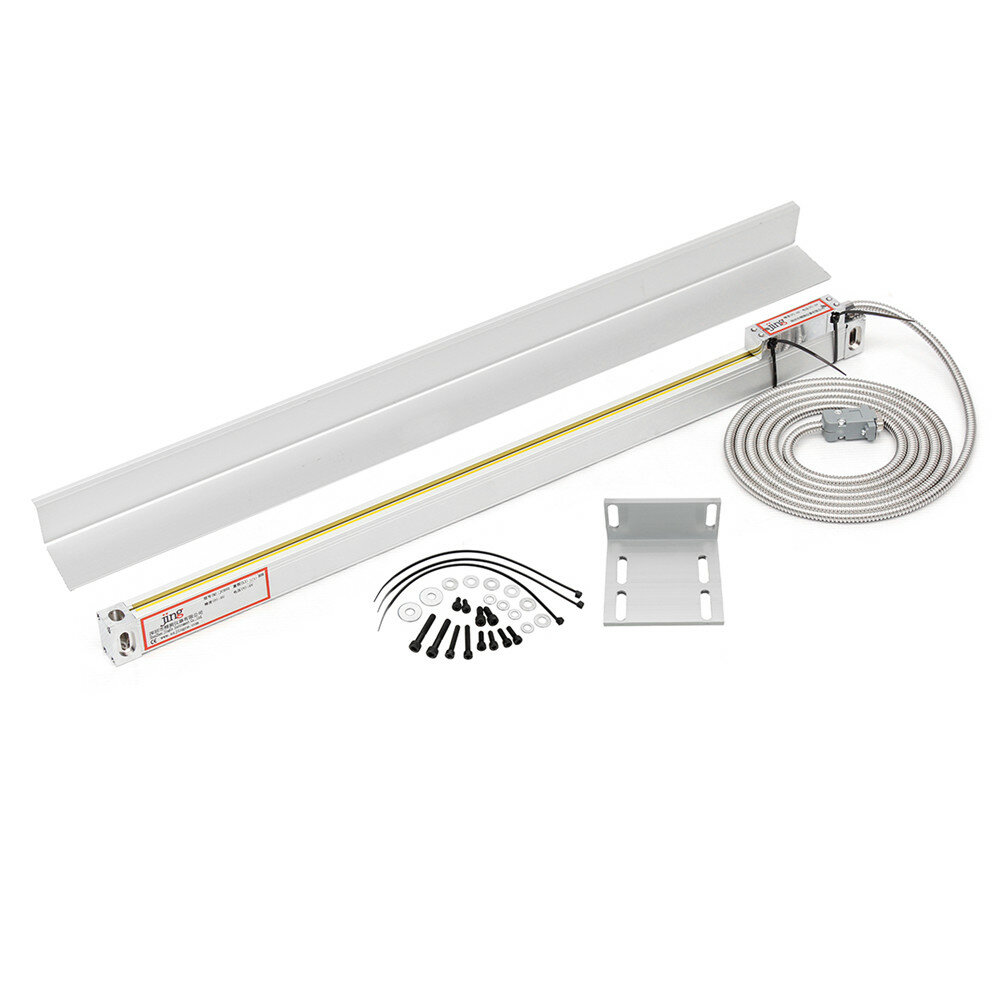

-TTL Linear Scale(50-1000mm)
1.Physical length is differnt from the travel length 50/100,150,200,250,300,350,400,450,500, 550,600,650,700,750,800,850,900,950,1000mm 5um.

3.Resolution: 5um (0.005mm) 0.0002”

5.Grating pitch: 0.02mm (50LP/min)

7.Reference marks at interval of 50mm

Note: Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. One inch equuals to 25.4mm.

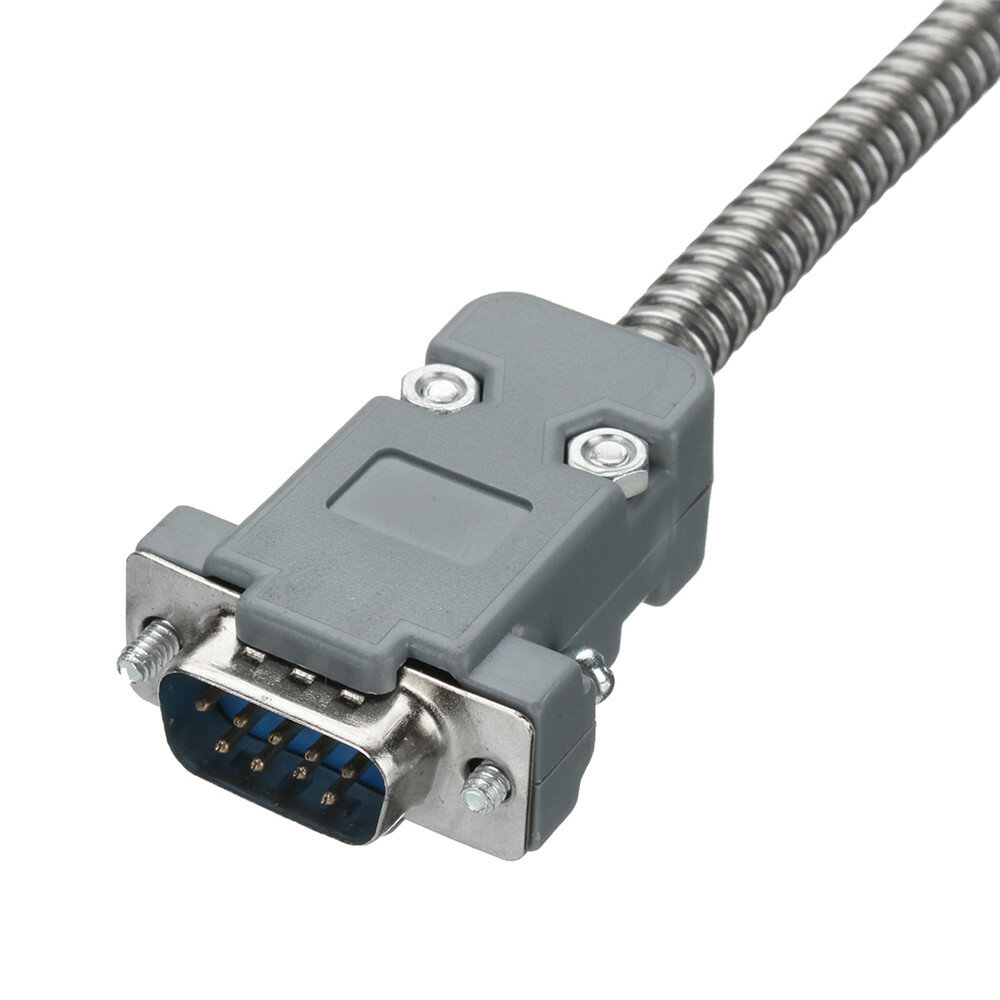

-The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine.

-Dust bar with special plastic, corrosion resistance, scratch resistance, friction resistance.

-The sensor uses a glass precision metrology grating as the measurement reference.

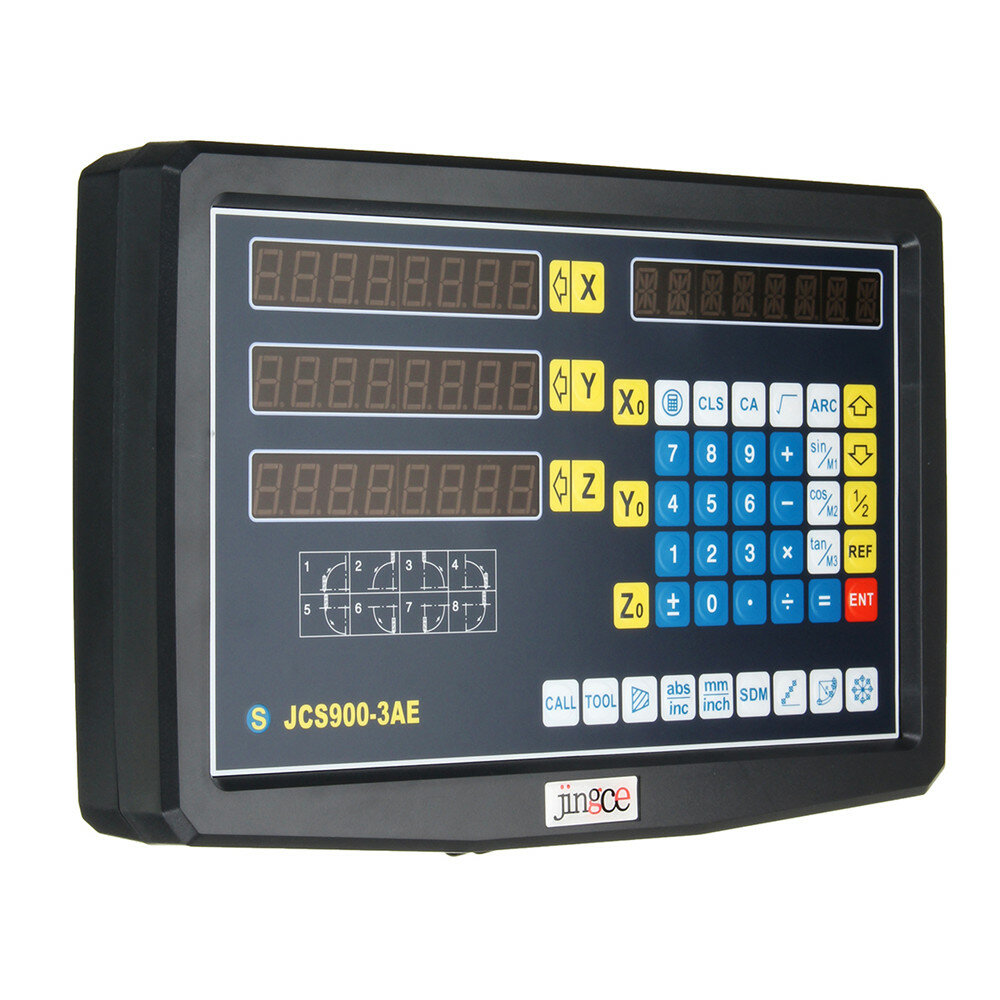

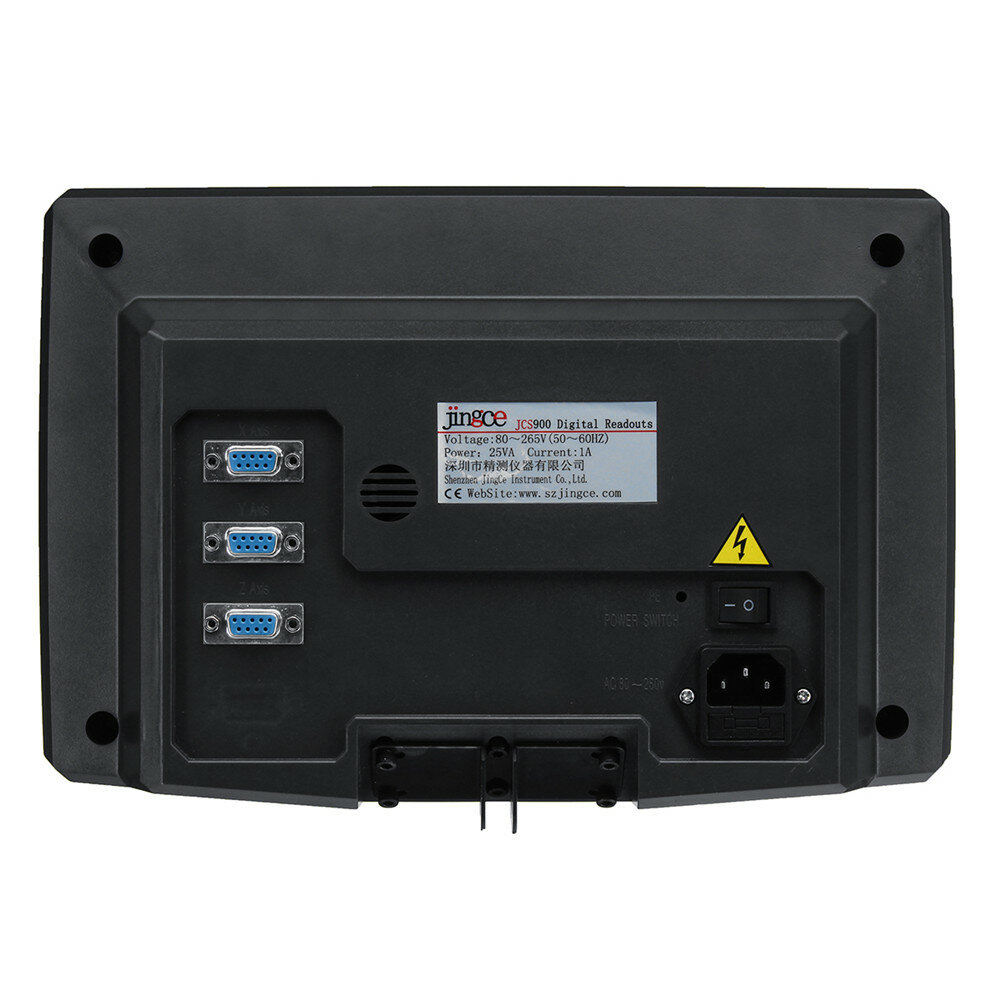

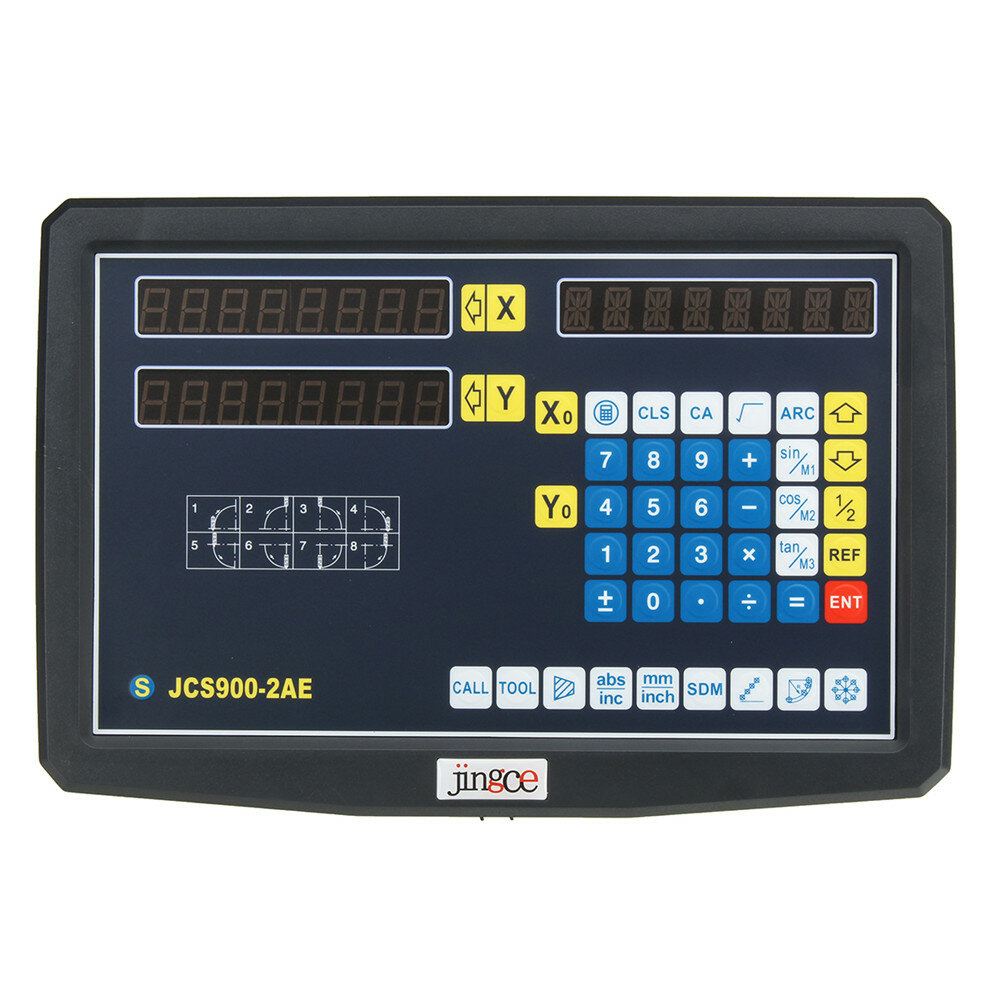

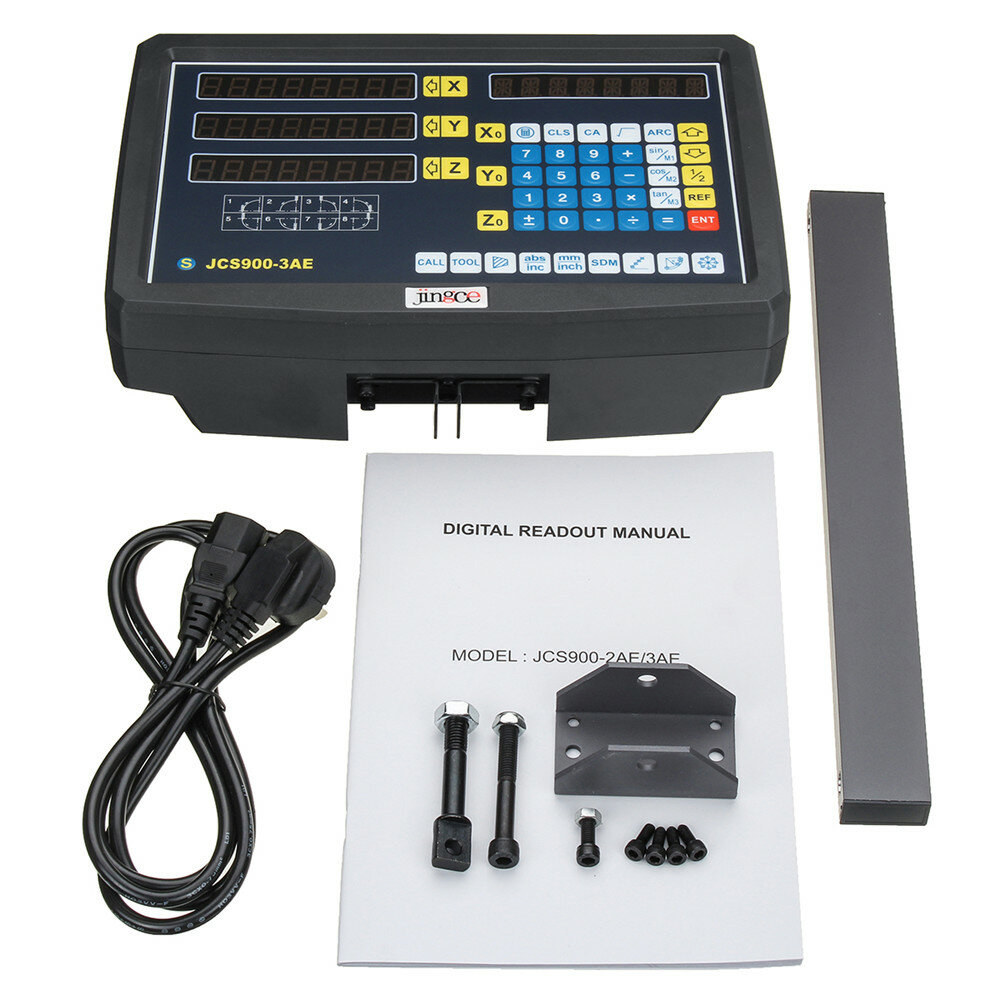

-Axis digital readout

	digital readout

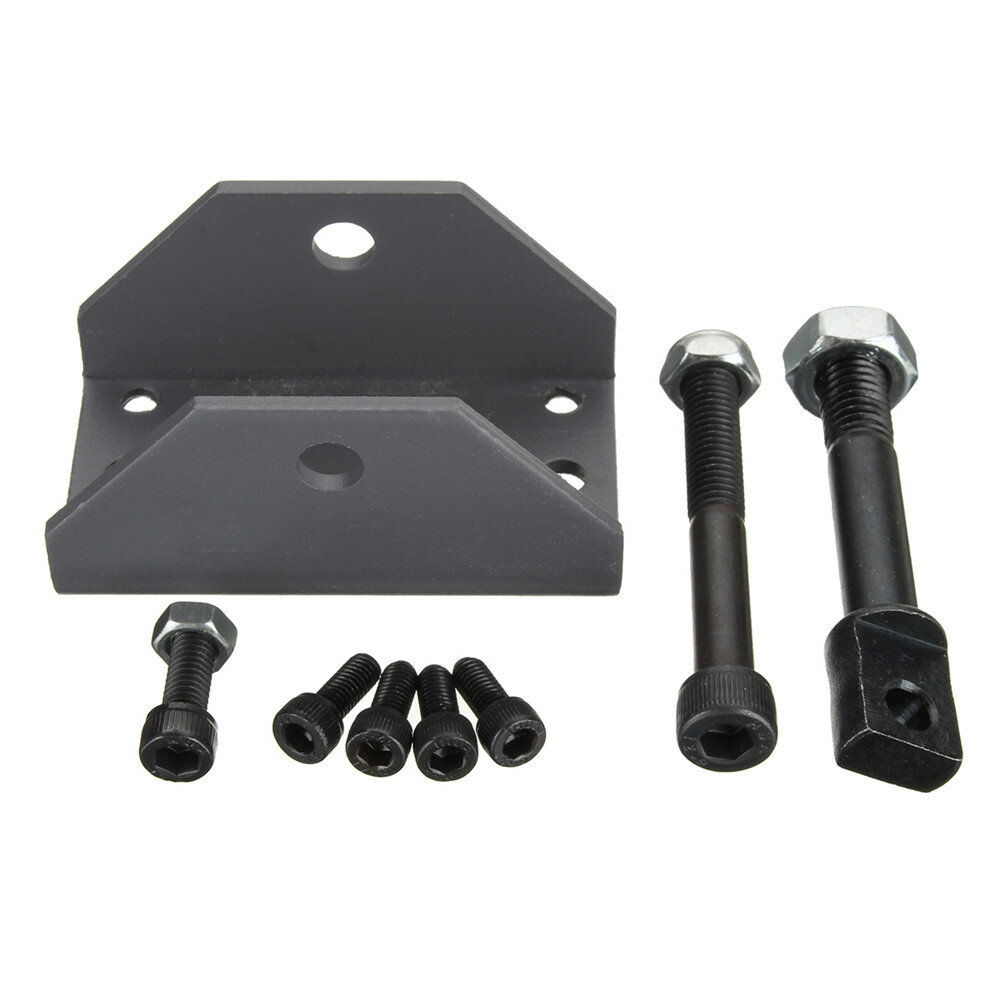

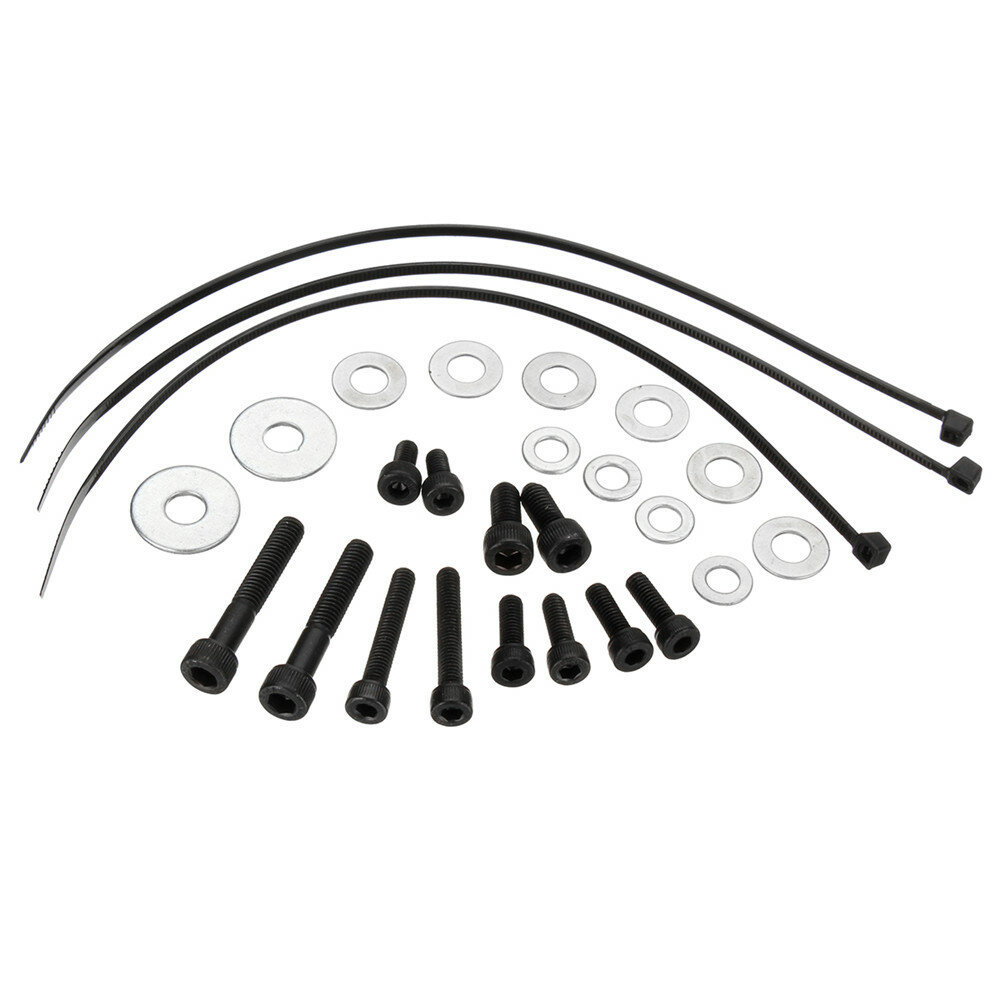

	set of brackets
	cable
	user manual

1 x
1 x
1 x
1 x

The item just includes 1pcs item which you select.
