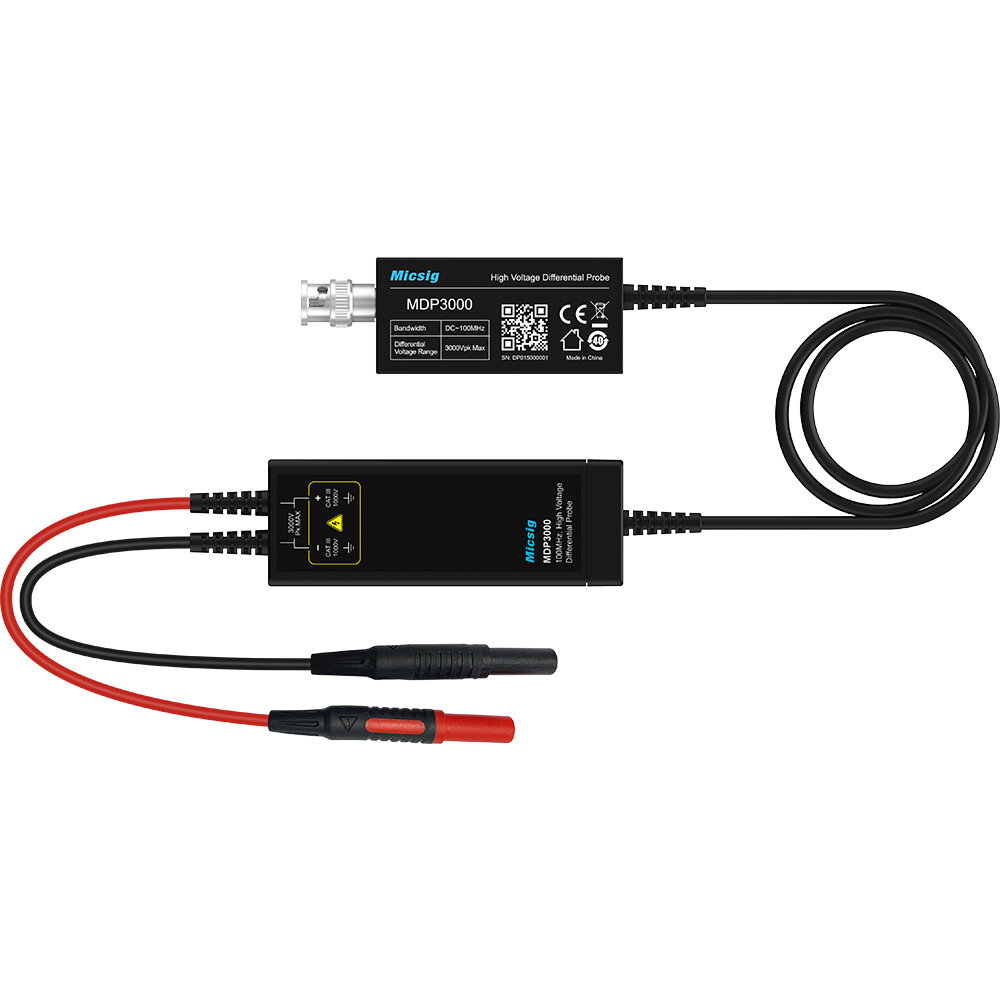

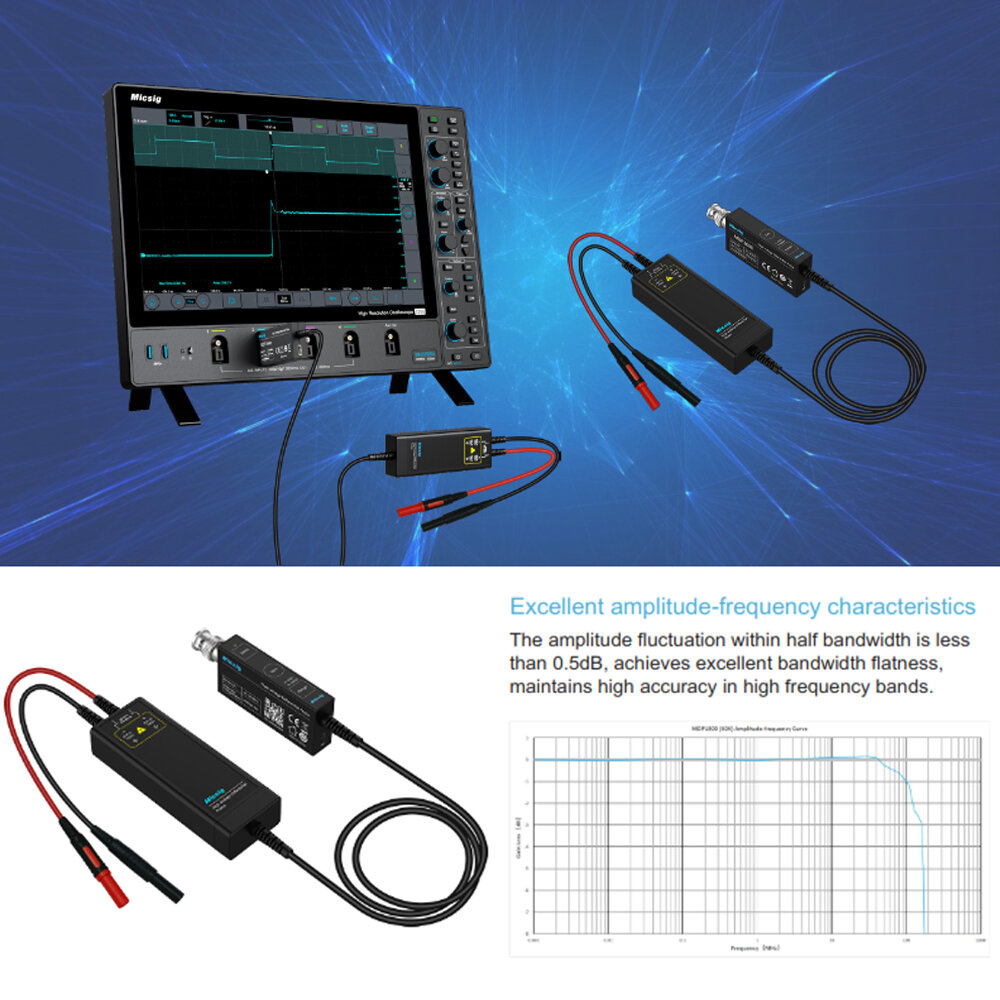

Enhanced Bandwidth: The High Voltage Differential Probe MDP Series sports an impressive bandwidth of 150MHz-200MHz, ensuring quick and reliable measurements.
High Frequency Noise Elimination: With the 5MHz Bandwidth Limit feature, the MDP Series effectively eliminates high-frequency noise associated with FET switching frequency in most switching power supplies.
Easy Interface and Power Supply: The MDP models come equipped with a standard BNC interface, ensuring compatibility with any oscilloscope. It's powered directly by a type-C cable for easy and convenient usage.
Compact and Precise: The High Voltage Differential Probe MDP Series is celebrated for its compact design. It supports quick zero, and has high CMRR, promising precise readings every time.
Wide Voltage Range: With a wide range of 700Vpk-3000Vpk, this probe series ensures that it has all your measurement needs covered.
Type: MDP Series
Optional Model: 701/702/1501/1502/3001/3002
Optional Plug Type: EU/US Plug

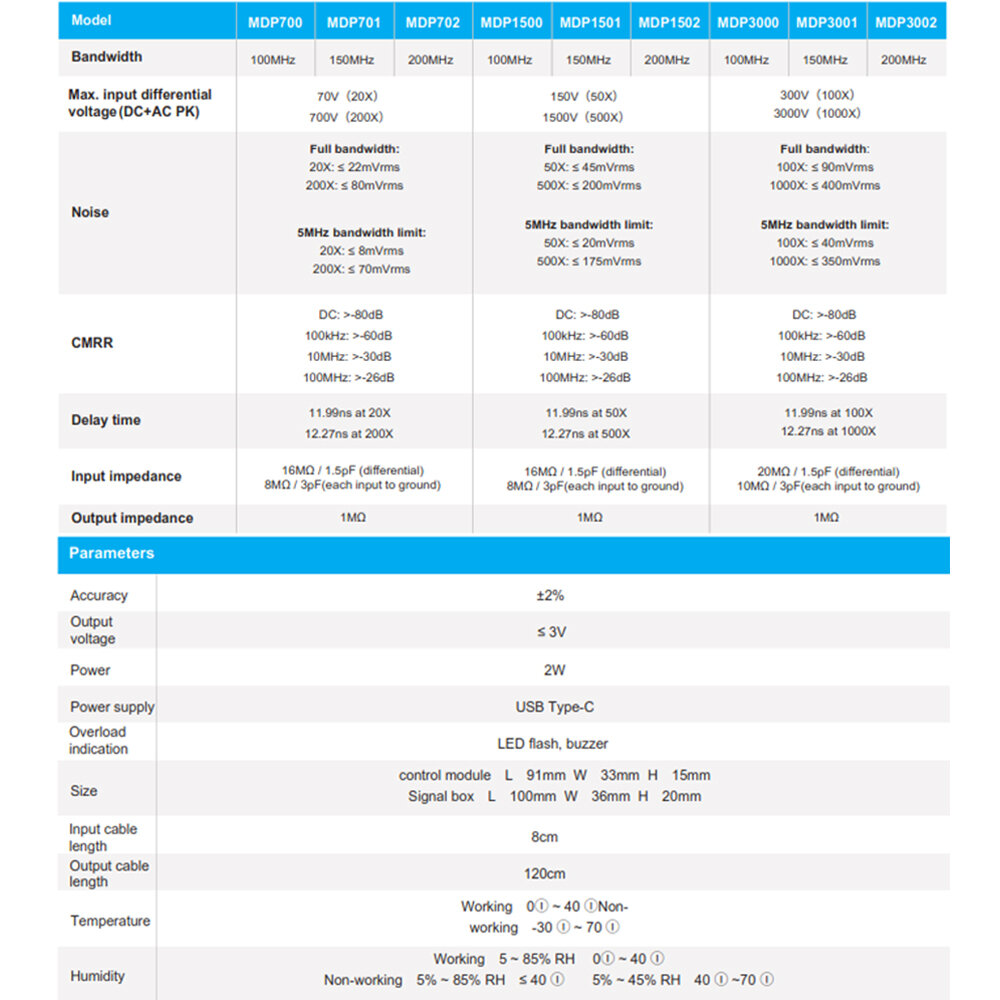

Model
701
702
1501
1502
3001
3002
Bandwidth
150MHz
200MHz
150MHz
200MHz
150MHz
200MHz
Max.input differential
mso-font-kerning:1.0000pt;">:
500×:≤200mVrms
5MHz bandwidth limit:
50X:≤ 20mVrms
500×:≤ 175mVrms
Full bandwidth:100X: 90mVrms
1000X:≤400mVrms
5MHz bandwidth limit:
100X:≤ 40mVrms
1000×:≤ 350mVrms

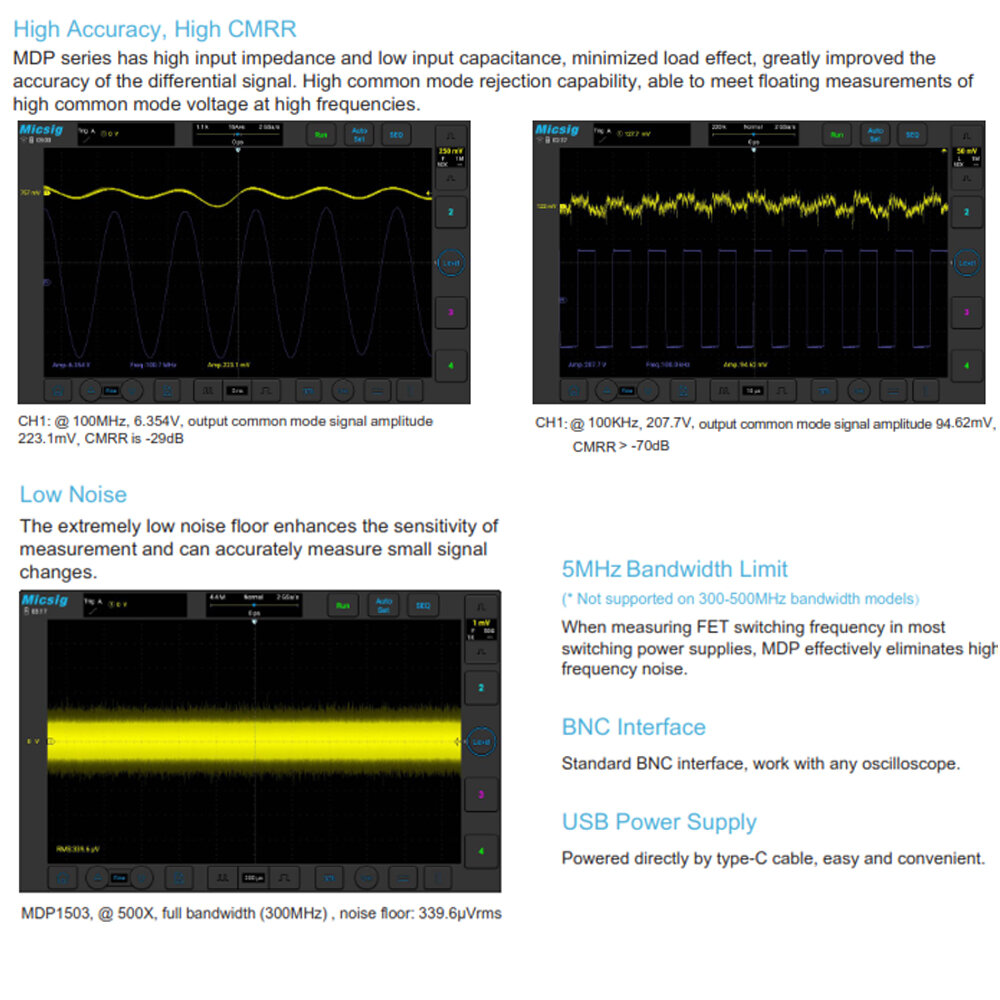

CMRR
DC:>-80dB
100kHZ: >-60dB
10MHz: >-30dB
100MHz: >-26dB
DC:>-80dB
100kHZ: >-60dB
10MHz: >-30dB
100MHz: >-26dB
DC:>-80dB
100kHZ: >-60dB
10MHz: >-30dB
100MHz: >-26dB
Delay time
11.99ns at 20X
12.27ns at 1000X
11.99ns at 50X
12.27ns at 200X
11.99ns at 100X
12.27ns at 500X
Input impedance
16MΩ/1.5pF (differential)
8MΩ / 3pF(each input to ground)
16MΩ/1.5pF (differential)
8MΩ / 3pF(each input to ground)
20MΩ/1.5pF (differential)
10MΩ/ 3pF(each input to ground)
Output impedance
1MΩ
1MΩ
1MΩ
Parameters
Accuracy
±2%
Output voltage
≤3V
Power
mso-font-kerning:1.0000pt;"> length
120cm
Temperature
Working 0① ~40 ①
Non- working -30 ① ~ 70 ①
Humidity
Working 5 ~ 85% RH 0① ~ 40 ①
Non-working 5% ~ 85% RH s≤
