Micsig VTO2004 Portable Split-Type Oscilloscope with 200MHz Bandwidth 1GSa/s Sampling Rate and High Capacity Battery Ideal for Fieldwork and Automotive Diagnostics

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

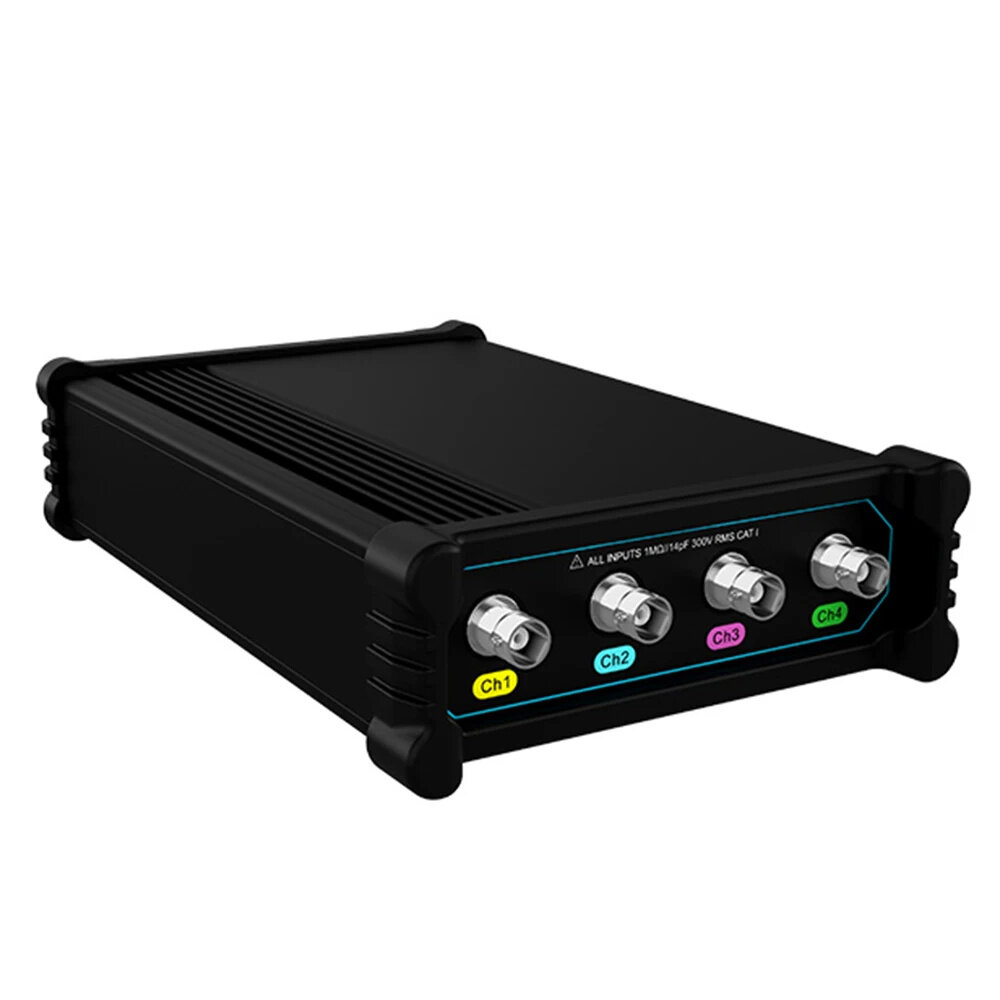

This VTO2004 split-type oscilloscope is portable and compact, making it perfect for fieldwork. Being easy to transport and set up facilitates efficient and reliable measurements wherever your work may take you.

With a remarkable 200MHz bandwidth, 1GSa/s sampling rate and 4 channels, this device guarantees high precision, perfect for detailed investigations of signals. It also comes with 50Mpts memory depth, meaning you can capture more data and spend less time transferring it.

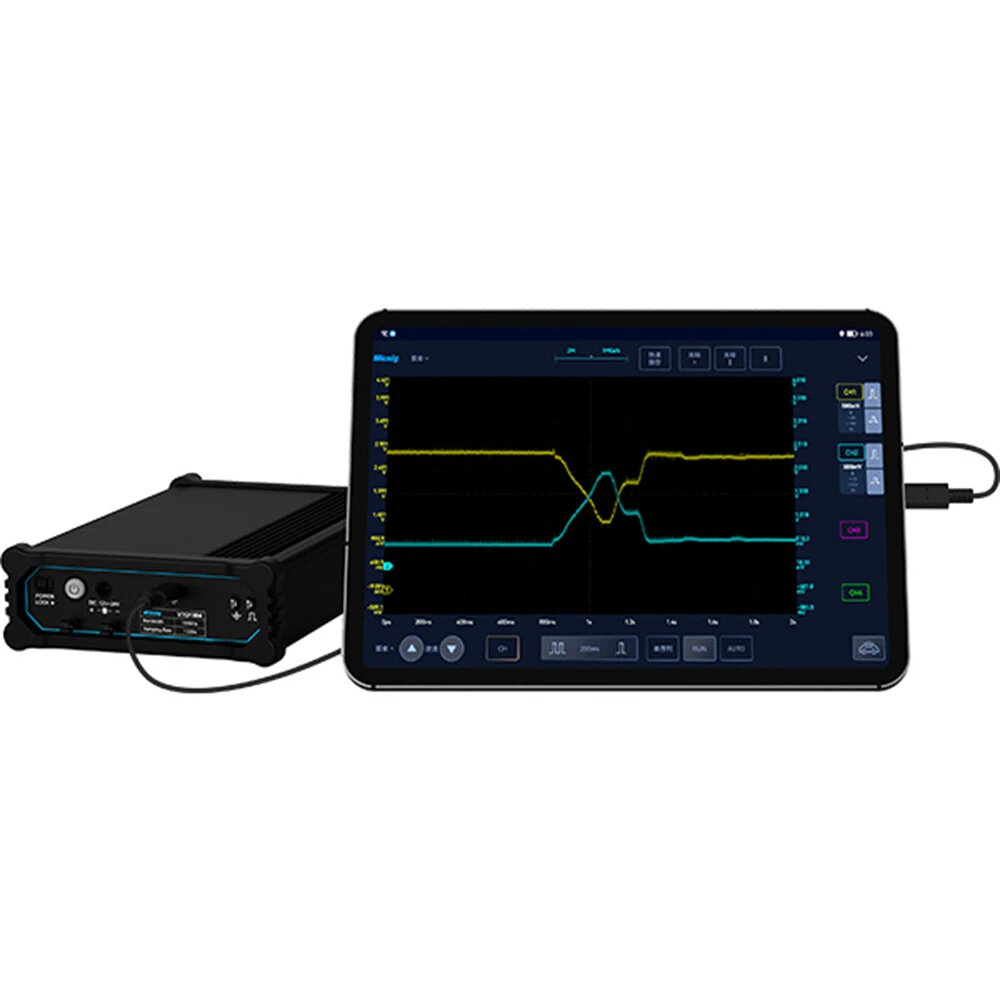

Use it with any Android device, be it a smartphone, tablet or a PC computer, thanks to user-friendly UI design and a versatile USB Type-C interface. This ensures a seamless experience and allows you to make the most of your measurement work.

The unit comes with a high-capacity built-in battery (optional). This ensures a longer use time and further enhances the oscilloscope’s portability, enabling you to work for extended periods without being tethered to a power source.

Designed for a wide range of measurement options, this oscilloscope not only caters to the needs of general electronics but also provides a new automotive diagnostic operation experience. This means it can be relied upon to meet your diverse diagnostics and measurement needs.

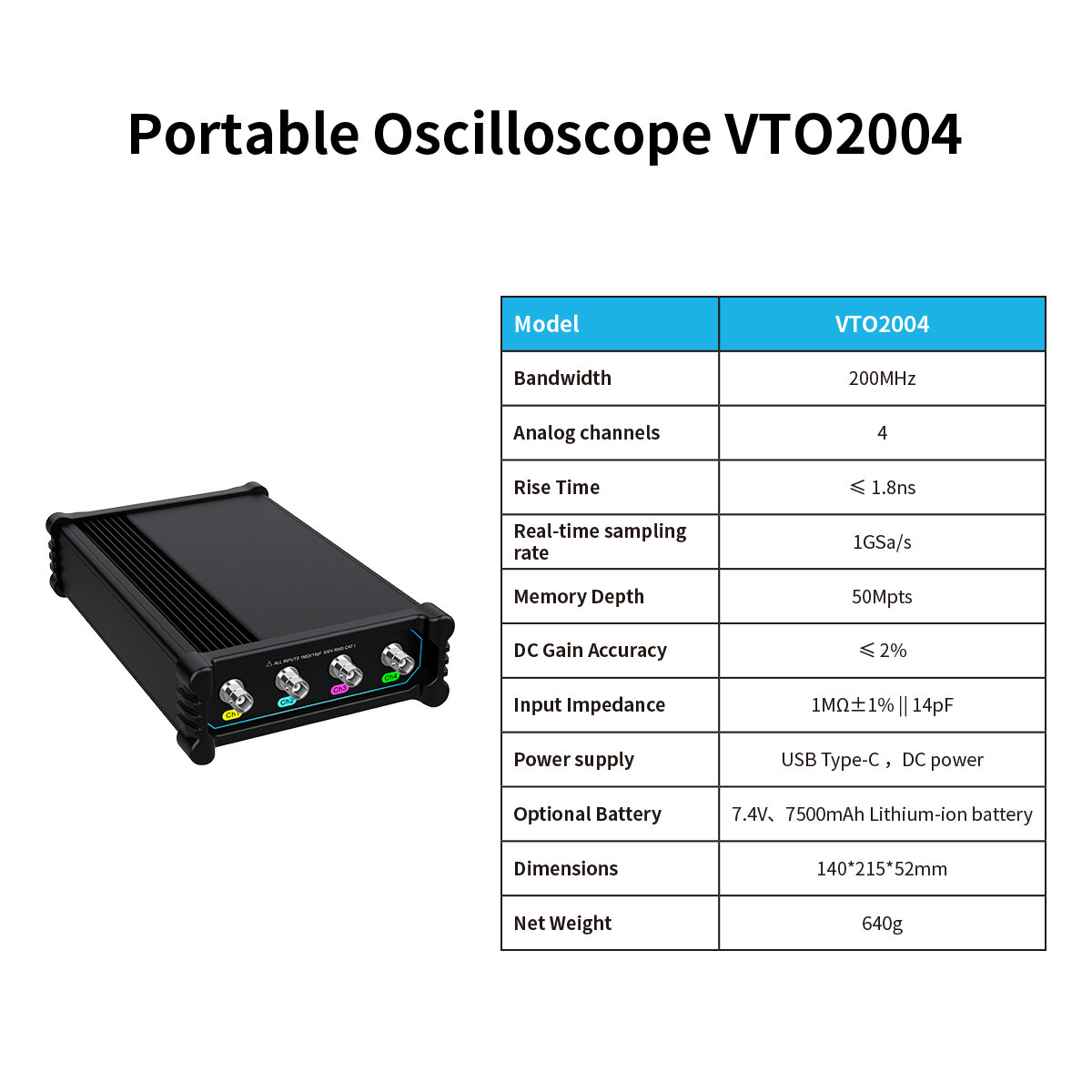

Brand: Micsig

Model: VTO2004

Bandwidth: 200MHz

Analog Channels: 4

Rise Time: 1.8ns

Max. Sampling rate: 1GSa/s

Memory Depth: 50Mpts

DC Gain Accuracy: ±2%

Input Impedance: 1MΩ±1% || 14pF

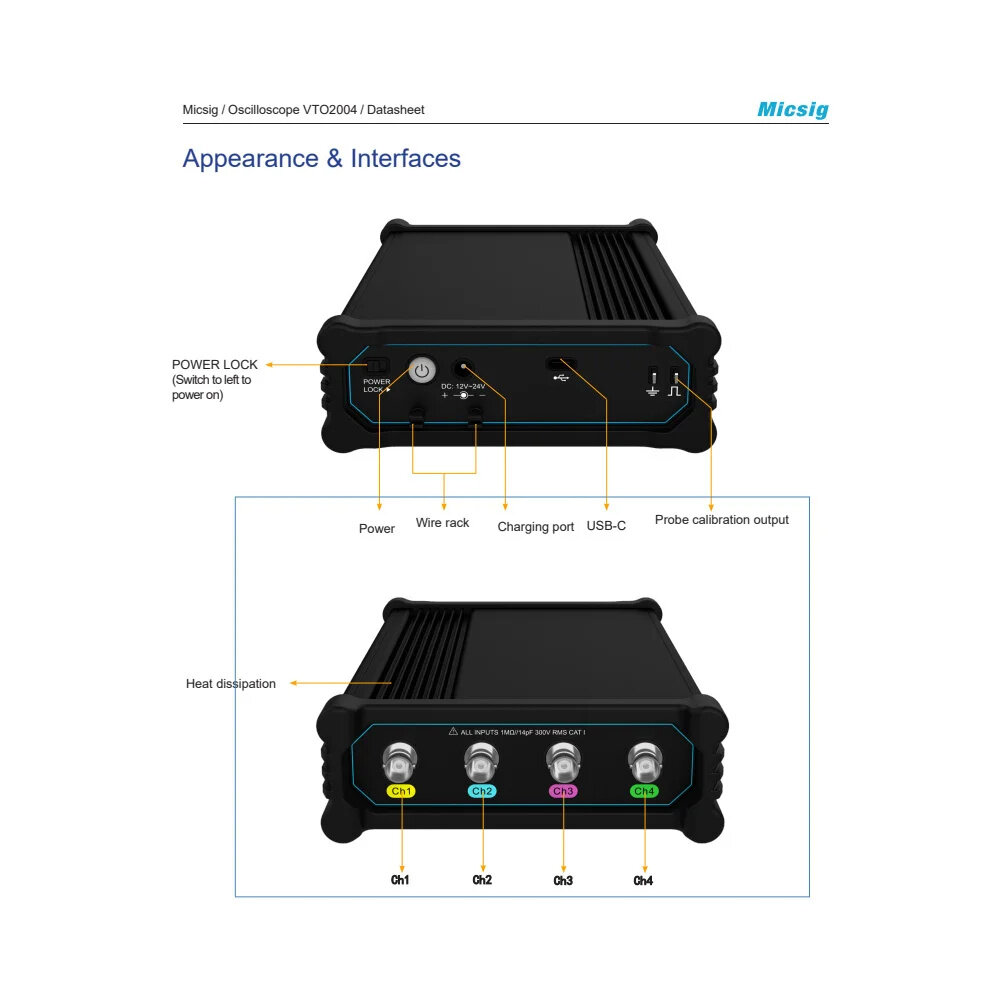

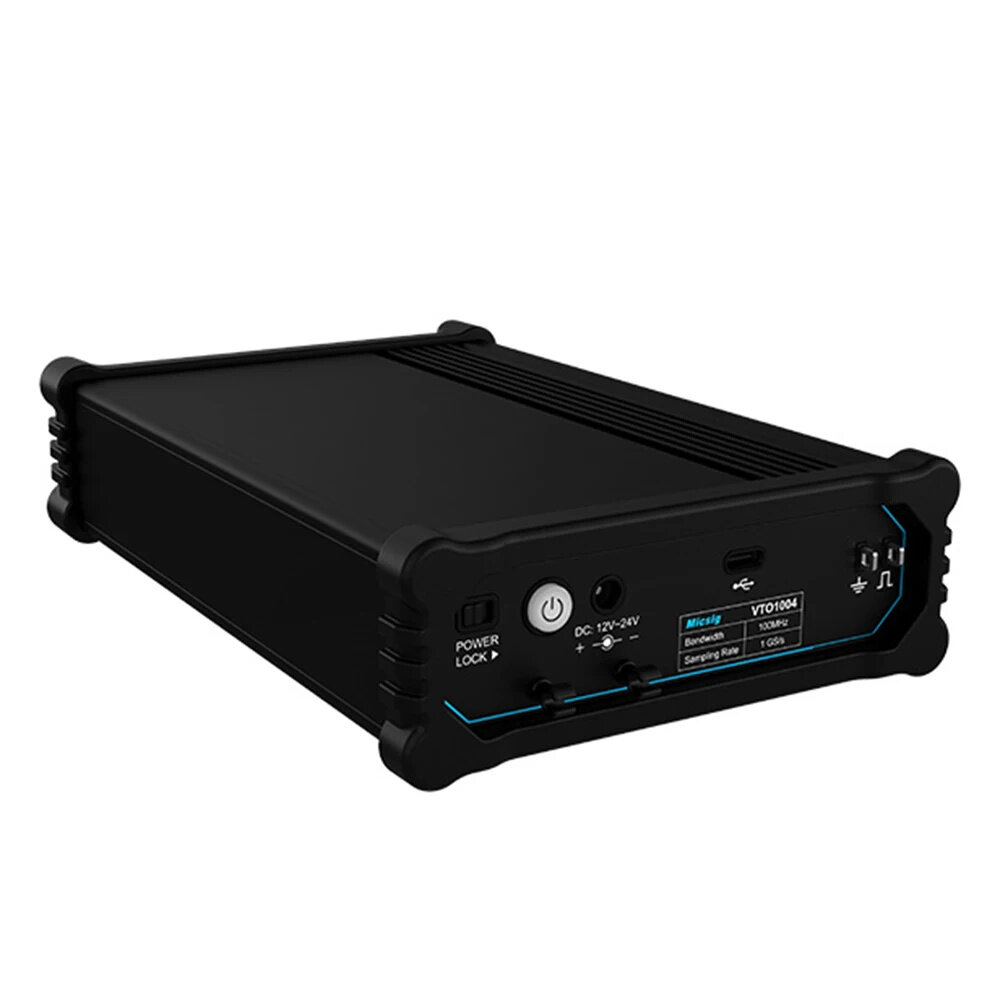

Interface: USB Type-C, DC power

Power Source
Power Voltage Range	100~240V AC, 50/60Hz
Power Consumption	<48W
Adapter Output	12V DC, 4A
Battery (optional)	7.4V, 7500mAh Li-ion battery
Enviroment
Temperature
Operating	0℃ - 45℃
Non-operating	-40℃ ~ 60℃
Humidily
Operating	5% -85%, 25℃
Non-operating	5% - 90%, 25℃
Altitude
Operating	< 3000m
Non-operating	<12000m
Physical Charactoristics
Dimension	140*215*52mm
Net weight	640g



1 x VTO2004 Oscilloscope

2 x Passive BNC Probes

1 x Power Cable

1 x Power Adapter

1 x Type-C Cable

1 x Battery (Built-in, optional)

1 x Calibration Certificate

1 x Quick Operation Guide

1 x Manual
