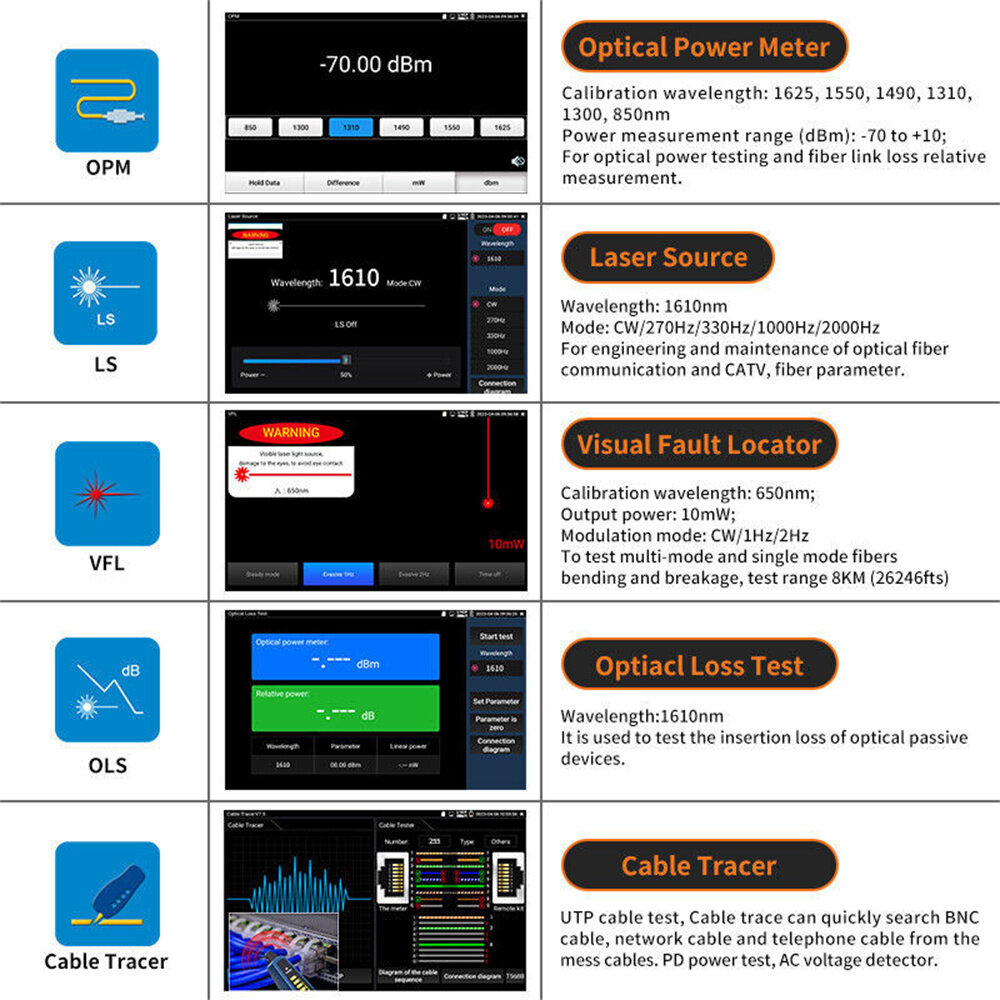

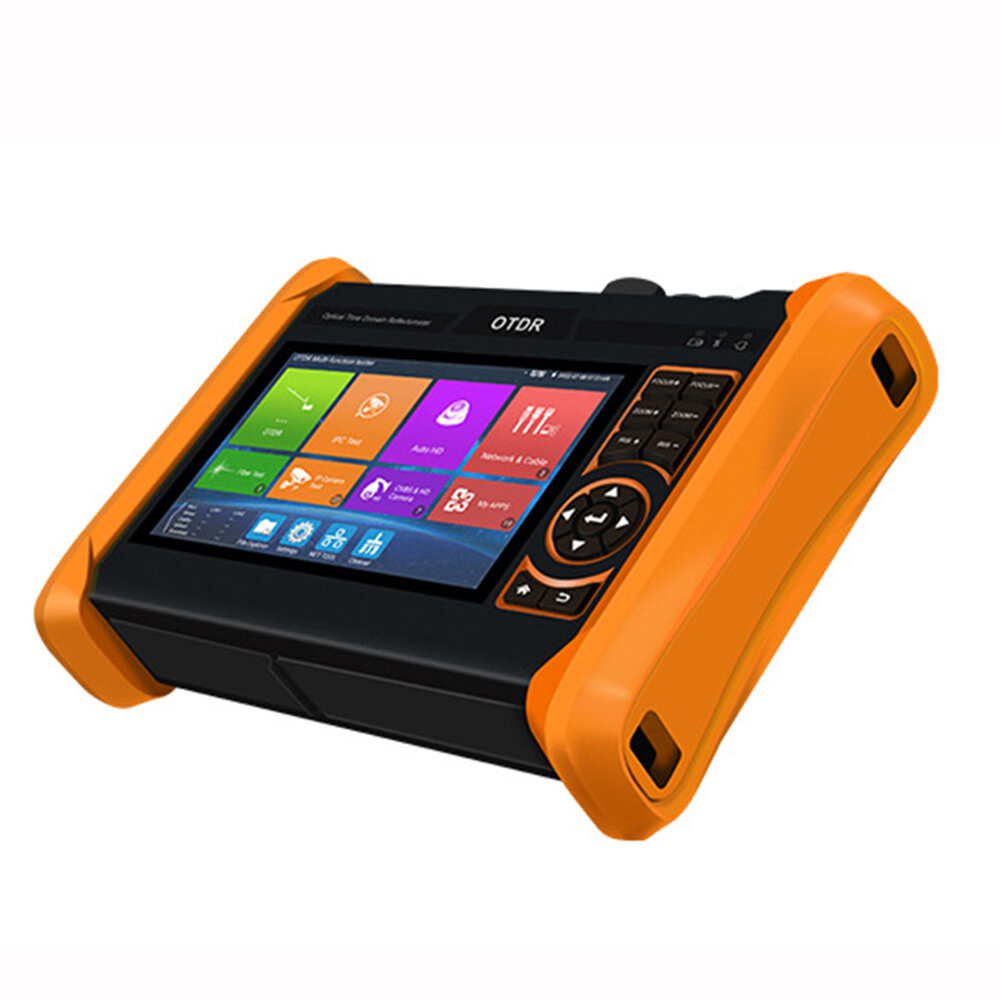

Multi-function MT-6500 OTDR series is an essential tool for fiber length, network and camera testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line. It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. as well, built in camera tester for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. If taking the all in one OTDR, it will make working conditions safer and increasing productivity. Features: ● 5.4 inch IPS touch screen, 1920*1152 resolutions ● 1310/1550/1610 wavelength optional, 26/28/30/32/34dB Dynamic range optional, max test range 150KM* ● Stable laser source, support CW/270/330/1000/2000Hz ● Test fiber’s length, loss, attenuation parameters and event map, locate connection point/ fusion point ● Automatic analysis of various linkers/fusion points, easy analyze of various events ● Save and view the testing curves, support zoom and move curves, view details. ● Support saving curves number ≥30000pcs ● Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information ● Report saved as EXCEL, PDF, or screenshots format etc ● Loss test, detect the optical or optical components loss value Camera test: ● 5.4 inch IPS touch screen, 1920*1152 resolution ● 4K H.265 video display via mainstream ● AXIS, Hikvision, dahua camera testing, enter ONVIF app, input username and password to test ● DC12V/3A power output, support temporarily supply power for the camera ● 48V PoE power output ● Chrome browser, test and set Axis camera ● Rapid video, just by one key to detect all network cameras and auto display ● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot Cable test: ● Improvement cable tester, UTP cable, telephone cable etc order and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug ● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, max test 180M ● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables Other functions ● New Power management file, Output power and input power management interface, to quickly check POE48V, 24V2A, 12V3A power and voltage ● POE & power information, DC12V& PoE power and voltage output /input measurement ● Tester Play: Tester, android version mobile phone and PC display at the same time ● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, High Definition Multimedia Interface IN etc ● Advanced Network Tool, Scan IP, Route tracking, Socket debugging, ping packet test,DHCP,PPPOE,LLDP testing etc ● 7.4V 5200mA Li-ion Battery, 2.5 hours charging, normal working time lasts 11 hours Specifications:
