Multi-Function MT-6500 OTDR Smart Network Cable Tester 5.4" IPS Touch Screen Fiber Length Network Camera Testing Stable Laser Source Gigabit Network Port WiFi Support [2006194]

Home/ Tools/ Measurement & Analysis Instruments/ Network Cable Testers/ Multi-Function MT-6500 OTDR Smart Network Cable Tester 5.4" IPS Touch Screen Fiber Length Network Camera Testing Stable Laser Source Gigabit Network Port WiFi Support

Item Description
Customer Reviews
Payment & Shipping

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

Select
Make:
Select
Submodel:
Select
Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

Year
Make
Model
Submodel
Trim
Engine

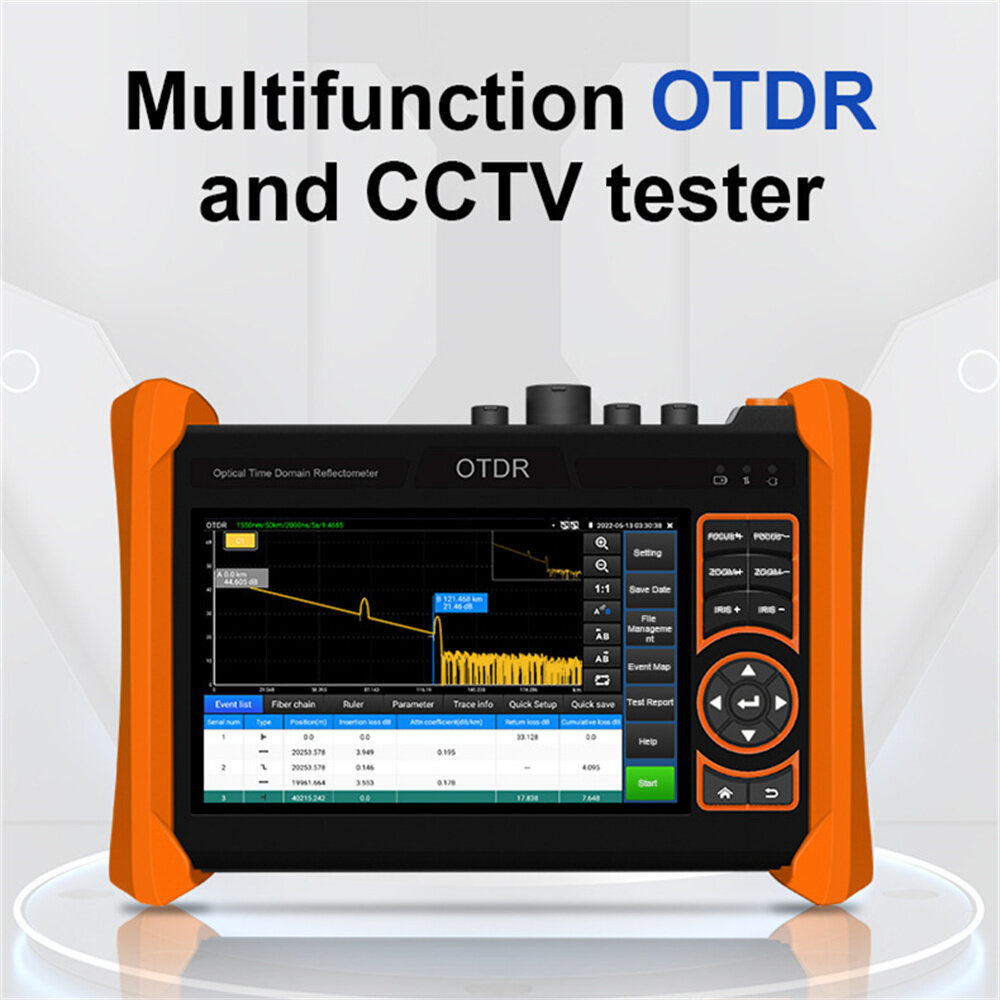

Multi-function MT-6500 OTDR series is an essential tool for fiber length, network and camera testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line. It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. as well, built in camera tester for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. If taking the all in one OTDR, it will make working conditions safer and increasing productivity.

IPS touch screen, 1920*1152 resolutions

1310/1550/1610 wavelength26/28/30/32/34dB Dynamic range

Stable laser source, support CW/270/330/1000/2000Hz

Test fibers length, loss, attenuation parameters and event map, locate connection point/ fusion point

Automatic analysis of various linkers/fusion points, easy analyze of various events

Support saving curves number ≥30000pcs

testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information

Report saved as EXCEL, PDF, or screenshots format etc

Loss test, detect the optical or optical components loss value

TVI 4.0/ CVI 5.0/ AHD 4.0 camera test, UTC control & call OSD menu

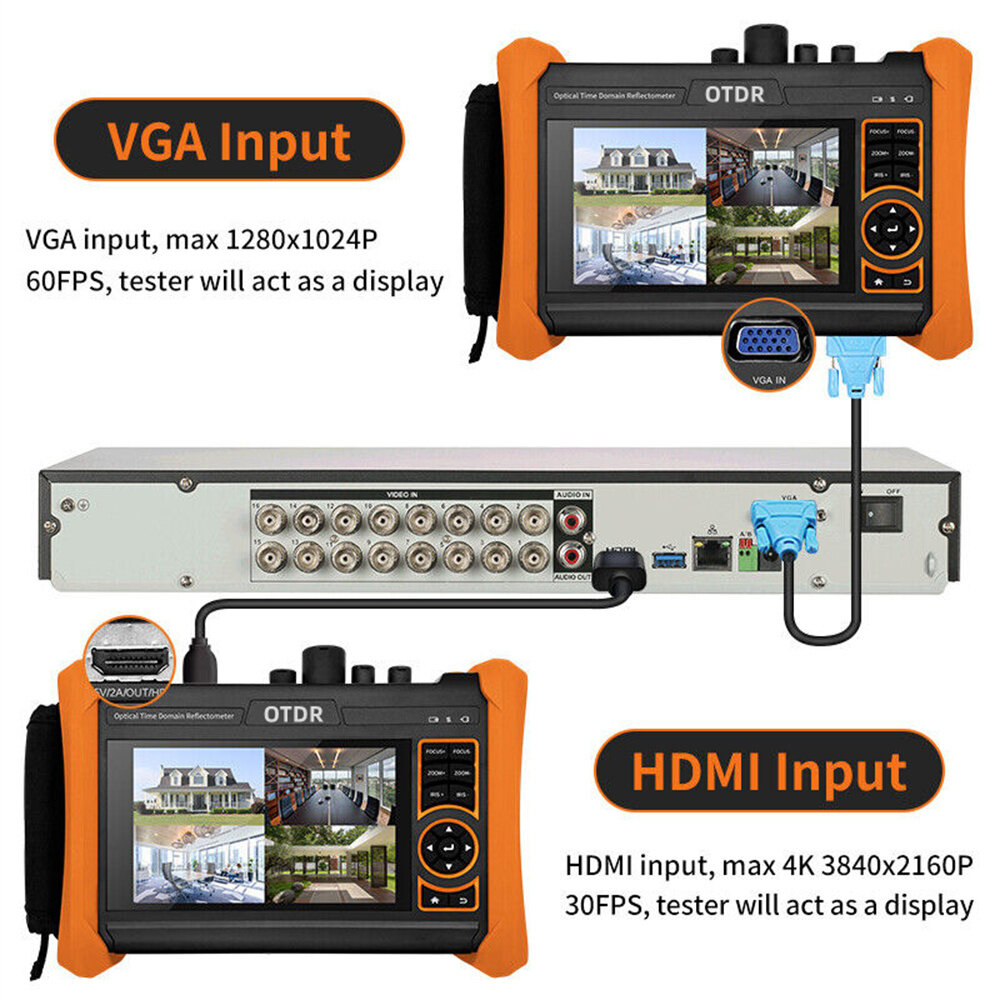

● 4K High Definition Multimedia Interface input Optional

New Power management file, Output power and input power management interface, to quickly check POE48V, 24V2A, 12V3A

power and voltage

POE & power information, DC12V& PoE power and voltage output /input measurement

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, High Definition Multimedia Interface IN etc

Advanced Network Tool, Scan IP, Route tracking, Socket debugging, ping packet test,DHCP,PPPOE,LLDP testing etc

7.4V 5200mA Li-ion Battery, 2.5 hours charging, normal working time lasts 11 hours

5.4 inch IPS touch screen ,1920*1152 resolution

One 1000M LAN port, 10/100/1000M auto adapt

Built in 2.4G WIFI, speeds150M, display wireless camera image

H.265 & H .264 IP, 8K video display via mainstream

Multi-Function MT-6500 OTDR Smart Network Cable Tester 5.4" IPS Touch Screen Fiber Length Network Camera Testing Stable Laser Source Gigabit Network Port WiFi Support
