Mustool ET4410 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter COD
  • Mustool ET4410 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter                                                COD
  • Mustool ET4410 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter                                                COD
  • Mustool ET4410 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter                                                COD
  • Mustool ET4410 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter COD

Mustool ET4410 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter COD

  • Model: 1984698
( 0 reviews )
US$262.99
Sale: US$249.84
Save: 5% off
  • In Stock - Shipping within 24 hours
  • Worldwide Free Shipping
Quantity:
Min:  0
Qty Discounts New Price
1
US$262.99
  • Item Description
  • Customer Reviews
  • Payment & Shipping

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.
  • Select
    • Make:
      • Select
        • Submodel:
          • Select
            • Engine:
              This part is compatible with vehicle(s).Show all compatible vehicles 1
                • Year
                • Make
                • Model
                • Submodel
                • Trim
                • Engine

                  Reminder of Order Restriction

                  >>Please Click Here to Download the English User Manual<<



                  >>Please click here to buy SMD Clip Probe<<

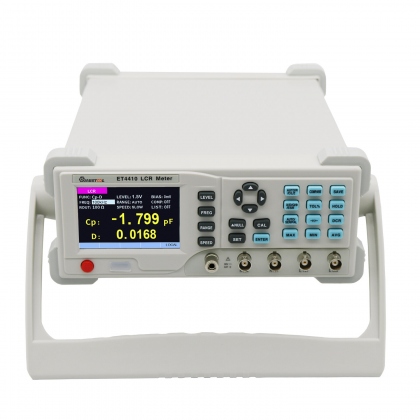

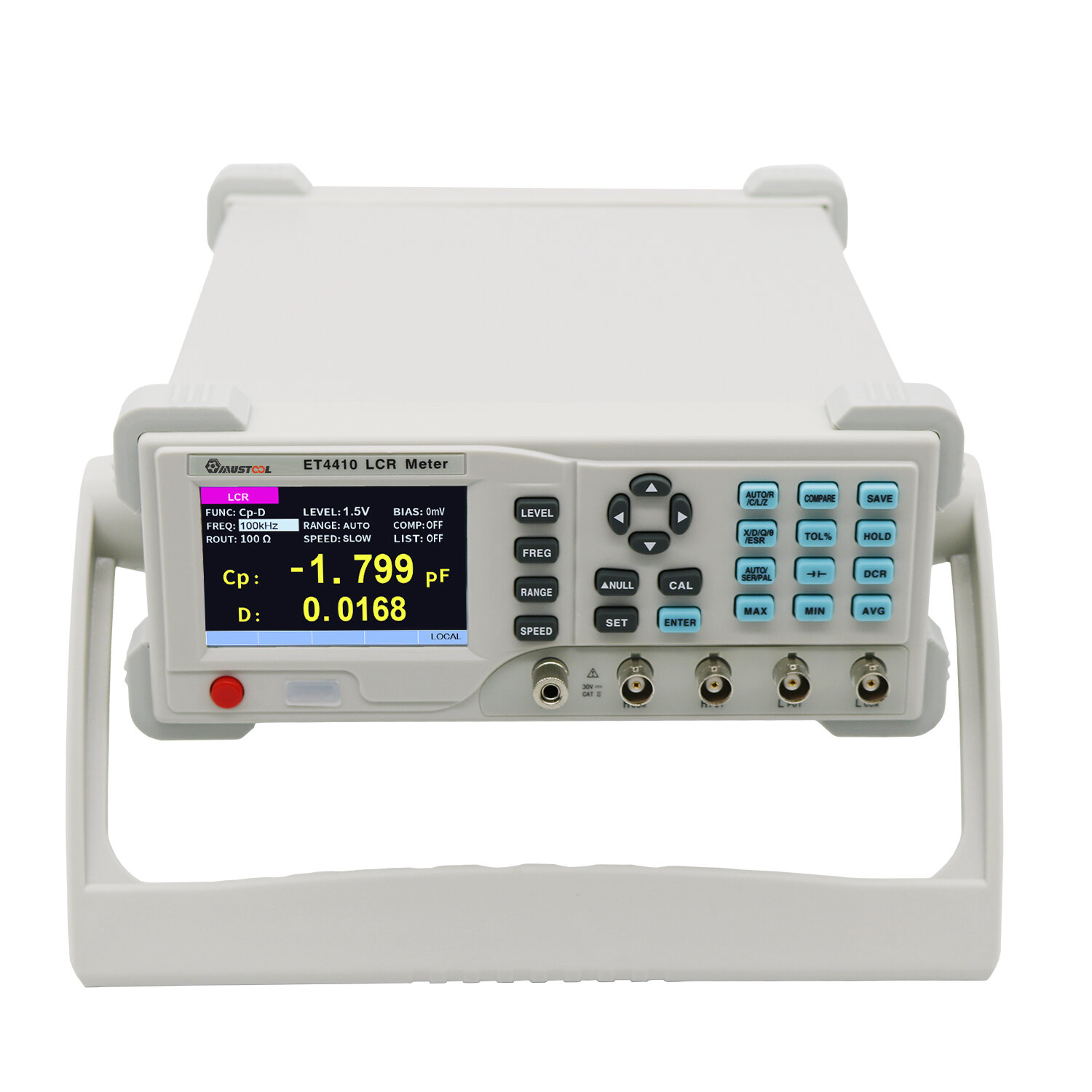

                  Descriptions: Mustool ET4410 series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety of measurement parameters into one body. It is convenient for users to carry out remote control with USB and RS232 and also perform the sorting of components using handle. In function, it can not only adjust the output frequency and test level, but also record the value of components in the process of measurement. In the performance parameters, its basic accuracy reaches 0.2%.

                  Features:

                  ● Measurement frequency up to 100kHz

                  ●Support the measurement of DC resistance and electrolytic capacitor

                  ●Automatic identification of component measurement

                  ●USB, RS232 communication interface, Handle sorting

                  ● Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users.

                  ● Manual and automatic range

                  ● Comparator has sorting and alarm function
                  Specifications:

                  Model

                  ET4410

                  Digits

                  Main parameter: 5 digits; secondary parameter: 5 digits

                  Measurement Parameter

                  Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR

                  Measurement Range(L)

                   0.01μH - 9999H

                  Measurement Range(C)

                  0.01pF - 9999μF

                  Measurement Range(R)

                  0.0001Ω - 99.99MΩ

                  Basic Accuracy

                  0.2%

                  Test Frequency (Hz)

                  100~100kHz  16 point

                  Measurement Display Speed

                  2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)

                  Internal Bias

                  0-1500mV adjustable, 1mV stepping

                  Test Level

                  100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV

                  Correction Function

                  Open circuit correction, short circuit correction

                  Screening function

                  The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%

                  Selection of comparator

                  Five gear sorting, third gear qualified, one gear failed, one ancillary gear

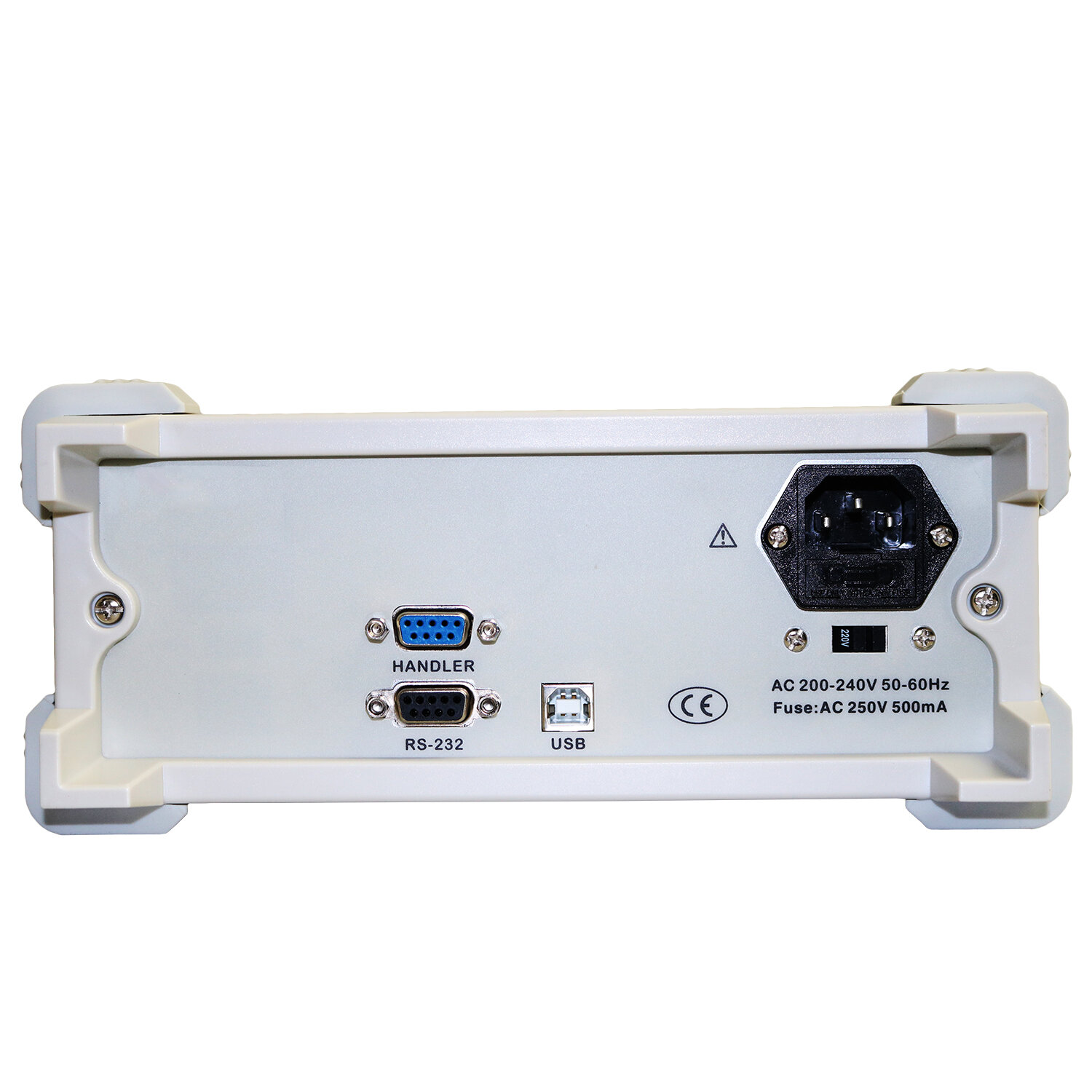

                  Communication Interface

                  Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

                  Others

                  Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness,  optional in English and Chinese

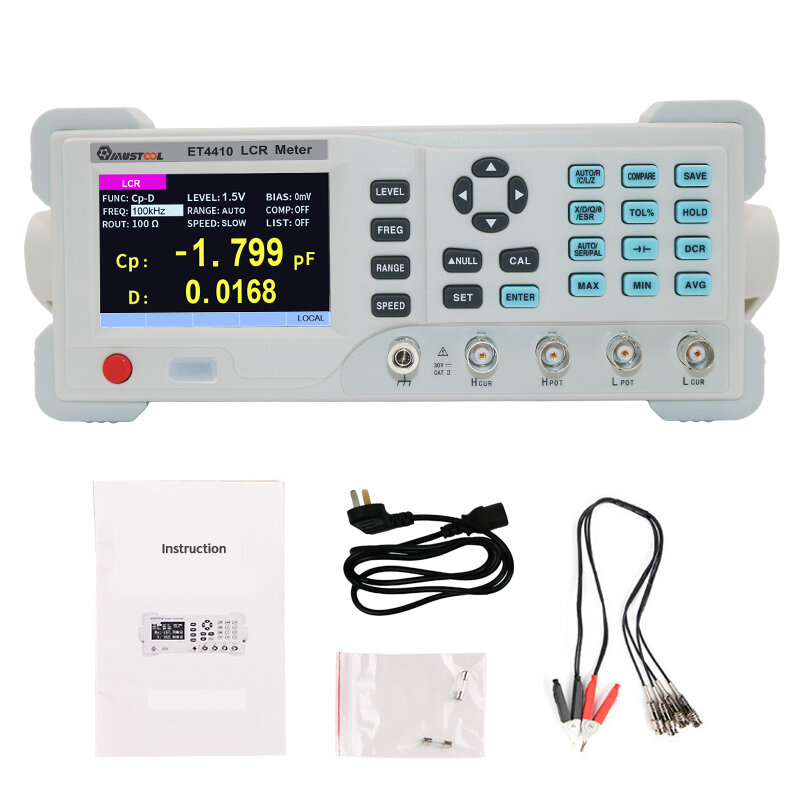

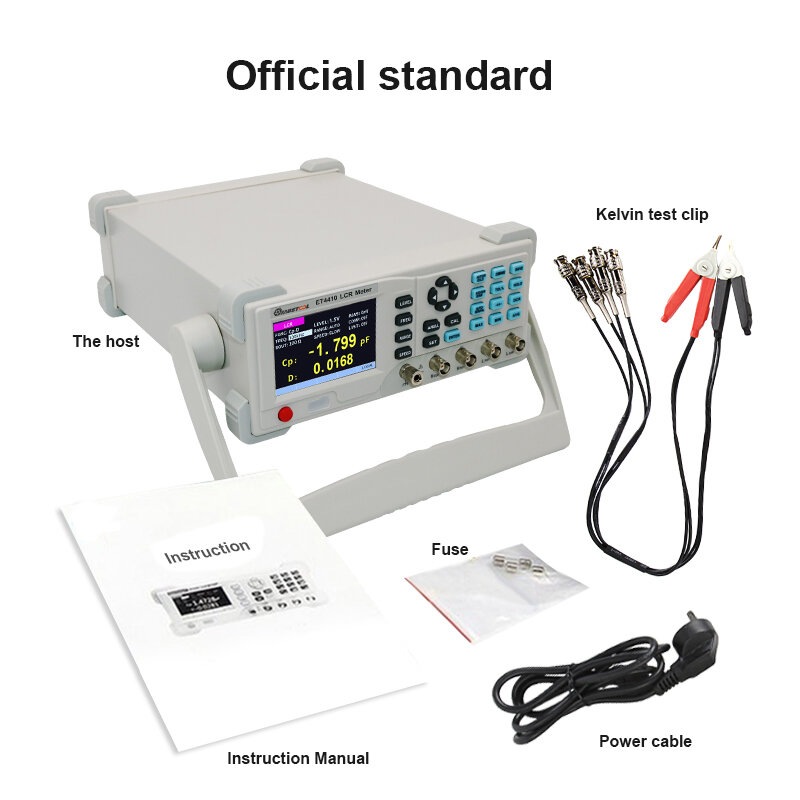

                  Package Includes:

                  1 x Mustool ET4410 LCR Tester
