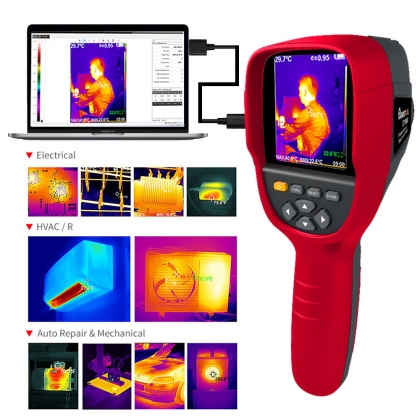

Mustool ET692D 320*240 Infrared Thermal Imager -20℃~350℃ Thermal Camera 3.2-inch Full View Floor Heating Electrical Inspect COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Overview:
The following major functions increase the product's accuracy and usability:

Specification:

Model	ET692D

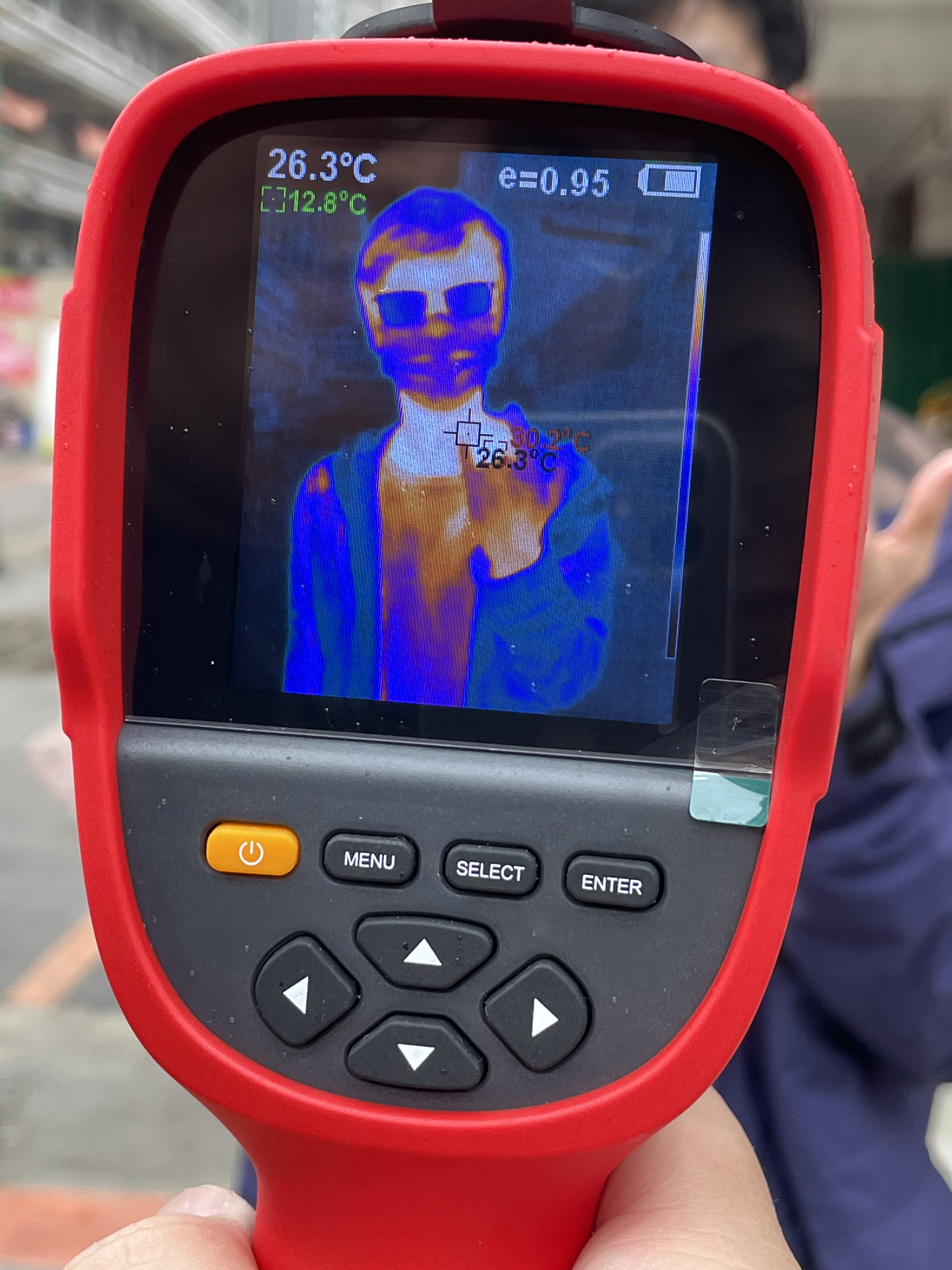

Display screen	3.2" full angle TFT display screen
Infrared image resolution
Field angle	56°x 42°
Visible image resolution	300,000 pixel
LCD resolution	320 x 240
Shortest focus length	0.15M
Thermal sensitivity	0. 07℃
Temperature measurement range
Measurement accuracy	±2℃/±2%
Emissivity	Adjustable from 0.01 to 1.00
Frame rate of thermal images	9Hz
Wavelength coverage	8-14um
Focus mode	Fixed
Color palette	Rainbow, iron oxide red, cold color, black & white, white & black
Storage capacity	Built-in 3G (above 20 thousand image stored)
File format	JPG

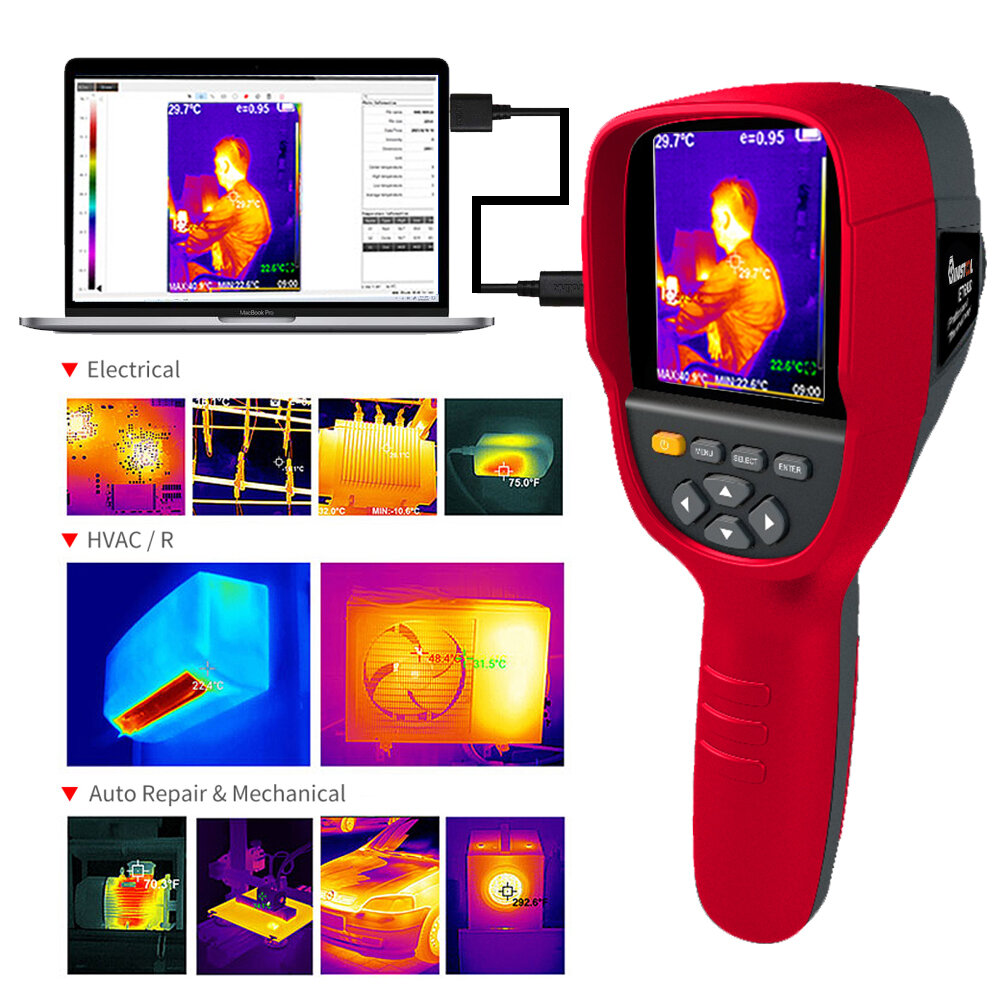

USB	Micro USB 2.0
Power supply	Built-in rechargeable 18650 battery
Working time	2-3 hours
Automatic power-off time	Selectable: 5 minutes/20 minutes/ not power off automatically
Setting command	Unit, language,  date, time,  information
Language	English, Chinese, Italian,German

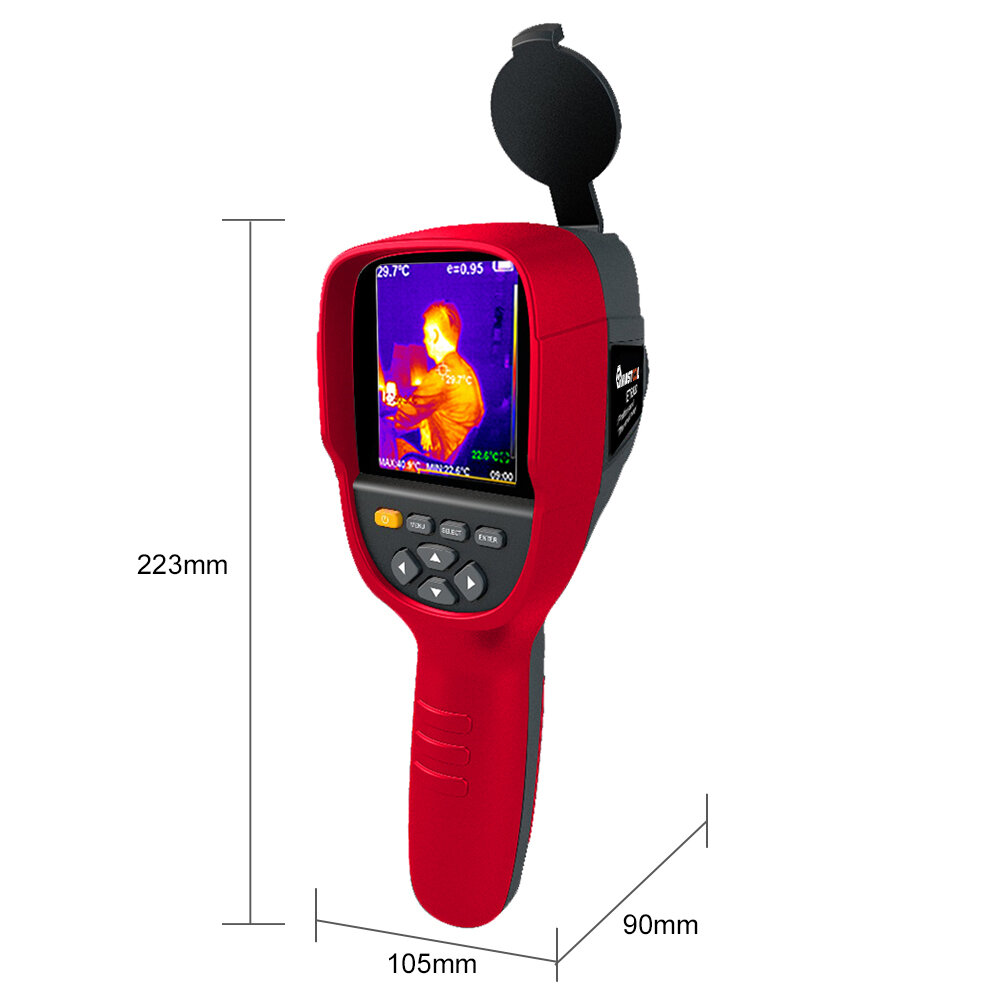

Product size	90mm x 105mm x 223mm
Product weight	389g
Work temperature	0℃~45℃
Storage temperature	-20℃~ 60 ℃
Relative humidity	< 85%RH

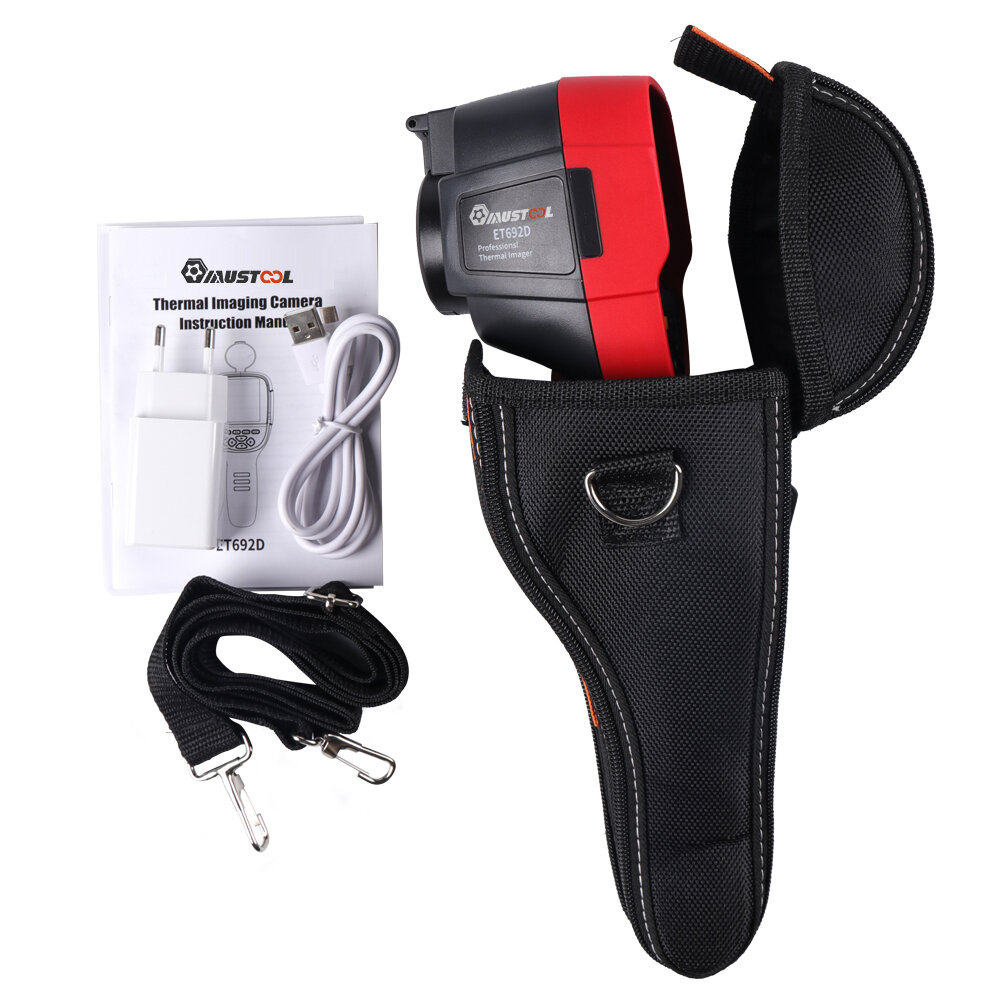

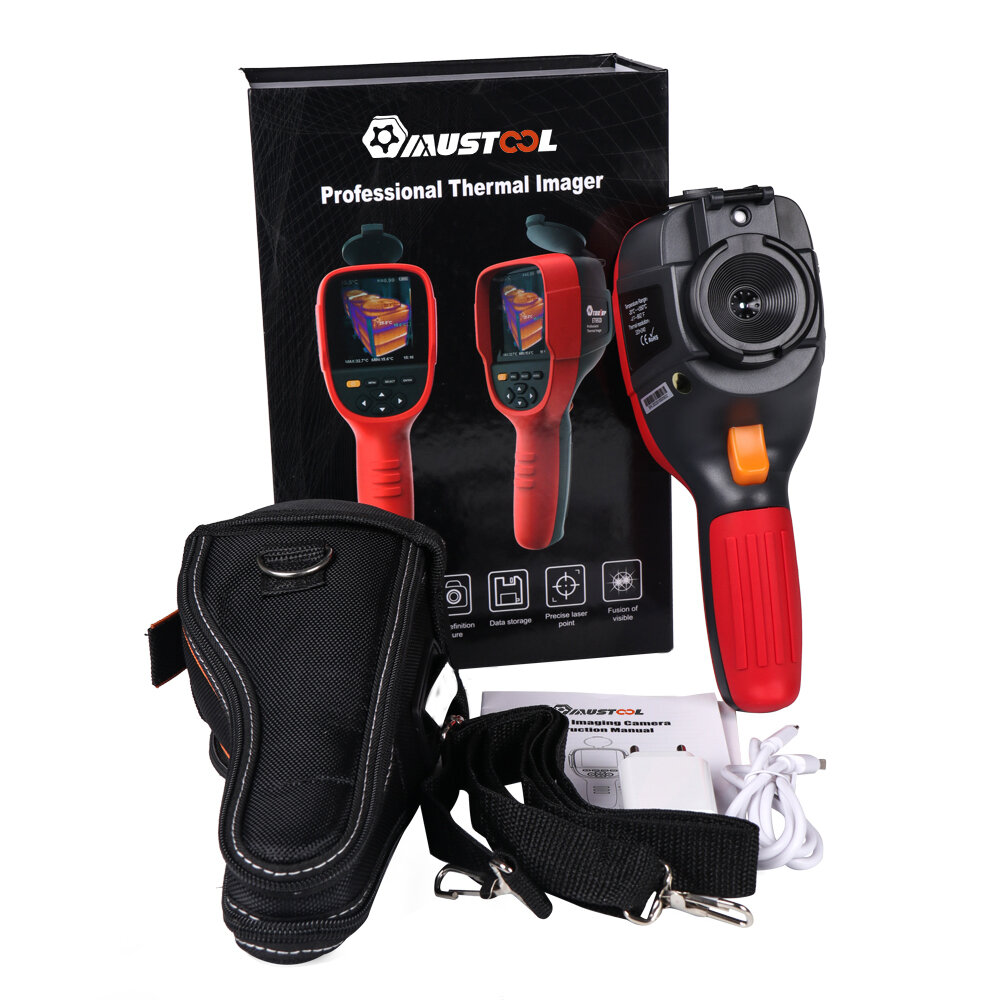

Package included:
