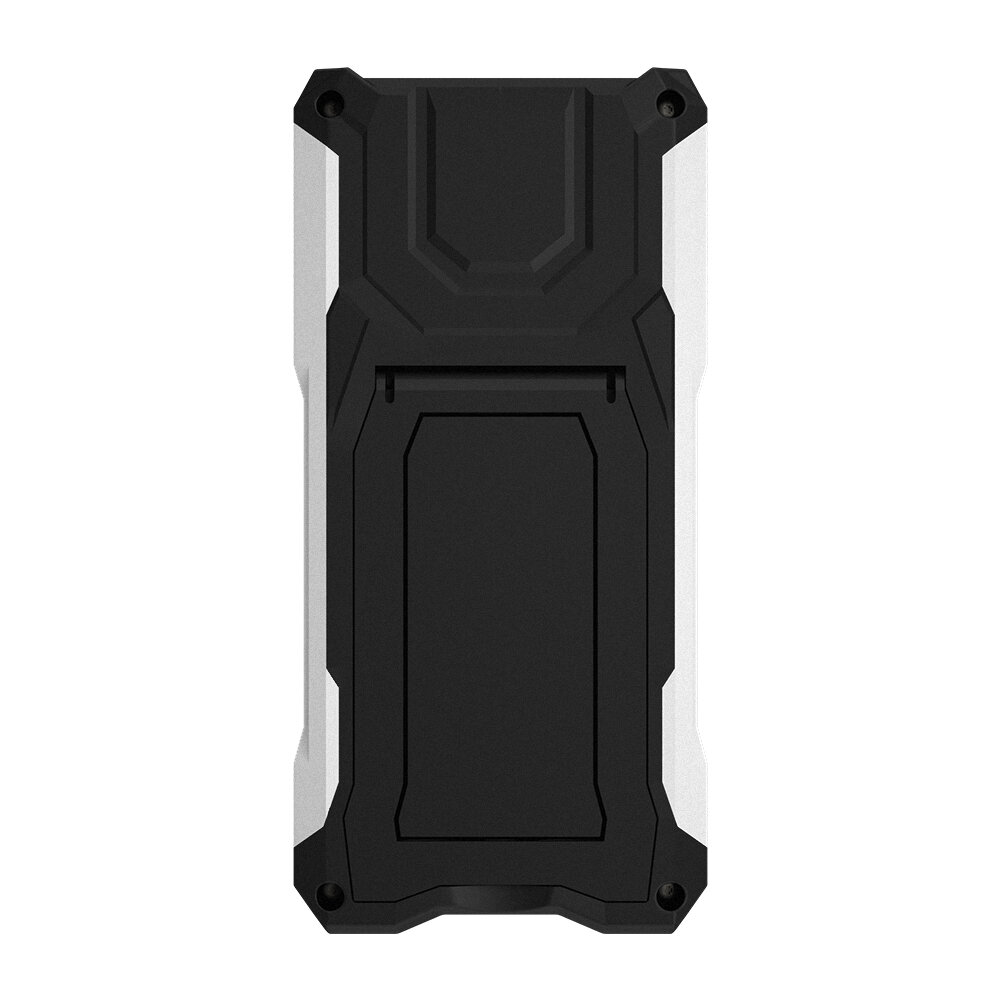

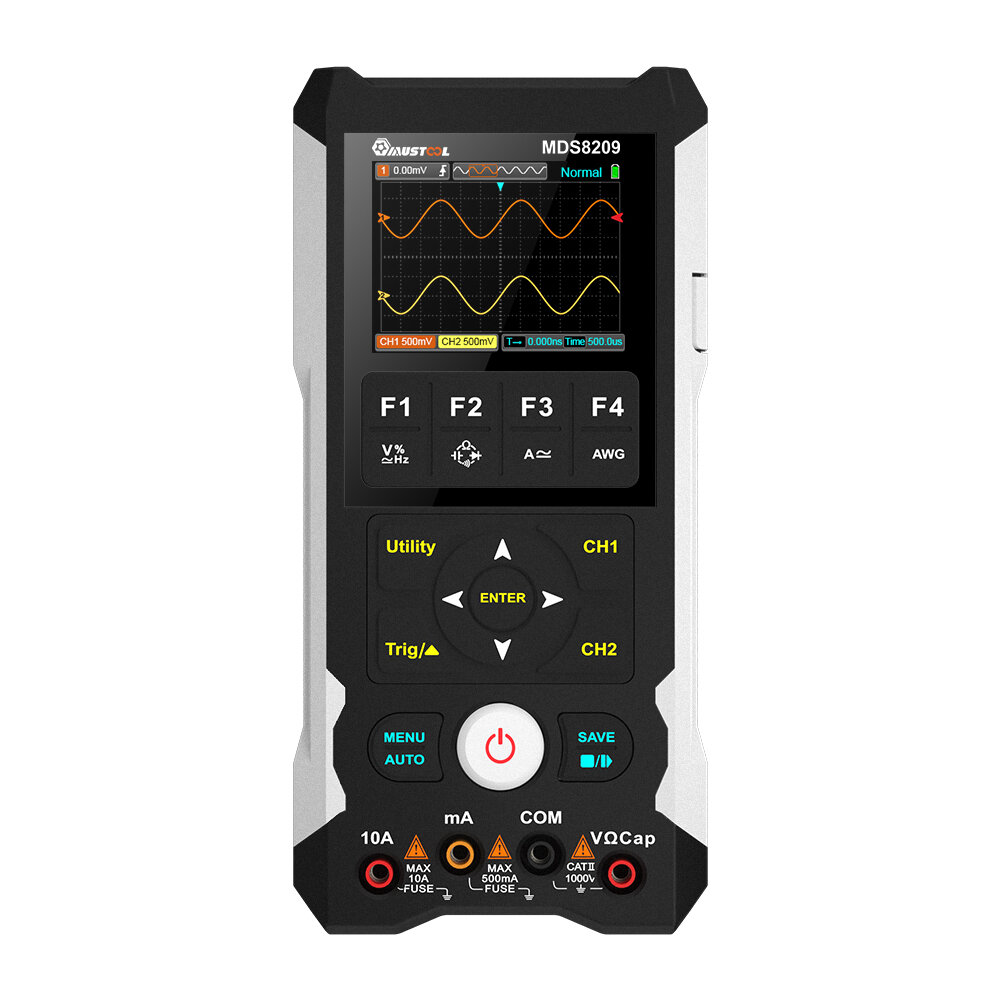

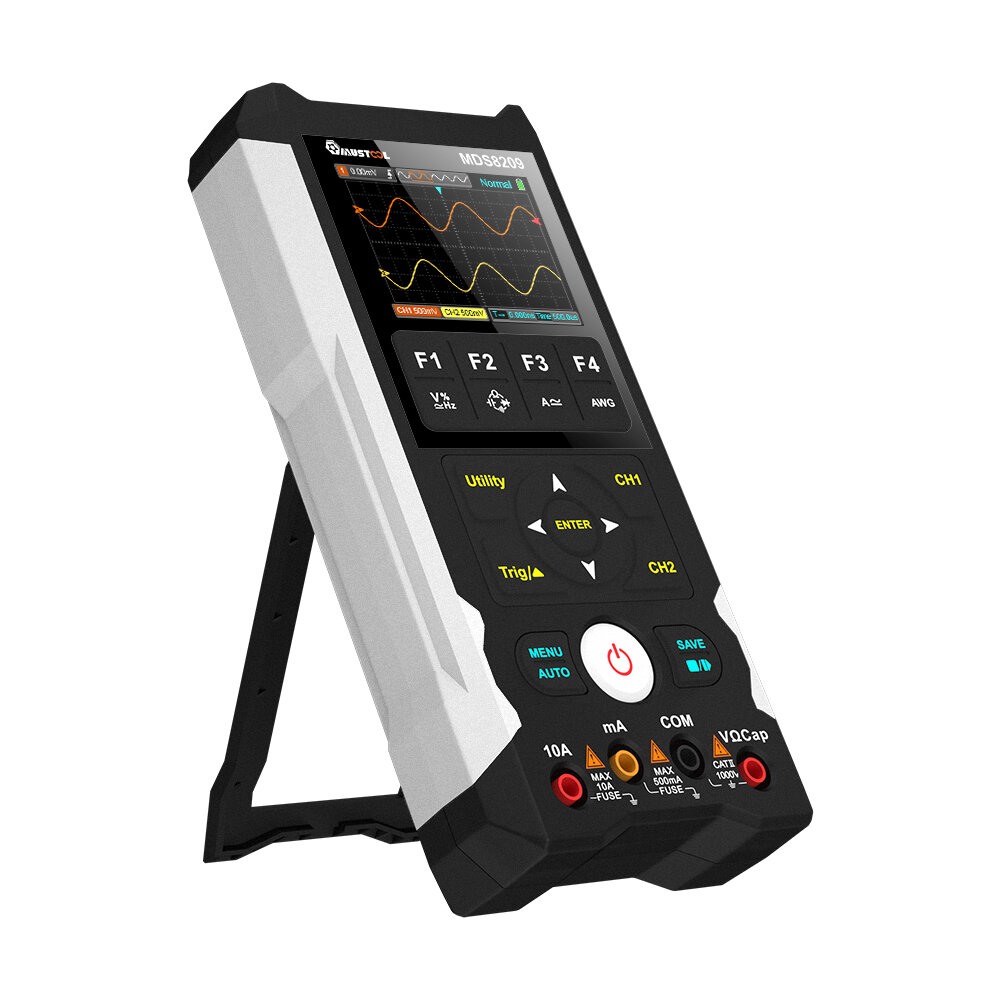

MUSTOOL MDS8209 OSC + DMM + Waveform Generator 3 in 1 80MHz/50MHz Bandwidth Dual Channel Handheld Oscilloscope Innovative AI Waveform Preview Support 15W Fast Charge

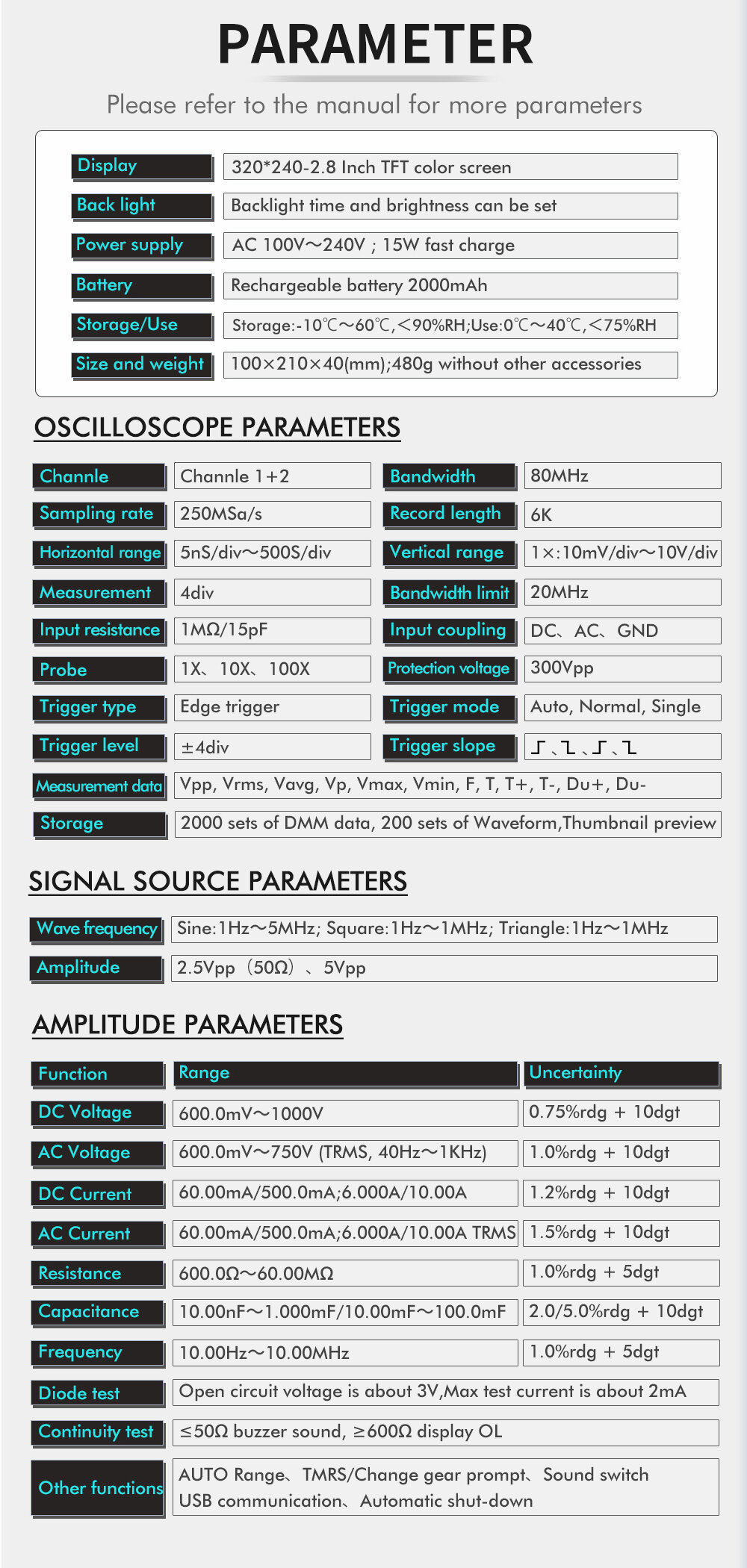

Number of channels

 Channel CH1, Channel CH2

Analog bandwidth

80MHz (single channel), 50MHz (dual channel)

Maximum real-time sampling rate

250MSa/s (single channel)）,125MSa/s (dual channel)

Waveform interpolation

(Sin x) /x

Record length

When single channel, the maximum is 6K; when dual channel, the maximum is 3K

Horizontal scale range

5nS/div〜50S/div, 1 > 2、5steps

AD converter

8-bit resolution, simultaneous sampling of each channel

Vertical scale range

1 X: 10mV/div-10V/div; 10X: 100mV/div-100V/div

Vertical measurement range

±4 grid

Optional analog bandwidth limit

20MHz

Low Frequency Response (-3db)

≤10Hz at BNC

Vertical Gain Accuracy

±3% in "Normal" or "Average" acquisition mode

Input resistance

1MΩ/15

Input Coupling

DC,  AC,  GND

Probe attenuation

1X,   10X

Support probe attenuation factor

1X,  10X,  100X

Input protection voltage

300Vpp

Trigger Type

Edge Trigger

Trigger Mode

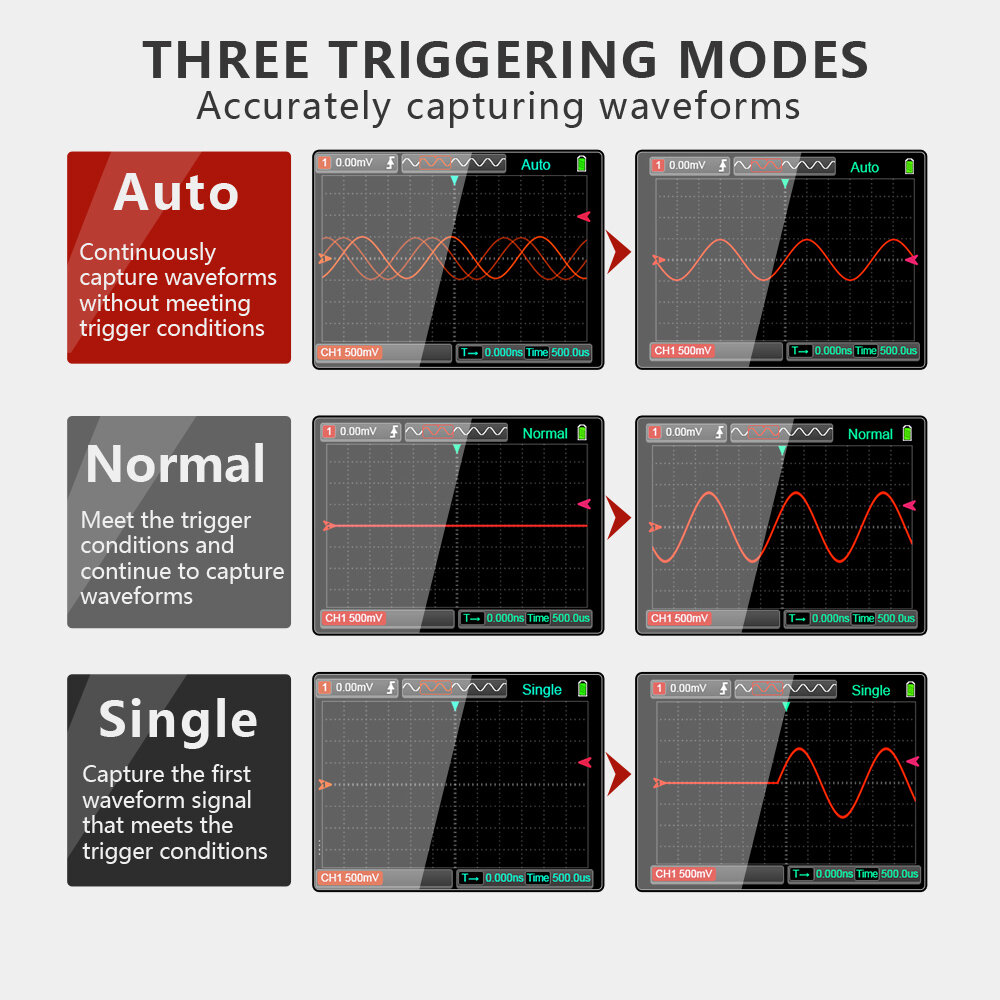

Auto, Single, Normal

Trigger level

±4div

Edge-triggered slope

Rising edge, falling edge, rising edge or falling edge

Voltage parameter measurement

peak-to-peak, RMS, average, peak, maximum, minimum

Time parameter measurement

frequency, period, duty cycle, positive pulse width, negative pulse width

Cursors

Voltage difference between cursors, time difference between cursors

Smart cursor 1 group, the capture point keeps tracking the current waveform when the cursor moves, and the current cursor position information, voltage difference and time difference are displayed below.

Spectral Analysis FFT

Yes

Storage capacity

2000 groups of DMM data, 200 groups of waveform records, with storage file manager

Filtering

high pass, low pass

Math operation

FFT

Afterglow option

Yes (afterglow effect is required to make Lissajous graphics)

Afterglow selection is divided into multi-level optional.

Computer real-time communication

USB communication

Waveform zoom

Yes

AI waveform preview

a small window is added above the main interface to display the thumbnail of the waveform for preview, and with an indicator to indicate that the current main interface waveform is at a certain position in the entire collected waveform.

Function

Range Uncertainty

Uncertainty

DC voltage

600.0mV〜1000V

0.75%rdg + 10dgt

AC voltage

600.0mV〜750V (TRMS,frequency range：40Hz〜1KHz)

1.0%rdg + 10dgt

DC current

60.00mA/500.0mA, 6.000A/10.00A

Overload protection: fuse type fuse 500mA/250V,10A/250V

1.2%rdg + 10dgt

AC current

60.00mA/500.0mA, 6.000A/10.00A (TRMS) Overload protection: fuse type fuse 500mA/250V,10A/250V

1.5%rdg + 10dgt

Resistance
