MUSTOOL MT005/MT005PRO Digital Multimeter Pen Type 4000 Counts Professional Meter Non-Contact Auto AC/DC Voltage Ohm Diode Tester For Tool COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

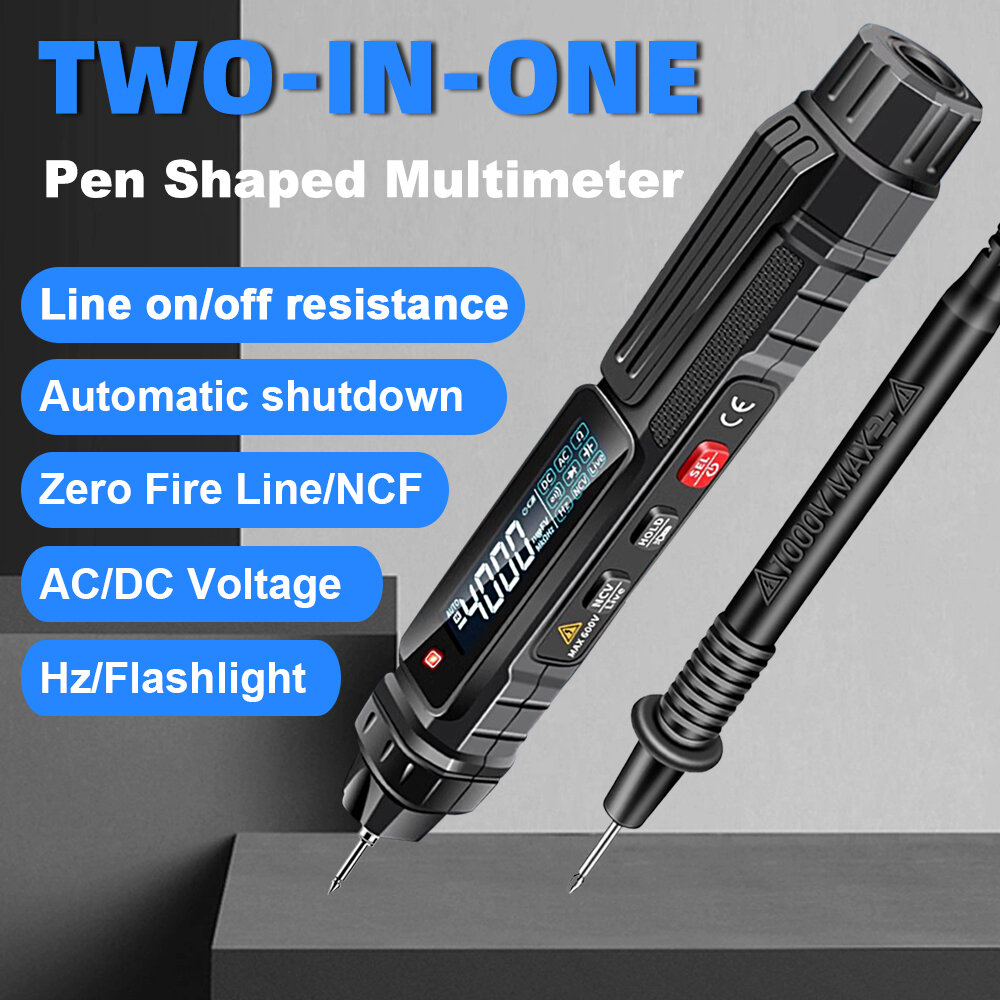

This device boasts high precision with a range of measurements for AC voltage, DC voltage, resistance, capacitors, and frequency. It also includes a diode test function, assuring extensive utility in both professional and household electrical testing situations.

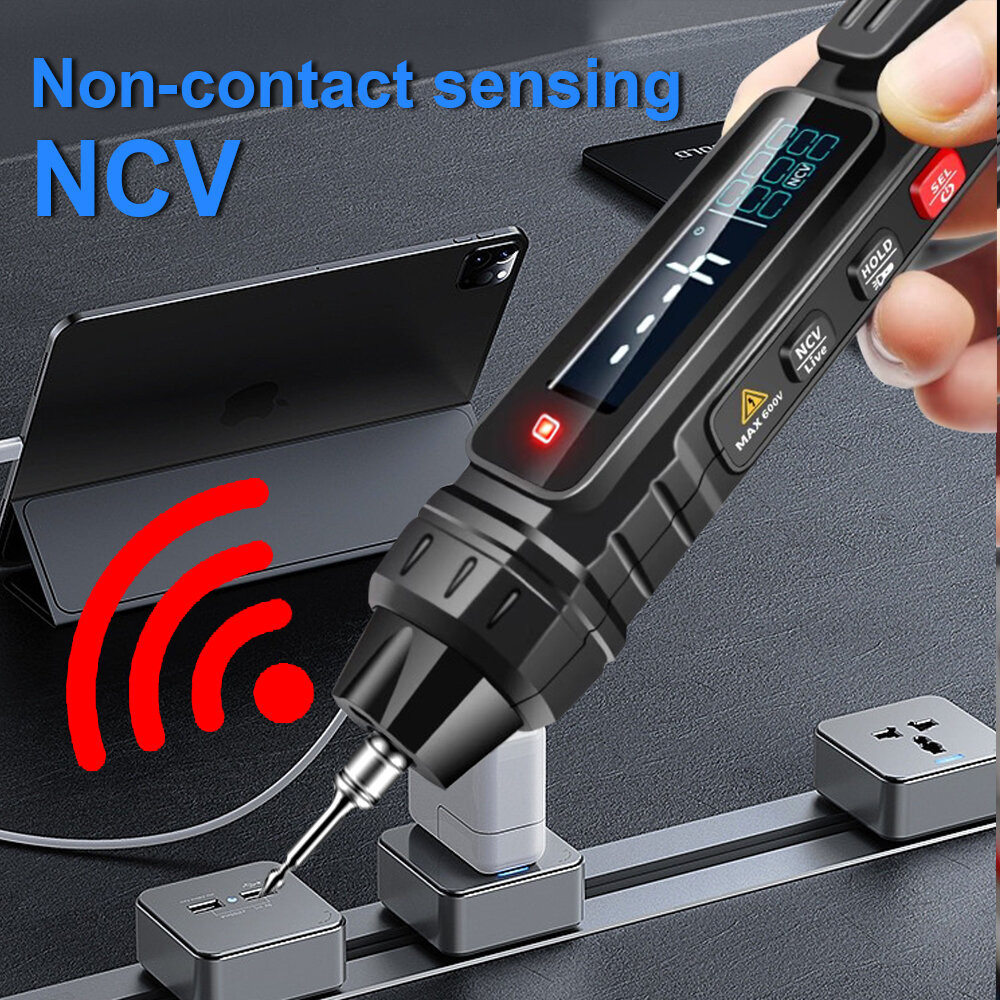

Offering a non-contact AC voltage detection function with sound and light alarms, this tester provides an additional safety measure when working with electricity.

To accommodate working in various locations and conditions, it features a VA backlit color screen for easy reading even in poorly lit environments and includes an automatic shutdown feature to conserve battery life.

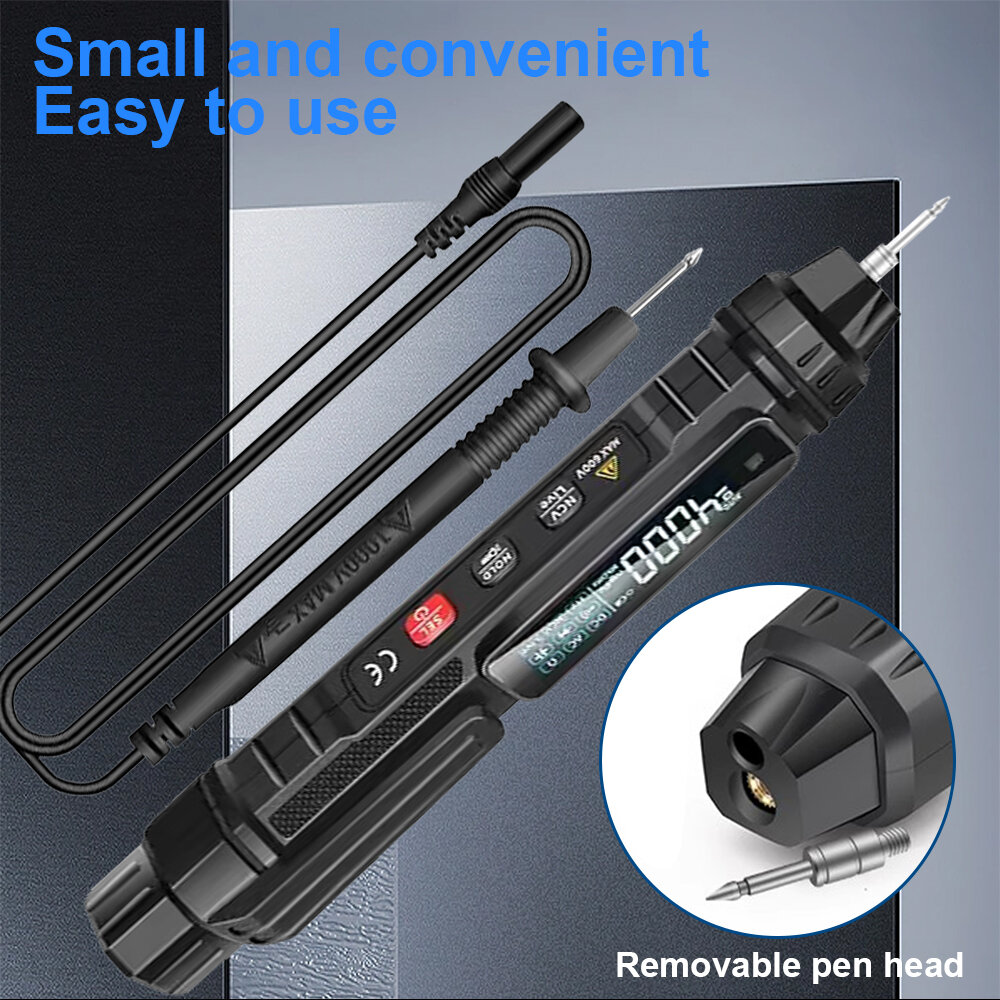

It is designed with a removable positive tip and a robust stainless steel nib on the negative input terminal, both of which contribute to its durability and universal applicability.

Its portable pen holder design ensures convenient transportation and quick access, making it a reliable tool for everyday use.



Brand: Mustool

Optional Model: MT005PRO/MT005

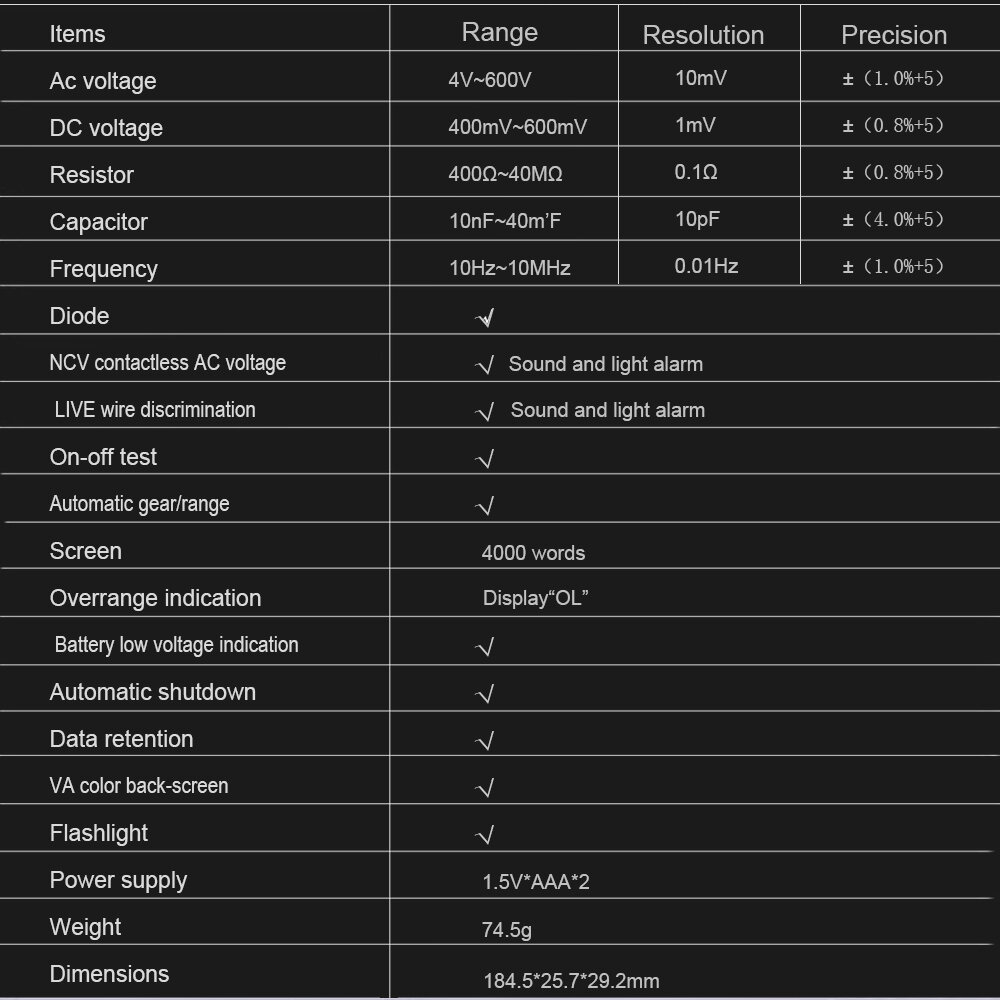

Items	Range	Resolution	Precision
Ac voltage	4V~600V	10mV	±(1.0
DC voltage	400mV~600mV	1mV	±(0.8
Resistor	400Ω~40MΩ	0.1Ω	±(0.8
Capacitor	10nF~40m'F	10pF	±(4.0％
Frequency	10Hz~10MHz	0.01Hz	±(1.0
Diode	√
NCV contactless AC voltage	√ Sound and light alarm

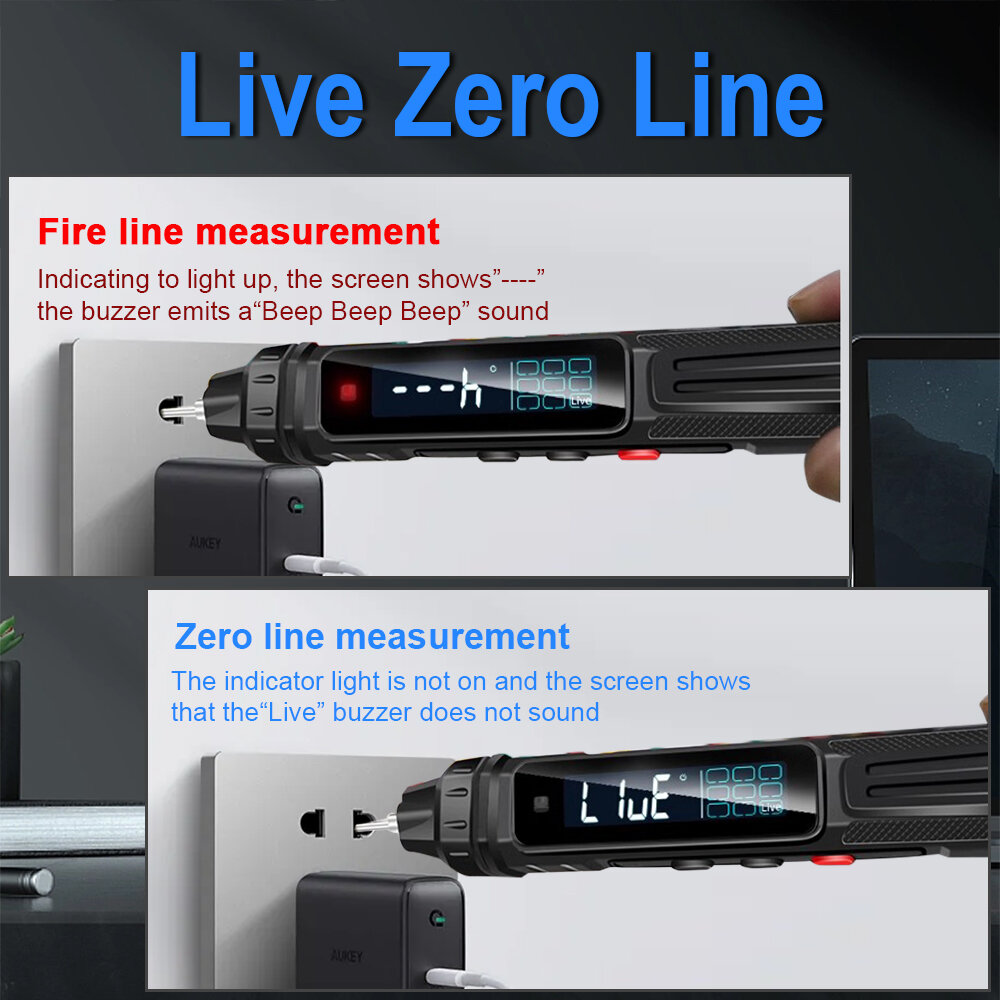

LIVE wire discrimination	√ Sound and light alarm

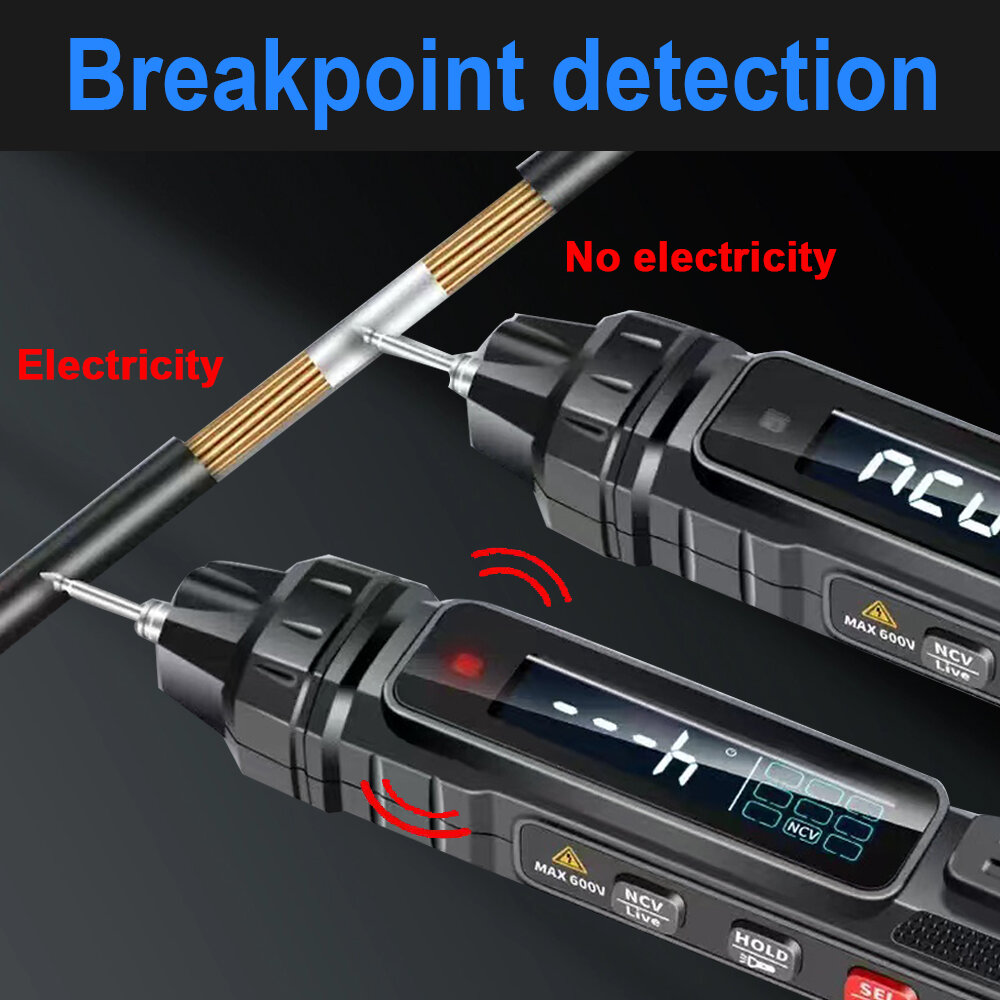

On-off test	√
Automatic gear/range	√
Screen	4000 words
Overrange indication	Display"OL"
Battery low voltage indication	√
Automatic shutdown	√
Data retention	√
VA color back-screen	√
Flashlight	√

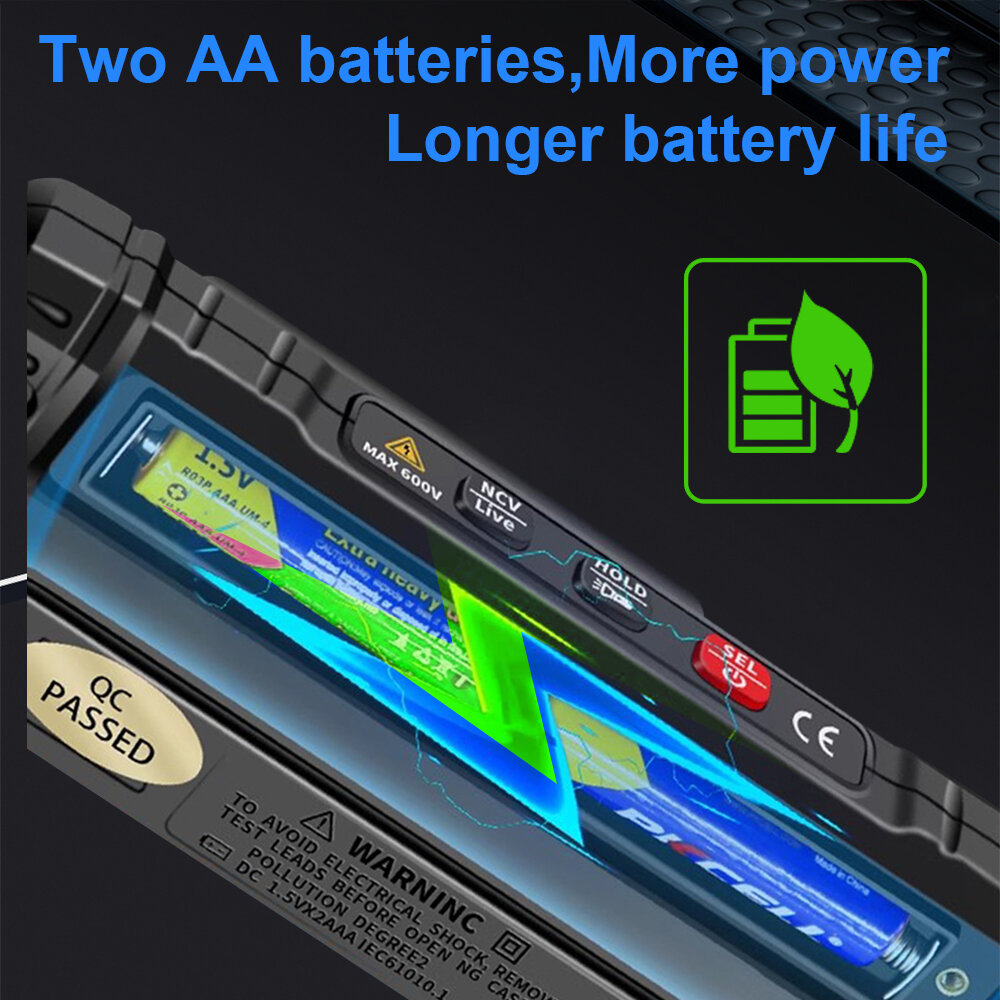

Power supply	1.5V*AAA*2
Weight	74.5g
Dimensions	184.5*25.7*29.2mm





Type A:(MT005)

1 x Multimeter Pen

1 x Test Lead

1 x Box



Type B: (MT005PRO)

1 x Multimeter Pen

1 x Test Lead

1 x User Manual

1 x U-shaped Insert

1 x Alligator Clip

2 x Gild Extra Tip

1 x Nickel-plated Copper Needle

1 x Tapered Needle

1 x Extended Nickel-plated Copper Needle

1 x Banana Tip
