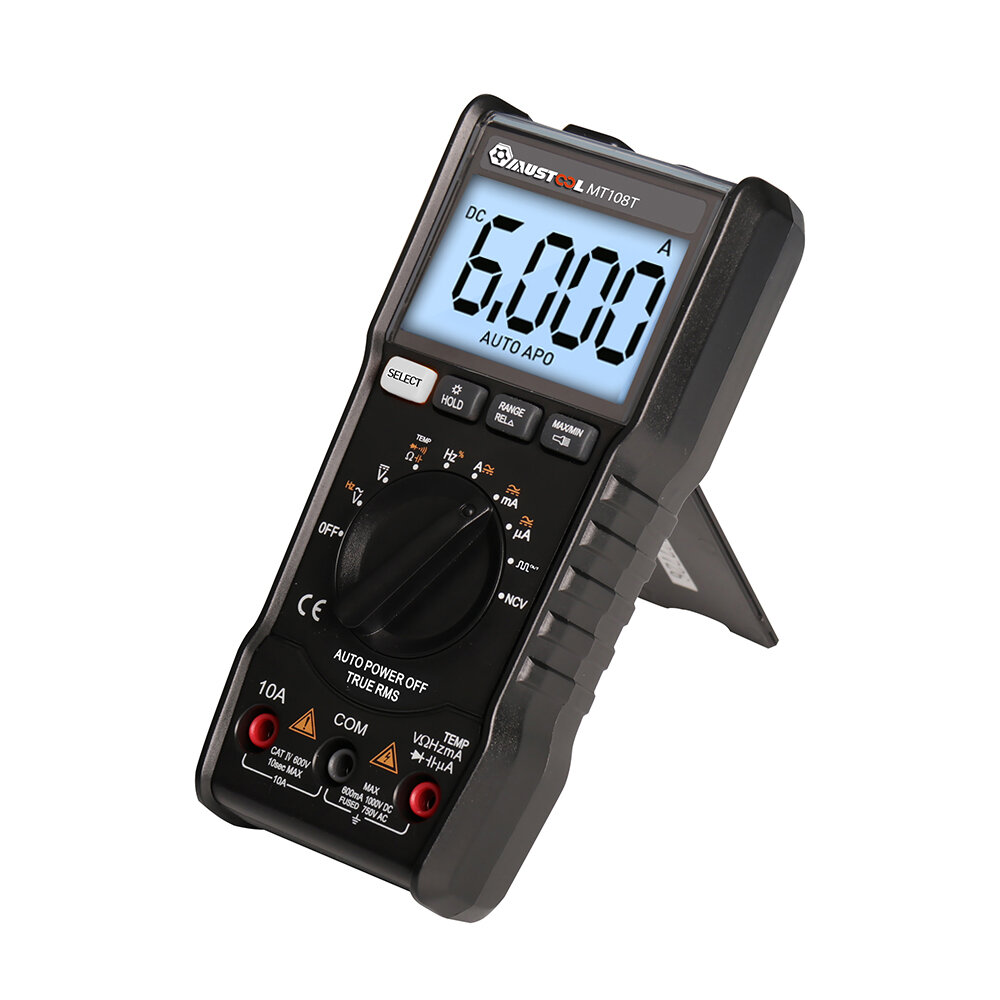

MUSTOOL MT108T True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description :


Waves(Only the old version) Auto P'ower-off. Auto Range (User can choose manual operation) HD LCD screen display with backlight . (Tips: Press and hold the backlight key for 2 seconds to turn on the 15S auto off function; press for 3 seconds, the backlight remains on.) Diode 4.2V high voltage output, easy to light the LCD. 10A large current measurement, UA level small current measurement  Main measurement: AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, duty cycle, continuity, buzzer

SPECIAL FUNCTIONS:     Specification :

Symbol functions
DC voltage  DCV	▲Yes
AC voltage ACV	▲Yes
DC current DCA	▲Yes
AC current ACA	▲Yes
ResistanceDiode On-off	▲Yes
Frequency F	▲Yes
Capacitance C	▲Yes
NCV	▲Yes
	▲Yes
Full unit symbol	▲Yes
Backlight manual/auto off	▲Yes
True RMS measurement	▲Yes

	± (1.5%+15)≥400℃	1℃
(0-1832 )℉	± (0.75%+5) <750℉

Square Waves Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/2000HZ/4000HZ/5000HZ

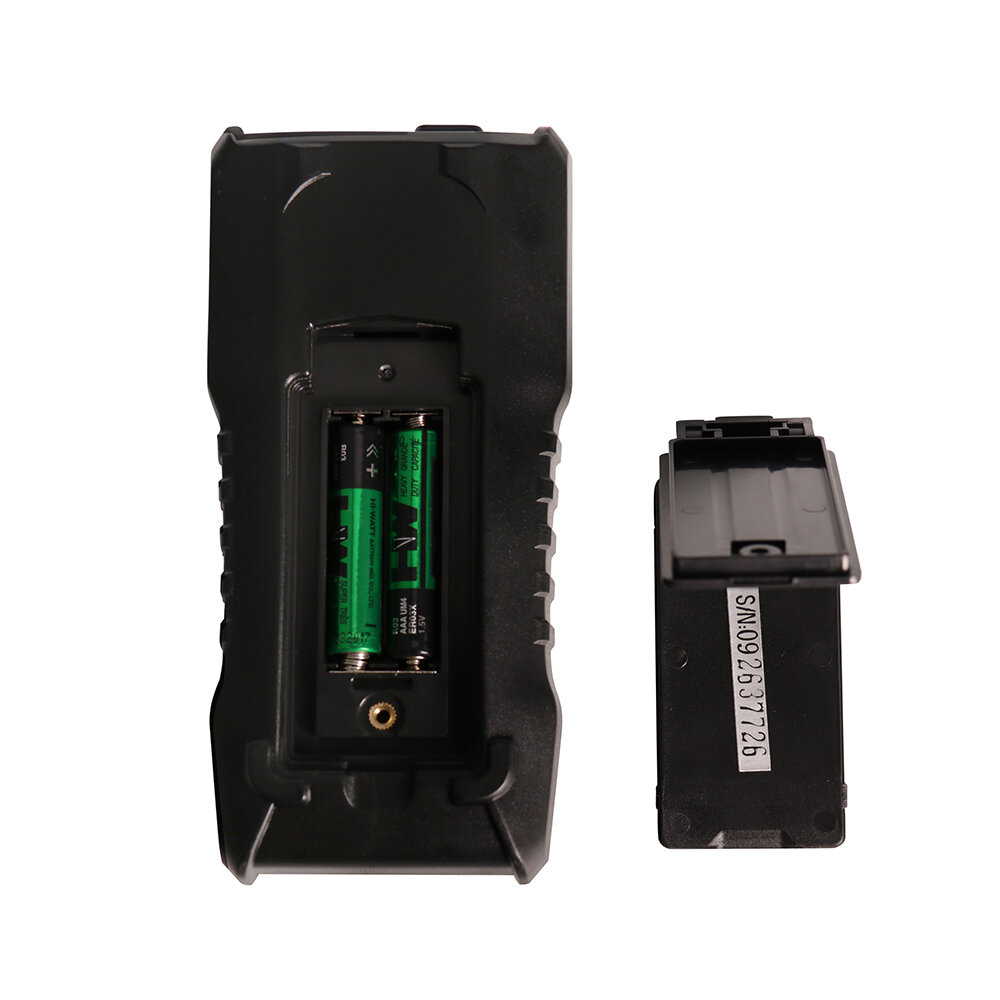

Duty Cycle:  range: 1%~99%;resolution: 0.1%; accuracy: ±(0.1%+2) Diode: √(DC forward current is 5mA, voltage is 3V) Continuity: √(no more than 50Ω) Maximum display: 6000 (3 5/6) bits automatic polarity display Measurement: double integral A / D conversion Sampling rate: about 3 times per second Overrange display: the most significant bit was "0L" Low voltage display: symbol appears Working environment: (0 to 40)℃, relative humidity <80% Power supply: AAA 1.5V battery (Not included) Volume (size): 142×70×32mm(L×W×H) Weight: about 200g

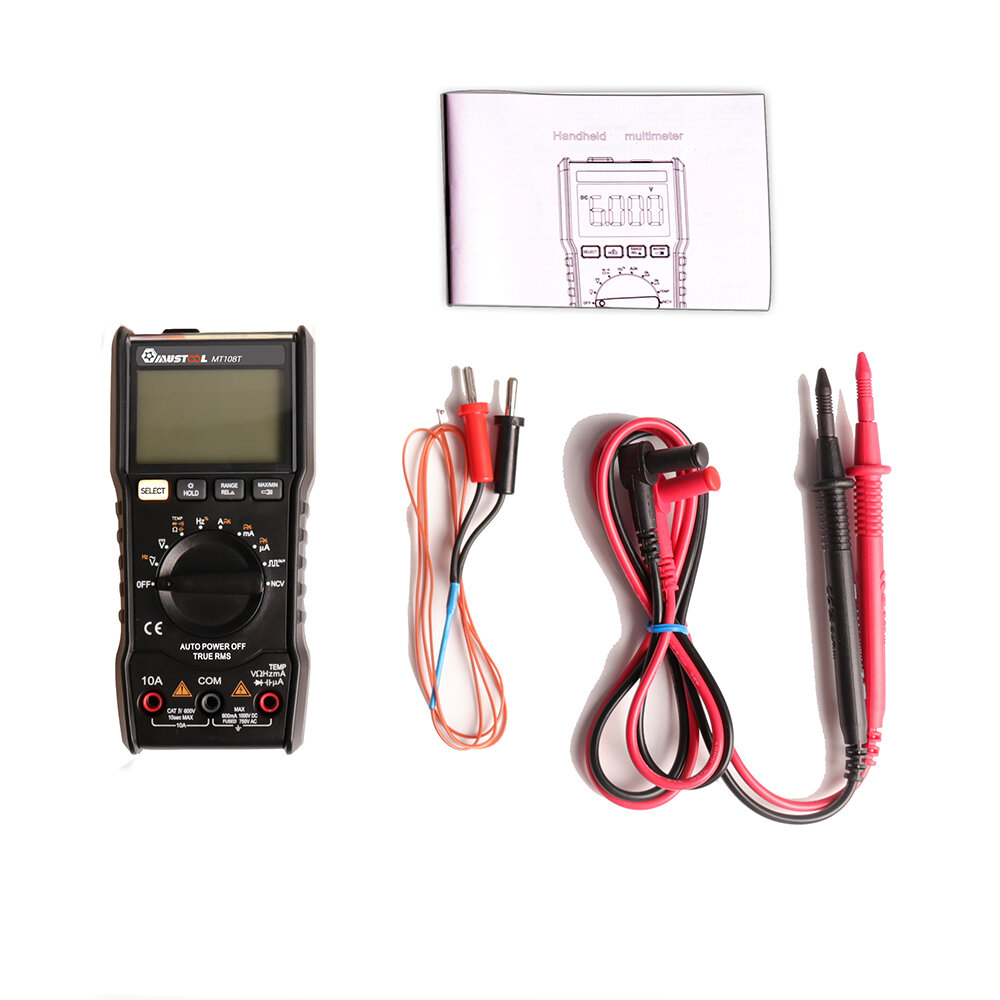

  Package includeds :

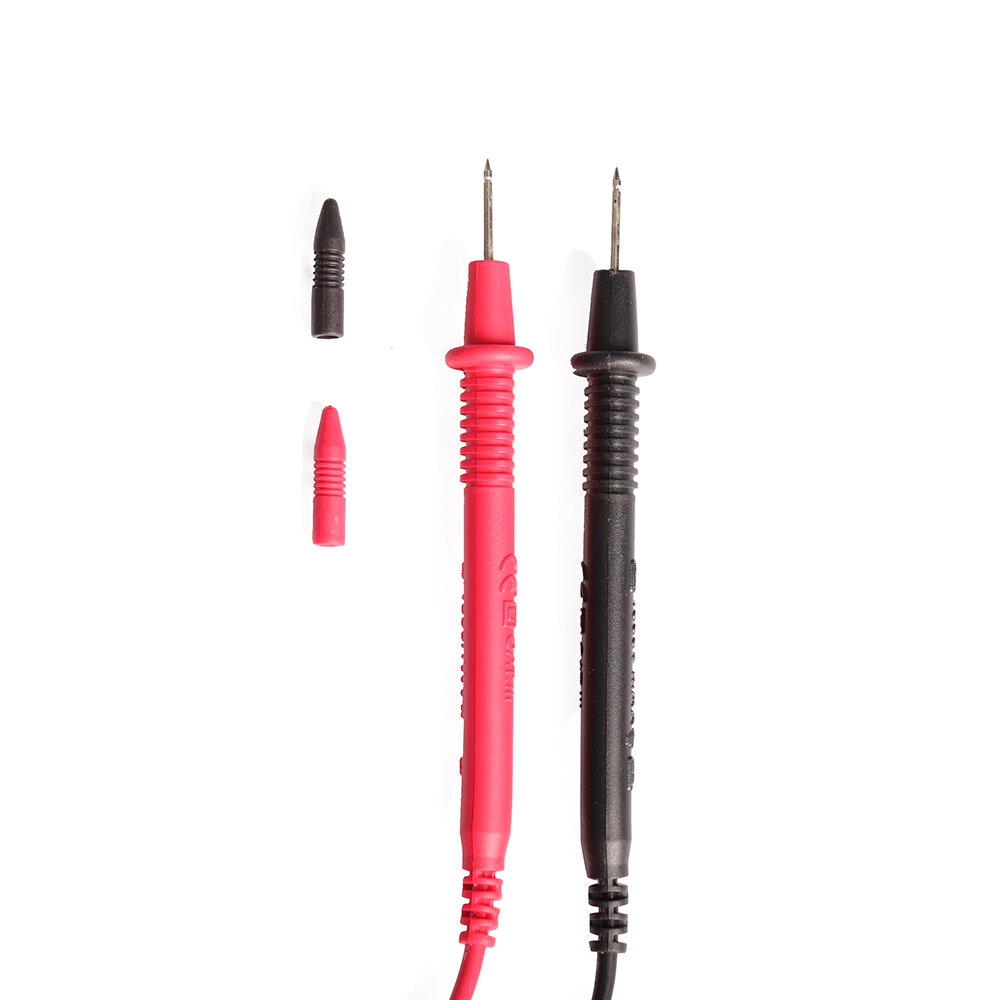

True RMS Multimeter 2 x Test Lead Set  1 x Temperature Sensing Cable  1 x English User Manual

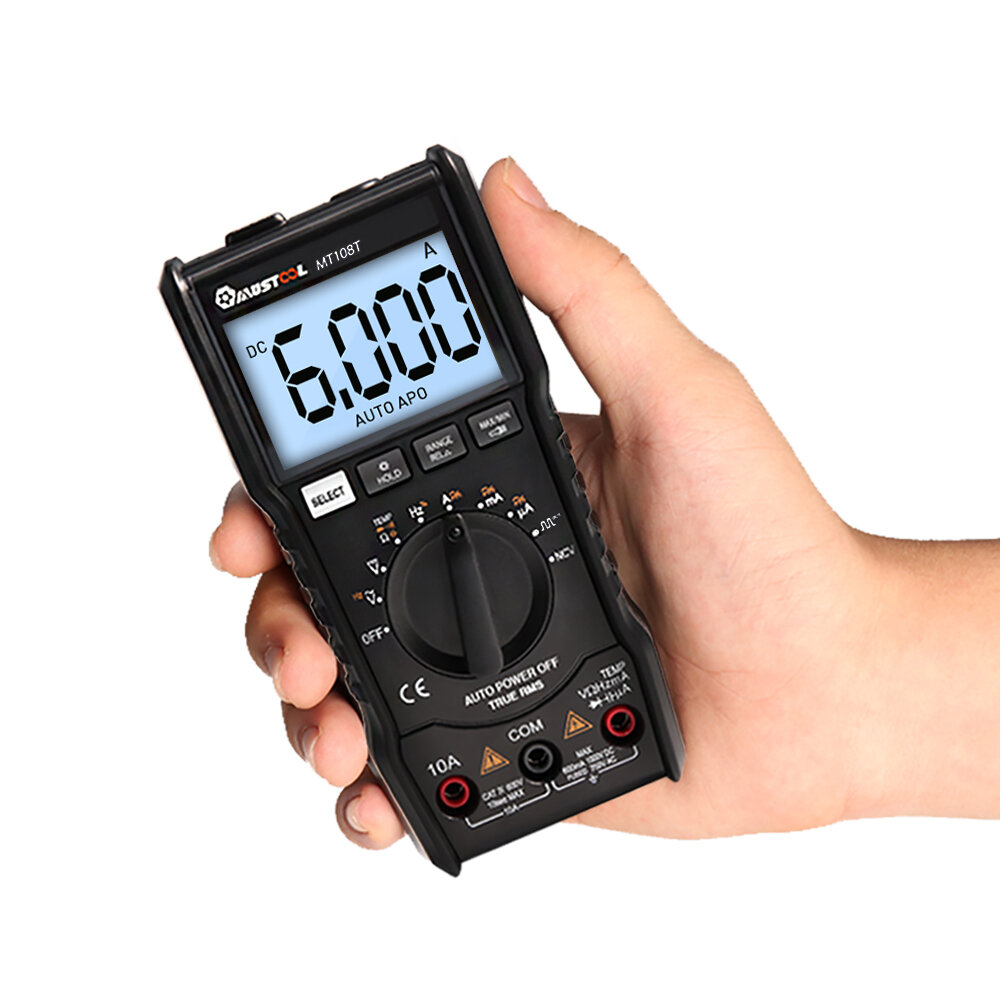

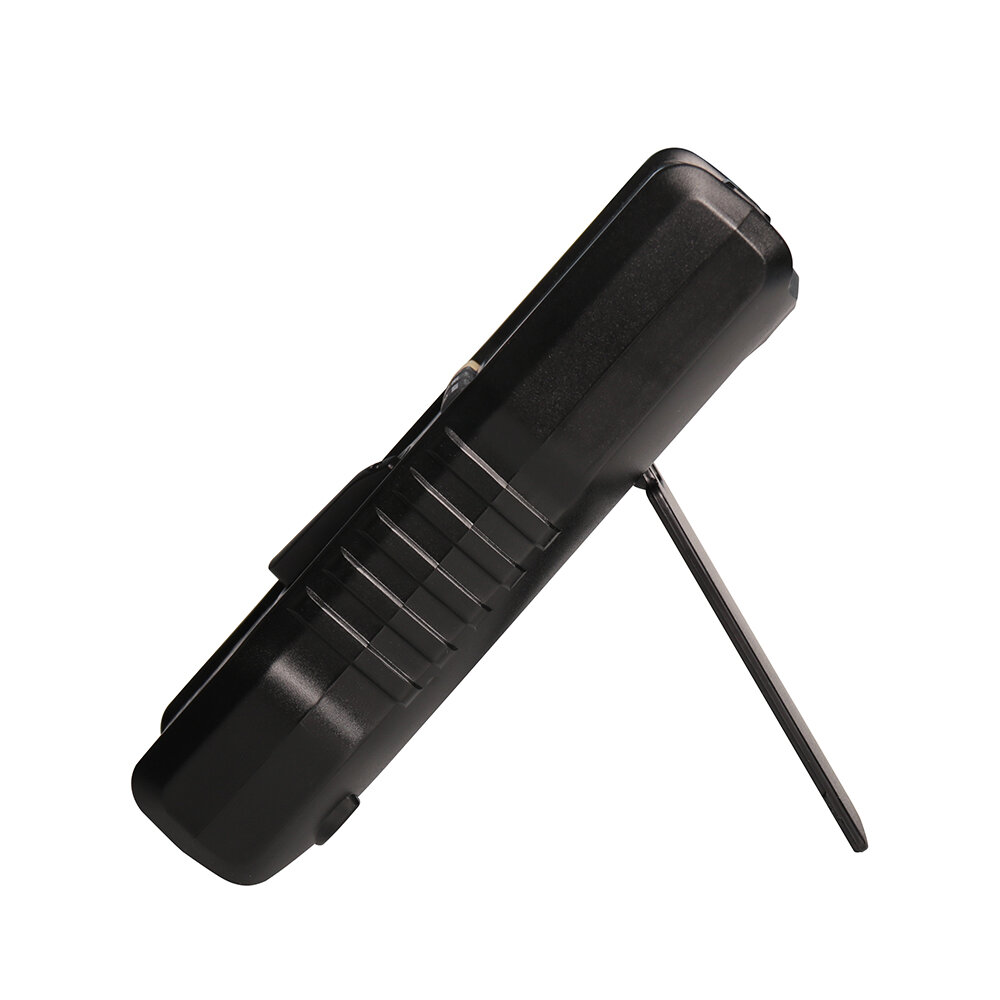

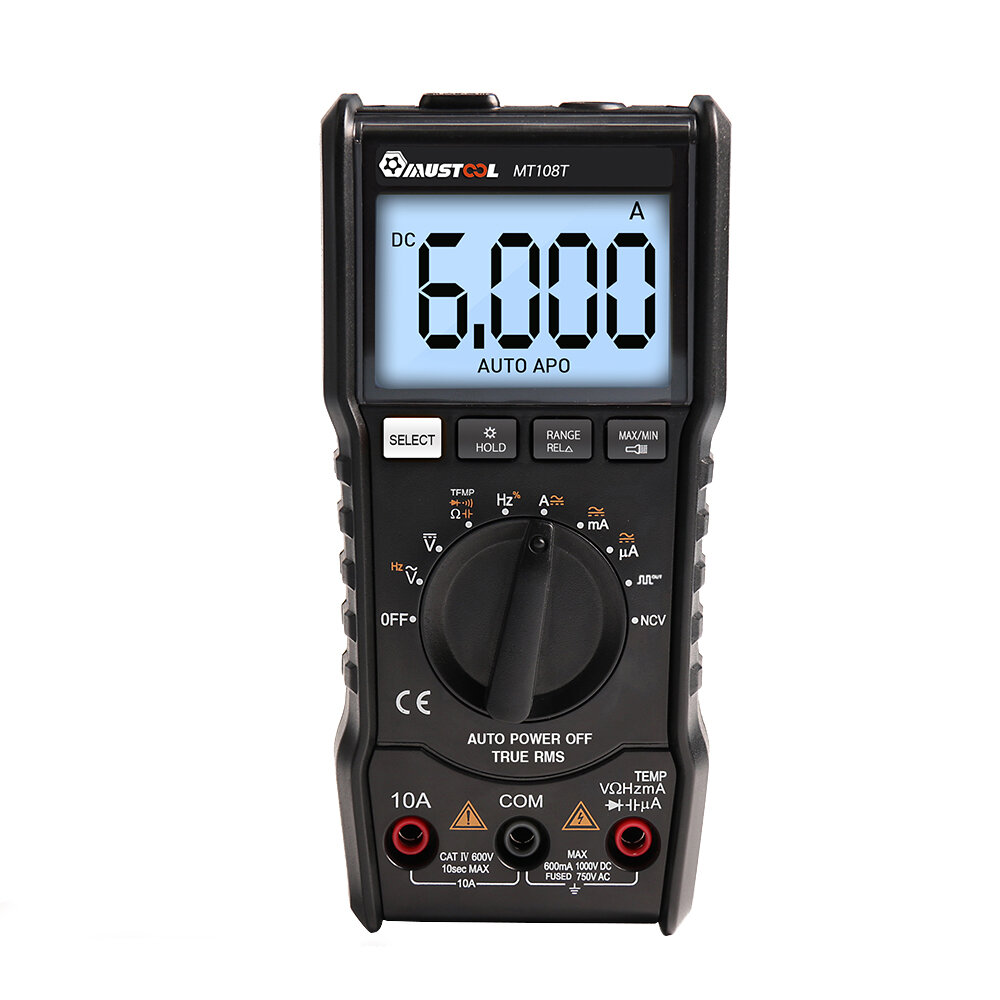

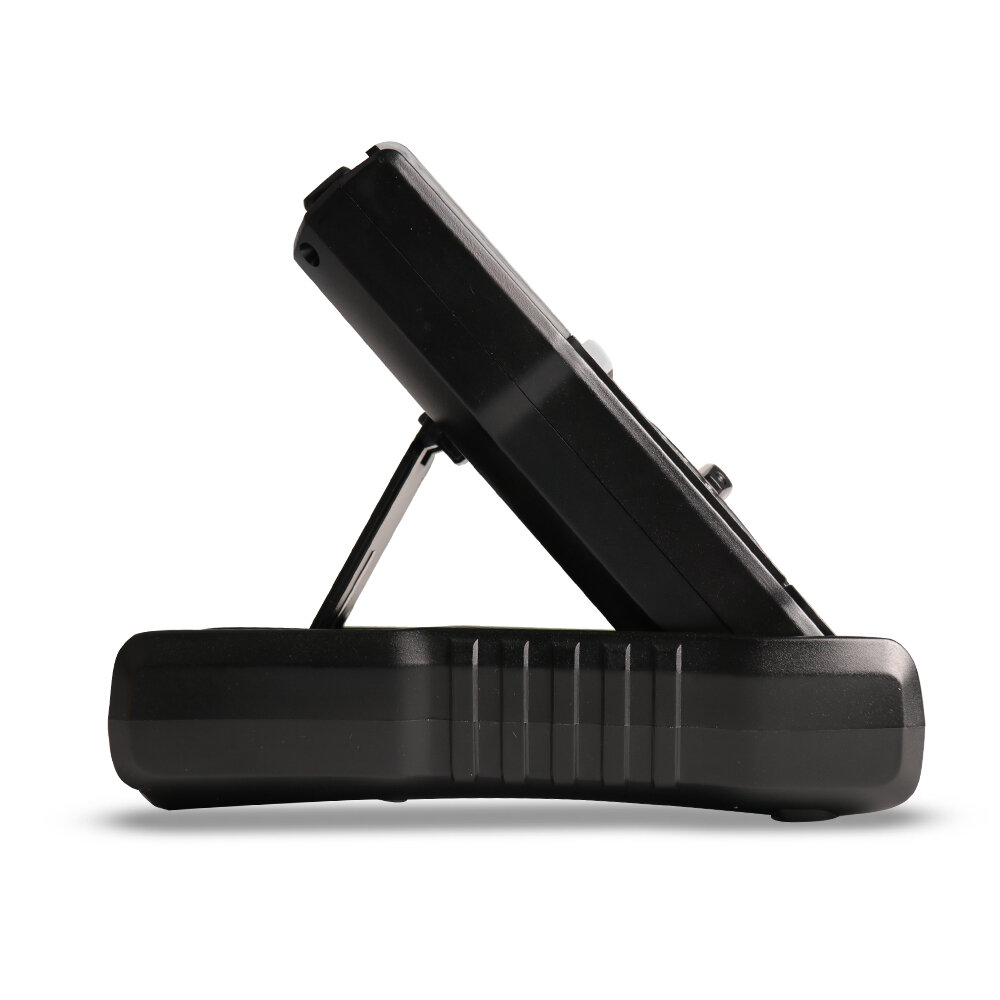

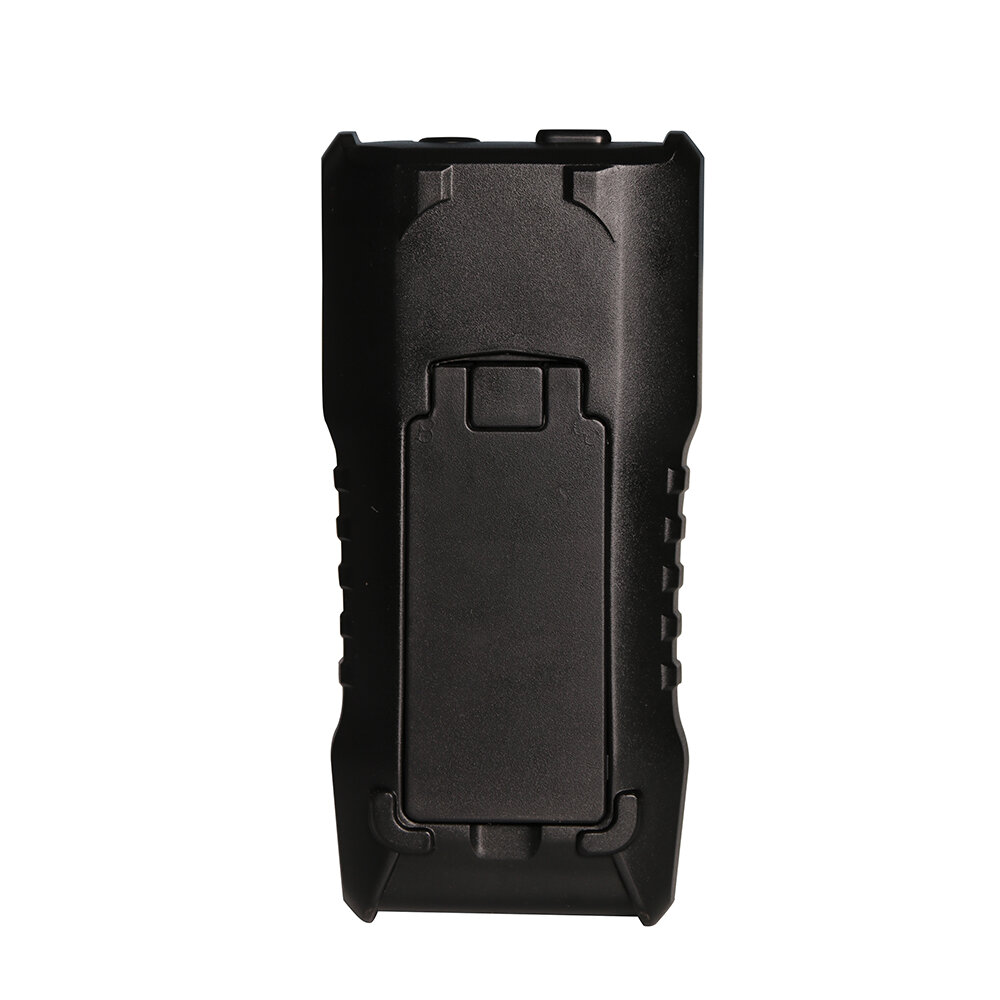

Details pictures :
