MUSTOOL X1 Pocket 6000 Counts True RMS Clamp Meter AC/DC Voltage&Current Digital Multimeter Automatic Digital Meter With Square Wave Output Ω/V/A/Diode/Frequency/Continuity Test

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Support DC current , AC Current , DC Voltage , AC Voltage Test

Overview:

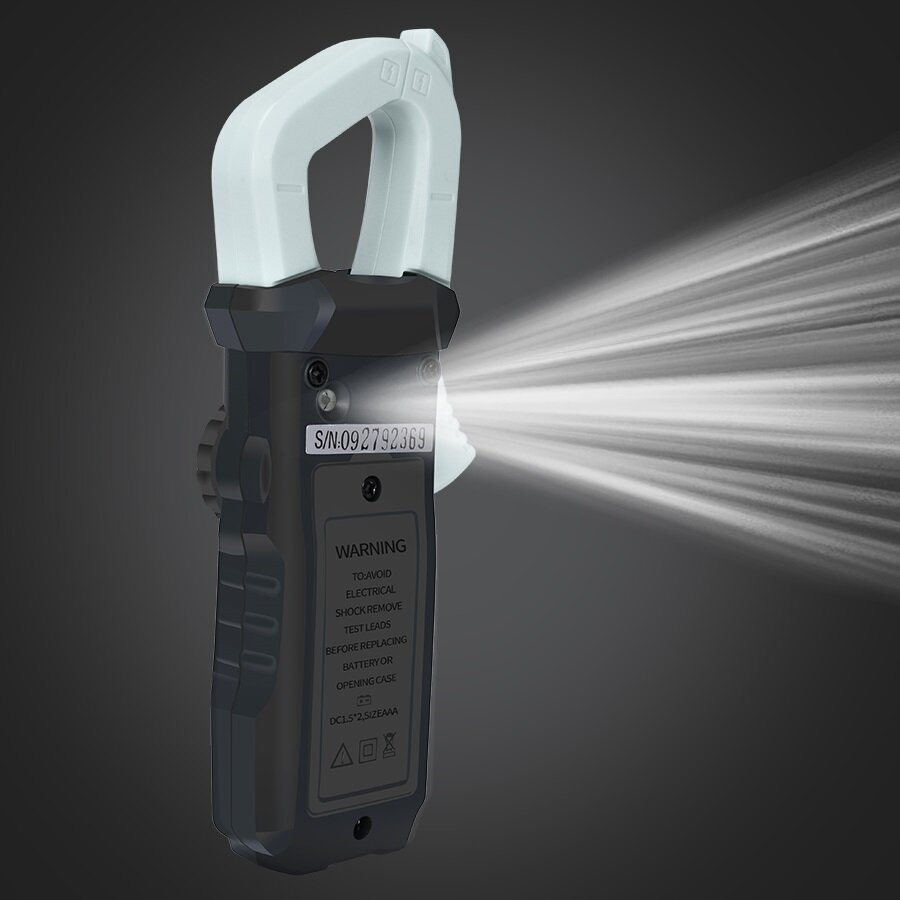

  This is a pocket-sized 3 5/6-digit automatic digital meter.  It has stable performance, high precision, high reliability, clear reading and overload protection.  Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply.  Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.  The meter is easy to carry and is very popular among users.  The instrument's backlight can be turned on and off automatically after 15 seconds.  This series of instruments can be used to measure DC voltage and AC voltage, AC and DC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS.  It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.
Features:

Square wave output
()

Specifications:

Accuracy
	()
	()

2.AC voltage(ACV)

Range	6000counts	Resolution
6V	±0.8%+3	0.001V
60V		0.01V
600V		0.1V
750V	±1.2%+10	1V

Accuracy
	()

4.AC currentAC A

Range	6000counts	Resolution
60A		0.01A
600A		0.1A

Accuracy
	()
	()
	()

6.Diode and continuity test

7.Capacitance(C)

Range	6000counts	Resolution
60nF	±3.5%+20	10pF
600nF		100pF
6uF		1nF
60uF		10nF
600uF		100nF
6mF	±5%+3	1uF
30mF		10uF

Accuracy
	()

9.Temperature measurement ( °C/°F)

Range	6000counts	Resolution
(-20-1000 )℃	±1.0%+5<400℃;   ±1.5%+15≥400℃	1℃
(0-1832 )℉	±0.75%+5<750℉;   ±1.5%+15≥750℉	1℉

Package Includes:


1 x Test Leads

1 x English User Manual
