New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

​- With Lithium battery
-1 x Automatic Antenna Tuner with Shell









It is assembled and ready to use.- The device does not consider its own efficiency.- Supply voltage is 5V standard voltage.-This Tuner can install  battery inside,if you need battery,please choose the one with battery

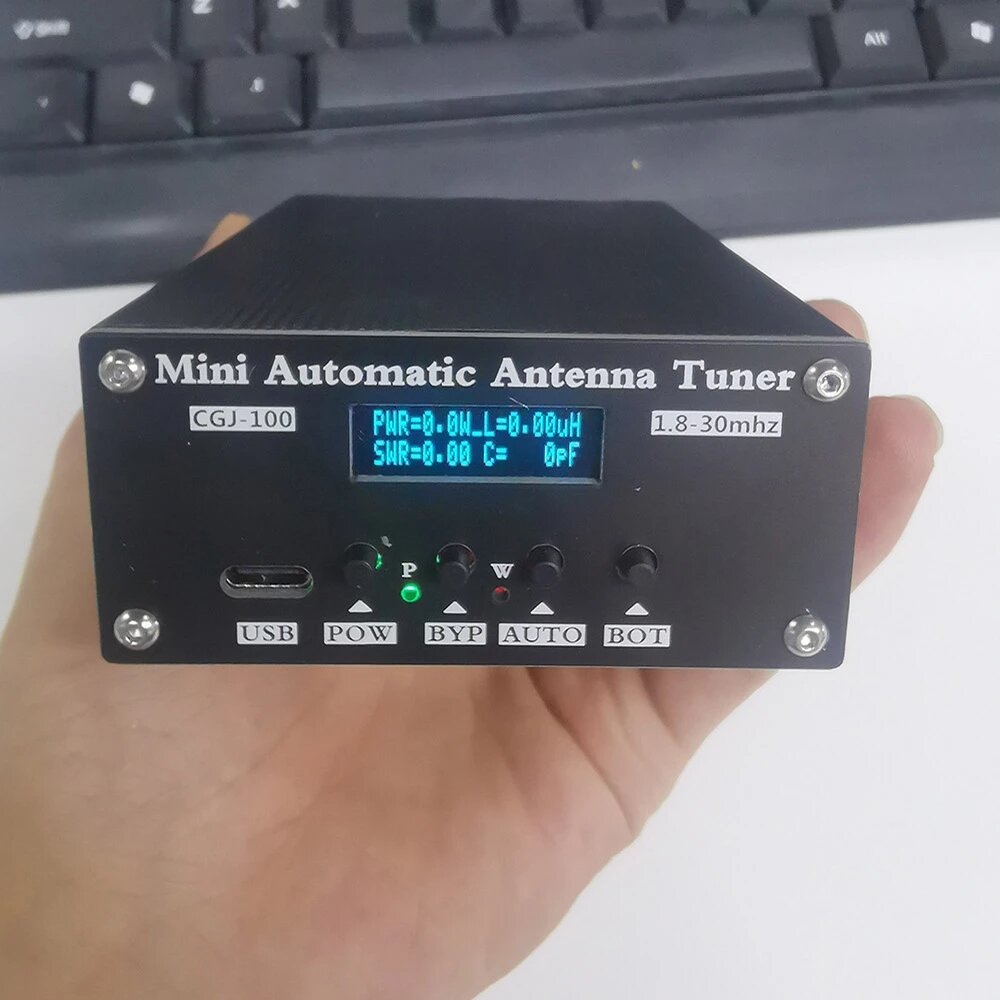

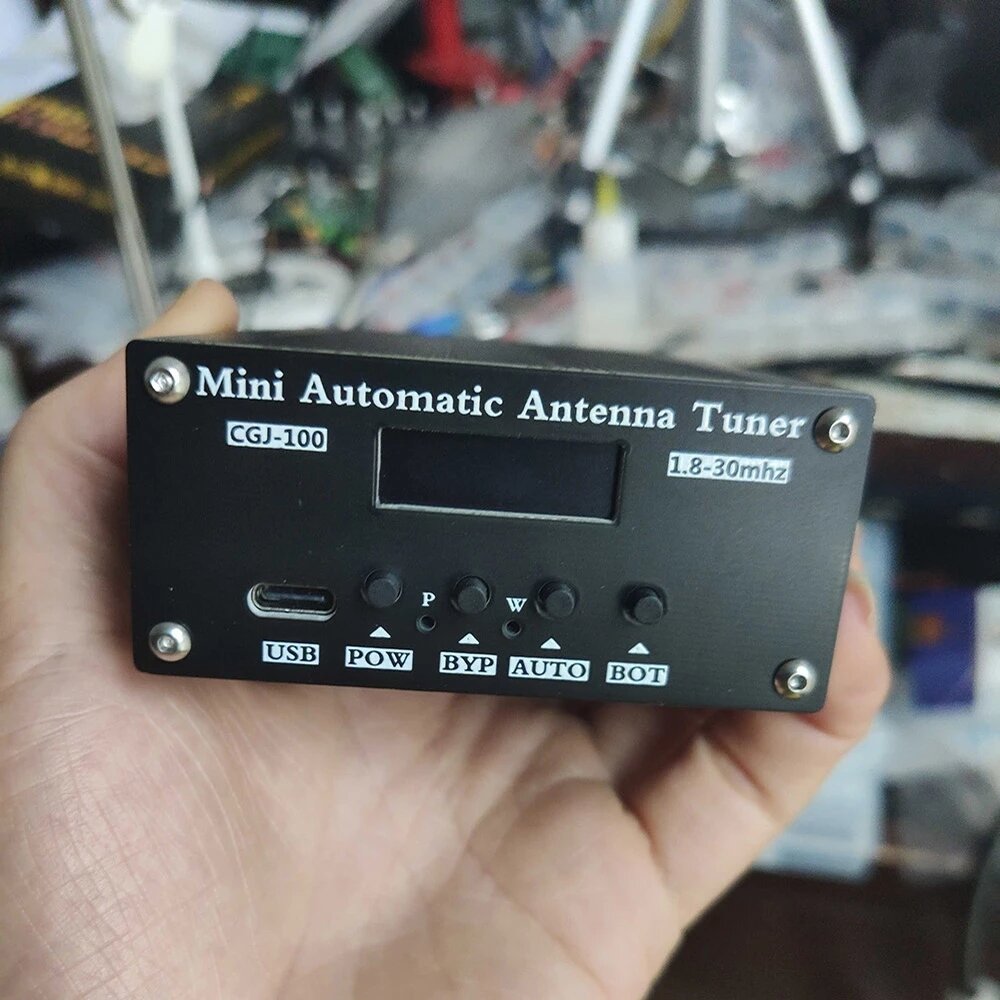

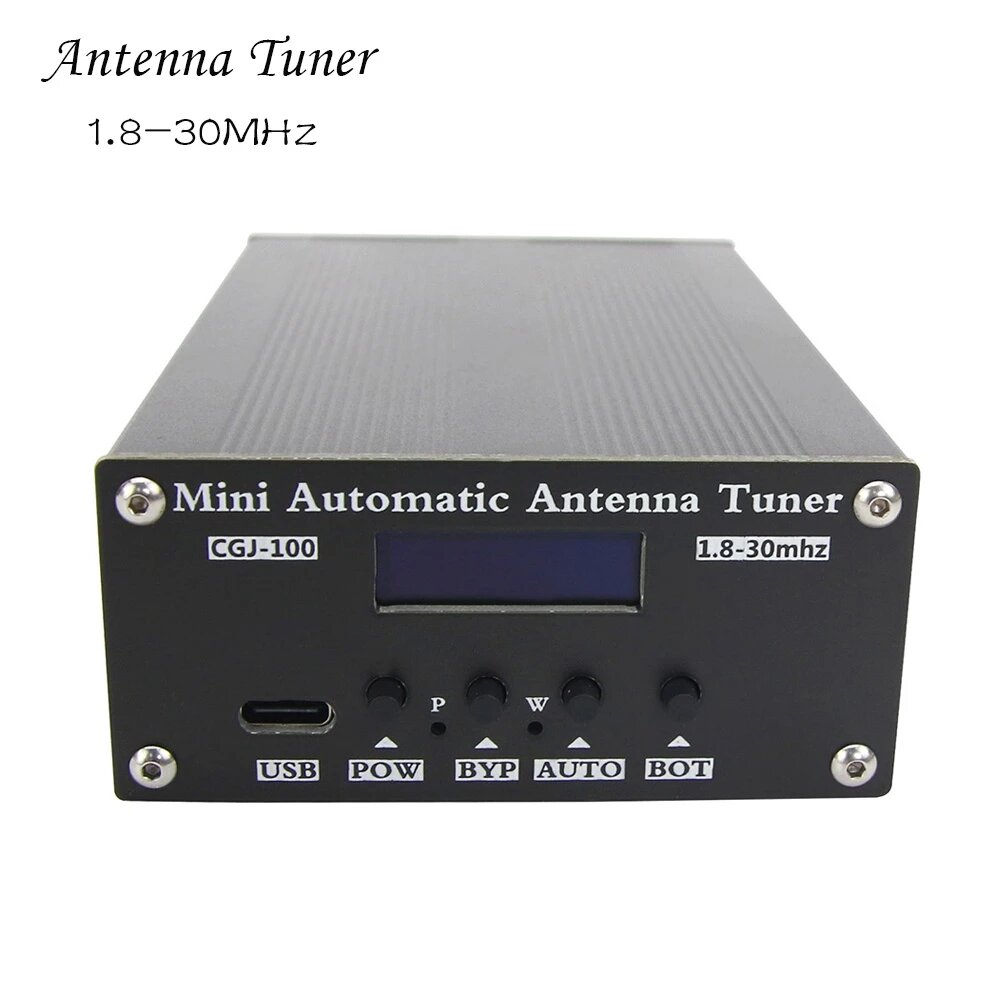

CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91" OLED Display For 5-100W Shortwave Radio Stations

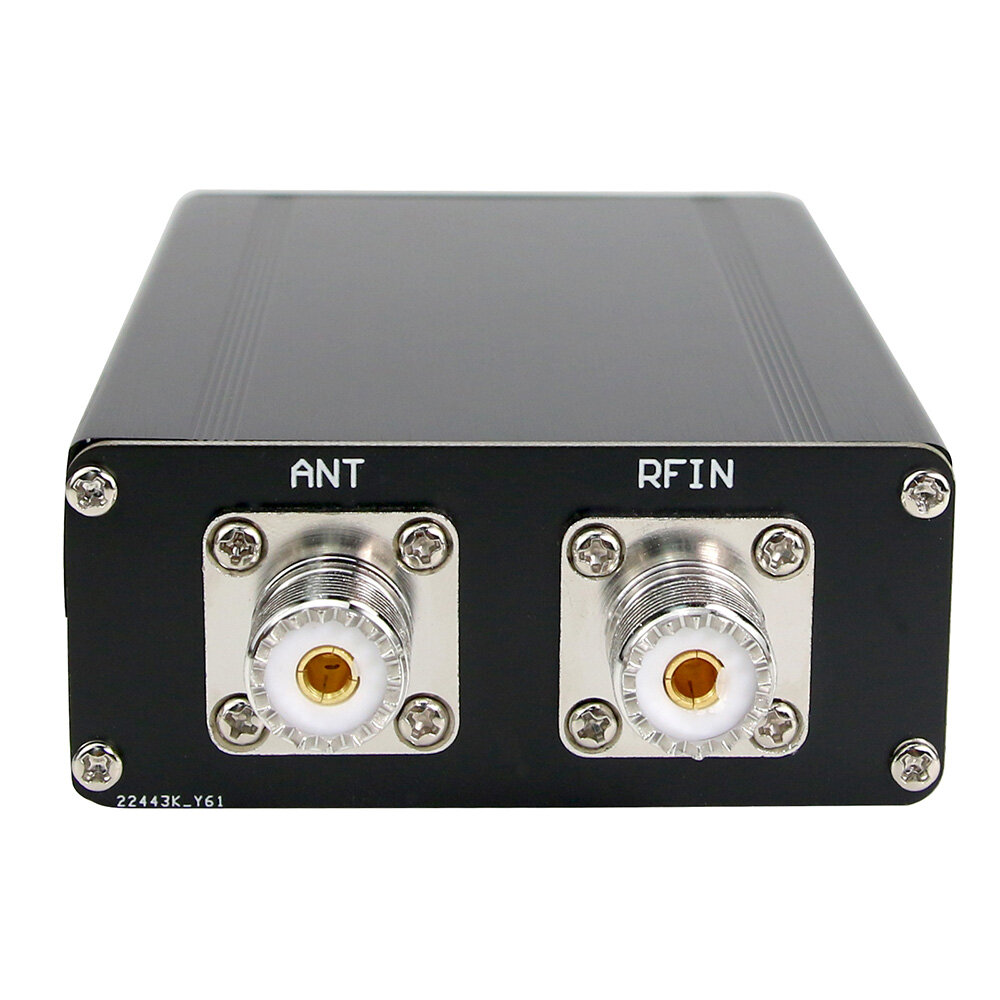

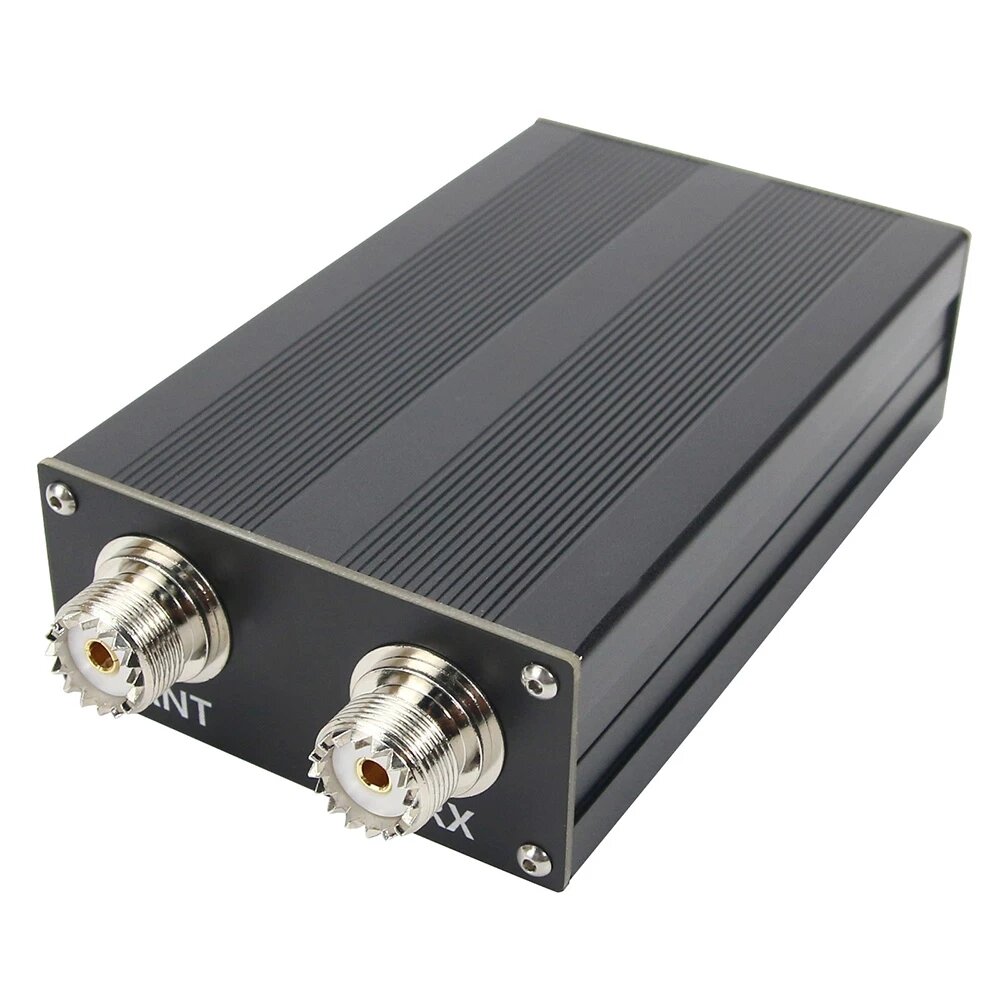

- Mini short-wave automatic antenna tuner.- TYPE-C charging interface, M connector.- With a 0.91-inch OLED display.- This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations.- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.
Specifications:
- 1 x Automatic Antenna Tuner>>Manual(clik to download)

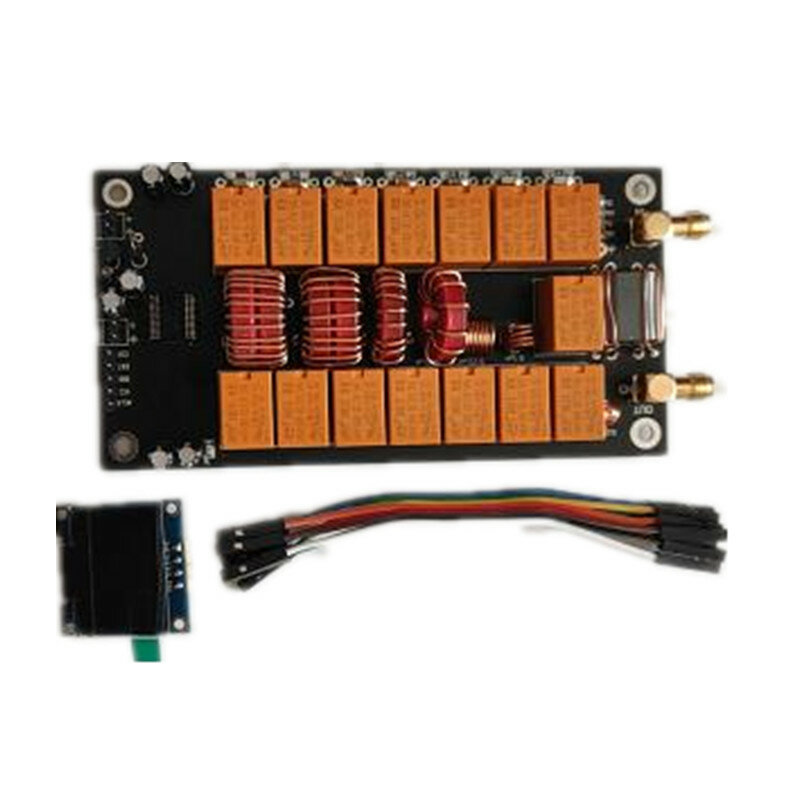

PCB Board + Screen)

Power supply range: 10 - 15 VDCMax current : 450mAMax working power: 100 wattsMax measured power: 150 wattsMinimum power for tuning start: 1 wattRecommended maximum power while tuning not above 30 watts. (after tuning you can set 100 watts and work on this power)Minimum measured power: 0.1 wattStep for measurement on powers under 10 watts: 0.1 wattStep for measurement on powers above 10 watts : 1 watt Power measurement accuracy : 10%Maximum inductance set: 8.5 uHMinimal step for setting inductance: 0.1 uHMaximum installed capacity: 1870 pFMinimal step for setting capacity: 10 pF 100 Watts tuner, 7x7 (7 capacitors x 7 coils) based on PIC 16F1938.Dimentsion - 120 mm x 62 mm.

 Package Included:

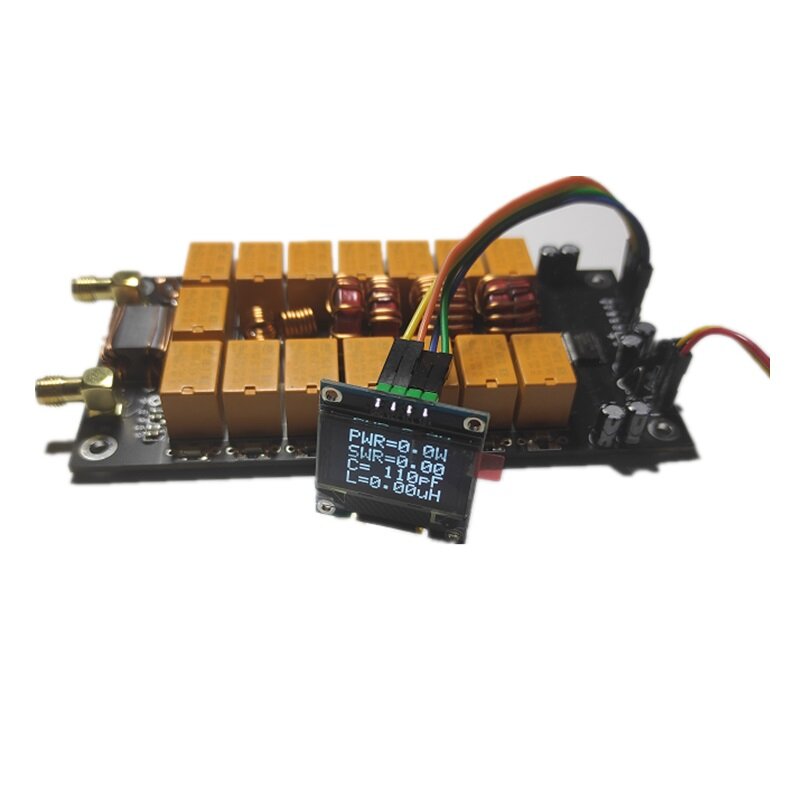

1 x PCB board1 x LCD screen1 x Dupont cable
Note: not included battery
