Original Hugen Version 2.8 Inch NanoVNA-H Vector Network Antenna Analyzer 10KHz-1.5GHz MF HF VHF UHF With SD Card Slot V3.6 Version spectrum analyzer COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

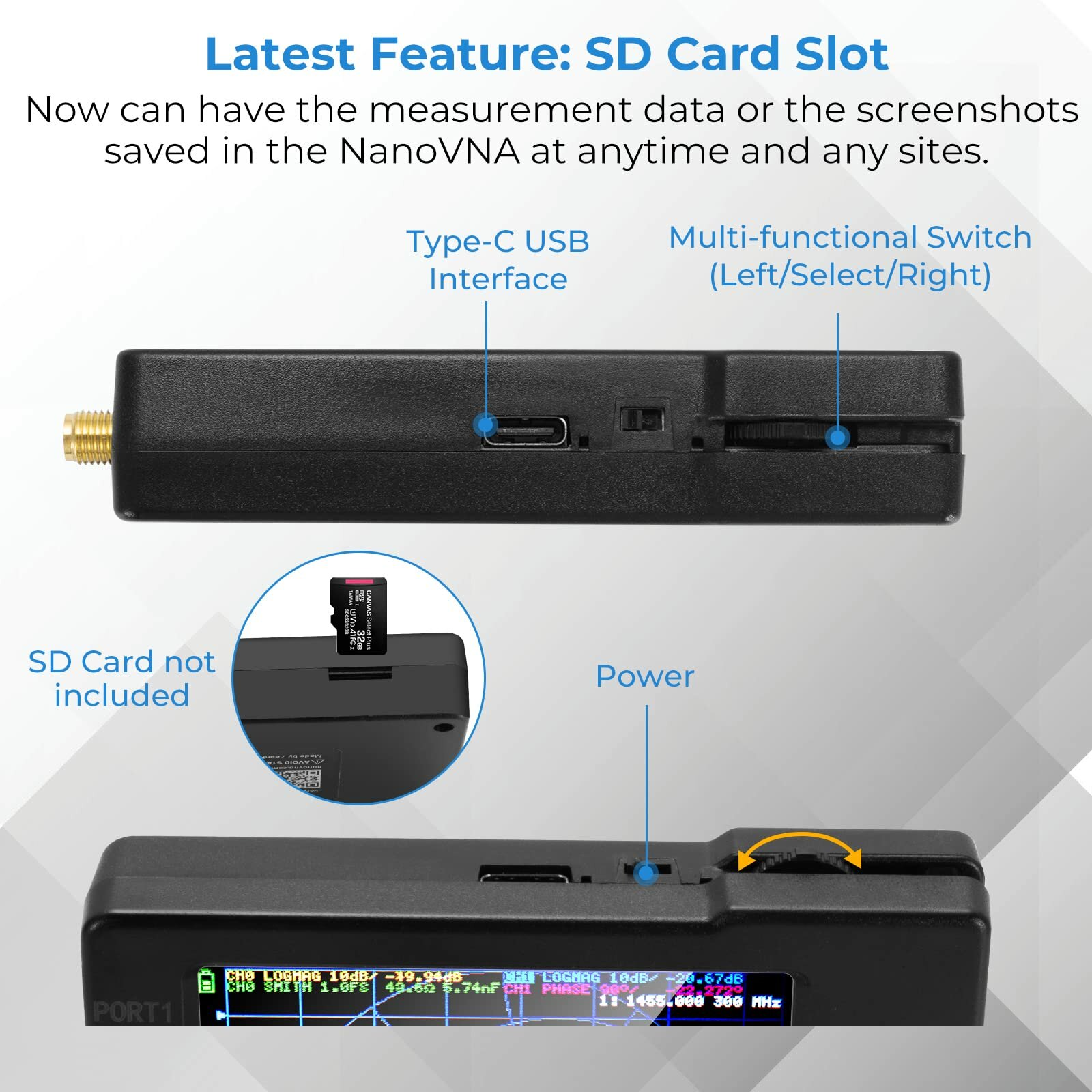

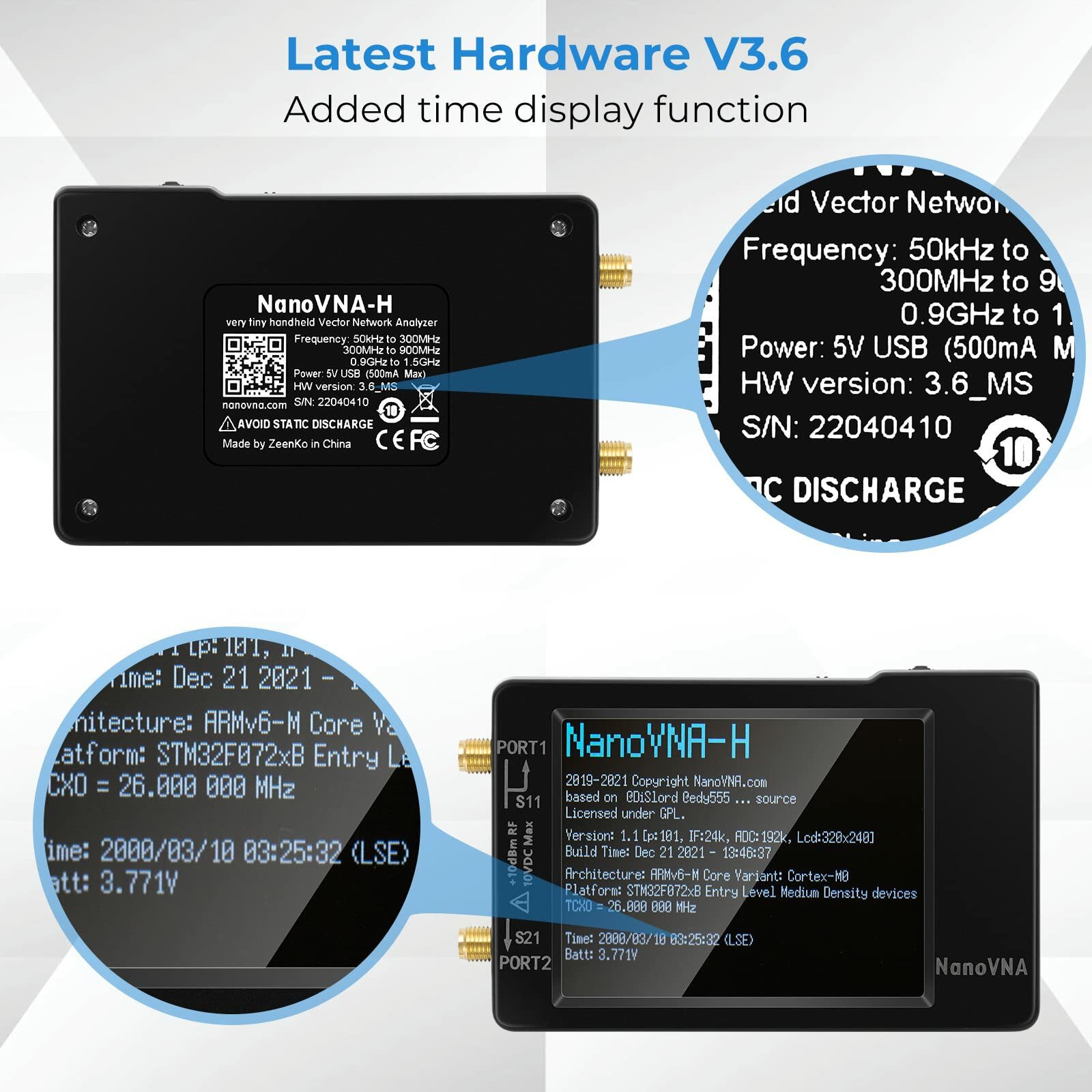

Latest HW Version 3.6: Experience upgraded hardware with MicroSD card support for data and screenshot storage, enhanced battery circuit management for added security, and a redesigned PCB for easy mobile phone connectivity via Type C-Type C cable. Enjoy clear HD images on your phone, all while being protected by the included dust-proof case.



Improved Frequency Algorithm: With an advanced frequency algorithm, this analyzer offers extended measurement capabilities. It supports frequencies up to 1.5GHz and provides excellent dynamic range: 50K-300MHz (better than 70dB), 300M-900MHz (better than 60dB), and 900M-1.5GHz (better than 40dB).

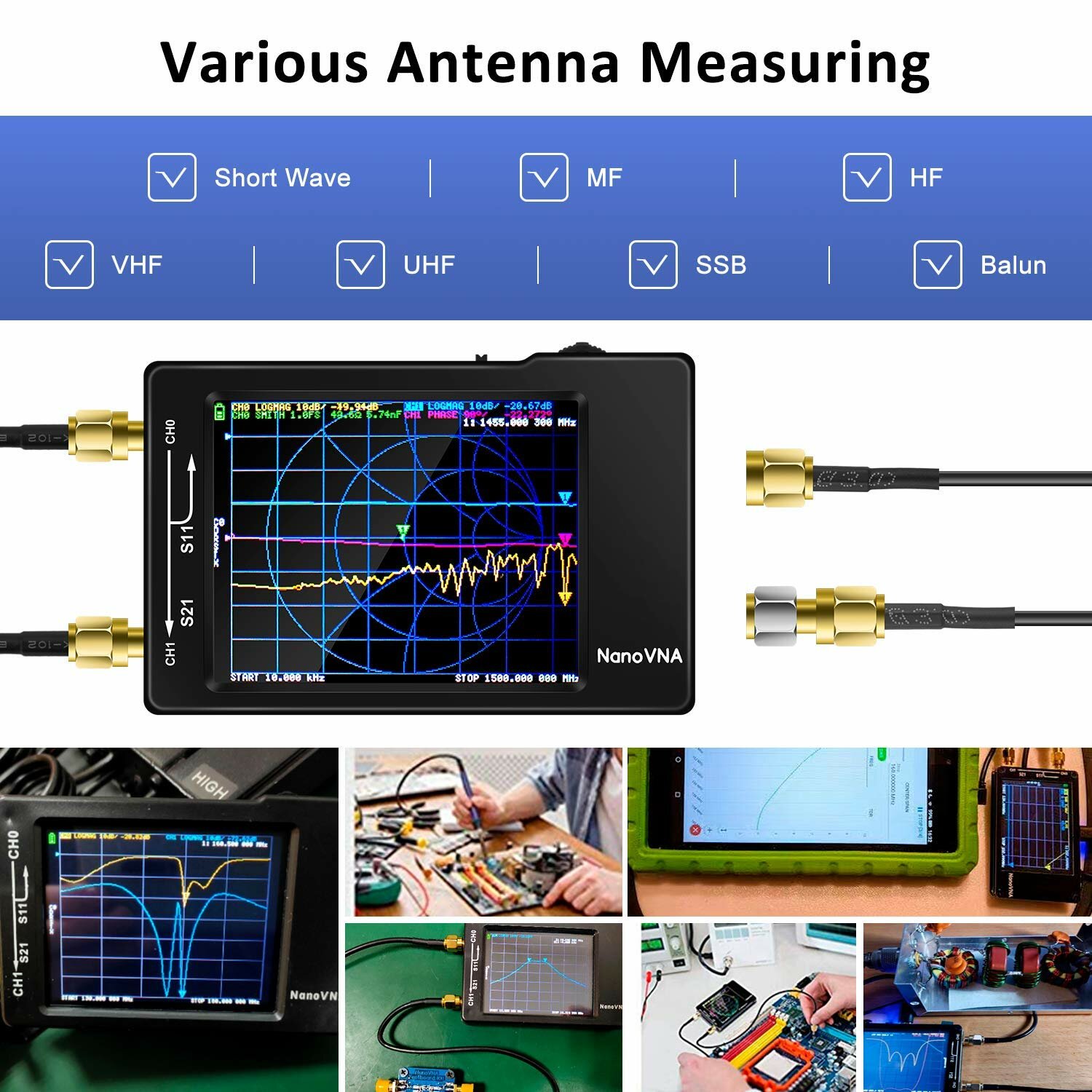

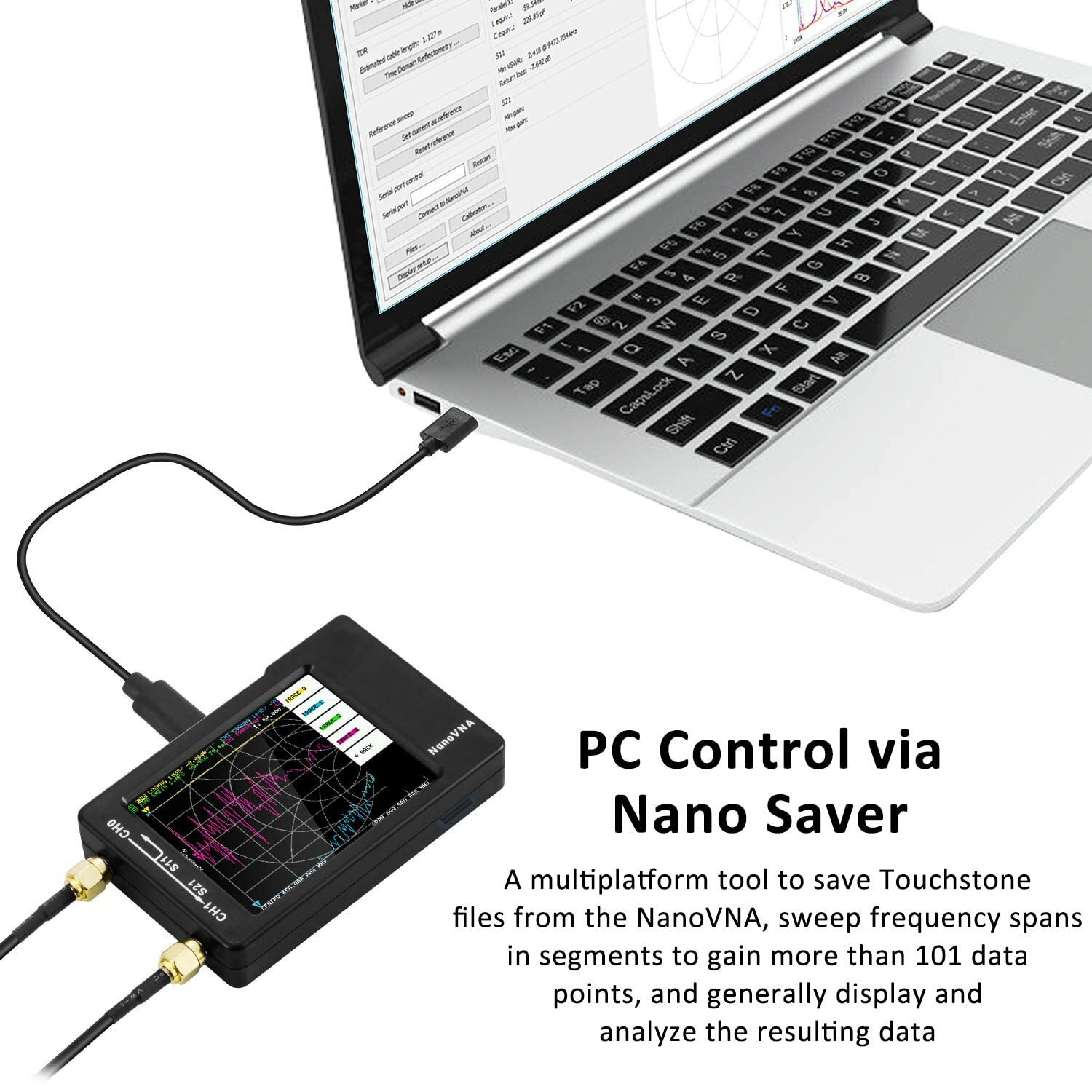

Multiple Functions: This device is designed for versatile use. The default firmware measures antenna performance, while the TX/RX method can assess S11 and S21 parameters. For S12 and S22 measurements, simply reconfigure the transceiver port wiring. It also comes with a practical PC control application and supports  (SNP) files for radio design and simulation.



Strong and Secure Power Supply: Enjoy the flexibility of both battery and USB power options. The built-in 650mAh battery provides up to 2 hours of continuous operation, and you can extend usage time by connecting to a power bank or other power source.



Complete Package: Your purchase includes the NanoVNA host with a built-in battery and a 2.8-inch TFT display. It also comes with a USB Type-C data cable, two 30mm SMA male-to-male RG174 RF cables, an SMA simple calibration kit, and an SMA female-to-female connector.

Model: NanoVNA-H V3.6

Frequency Range: 10KHz - 1.5GHz

Display: 2.8-inch TFT (320 x 240)

Power Supply: Built-in 650mAh battery or USB power

Compatibility: Low-speed and SPI mode SD card support



1 x NanoVNA-H Network Analyzer

1 x 2.8-inch TFT Display

1 x USB Type-C Data Cable

2 x 30mm SMA Male-to-Male RG174 RF Cables

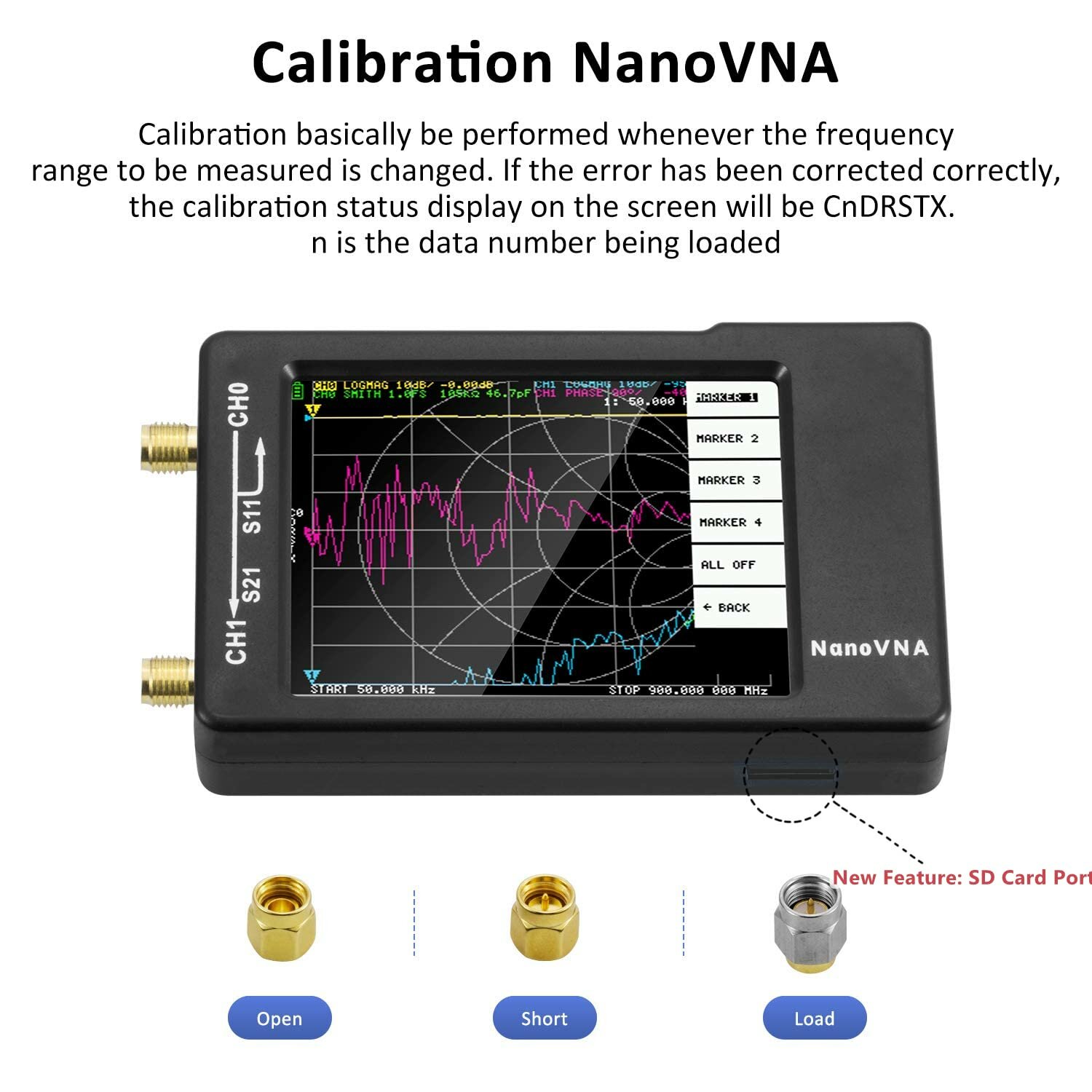

1 x SMA Simple Calibration Kit

1 x SMA Female-to-Female Connector
