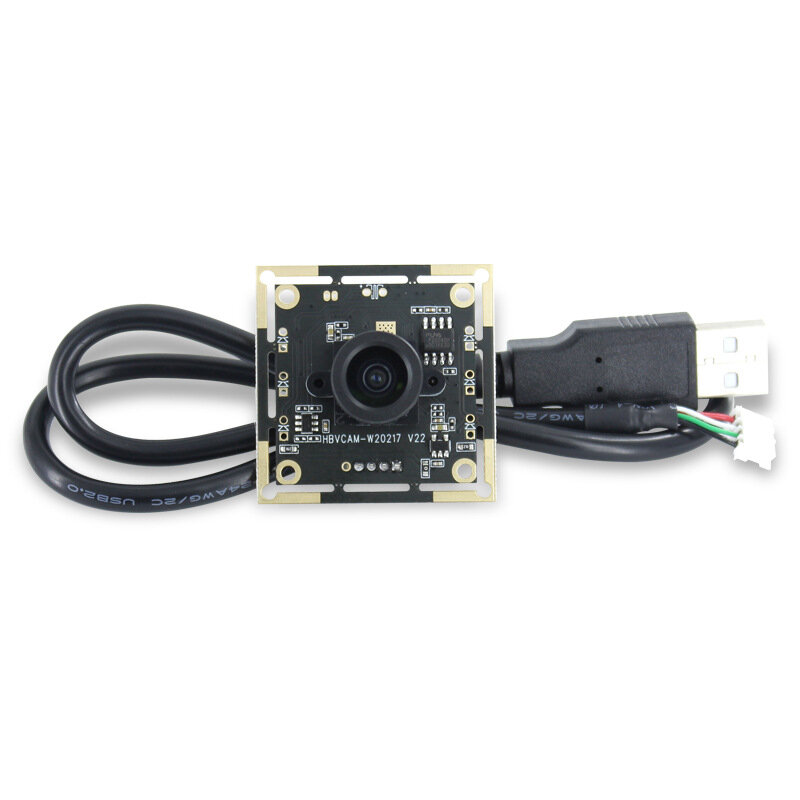

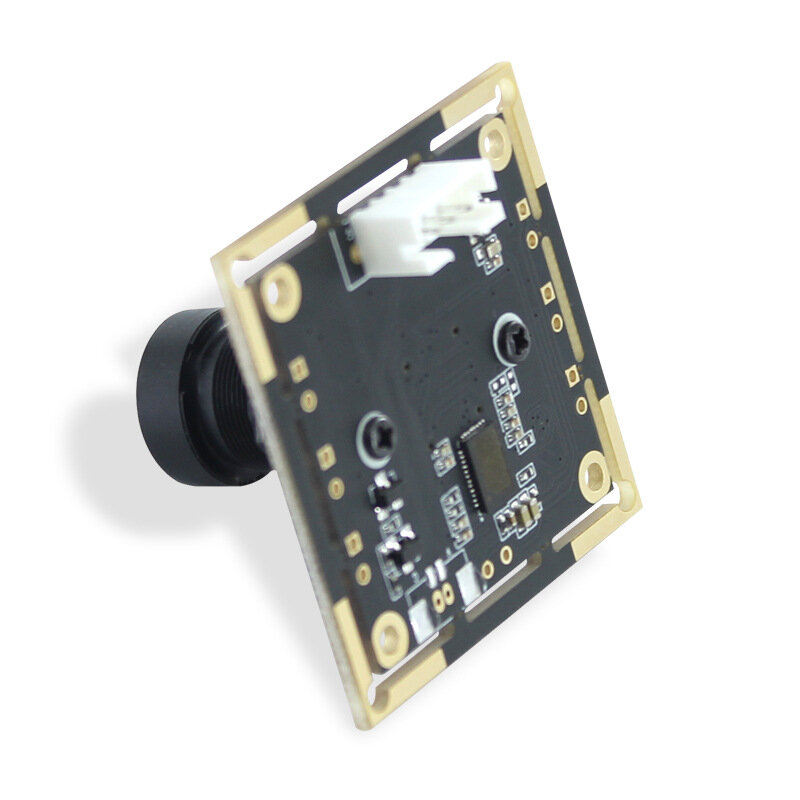

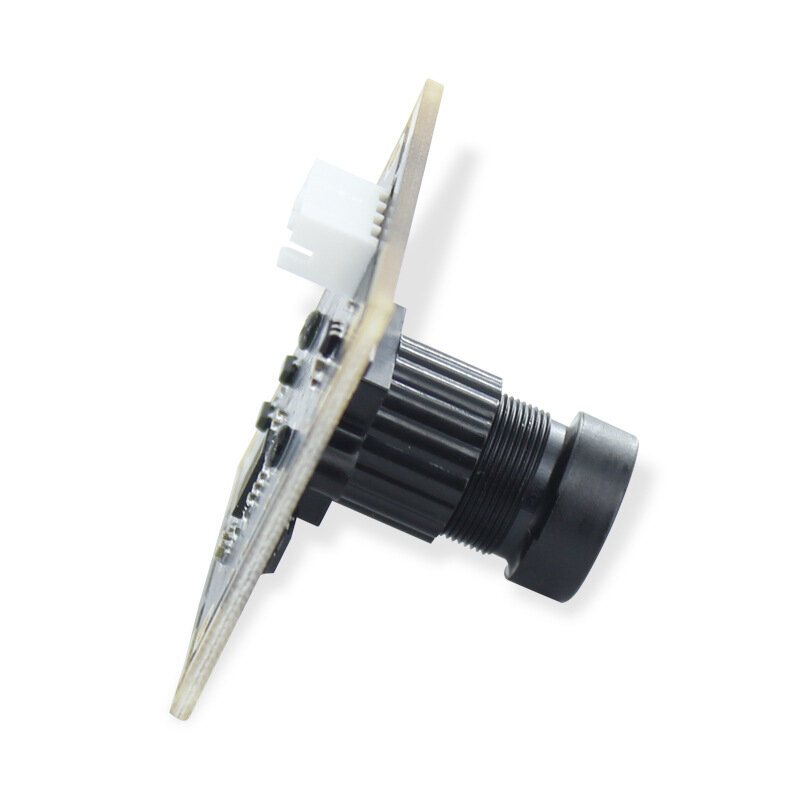

OV9732 Camera Module 720P High-definition Face Recognition All-in-one Placement Machine Driver-free 1 million Pixel Camera COD [2008347]

Home/ Electronic Components & Supplies/ Module Board/ Smart Module/ OV9732 Camera Module 720P High-definition Face Recognition All-in-one Placement Machine Driver-free 1 million Pixel Camera COD

Item Description
Customer Reviews
Payment & Shipping

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

Select
Make:
Select
Submodel:
Select
Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

Year
Make
Model
Submodel
Trim
Engine

Specifications:

Module No.	HBVCAM-W20217 V22
Module Size	38mm x 38mm x 24.5mm±0.5MM
Temperature (Operation)
Temperature (Stable Image)
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM
Resolution	600LW/PH (Center)
PCB printing ink	Black
	USB 2.0
Power suuply	USB bus power
	DC 5V±5%
Maximum Power consumption	450 mW
Operating system request
Sensor	OV9732 (1/4n)
Seneor Package	CSP.Bare Die
Maximum resolution	1280*720
Sensitivity	3300mV/ (lux-sec)
Pixel Size	3um x 3um
Maximum Image Transfer Rate	MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30EPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
S/N Ratio	39db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.6 mm
FOV	72°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Package includes:

1 x Camera Module

1 x USB Cable
