OWON B35T+ True RMS Bluetooth Digital Multimeter Datalogger+Multimeter+Temperature meter 3 in 1 Multi-Connection Offline Record COD [1739486]

Home/ Tools/ Measurement & Analysis Instruments/ Digital Multimeters & Oscilloscope/ Multimeters/ OWON B35T+ True RMS Bluetooth Digital Multimeter Datalogger+Multimeter+Temperature meter 3 in 1 Multi-Connection Offline Record COD

Item Description
Customer Reviews
Payment & Shipping

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

Select
Make:
Select
Submodel:
Select
Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

Year
Make
Model
Submodel
Trim
Engine

	Measurement Range		Resolution	Accuracy
DC Voltage	mV	60.00mV/600.00mV	0.01 mV	±(0.5%+2 digit)
	V	60.00mV/600.00mV/6.00V/60.00V	0.1 mV
	V	600V/1000V	0.1 V
AC Voltage		60.00mV/600.00mV	0.01 mV	±(0.8%+2 digit)
		60.00mV/600.00mV/6.00V/60.00V	0.1 mV	±(0.8%+2 digit)
		600V/750V	0.1 V	±(1%+3 digit)
DC current	uA	600.0uA	0.1 uA	±(0.8%+2 digit)
	mA	600.0mA / 6.000mA / 60.00mA / 600.0mA / 6.000A	0.01mA	±(0.8%+2 digit)
	A	20.00A	1mA	±(1.2%+3 digit)
AC Current	uA	600.0uA	0.1 ma	±(1%+3 digit)
	mA	600.0mA / 6.000mA / 60.00mA / 600.0mA / 6.000A	0.01mA	±(0.8%+2 digit)
	A	20.00A	1mA	±(2%+3 digit)
Resistance		600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ /10.00MΩ	0.1Ω	±(0.8%+2 digit)
Resistance		60.00MΩ		±(2%+3 digit)
Capacitance		40.00nF		±(2.5%+3 digit)
		400.0nF / 4.000uF / 40.00uF	0.1nF	±(2.5%+3 digit)
			0.1uF	±(3%+5digit)
Frequency		9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz	1mHz	±(0.8%+2 digit)
Duty Ratio		0.1% -99.9% (typical value: Vrms=1V, f= 1kHz)	0.1%	±(1.2%+3 digit)
Duty Ratio		0.1% - 99.9% (≥1kHz)	0.1%	±(2.5%+2 digit)
Temperature		-50°C - +400°C		±(2.5%+3 digit)
Temperature		-58°F- +752°F		±(4.5%+5 digit)
Display		6000 - count
Frequency Response		(40-400)Hz( D35( B35, B35+ ); (40-1000)Hz ( D35T, B35T, B35T+)
Shift Rate on DMM		3 times / s
Shift Rate on App		2times / s
Simulated Chart

Auto Ranging	√
Offline Recording










Max / Min Value
	B35T+
True RMS	available in D35T, BB5T, and B35T+
Simulated Chart	√
Input Protection	√
Input Impedance	10MΩ
LCD Size	69 x 52 mm
Display Area	67 x 46 mm (effective area 66 x 45
	(not included)

Package included:
1 x B35T+ Smart Digital Multimeter1 x Probe1 x K-Type Thermocouple1 x Alligator clip1 x Multi-function test socket1 x English Manual 1 x Soft case

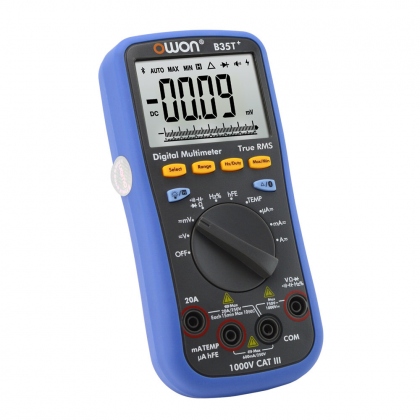

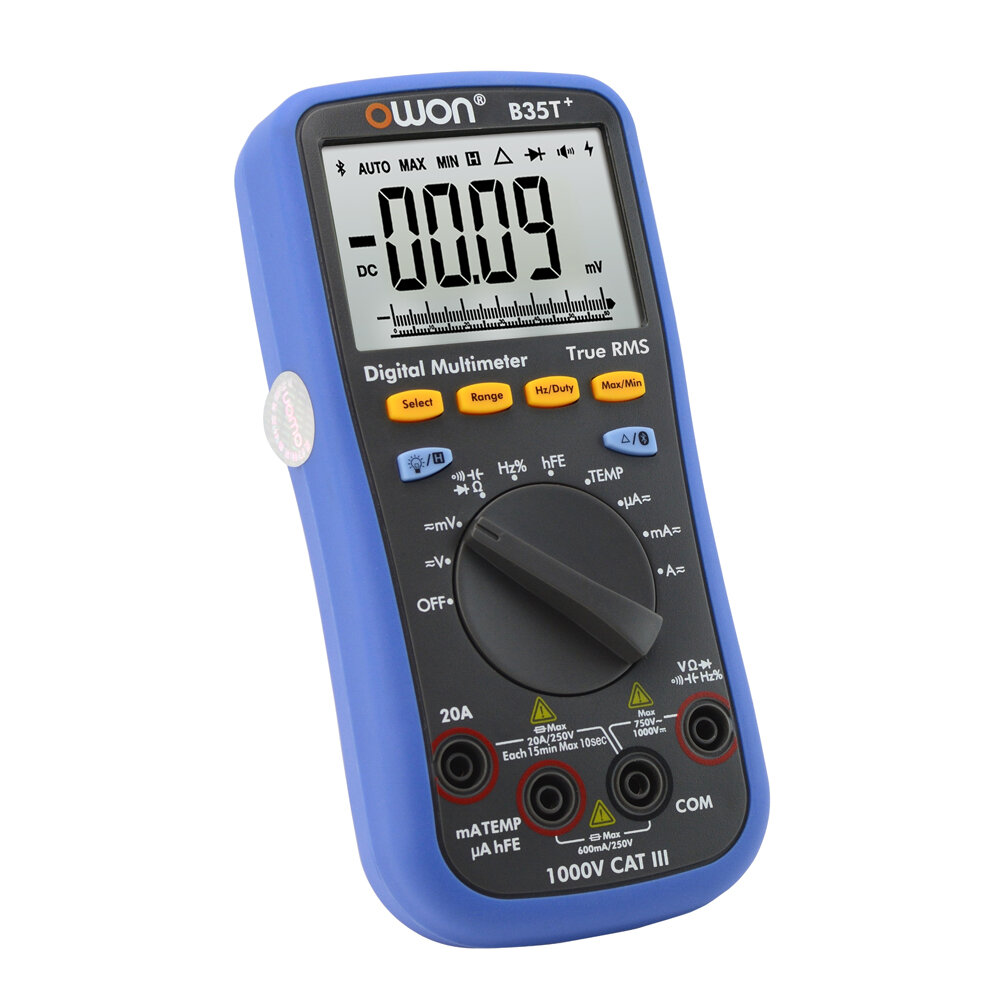

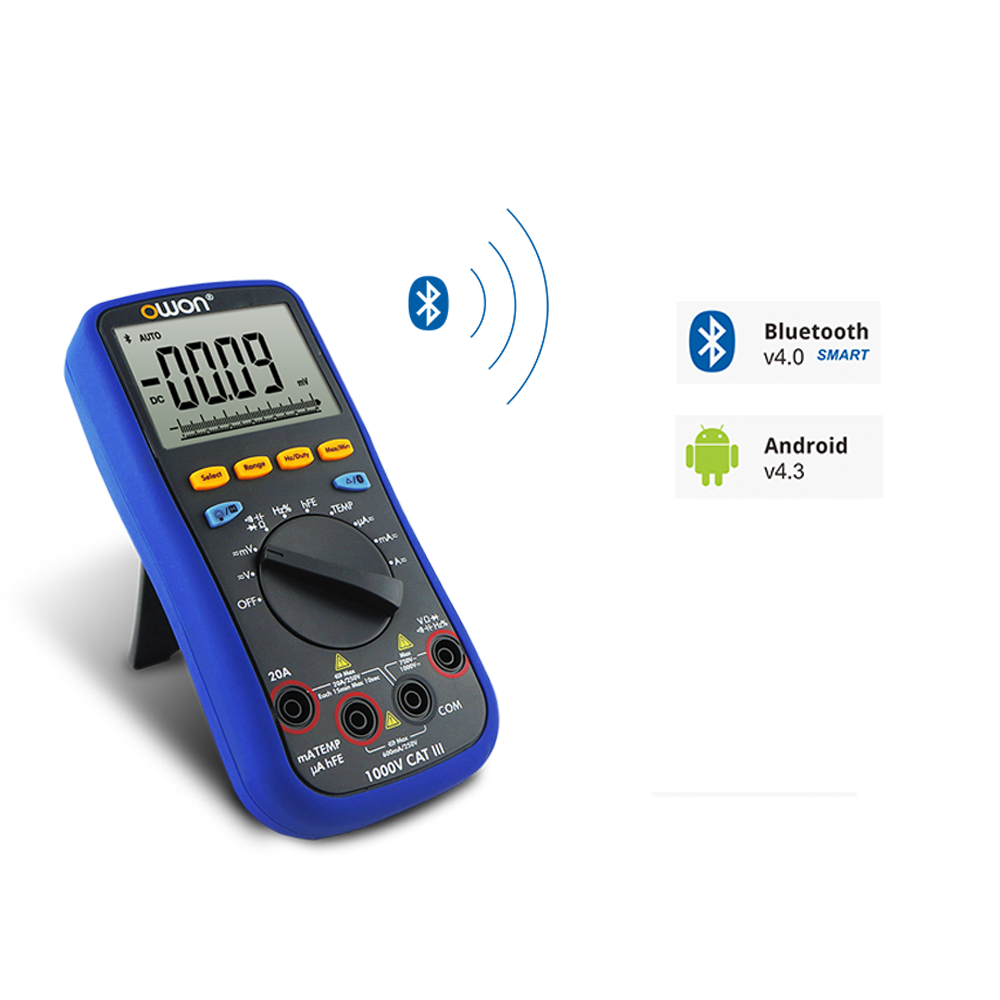

Details Pictures:

OWON B35T+ True RMS Bluetooth Digital Multimeter Datalogger+Multimeter+Temperature meter 3 in 1 Multi-Connection Offline Record COD
