OWON HDS242/HDS242S 40MHz 3-in-1 LCD Multifunctional Digital Handheld Oscilloscope Multimeter OSC + DMM + Waveform Generator COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Waveform Generator(only for

Model
	Input Coupling
		(10:1 probe attenuation)
	Bandwidth Limit (typical)	20MHz
	Horizontal Scale	5ns/div - 500s/div, step by 1-2- 5
	Vertical Sensitivity	10mV/div - 10V/div
	Vertical Resolution	8 bits
	Trigger Type	Edge
	Trigger Modes	Auto, Normal, single
	Automatic Measurement	Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
	Cursor Measurement	△V, △T, △T&△V between cursors
	Communication Interface	USB Type-C
Multimeter (Standard)	Max. Resolution	20,000 counts
	Testing Mode	Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
	Input Impedance	10MΩ
	Max Input Voltage	AC 750V, DC 1000V
	Max Input Current	DC: 10A AC: 10A
	Diode	0 - 2V
Waveform Generator	Frequency Output	N/A		Sine: 0.1Hz - 25MHz
		N/A		Square: 0.1Hz - 10MHz
		N/A		Ramp: 0.1Hz - 1MHz
		N/A		Pulse: 0.1Hz - 5MHz
		N/A		Arbitrary: 0.1Hz - 5MHz
	Sampling Rate	N/A		125MSa/s
	Channel	N/A		1-CH
	Amplitude Range	N/A		20mVpp-5Vpp
	Waveform Length	N/A		8K
	Vertical Resolution	N/A		14bits
	Output Impedance	N/A		50Ω

(EU Plug)

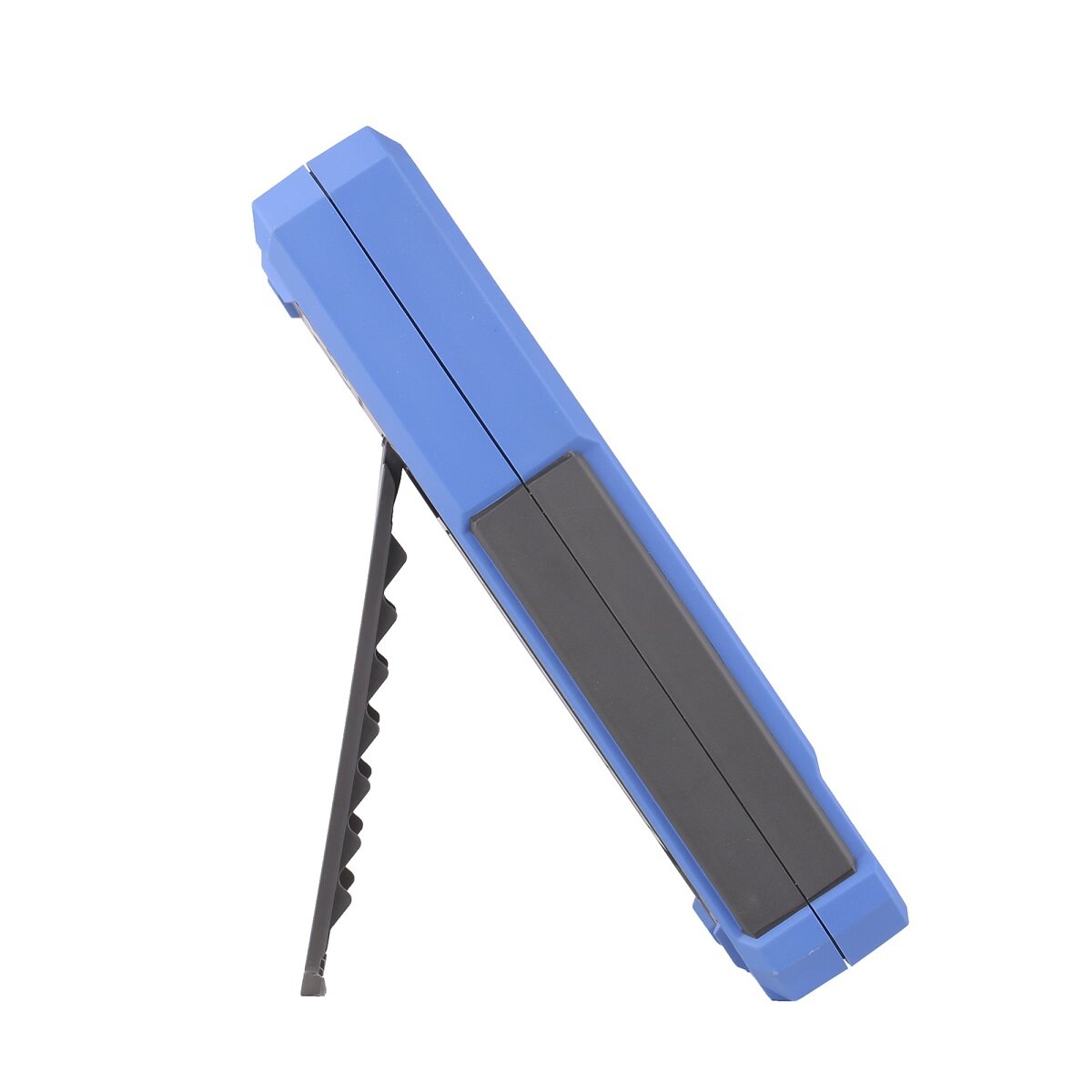

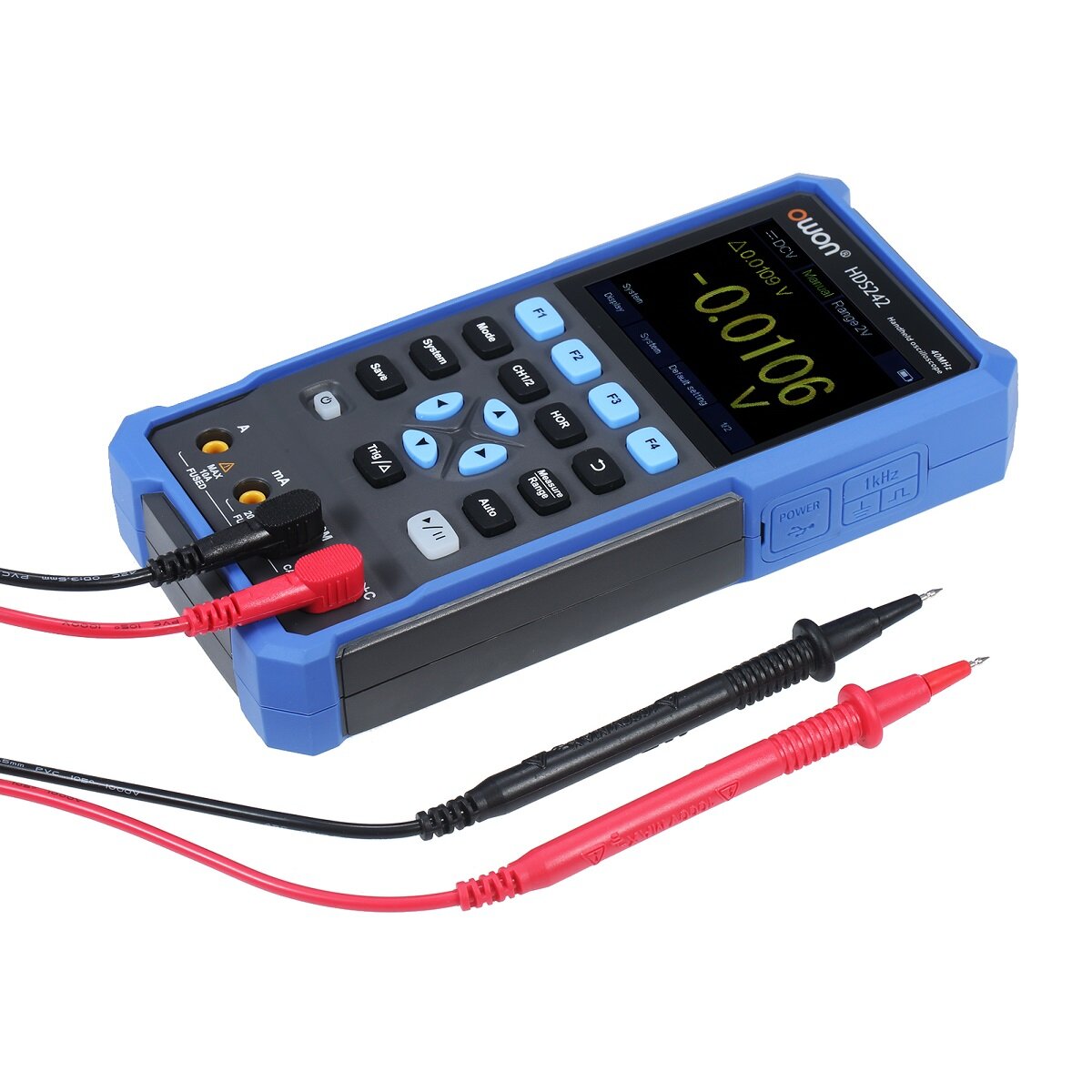

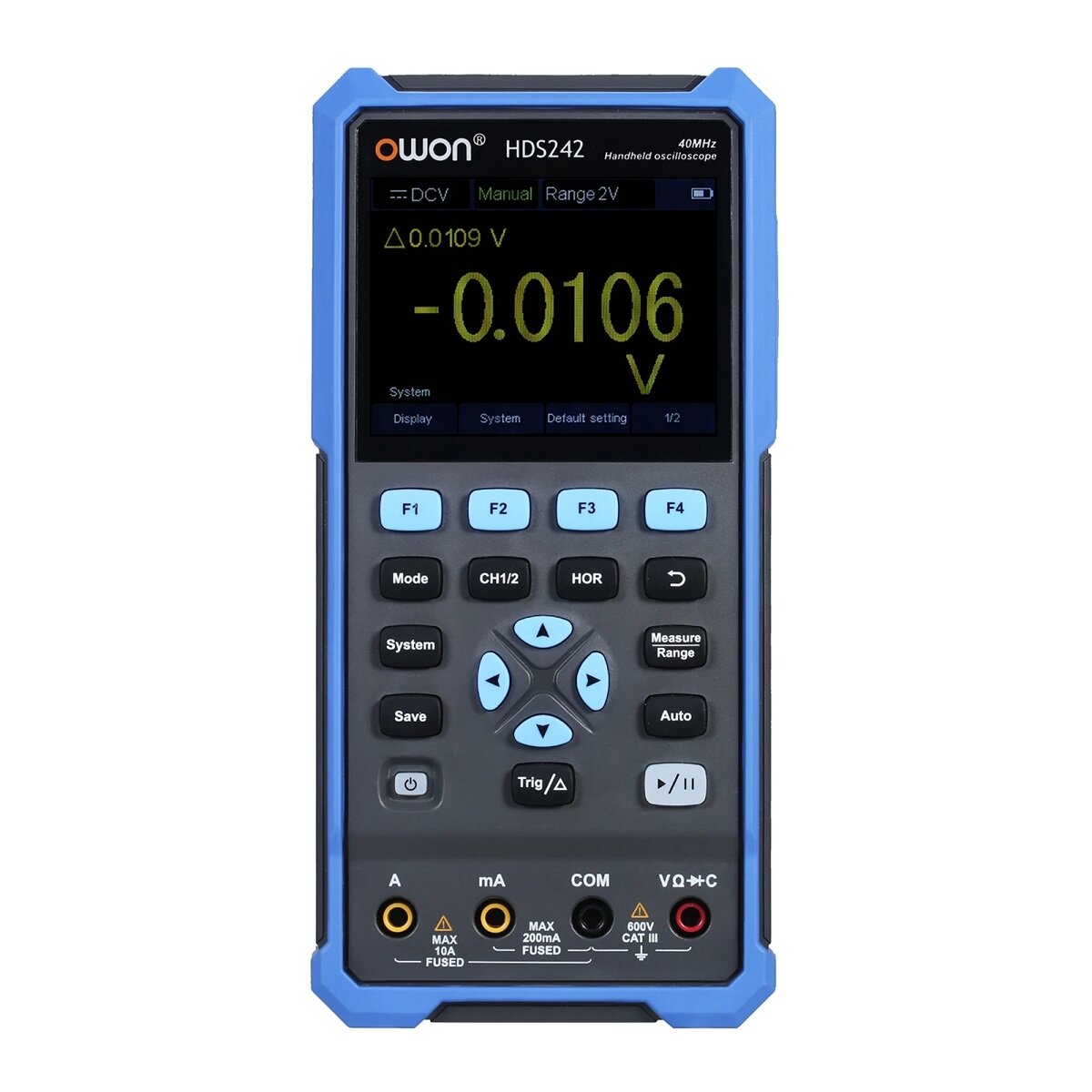

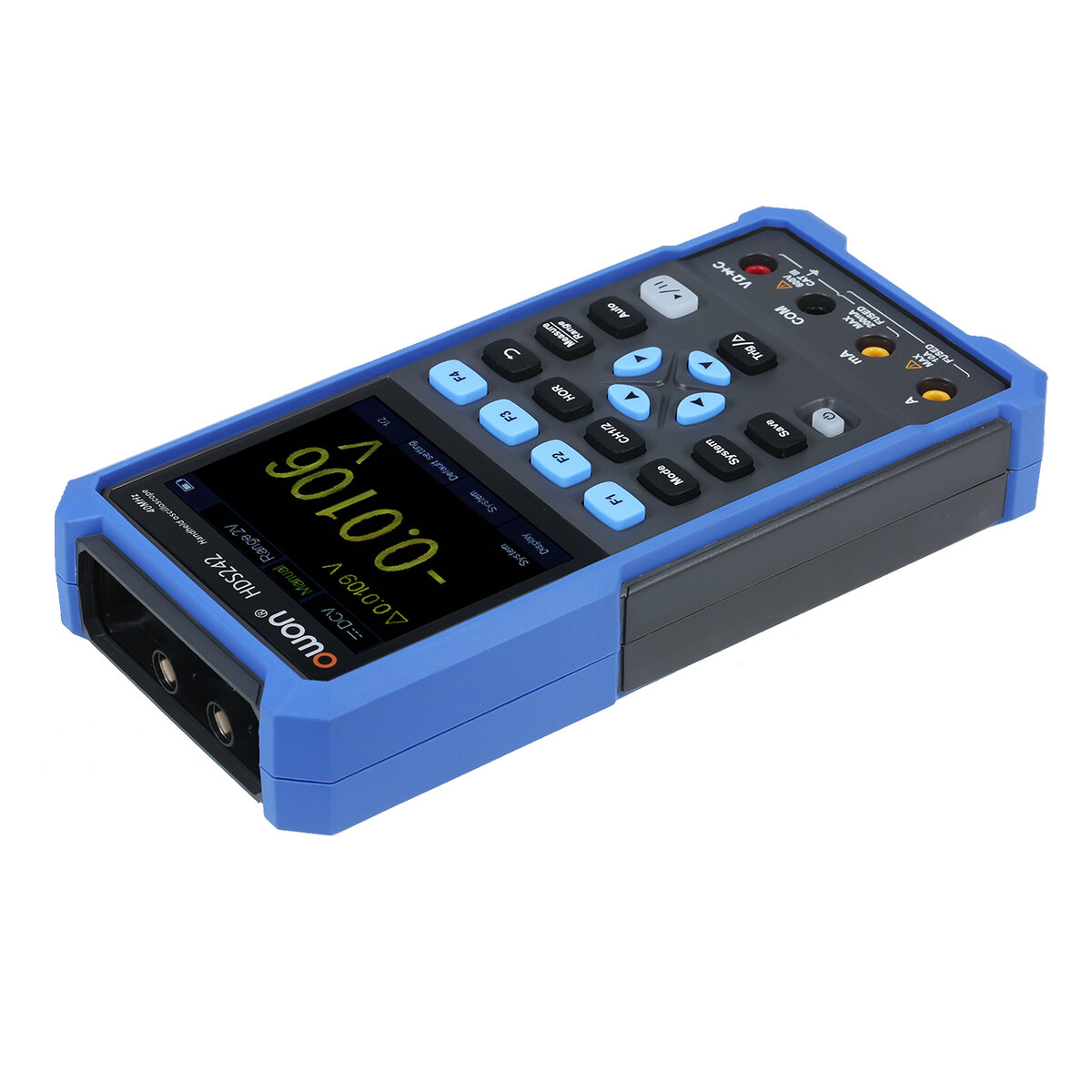

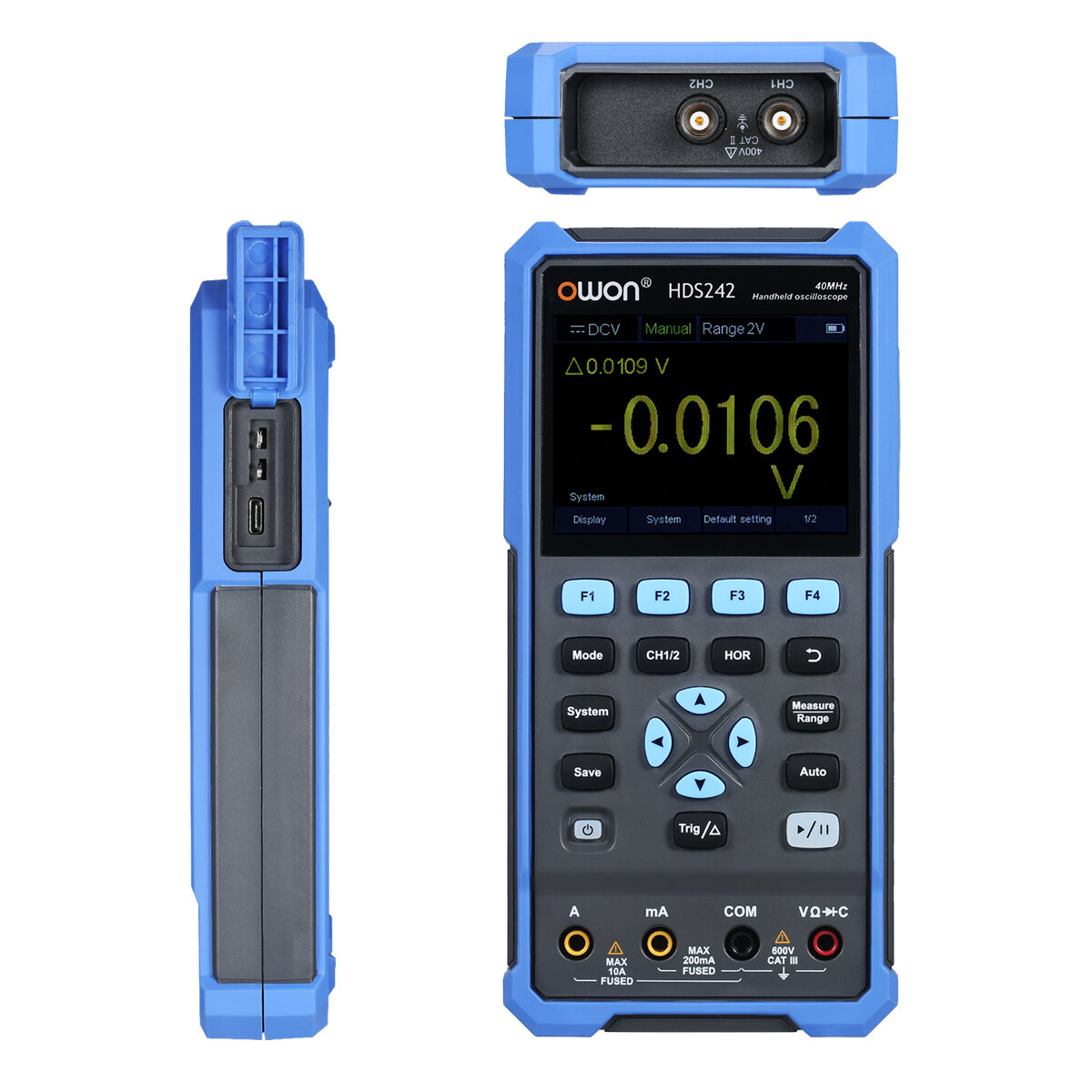

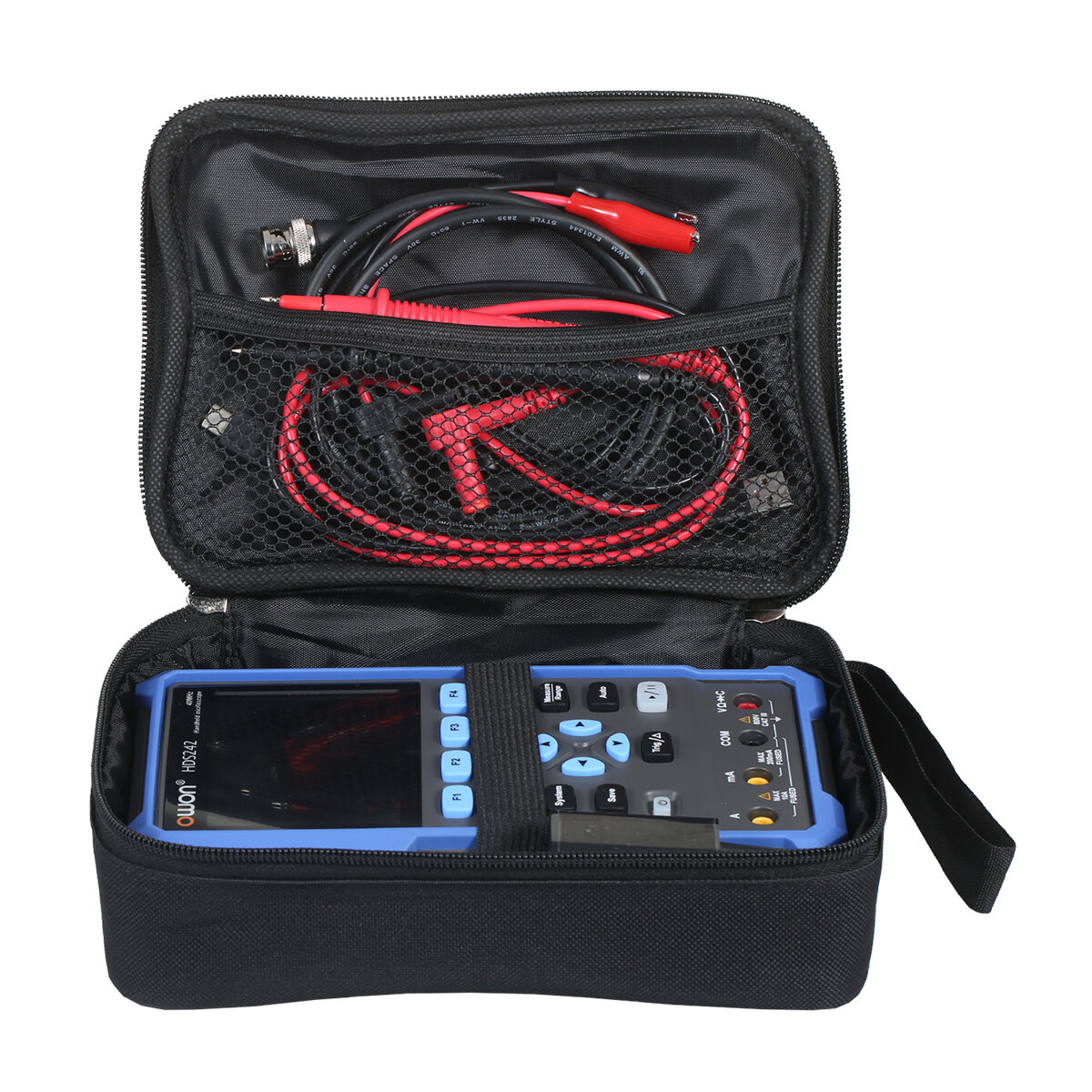

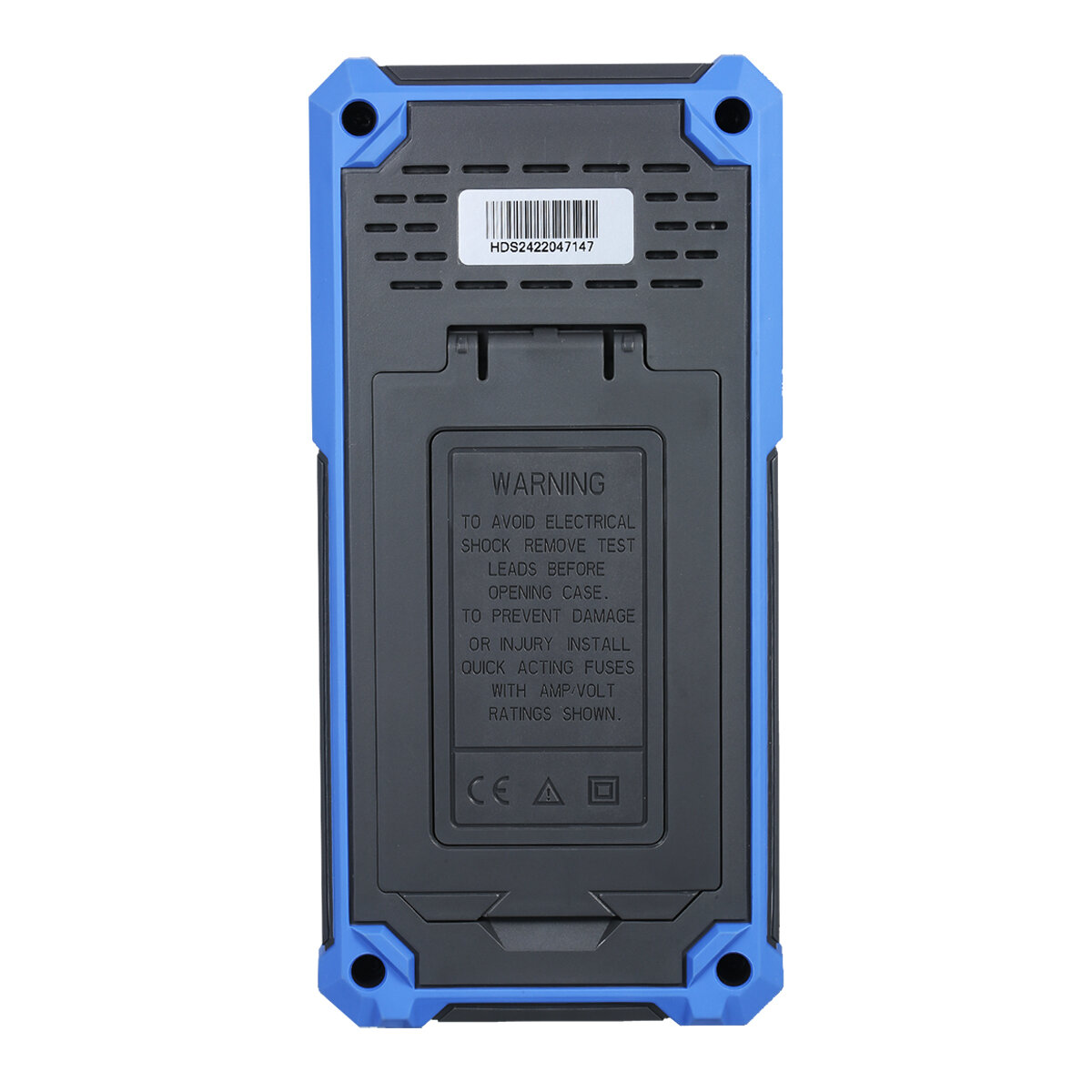

Details Pictures:
