High Performance: The OWON SDS1102 oscilloscope has a 100MHz bandwidth and a 1GS/s sample rate, to offer reliable readings and high-resolution signal details.

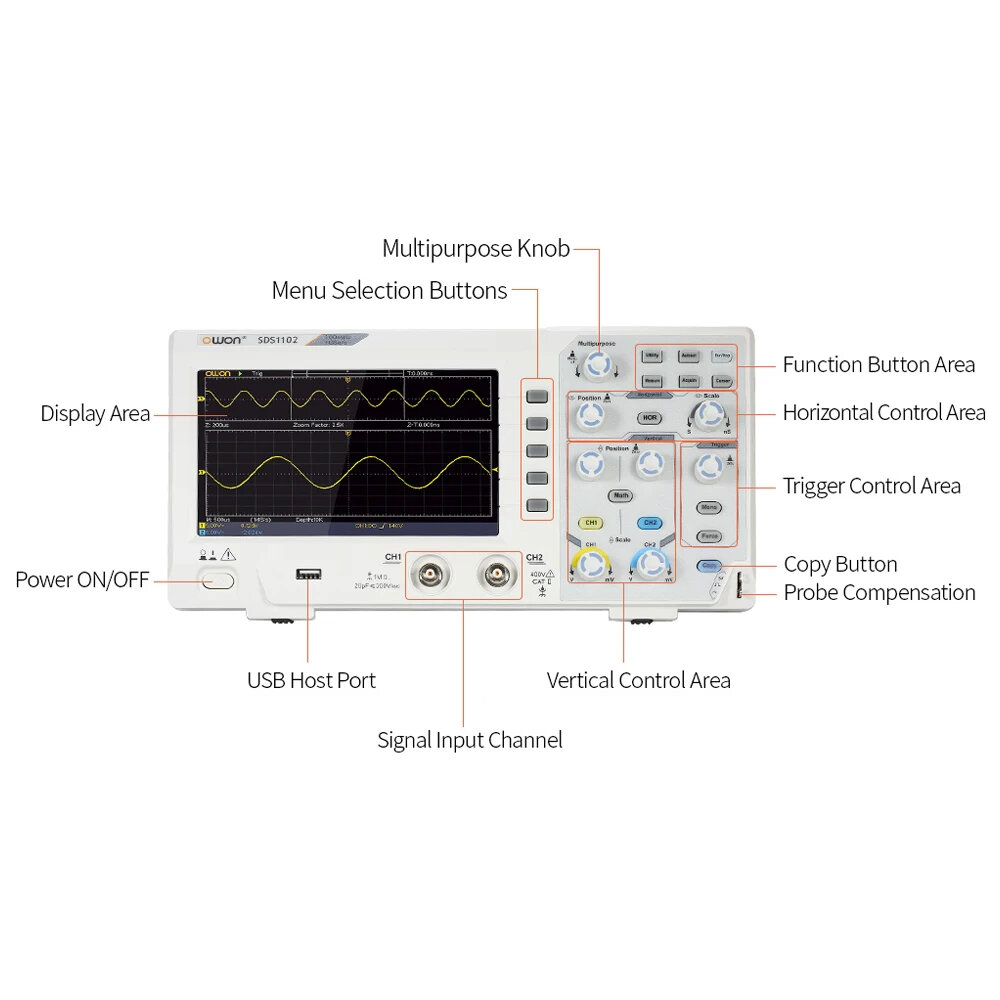

Practical Design: This 2-channel oscilloscope is designed with a 7-inch high-resolution LCD screen for clear and easy monitoring.

Wide Application: It's perfect for tasks related to electronic circuit debugging, circuit testing, design and manufacture, education and training, as well as automobile maintenance and testing.

Advanced Technology: It comes with SCPI and LabVIEW support for enhanced functionality and versatility.

Compact and Portable: With its thin body, the device is convenient for on-the-go use, without compromising its performance.



Brand: OWON

Model: SDS1102

Bandwidth: 100MHz

Sample Rate: 1GS/s

Channels: 2

Display: 7" color LCD, 800x 480 pixels

Input Impedance: 1MQ ± 2%, in parallel with 20pF±5pF

Channel Isolation: 50Hz: 100: 1, 10MHz: 40: 1

Max Input Voltage: 400V (PK -PK) (DC+AC, PK - PK)

DC Gain Accuracy: ±3%

Record Length: 10K

Probe Attenuation Factor: 1X,10X,100X,1000X

LF Respond (AC, -3dB): 10Hz (at input, AC coupling, -3dB)

Accuracy: ±100ppm

Vertical Resolution (A/D): 8 bits

Cursor Measurement: V, and T between cursors

Weight: 1.6kg approx

Optional Plug Type: US/EU Plug

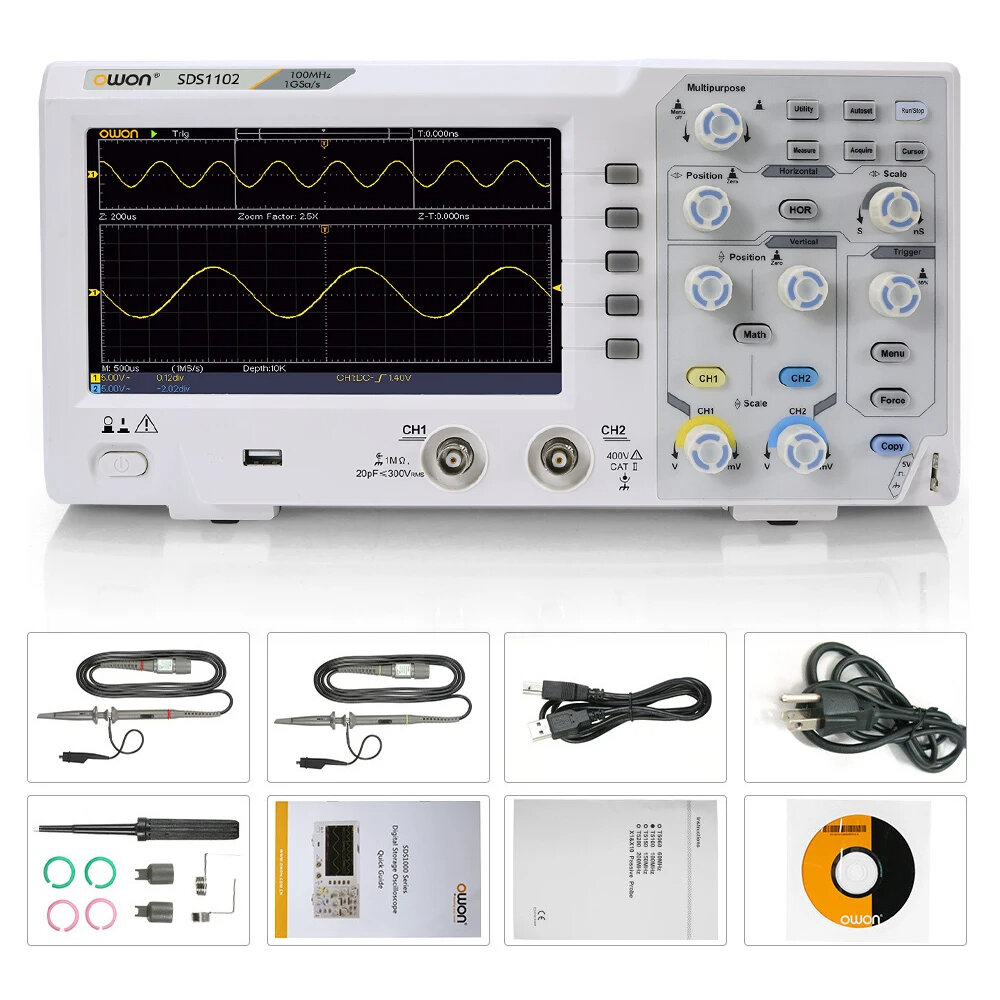

1 x OWON SDS1102 Oscilloscope

1 x Power Supply (Plug Type as your choice)

2 x Probes

1 x Cable

1 x CD

1 x User Manual
