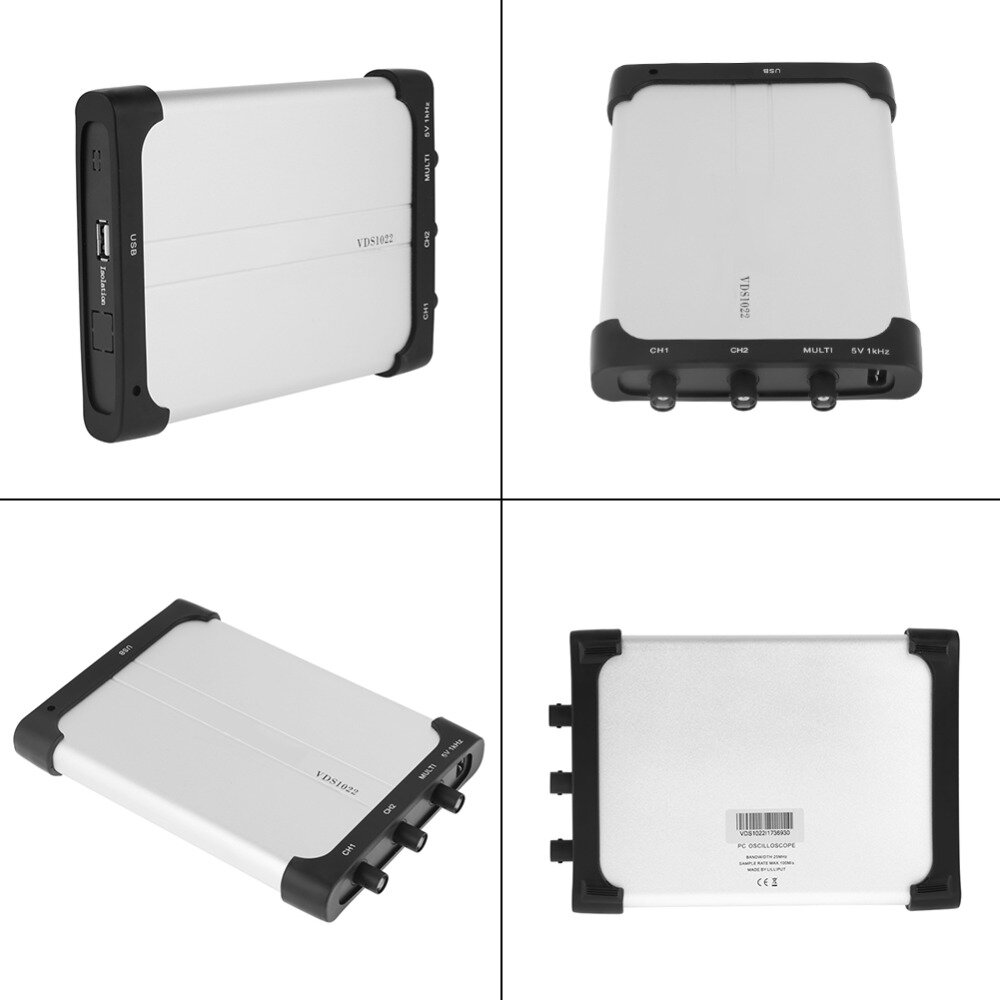

OWON VDS1022 Virtual PC USB Oscilloscope 100MSa/S 25M Dual-Channel Oscilloscopes with Probe Cable Tools Accessory COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Specification:

	VDS1022
	/s
(s/div)	5ns/div-100s/div, step by 1~2~5
Rise Time	<14 ns
Record Length	5K
Input Coupling	DC, AC, GND
Input Impedance	1MΩ±2%, in parallel with 10pF±5pF
Channels Isolation	50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage	40V (PK - PK) (DC-AC, PK - PK)
DC Accuracy	Average≥16: 士(3% reading + 0.05div) for
Factor	IX，10X，100X，1000X
LF Respond (AC,
Relay Time Accuracy	150ps
Interpolation	sin(x) /x
Interval (Triangle T) bandwidth)	Single: 土（ 1 interval time + 100ppm x time +100ppm x reading + 0.4ns)
Vertical Resolution
Frequency (video)	NTSC, PAL, and SECAM standard
Cursor Measurement	Triangle V, and Triangle T between cursors
Automatic Mcasmsmcnt	Vpp, Vmax. Vmin. Vtop, Vbase, Vamp, Period, Rise Time，Fall Time, Delay A to +Duty, -Duty
Waveform Math	FFT.十，-，x,/，invert
Lissajous Figure	Bandwidth	full bandwidth
Phase Difference	±3 degrees
Communication Interface	USB 2.0
Multi-function Interface	Signal Type	TTL
	Level Standard
Power Supply	5.0V/1A
Power Consumption	<1.5W
Dimensions	170 x 120x18 (mm)
Weight	721g

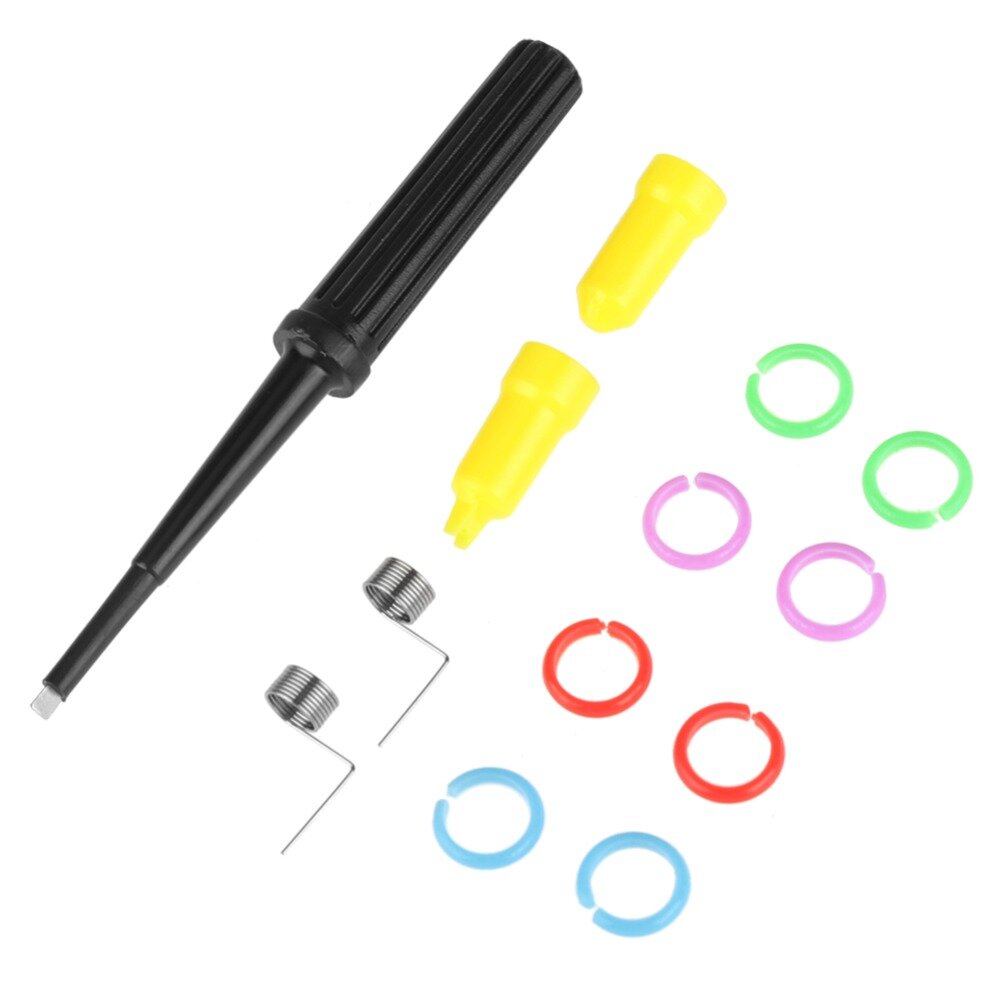

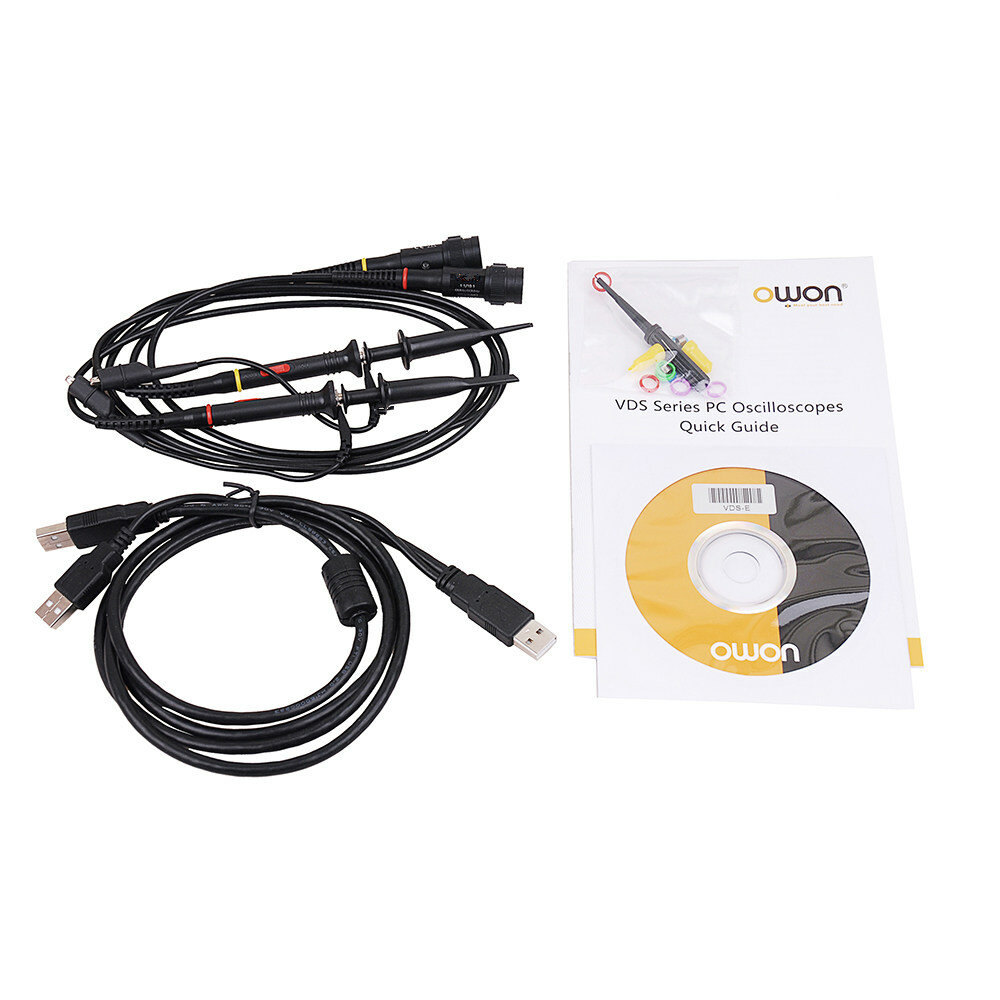

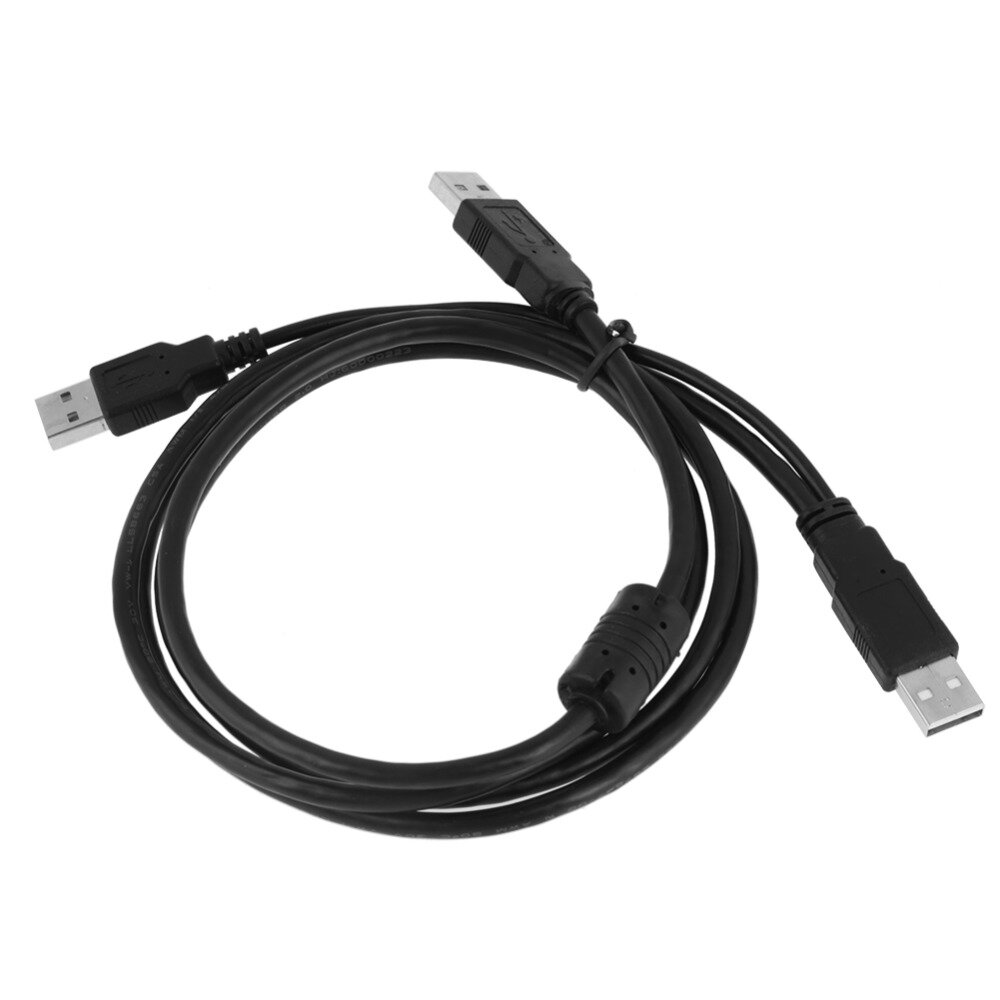

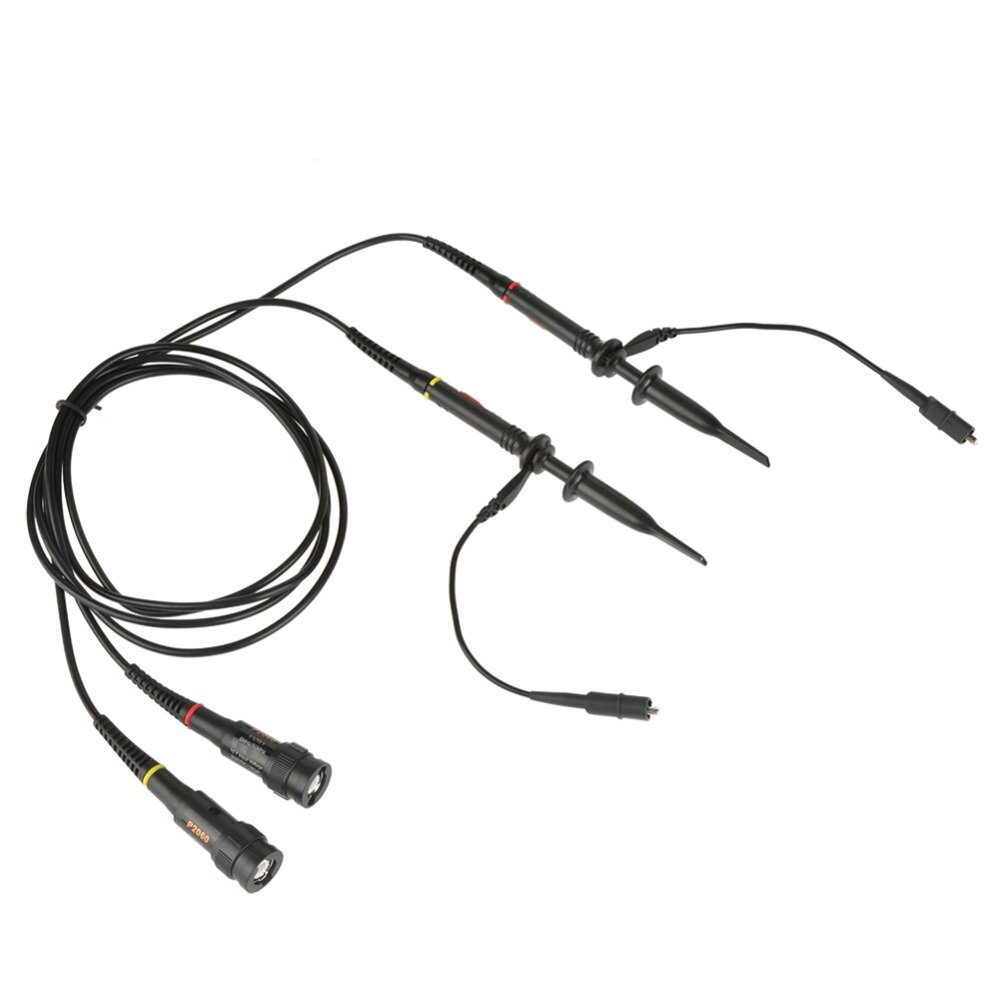

1 x OWON VDS1022 PC Oscillscope1 x CD Rom1 x User Manual1 x USB Cable1 x Probe1 x Probe Adjust
