OWON® HDS200 Series 2CH Handheld Oscilloscope 40/70/100MHz Bandwidth 20000 Counts Multiumeter OSC + DMM + Waveform Generator 3 in 1 Suitable for Automobile Maintenance and Power Test

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



>>More information on HDS2102 & HDS2102S<<

Note: If the computer does not automatically install the software successfully, please install the software manually according to the PDF file in the manual.

>> English Manual and Software<<

Features:

Specifications:

Model	HDS242		HDS272	HDS2102		HDS242S		HDS272S	HDS2102S
Bandwidth	40MHz		70MHz	100MHz		40MHz		70MHz	100MHz
Channels	2- CH Oscilloscope					2-CH Oscilloscope +1-CH Generator
Sample Rate	250MSa/s	250MSa/s			500MSa/s	250MSa/s	250MSa/s			500MSa/s
Acquisition Model	Normal, Peak Test
Record Length	8K
Display	3.5 -inch LCD
Waveform Refresh Rate	10,000 wfrms/s
Input Coupling	DC, AC, and Ground
Input Impedance	1 MΩ+2%, in parallel with 1 6pF+10pF
Probe Attenuation Factors	1X,10X,100X,1000X,10000X
Max. input Voltage	400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)	20MHz
Horizontal Scale	5ns/div - 1000s/div, step by 1-2- 5
Vertical Sensitivity	10mV/div - 10V/div
Vertical Resolution	8 bits
Trigger Type	Edge
Trigger Modes	Auto, Normal, single
Automatic Measurement	Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurement	△V, △T, △T&△V between cursors
Communication Interface	USB Type-C

Multimeter

Waveform Generator(Only for HDS242S & HDS272S & HDS2102S )

Frequency Output	Sine	0.1Hz - 25MHz
	Square	0.1Hz - 5MHz
	Ramp	0.1Hz - 1MHz
	Pulse	0.1Hz - 5MHz
	Arbitrary	0.1Hz - 5MHz
Sampling Rate	125MSa/s
Channel	1-CH
Amplitude Range	20mVpp-5Vpp
Waveform Length	8K
Vertical Resolution	14bits
Output Impedance	50Ω

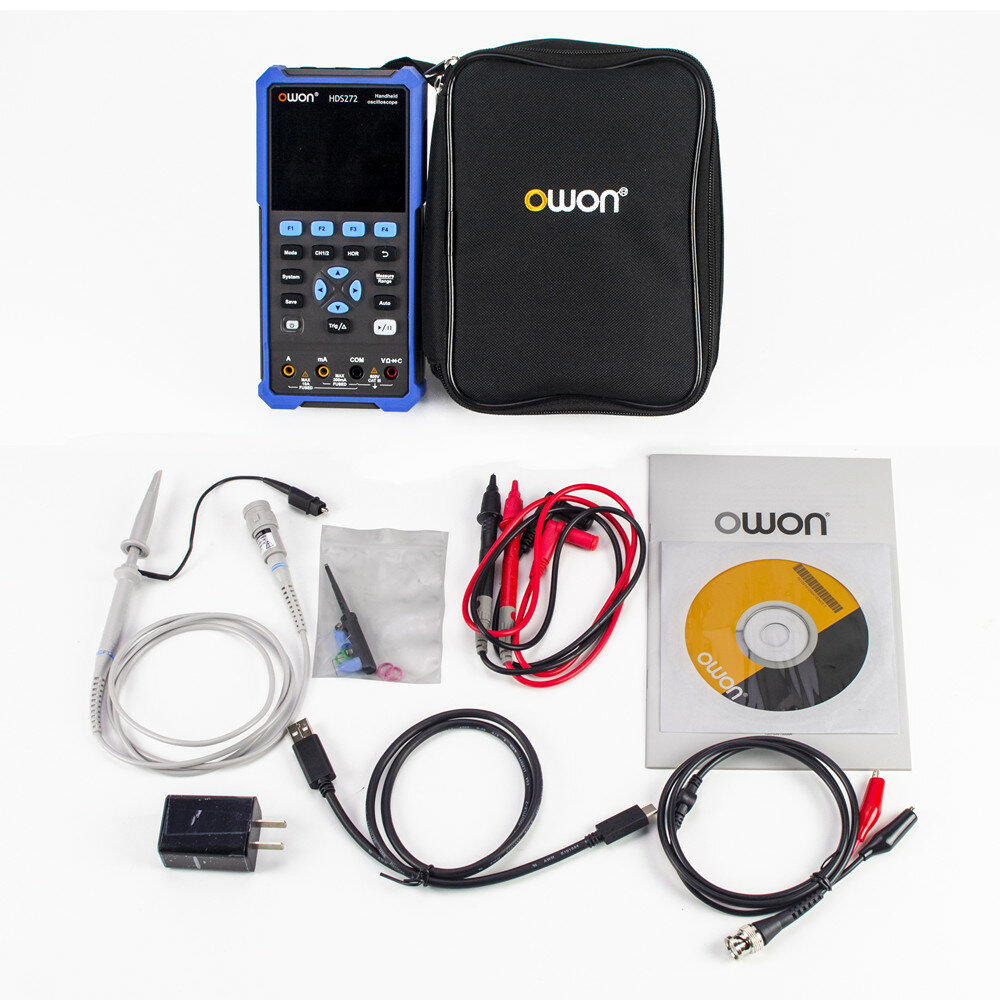

1 x Main device

1 x Bag

1 x Probe

1 x Power Plug(EU type)

1 x Probe Adjust

1 x USB Cable

2 x Multimeter Leads

1 x Instructions

1 x CD Rom

1 x BNC to Alligator Clip

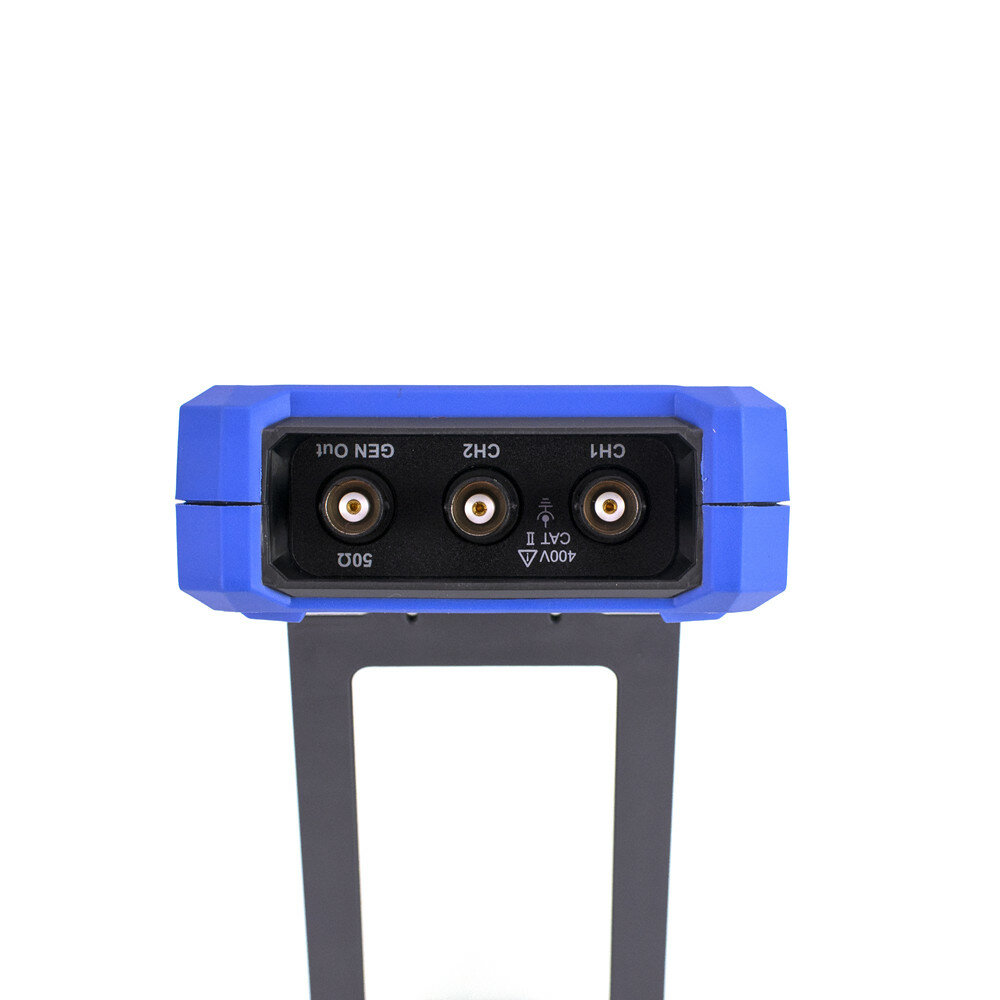

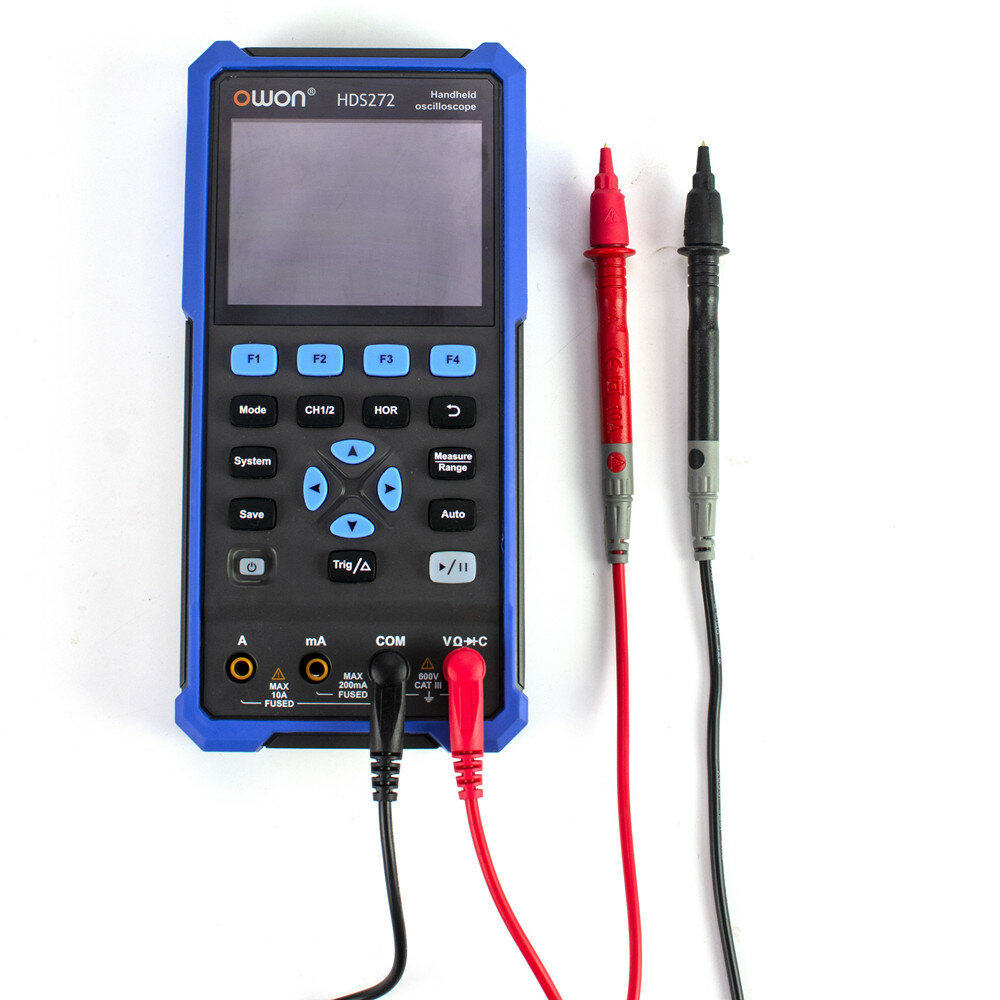

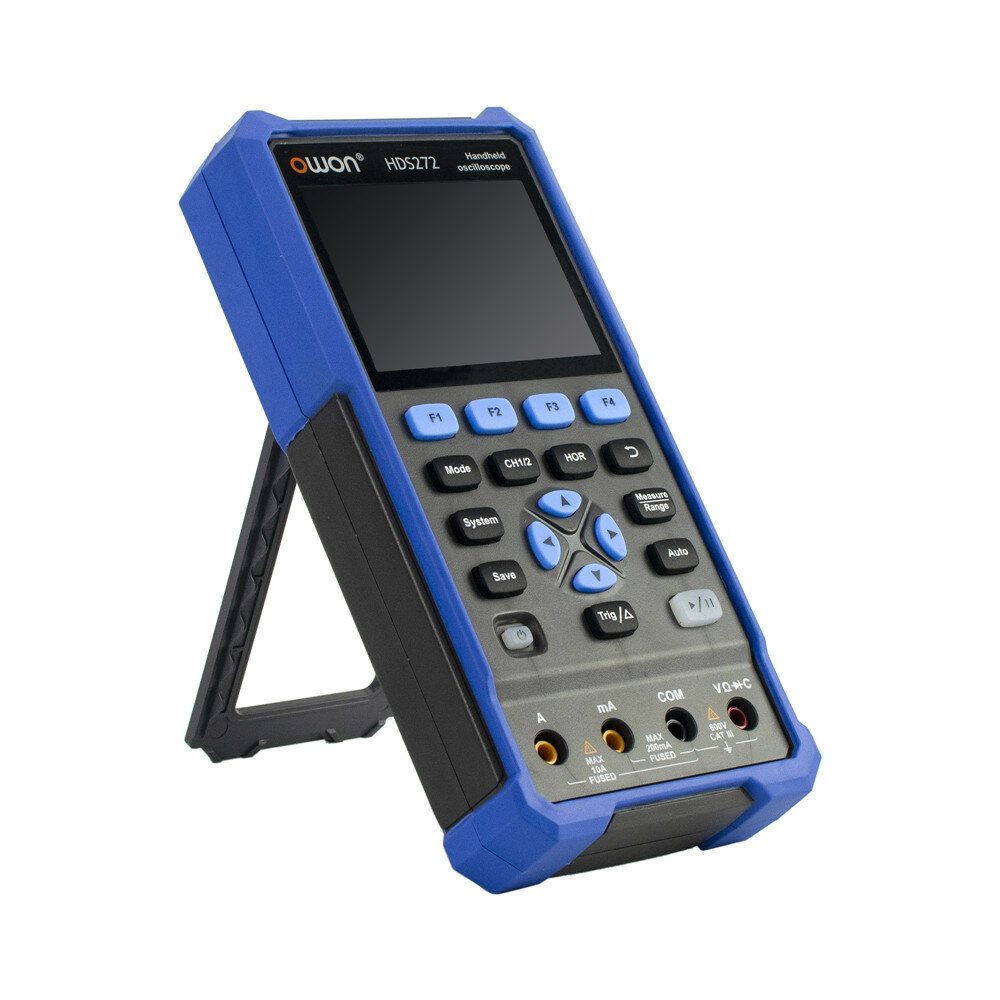

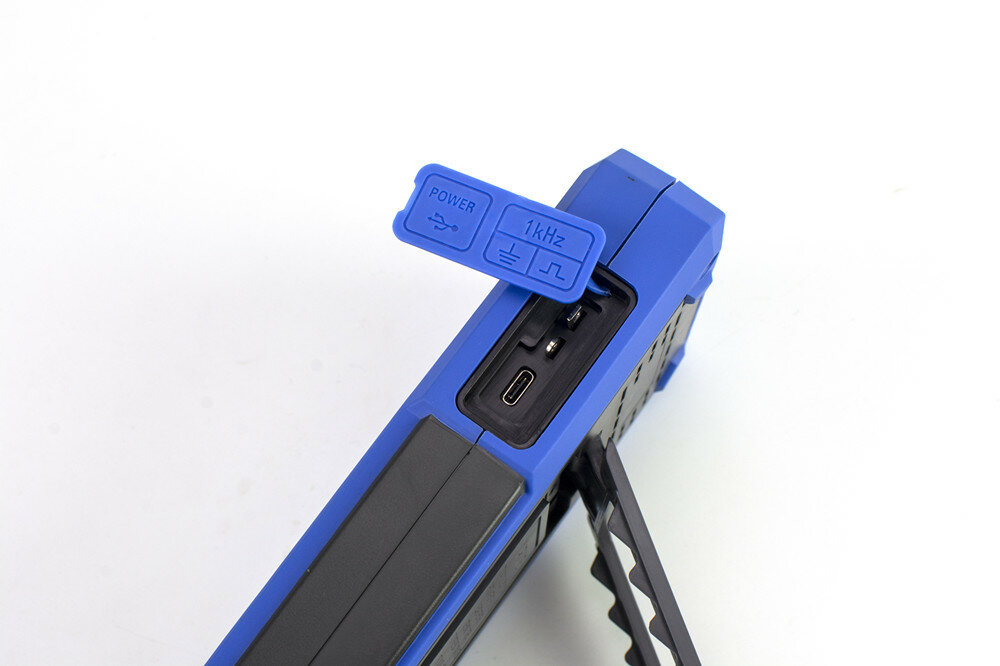

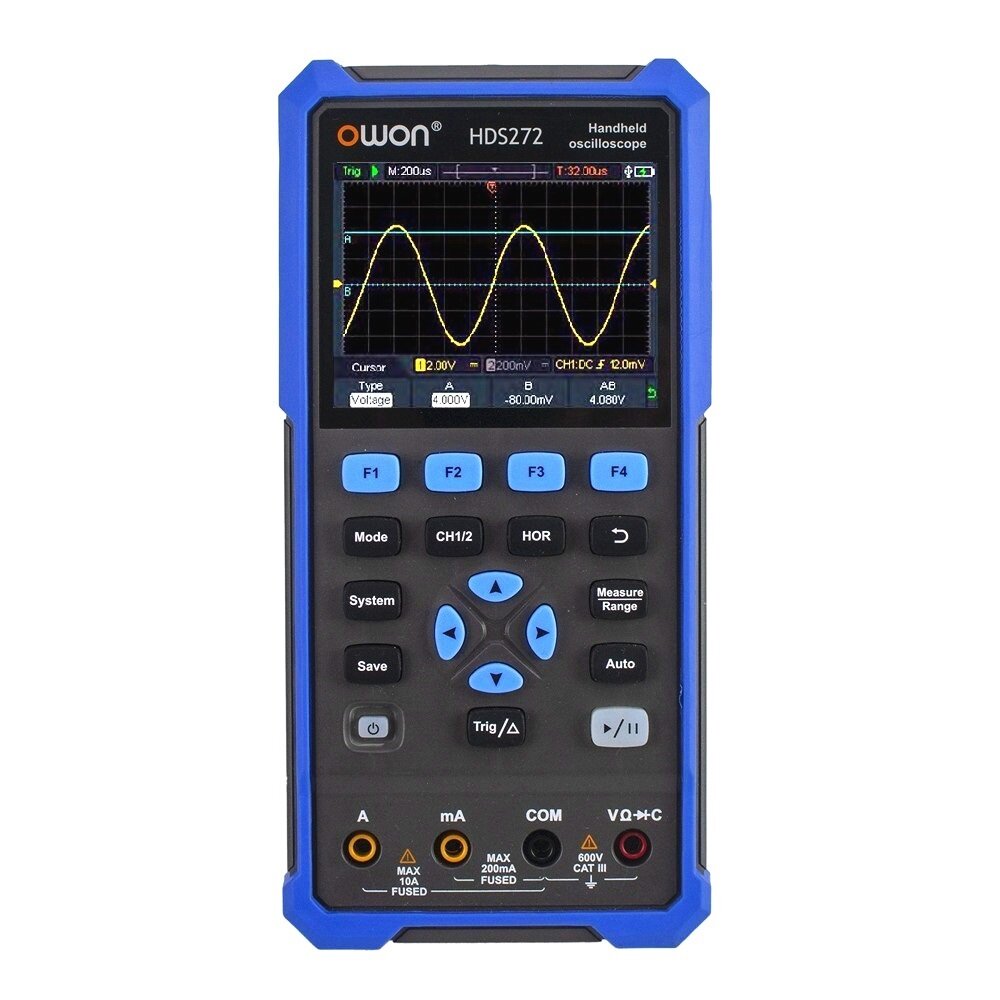

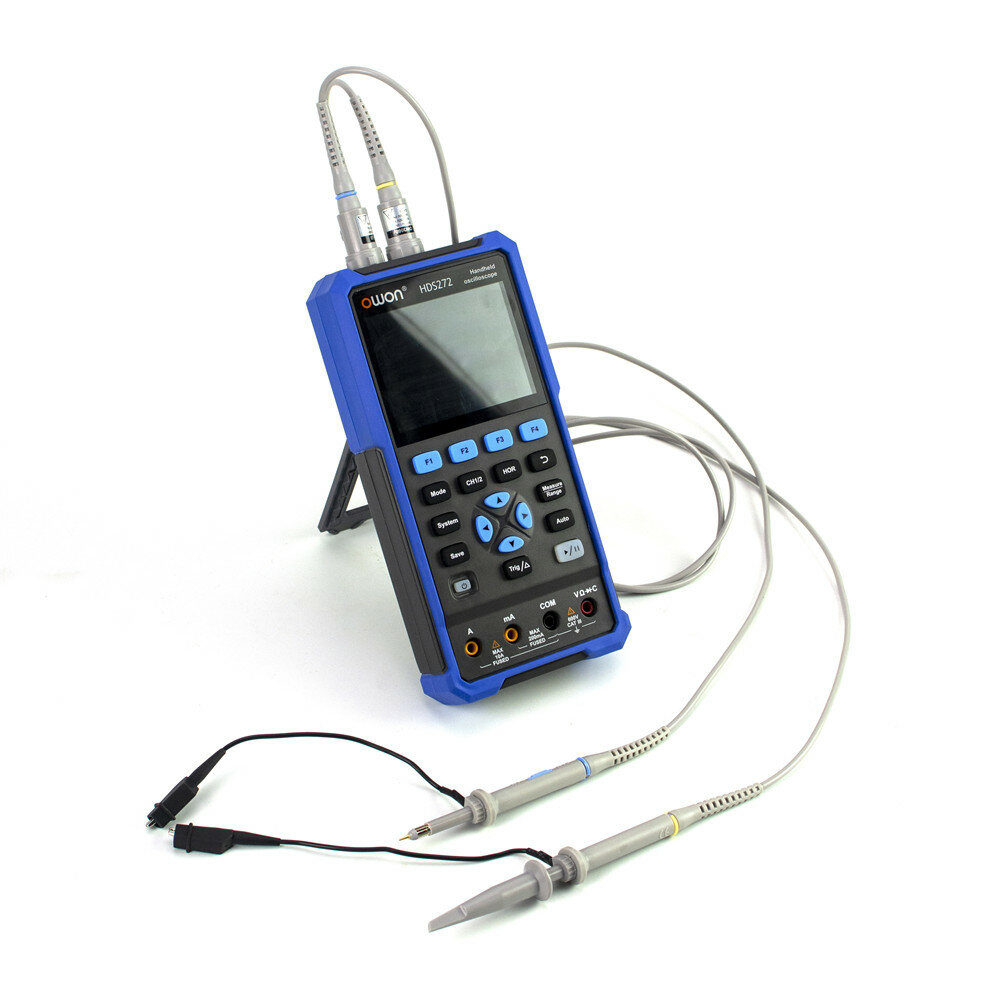

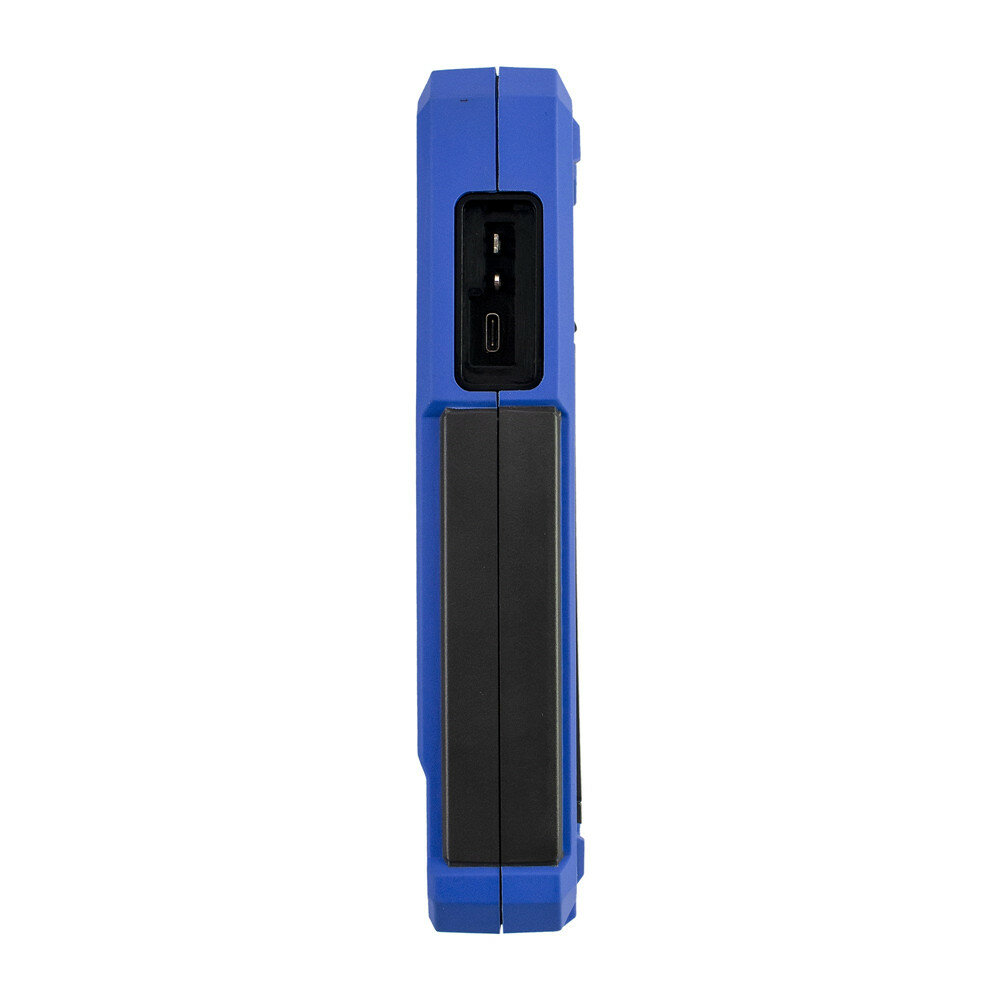

Details picture:
