Phone PCB Soldering Repair Lab Industrial 7X 45X 90X Simul-focal Trinocular Stereo Microscope VGA HDMI Video Camera 720P 13MP COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

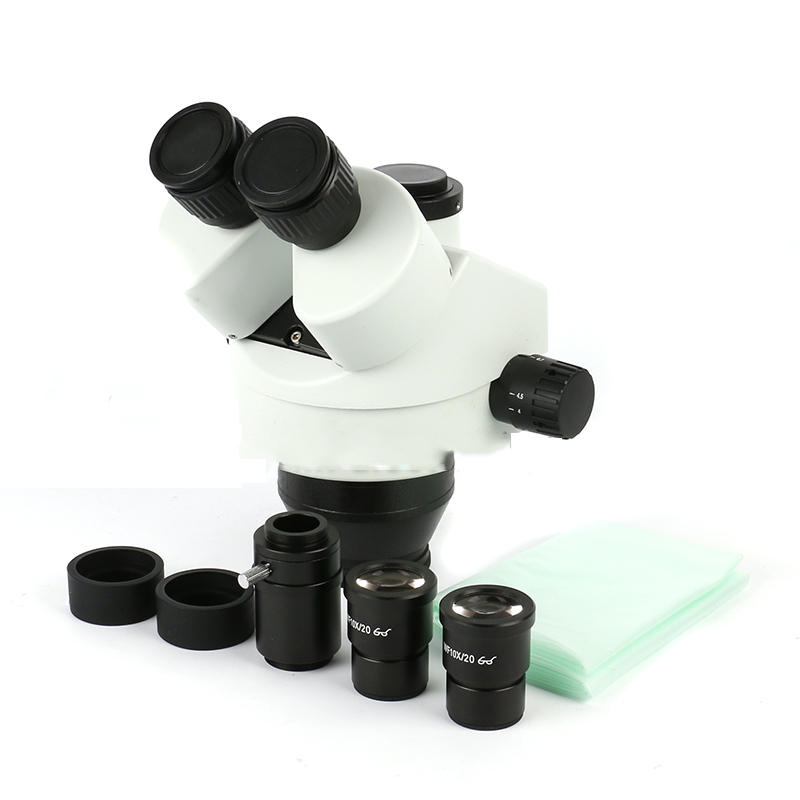

An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light 7x-45x super wide zoom magnification power Bright cool light 144-LED illumination system High resolution with great flatness and contrast, giving sharp and clear images Binocular head with 45 degree inclined 360 degree swiveling eye tubes Sharp stereo erect images with a wide field of view Crystal clear original true color microscope images Dual eye tubes with adjustable diopters Large working distance Sturdy all-metal table stand Accurate alignment reduces eye strain for longer periods of viewing Full optical glass elements Precise ground glass lenses Full metal chrome-plated mechanical components Adjustable interpupillary distance Rubber eye-guards included Head: 360 degree rotatable 45 degree inclined binocular Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses Working Distance: 4" (100mm) Diopter Adjustment: +/- 5dp Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm) Round Plate: 3-3/4" (95mm) in diameter Illumination: 144-LED Ring Light Power Input: 110-240V, 50-60HZ, Automatic Switching

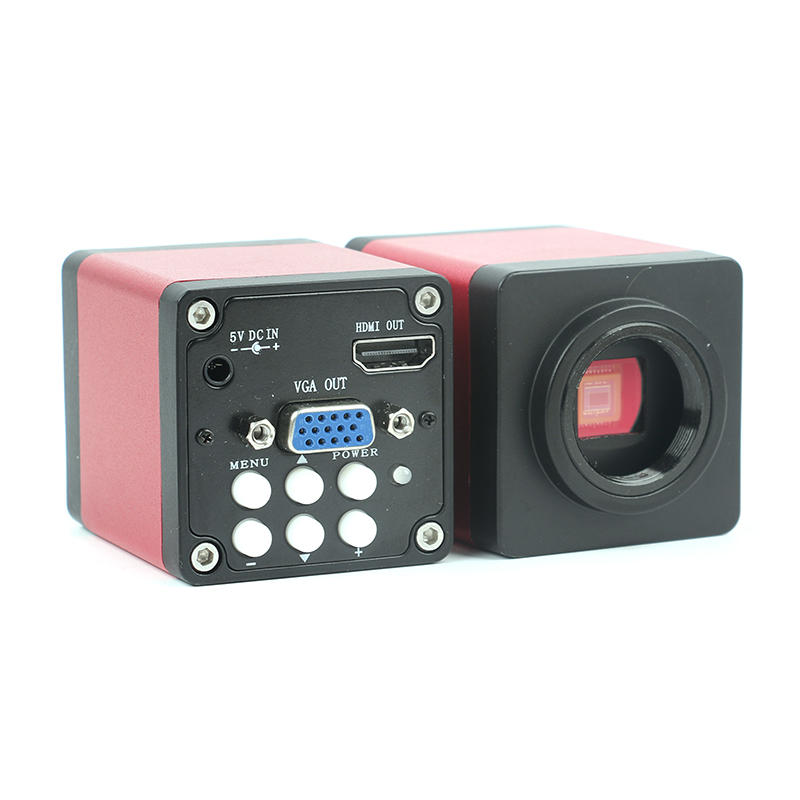

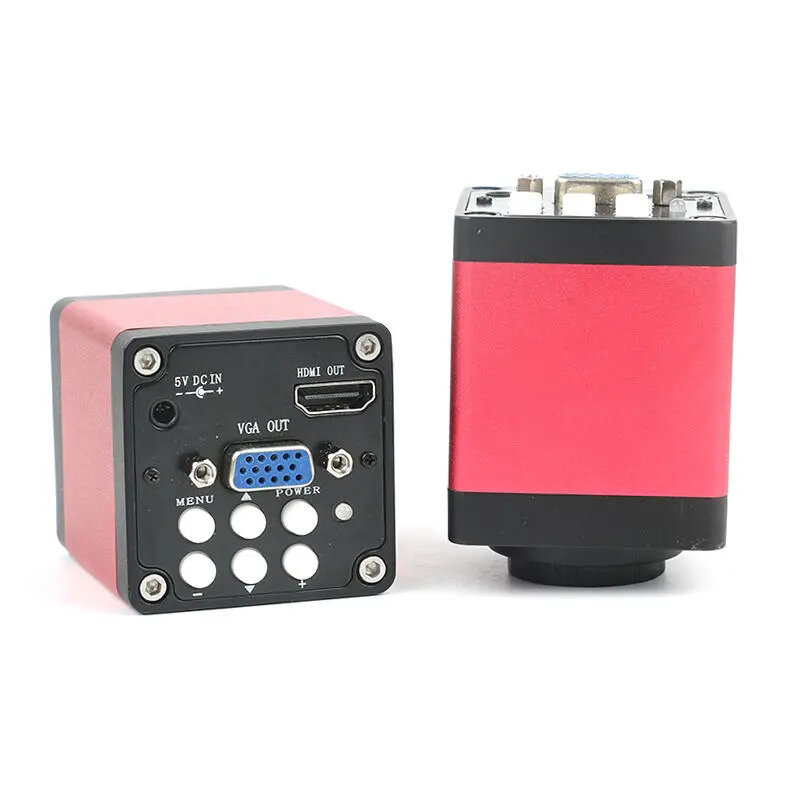

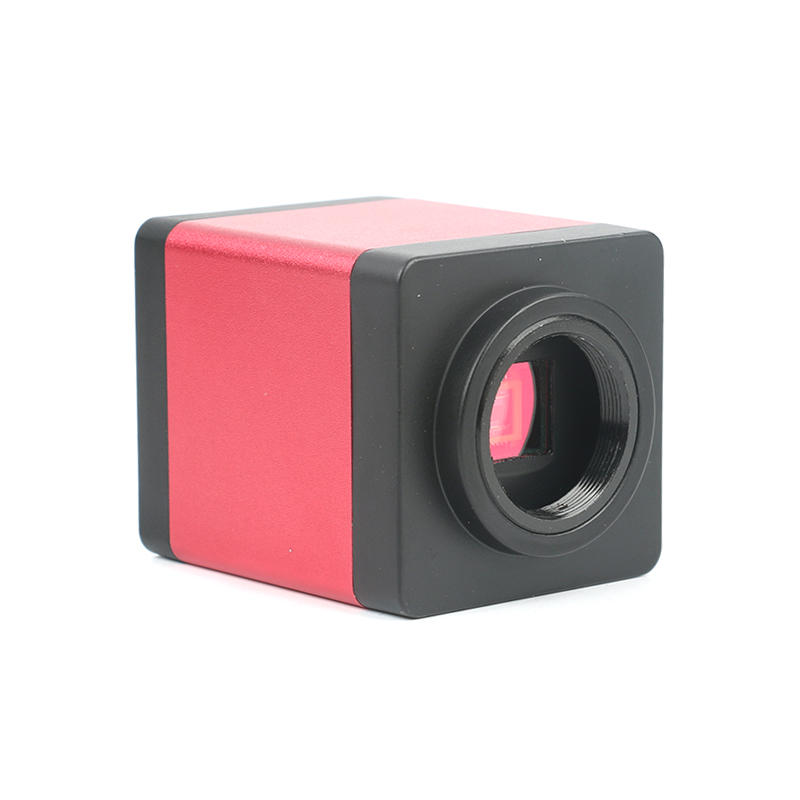

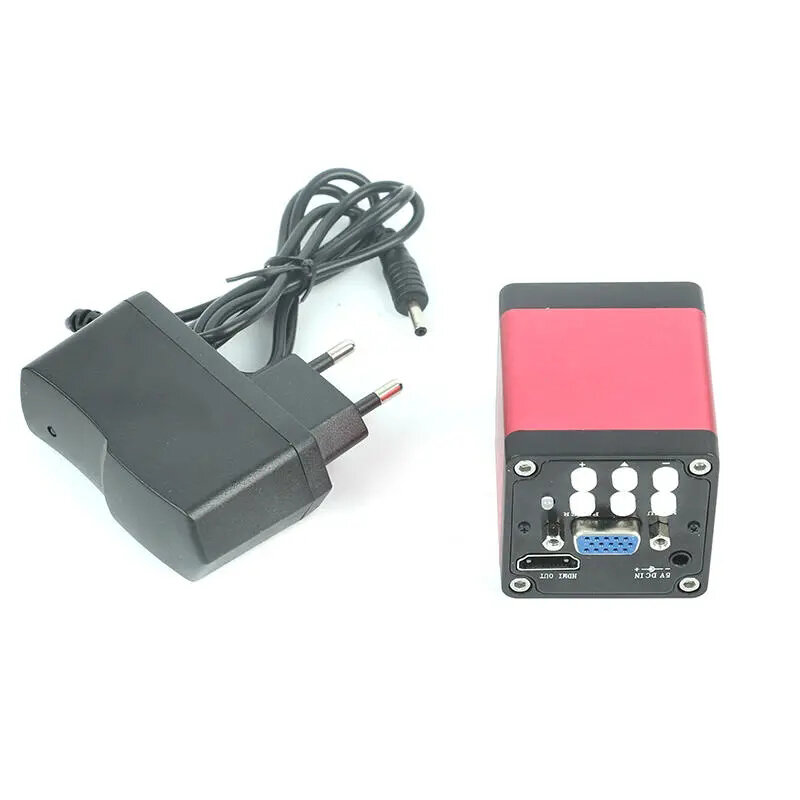

Model: Camera with HDMI VGA two output Sensor: 1/3 inch 13MP Image format: jpg Image resolution: 1280* 1024 (for HDMI), 1280 *720 (for VGA) Video format: AVI Video resolution: 1280 *720 @ 60F/S White Balance: Auto Light: Auto Color: Color Negative: Support Morror: Left/right,Up/Down Freeze: Support OSD: English/Chinese Line: different color,8 horizontal line , 8 vertical line,any position 56 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination The brightness of 0-100%Adjustable,high brightness Variable intensity control Power input: 100-240V, 50-60HZ Suit for the dia of the lens: 30mm-63mm 1 x Trinocular Stereo Zoom Head 1 x Pair of Super Widefield 10X20MM Eyepieces 1 x 56-LED Ring Light 1 x Pillar Table Stand 1 x Focusing Rack 1 x C-mount Adapter 1 x Pair of Eye-Guards 1 x Dust Cover 1 x Camera 1 x Power supply(EU) 1 x SZMCTV 1/2 Lens 1 x 1.0X Microscope Auxiliary Objective Lens(Protection function) 1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)


The Ring light is 56 LEDs (Updated on 2019/11/07)
