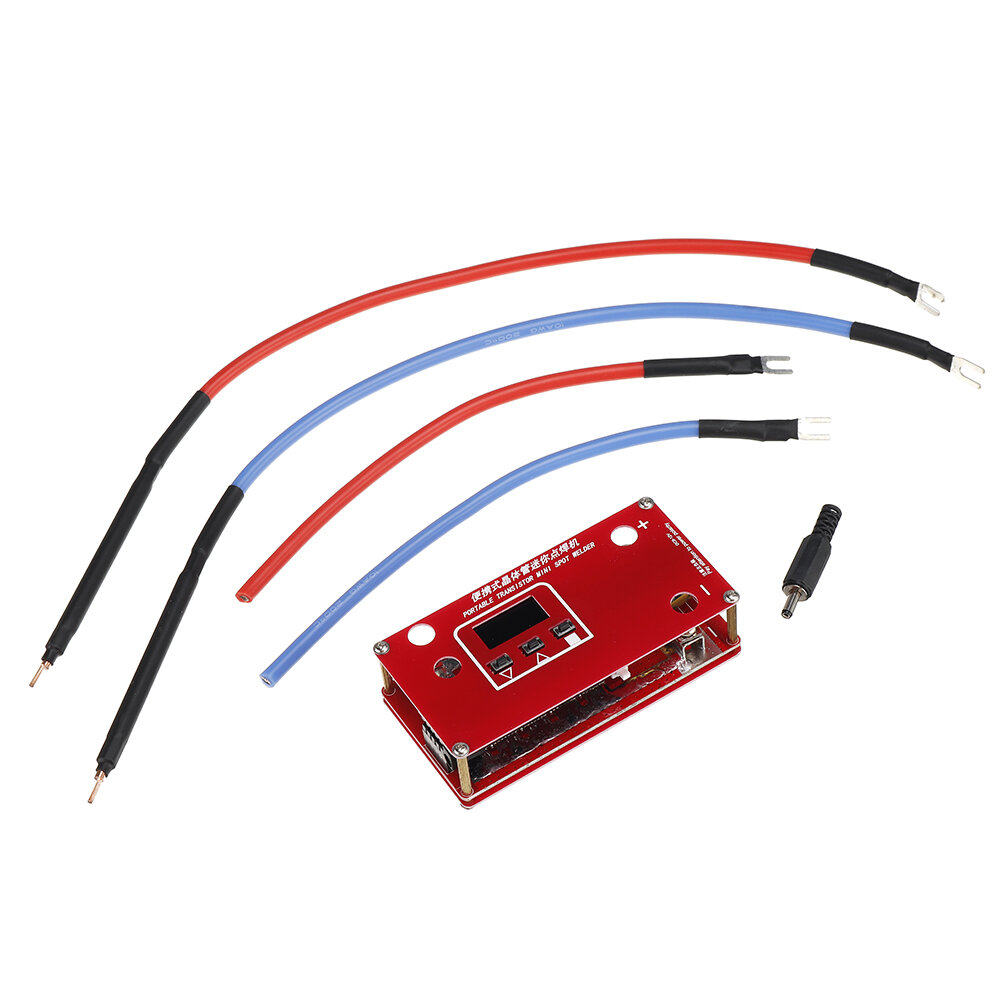

Portable DIY Mini Spot Welder Machine with LCD Display Automatic Touch Welding Mode for 18650 Battery 12V Car Battery COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Instructions for Use:
1: Power Connection

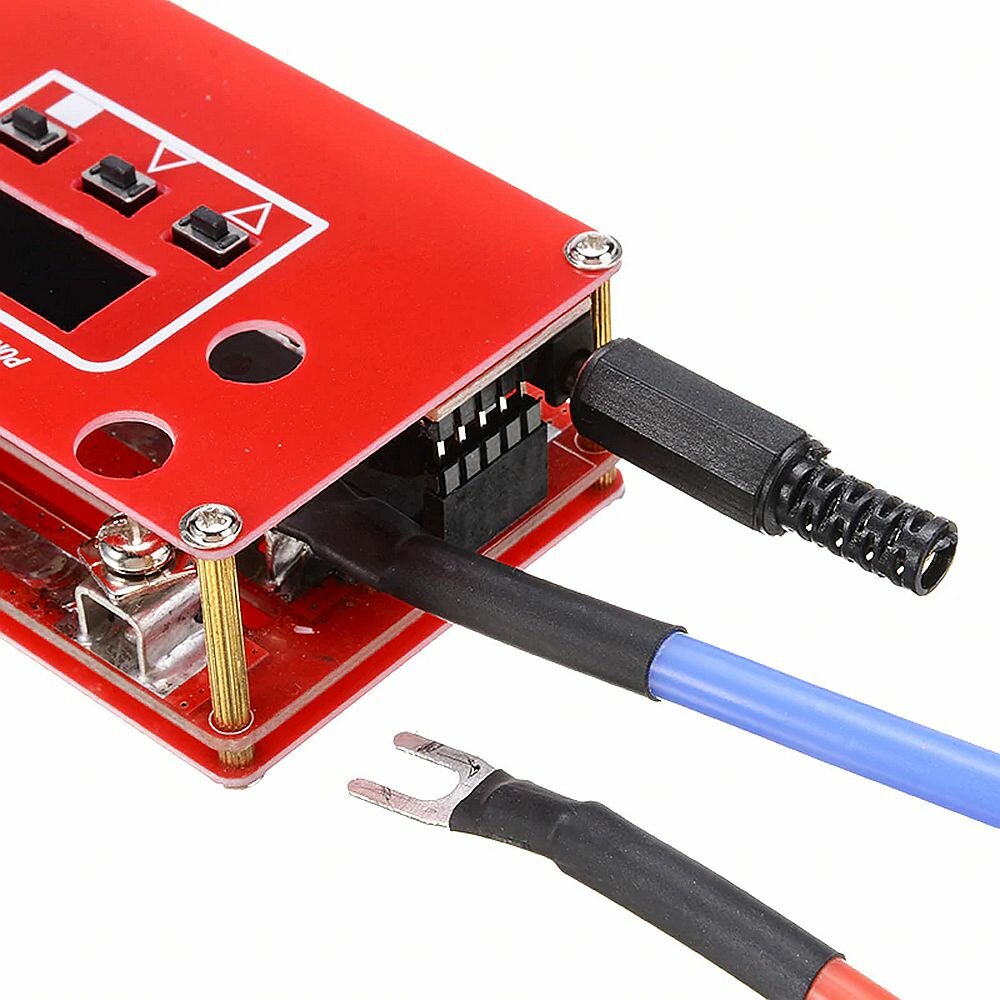

The controller comes with a 20cm long 10AWG input wire. One end has been crimped with a U-shaped terminal, and the other end has not been processed. Connect the crimped U-shaped terminal to the control power input terminal, and the other end is processed according to its own power supply. Do not connect the negative electrode wrong.
2: Switch on and off
There is a power switch under the control board. After pressing, wait for 3 seconds. After the buzzer drops, the LCD lights up and the boot is complete. Press the power switch again to shut down.

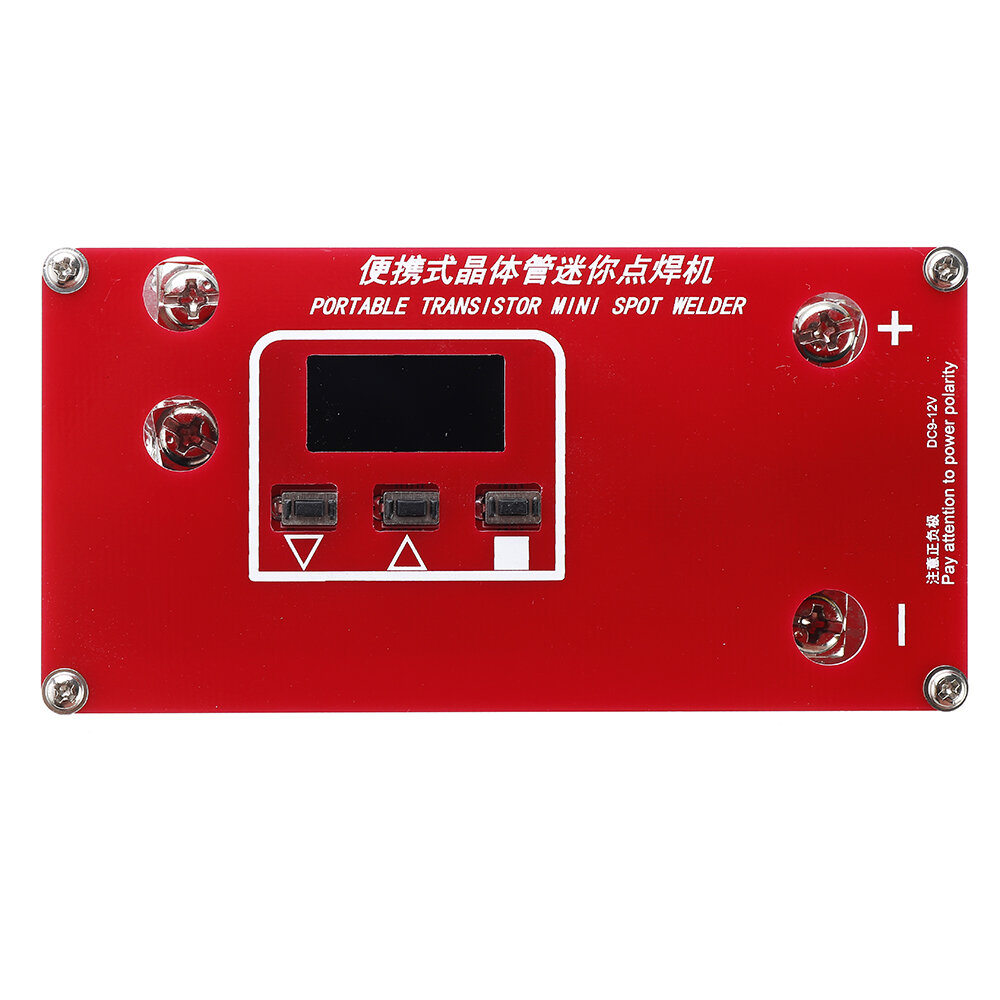

3: Screen description and parameter adjustment.
WELD ENERGY: 01-99 (adjustable by up and down keys)INPUT: Display input power voltageWELD WAY: Manual / Auto (Adjust via the "square label" button.)
4: Welding
Keep the welding pin clean. If the welding pin is polished into a round head, the welding effect can be improved. There are manual and automatic methods.

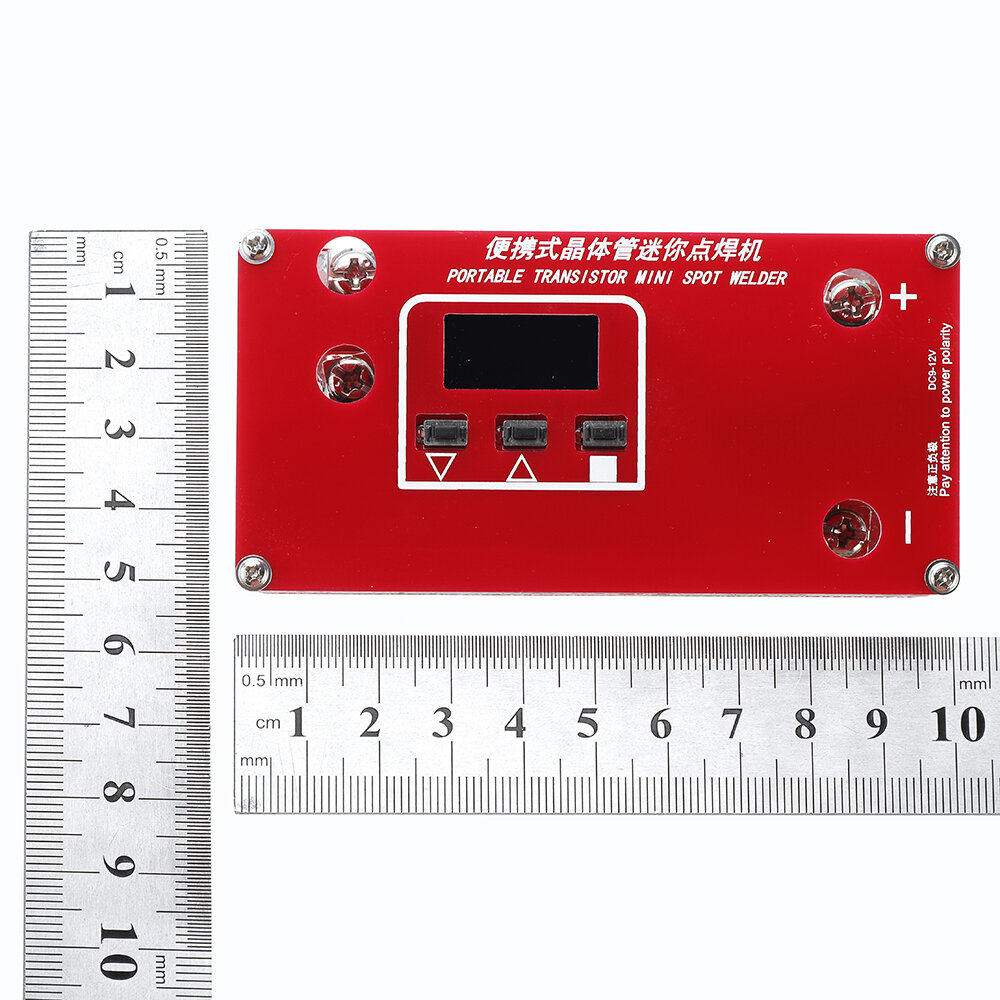

Material: MetalInput line length: app.20cm/7.87inLength of welding pen: app.30cm/11.81inColor: Red+Blue+BlackBattery: 18650 lithium battery(not included)Quantity: 1Set
Note:

There is an ignition switch underneath the control board. After pressing, wait 3 seconds. After the bell rings, the LCD screen lights up and the boot is complete. Press the power switch again to close it.

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

Black Plug (When you choose manual mode, It need an external trigger switch to connector black plug.)
