Portable Mobile Phone Thermal Imager -20℃ to 1000℃ Small Thermal Imaging Camera Support Maximum Minimum Center Temperature Measurement 5 Color Palette Modes

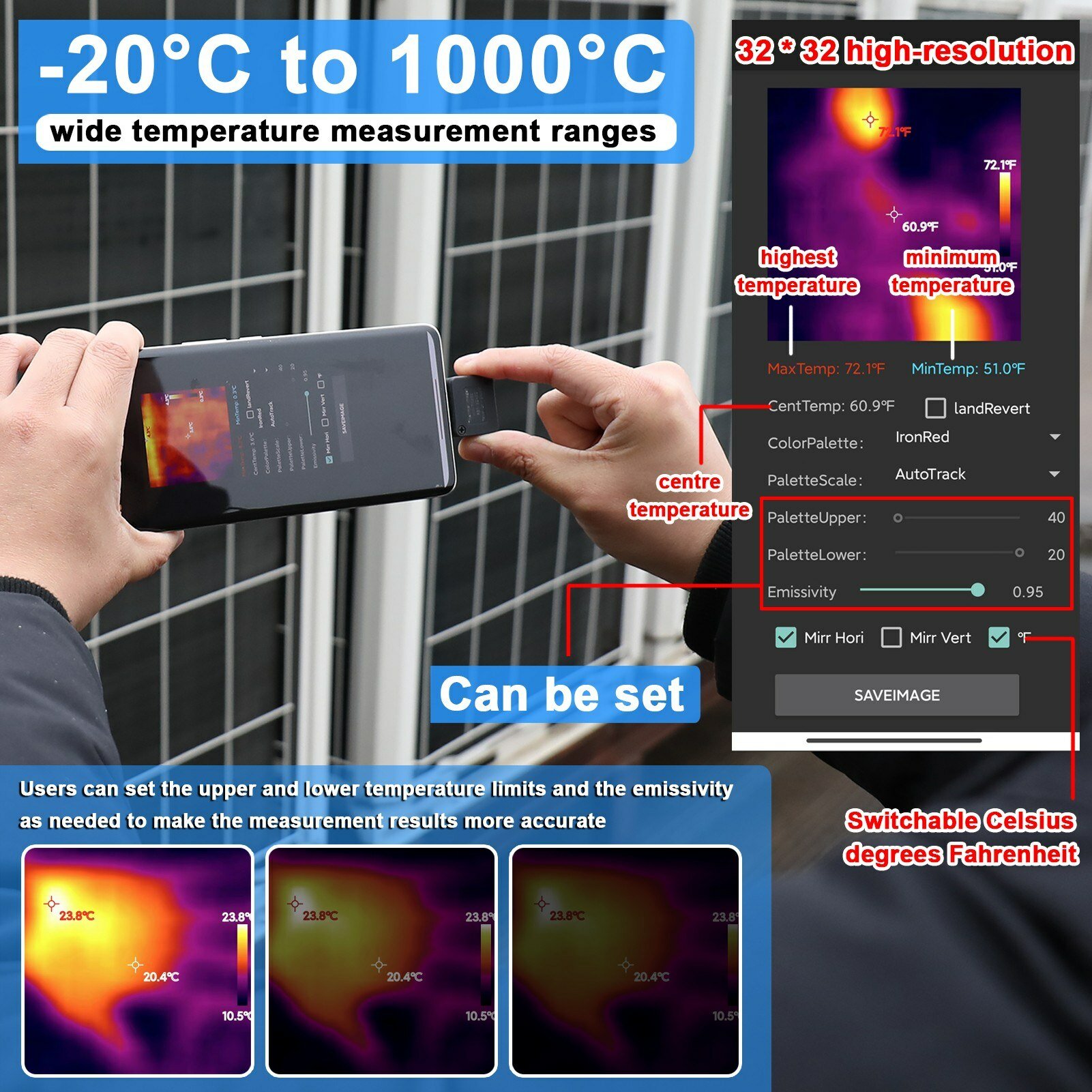

Temperature Measurement & Display & Setting

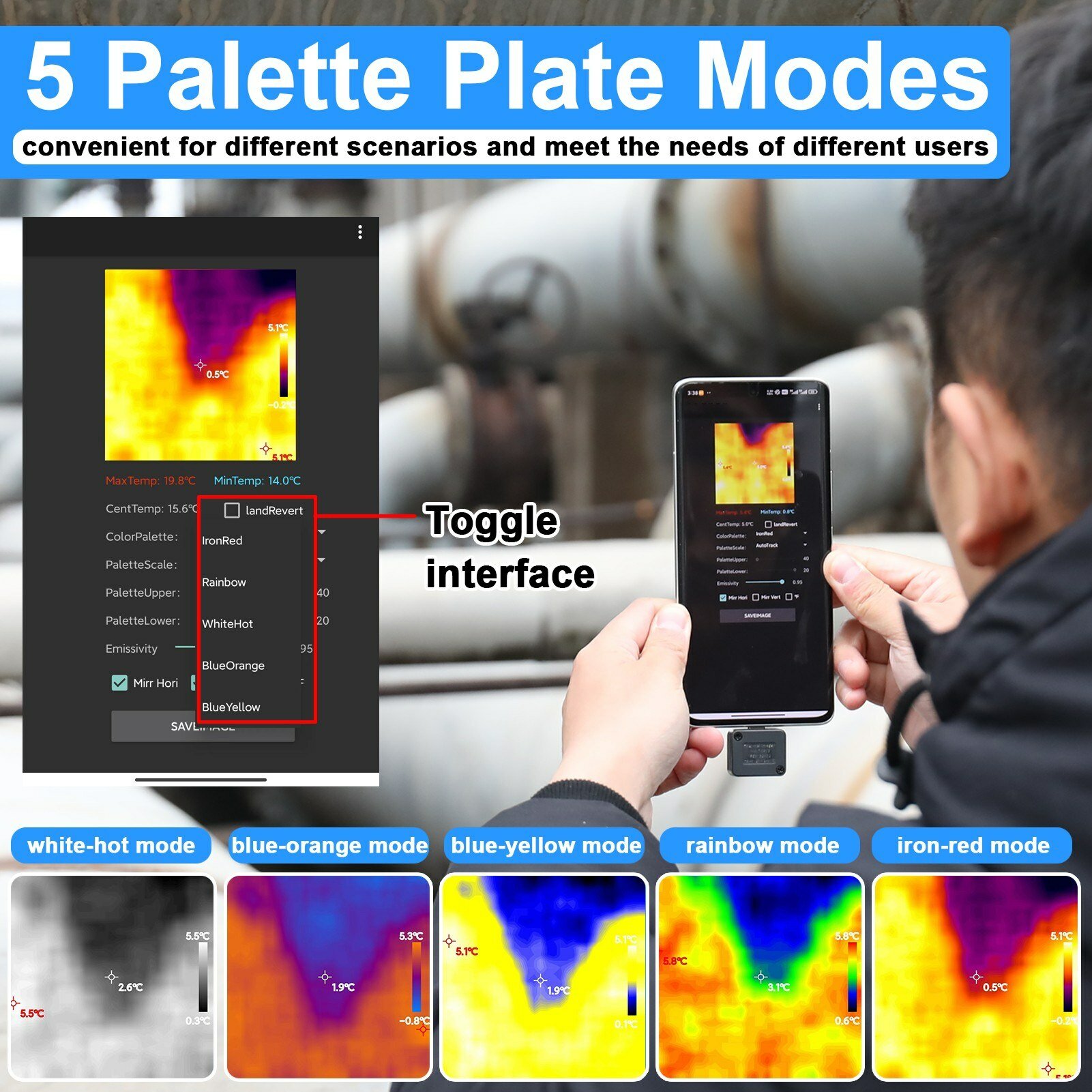

5 Color Palette Modes

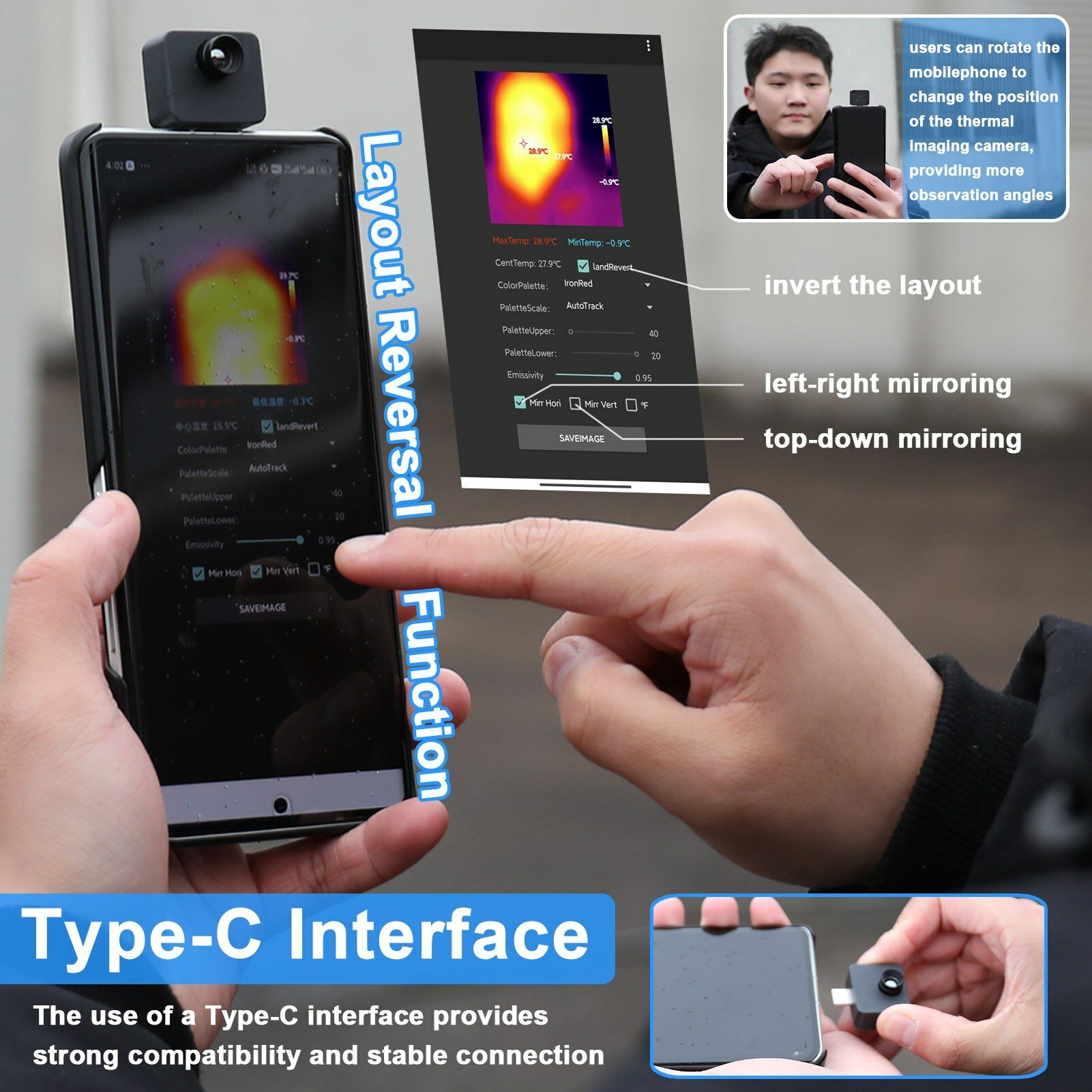

Type-C Interface & Layout Reversal Function

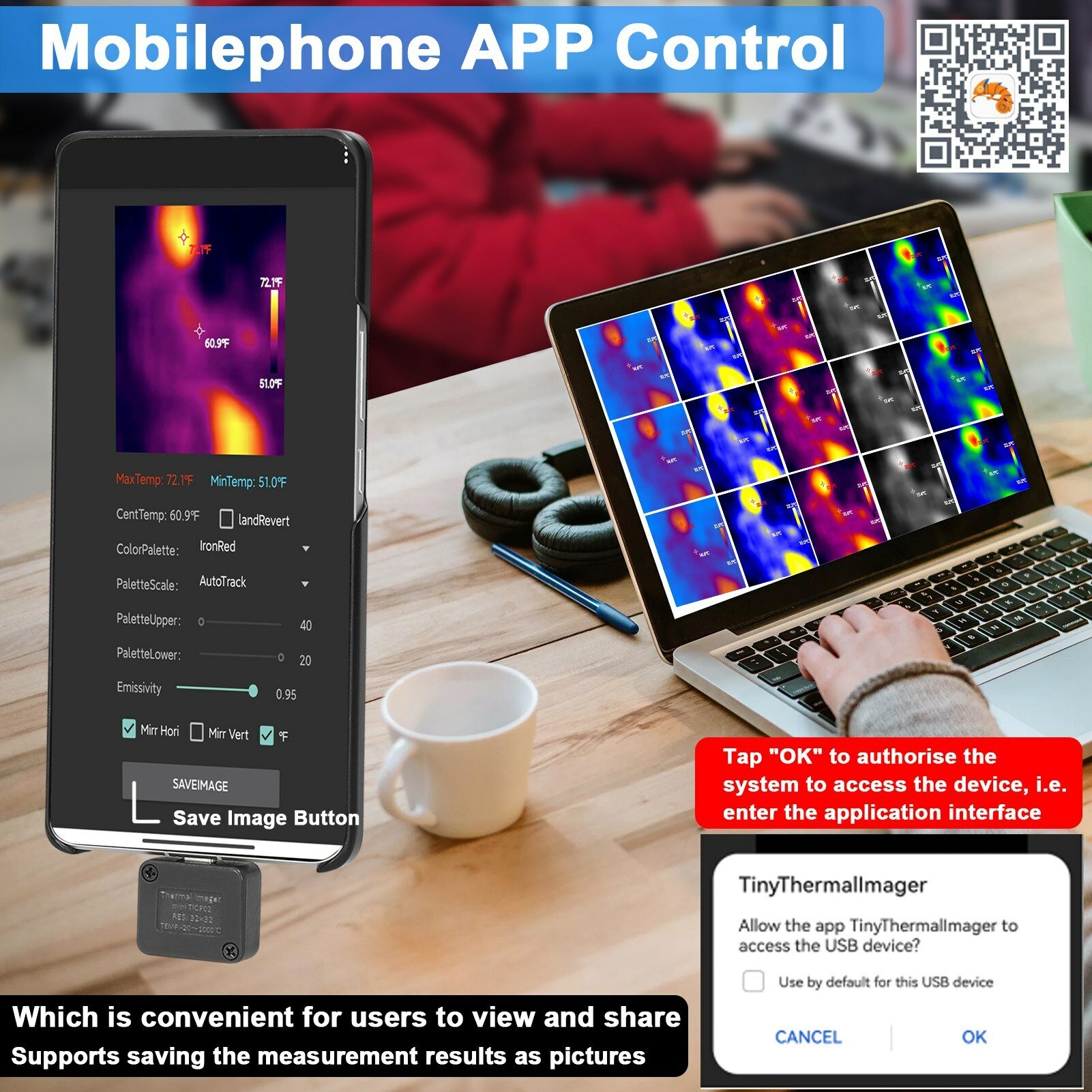

Mobilephone APP Control

Wide Applications

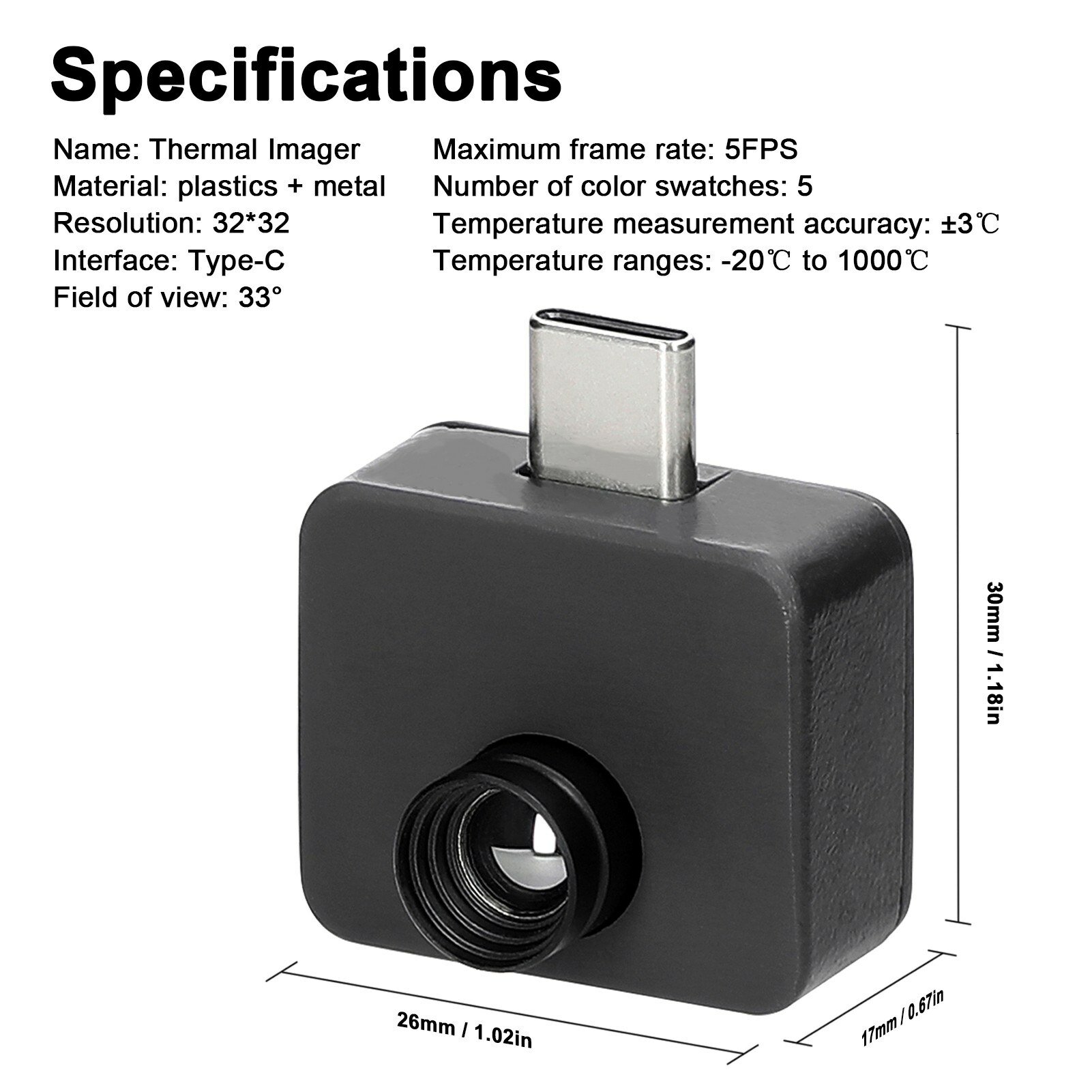

Name: Thermal Imager

Material: plastics + metal

Resolution: 32*32

Interface: Type-C

Cellphone system: Android 8-12, support for saving pictures to local

Field of view: 33°

Maximum frame rate: 5FPS

Number of color swatches: 5

Temperature measurement accuracy: ±3℃

Temperature ranges: -20℃ to 1000℃

Operating temperature: 0-50℃

Storage temperature: -40℃ to 80℃

Item size: 26 * 30 * 17mm / 1.02 * 1.18 * 0.67in

Item weight: 10g / 0.35ounce

Package size: 87 * 86 * 30mm / 3.43 * 3.39 * 1.18in

Package weight: 30g / 1.06ounce



1 x Thermal Imager
