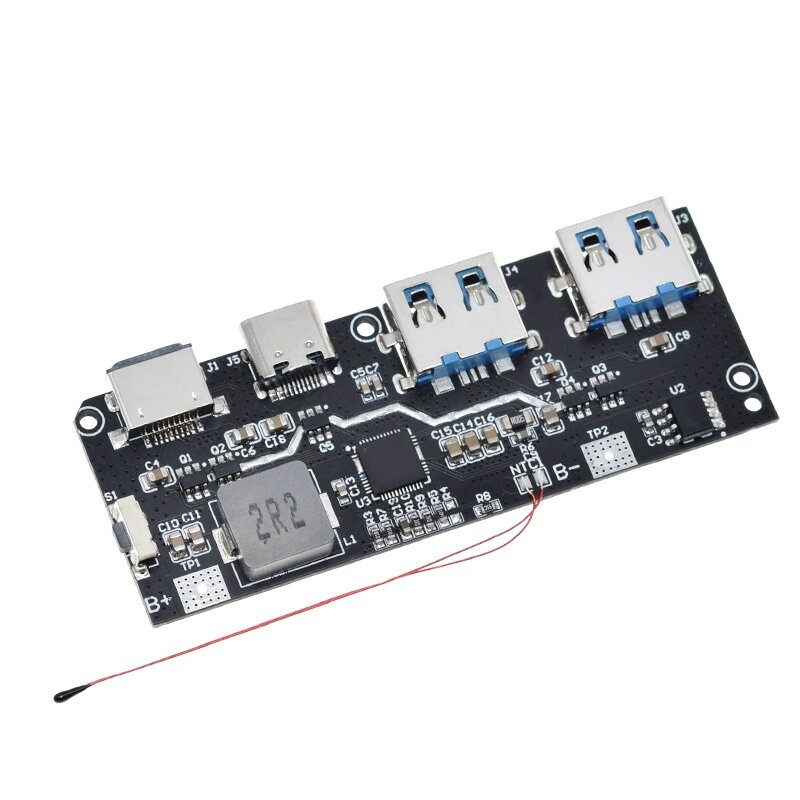

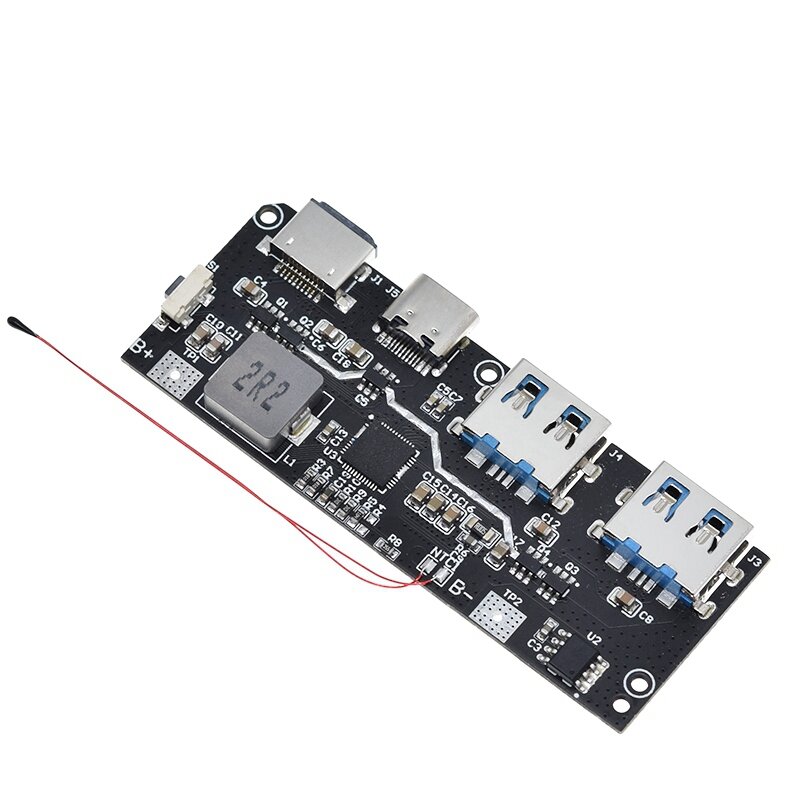

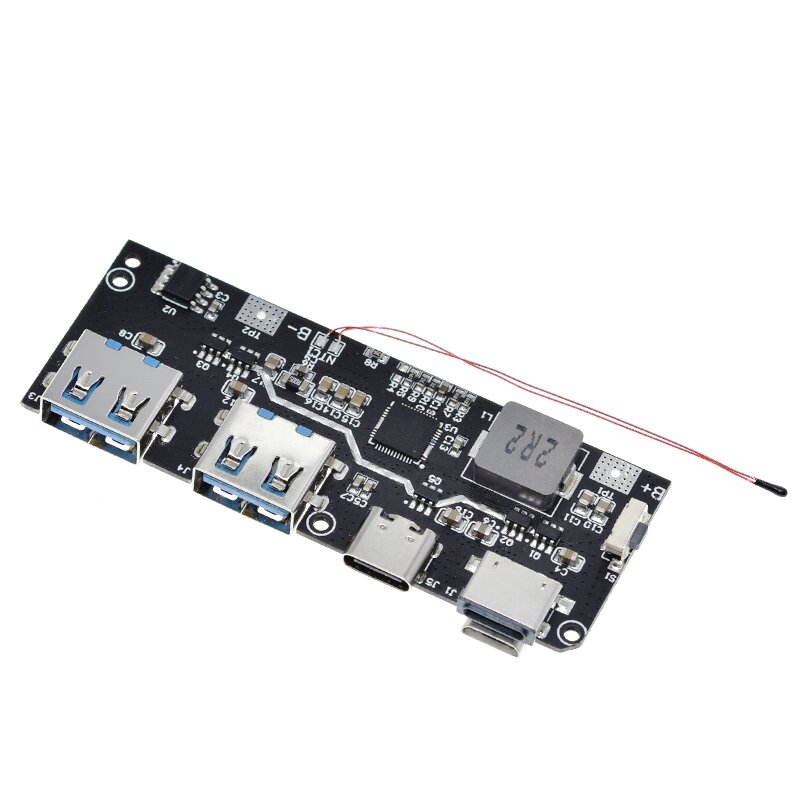

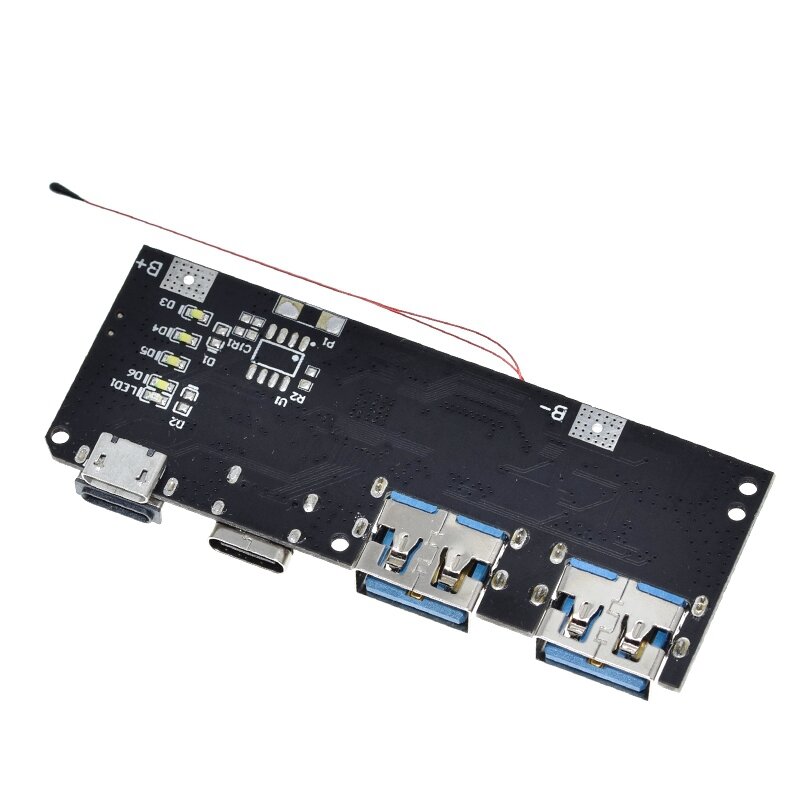

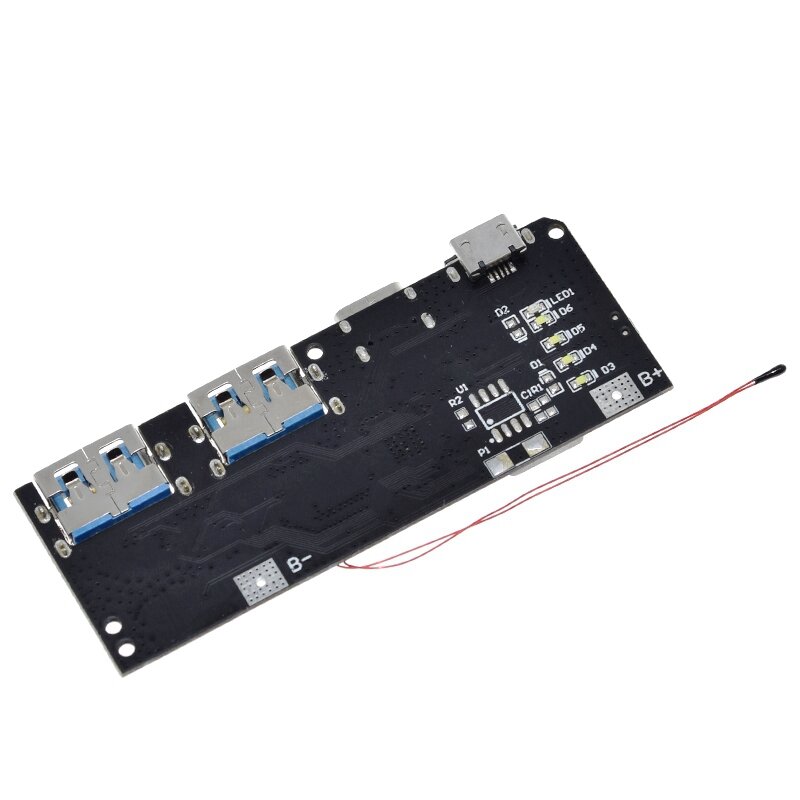

QC4.0 QC3.0 LED Dual USB 5V 4.5A 22.5W Micro/Type-C USB Mobile Power Bank 18650 Charging Module Temperature / Circuit Protection COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Specification:


【SYNCHRONOUS BOOST】:Output power up to 22.5w, efficiency up to 95%Automatic load detection / light load detectionSupport wireless charging modeSupport small current mode

【INPUT FAST CHARGING PROTOCOL】:Support pd3.0 / pd2.0Support AFCSupport FCPSupport SCPSupport pe1.1

【BC1.2 MODULE】:Support bc1.2 DCP modeSupport for apple / for Samsung mode

【BUILT IN 12BIT ADC FOR POWER METERING AND DISPLAY】:Built in coulometer for accurate electric quantity


Three Charging Process:
Trickle mode, constant current mode and constant voltage mode.
Integrated PPS/PD3.0/PD2.0 fast charging protocol, support input and output bidirectional fast charging.PPS output supports 5-5 9V@3A , 5-11V@2A , PD3.0/PD2.0 output support 5V@3A , 9V@2A, 12V@1.5A . The input voltage supports 5V/9V/ 12V.Integrated QC fast charging protocol, support QC4+/QC4/QC3.0/QC2.0, support class A.QC2.0 supports 5V/9V/ 12V output voltage. QC3.0 supports 5V-12V output voltage, 200mV / step.Integrated AFC fast charging protocol, output support 5V / 9V/ 12V. The input supports 5V/ 9V voltage.Integrated FCP fast charging protocol, output support 5V / 9V / 12V. The input supports 5V/9V voltage.Integrated SCP fast charging protocol, output support 5V@4.5A.Input support 5 5V 3A.Integrated with PE2.0 and PE1.1 fast charging protocol, PE2.0 supports 5V ~ 12V output voltage, 500mv / step. PE1.1 supports 5V / 7V/ 9V/ 12V output voltage. The input supports 5V/ 9V voltage.SFCP fast charging protocol is integrated to support 5V /9V / 12V output voltage.Integrated vooc fast charging protocol, output support 5V 4A


Attention Points:


3: Use crocodile clip motherboard test, please don't charge mobile phone. If the phone needs to be charged, it must be soldered (many buyers don't listen to it. Whenever there is a problem, they will tell us how the motherboard is broken, how the motherboard can't be charged quickly, how the motherboard can power off and restart, etc. Please operate according to the requirements, thank you for your cooperation)

5: The motherboard must preset the battery capacity, so the approximate battery capacity must be noed or explained to the customer service. Otherwise, the preset battery capacity of the case is 3000OMAH, and that of the single motherboard without the case is 2000OMAH.Or replace the resistor by yourself later.
